Cylinder Kit Yamaha 2006-2009 YZF450 2007-2015 WR450F 480cc Works Cylinder 21003-K01

Description

The Cylinder Works +3 mm big bore complete cylinder kit (21003-K01) is a direct bolt-on cylinder and piston package designed to increase engine displacement to 478 cc during a full top-end rebuild. It is supplied as a complete kit with the required gaskets and internal components for cylinder replacement and installation.

Features

  • Big bore cylinder and piston kit designed to increase engine displacement
  • Direct bolt-on replacement design requiring no replating or additional machining
  • Plated cylinder designed for durability and wear resistance
  • Cylinder supplied honed to specification to support straightforward piston installation
  • Complete kit supplied with piston, rings, pin, cir-clips and full gasket set for top-end rebuild work

Specifications

  • Manufacturer: The Cylinder Works
  • Part number: 21003-K01
  • Bore increase: +3 mm
  • Engine displacement: 478 cc
  • Cylinder plating: Nickel Silicon Carbide

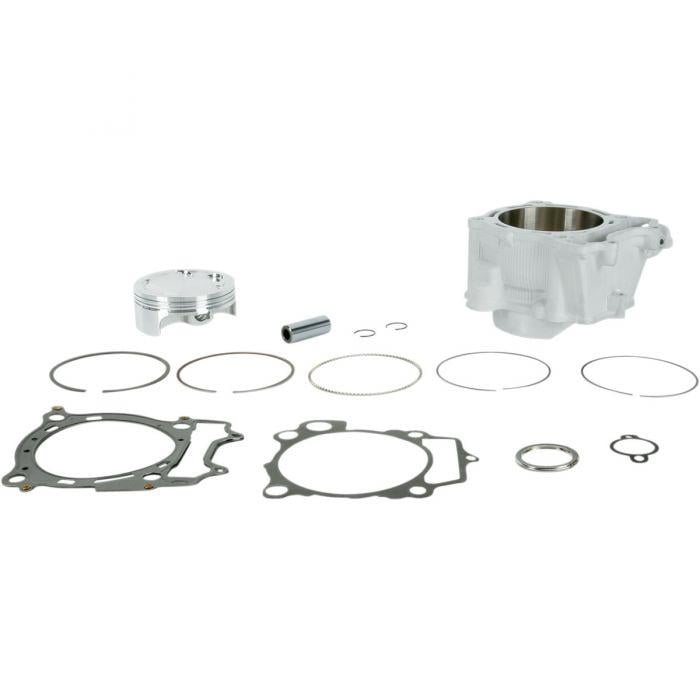

Included Items:

  • Cylinder
  • Piston
  • Wrist pin
  • (2) Cir-clips
  • Top ring
  • (2) Oil rings
  • Spacer ring
  • Cylinder head gasket
  • Cylinder gasket
  • Exhaust gasket
  • Case gasket

Cross-Reference OEM Part Numbers

  • 2S2-11311-00-00
  • 2S2-11311-10-00
  • 422-21003K
  • 0931-0174
  • 733826
  • 2792
  • HR21003K01
  • 77003-25
  • K8562D300-1ZA
  • WT400485100021

Vehicle Fitments

  • Yamaha YZ450F (2006)
  • Yamaha YZ450FSP 50th Anniversary Edition (2006)
  • Yamaha YZ450F (2007)
  • Yamaha YZ450F (2008)
  • Yamaha YZ450F (2009)
  • Yamaha WR450F (2007)
  • Yamaha WR450F (2008)
  • Yamaha WR450F (2009)
  • Yamaha WR450F (2010)
  • Yamaha WR450F (2011)
  • Yamaha WR450F (2012)
  • Yamaha WR450F (2013)
  • Yamaha WR450F (2014)
  • Yamaha WR450F (2015)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer Model Years
YAMAHA YZF 450 2006-2009
YAMAHA WRF 450 2007-2015
YAMAHA YZ F 450 2006-2009
YAMAHA WR F 450 2007-2015
YAMAHA YFZ BILL BALANCE EDITION 450 2010
YAMAHA WR F 450 2007-2012
YAMAHA YFZ X 450 2009-2015
YAMAHA YFZ X 450 2010-2021
YAMAHA YFZ R 450 2009-2015
YAMAHA YFZ R 450 2009-2017
