Cylinder Piston Kit 13-18 Cfmoto CF500AU 6 7 8 B S L U X Z Force CF550 0GR0-023100

Description

The CF550 cylinder and piston kit is intended to replace the cylinder-and-piston assembly during a CFMOTO engine repair. It brings together the cylinder block, piston components and gaskets needed for the replacement.

Specification

Cylinder bore = 91.00mm

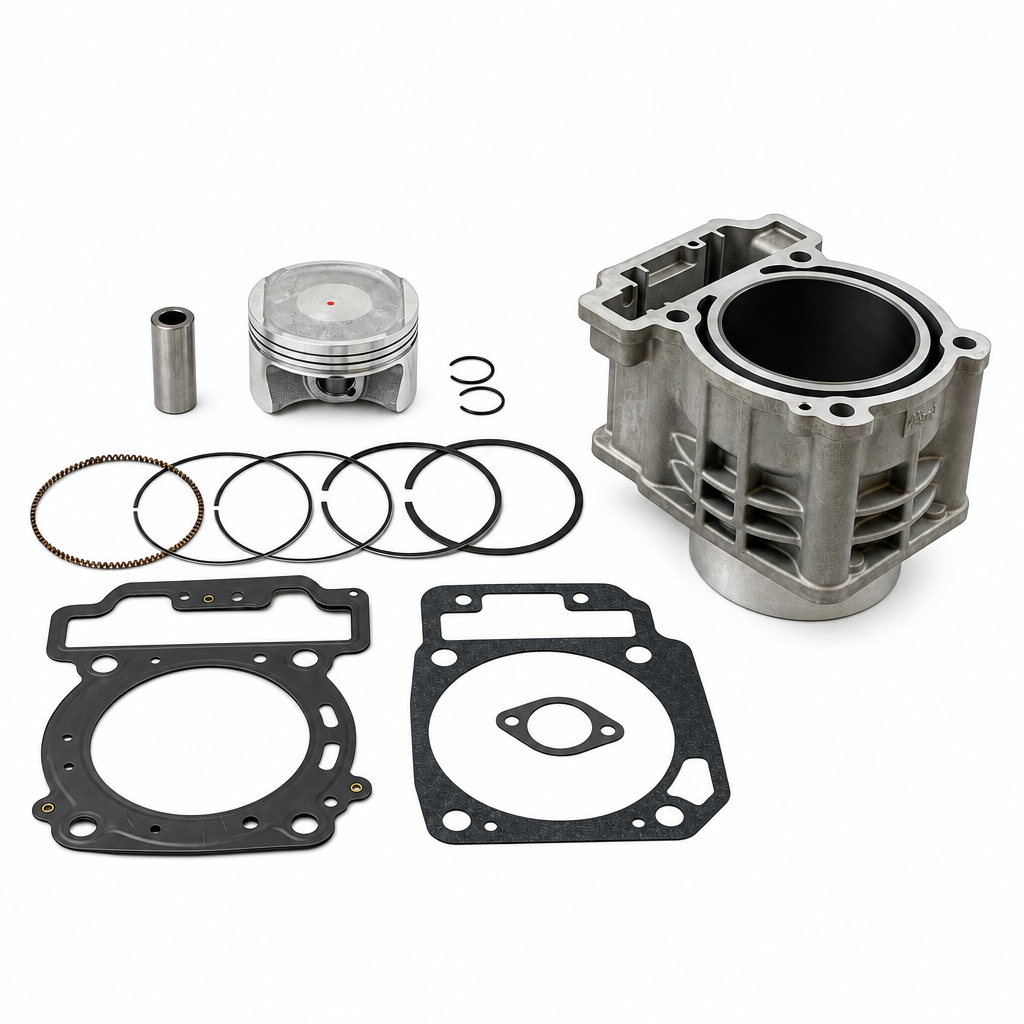

Kit Contents

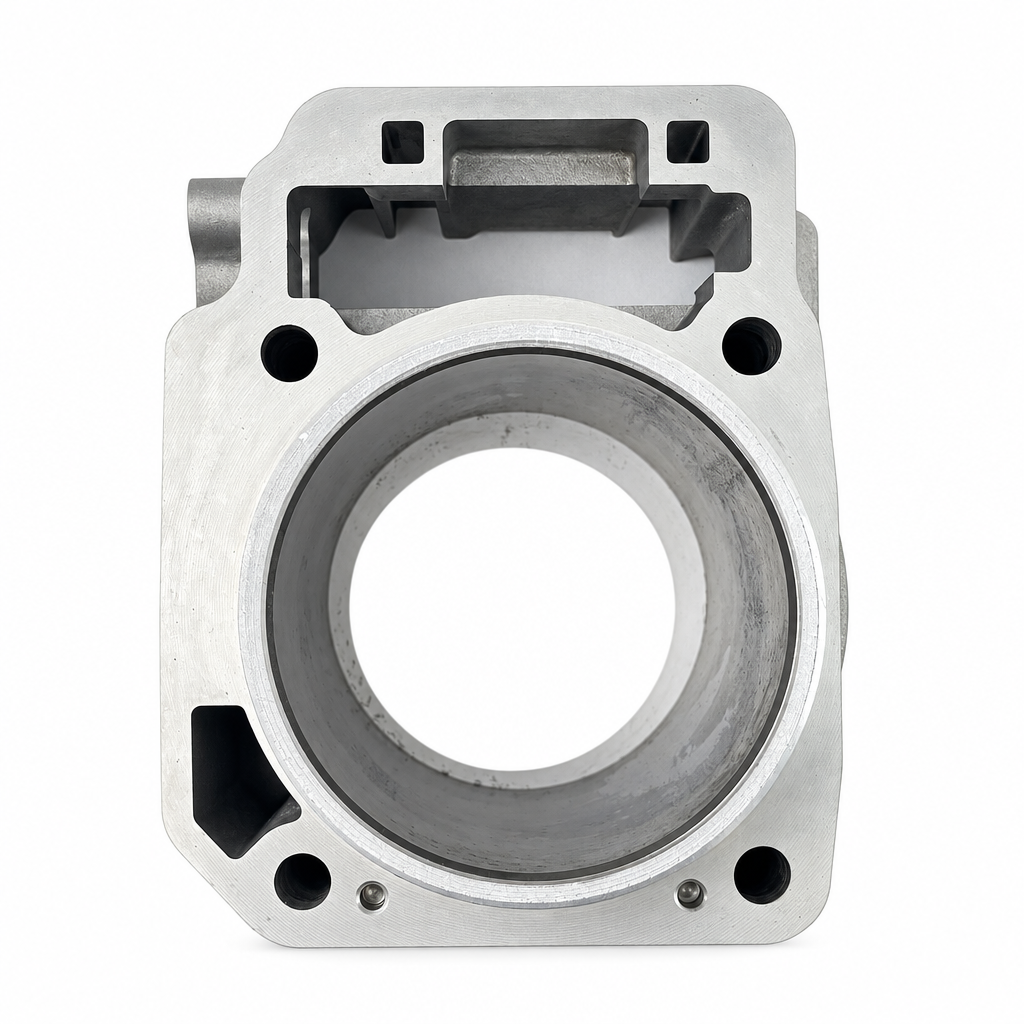

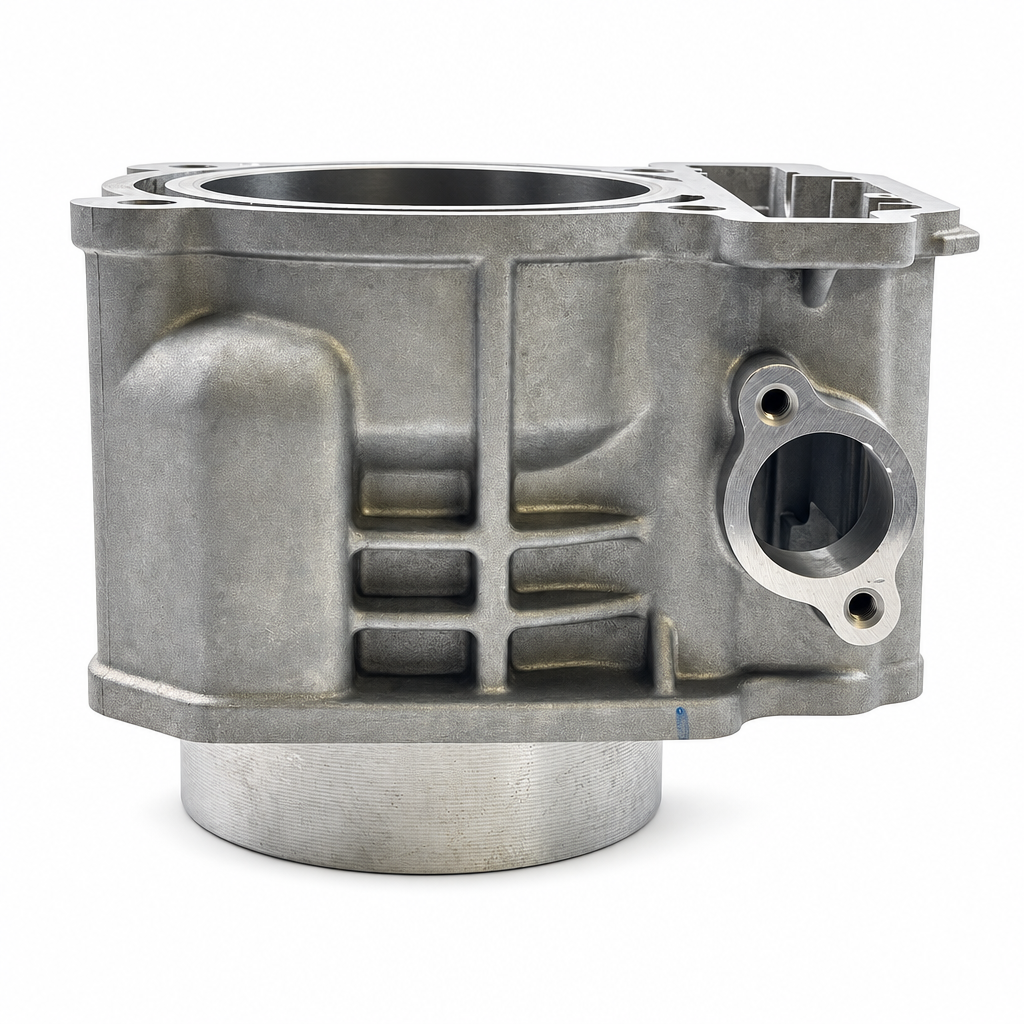

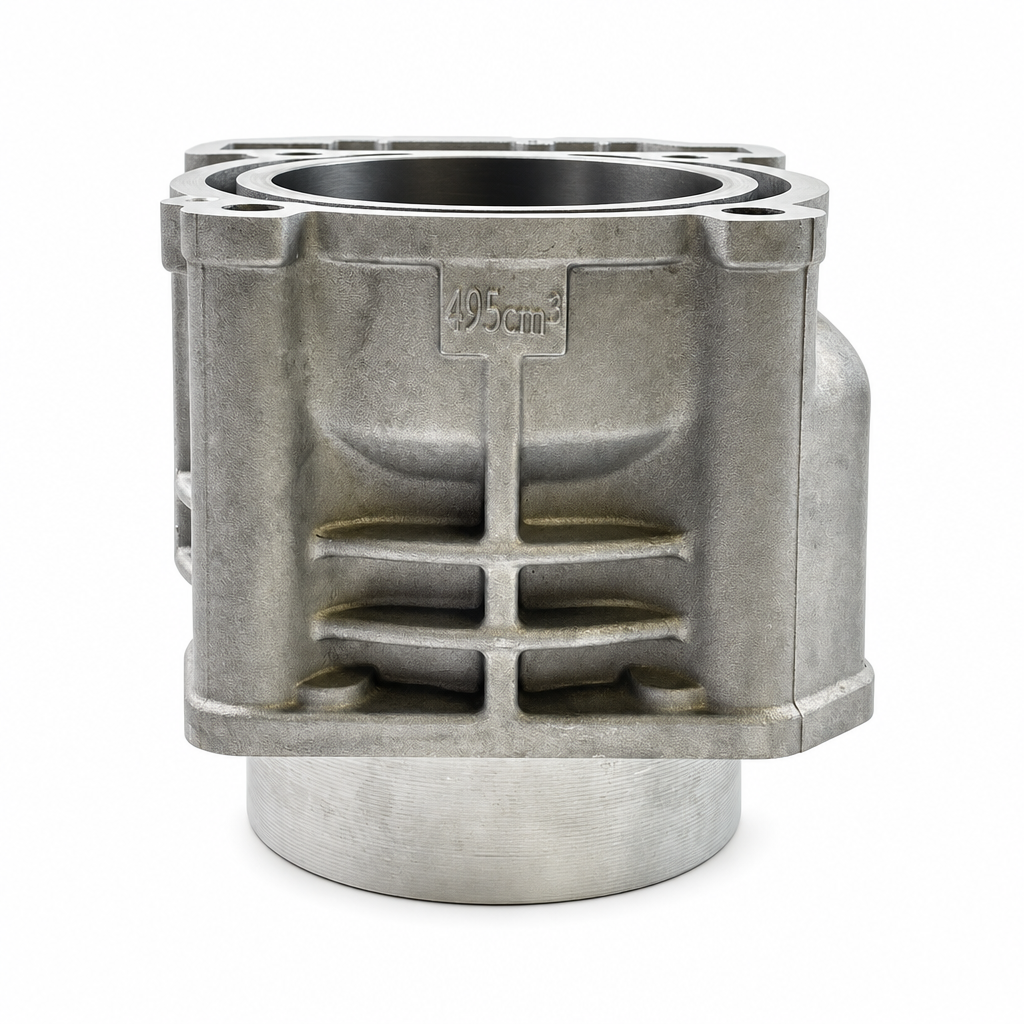

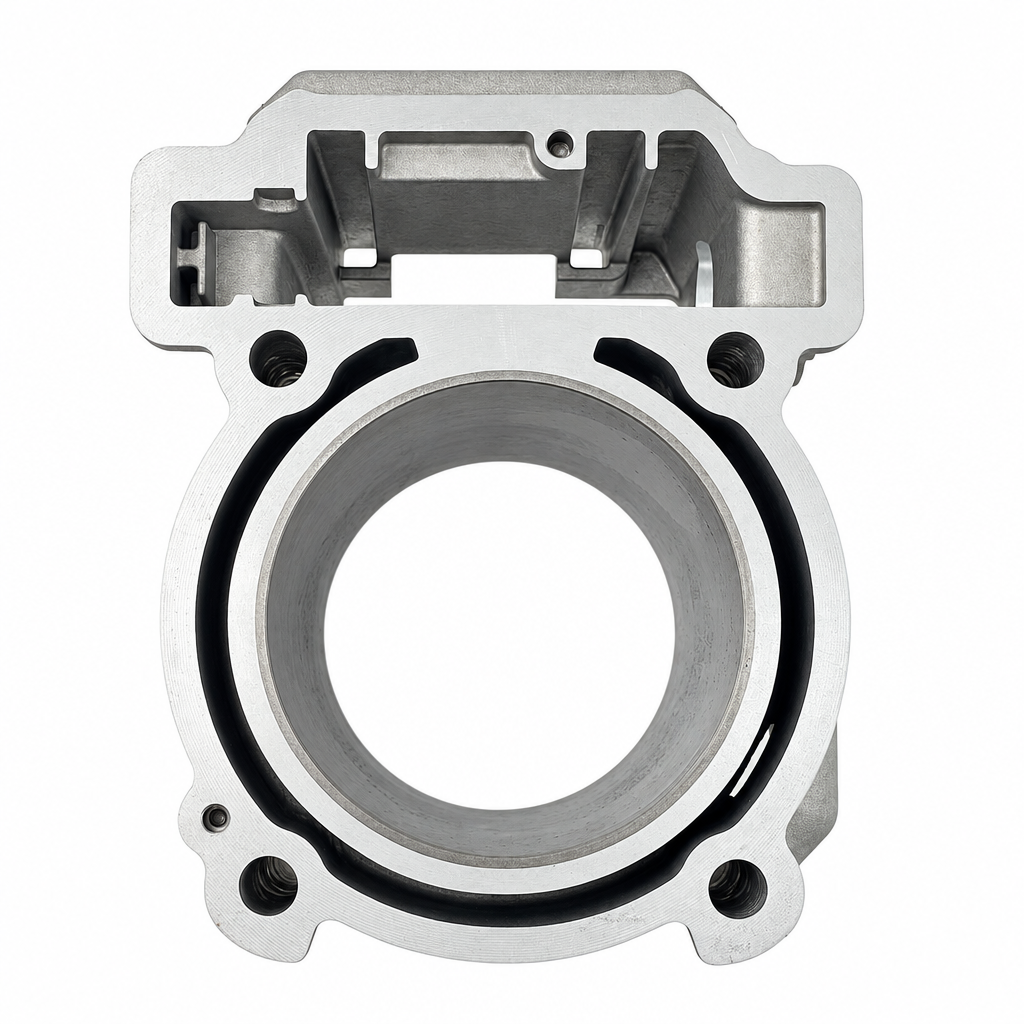

  • Cylinder block

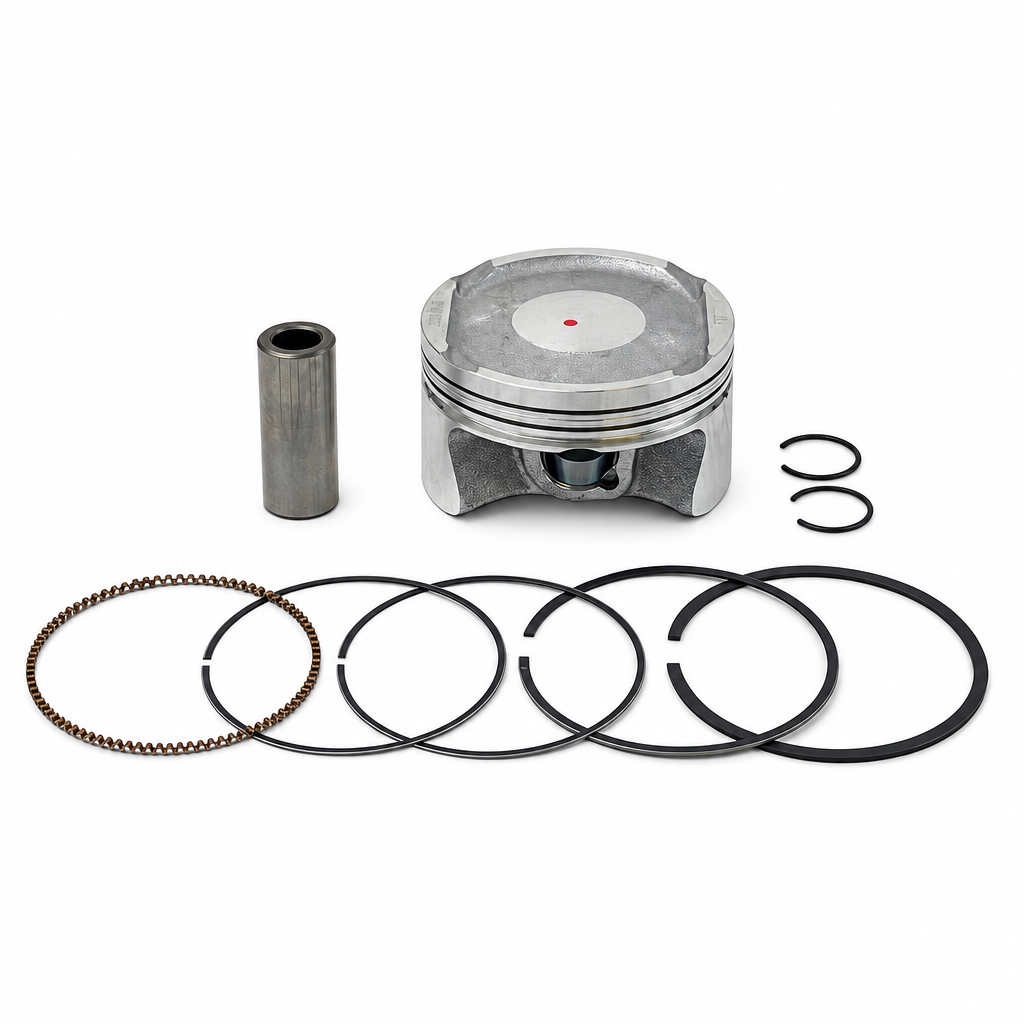

  • Piston and piston rings
  • Gudgeon pin and retaining clips
  • Gaskets

Cross-Reference OEM Part Numbers

  • 0GR0-023100 - CFMOTO OEM - Cylinder block - Kit Component
  • 0GR0-023001 - CFMOTO OEM - Cylinder base gasket - Kit Component
  • 0800-022200 - CFMOTO OEM - Cylinder head gasket - Kit Component
  • 0800-040002 - CFMOTO OEM - Piston pin - Kit Component
  • 0800-040005 - CFMOTO OEM - Piston pin circlip - Kit Component
  • 0800-0400A0 - CFMOTO OEM - Piston ring set - Kit Component
  • 0800-022200-00002 - CFMOTO OEM - Cylinder head gasket - Supersedes 0800-022200
  • 0800-040002-00001 - CFMOTO OEM - Piston pin - Supersedes 0800-040002
  • 0GR0-023100-00030 - CFMOTO OEM - Mark 1 cylinder body - Superseded by 0GR0-023100-20011
  • 0GR0-023100-00040 - CFMOTO OEM - Mark 2 cylinder body - Superseded by 0GR0-023100-20021
  • 0GR0-023100-20010 - CFMOTO OEM - Mark 1 cylinder body assembly - Superseded by 0GR0-023100-20011
  • 0GR0-023100-20020 - CFMOTO OEM - Mark 2 cylinder body assembly - Superseded by 0GR0-023100-20021
  • 0GR0-023100-20011 - CFMOTO OEM - Mark 1 cylinder body assembly - Supersedes 0GR0-023100-20010
  • 0GR0-023100-20021 - CFMOTO OEM - Mark 2 cylinder body assembly - Supersedes 0GR0-023100-20020
  • 0800-040001-20010 - CFMOTO OEM - Mark 1 piston - Superseded by 0800-040001-20012
  • 0800-040001-20020 - CFMOTO OEM - Mark 2 piston - Superseded by 0800-040001-20022
  • 0800-040001-20012 - CFMOTO OEM - Mark 1 piston - Supersedes 0800-040001-20010
  • 0800-040001-20022 - CFMOTO OEM - Mark 2 piston - Supersedes 0800-040001-20020
  • 0JYA-0400B0 - CFMOTO OEM - Piston ring set - Alternative Part

Vehicle Fitments

CFMOTO

  • CF500AU-6B (2016–2018)
  • CF500AU-7L (2016–2018)
  • CF500AU-7S (2016–2018)
  • CF500AU-8L (2016–2018)
  • CF500AU-8S (2016–2018)
  • CF500AU-6B (2016–2018)
  • CF500AU-7L (2016–2018)
  • CF500AU-7S (2016–2018)
  • CF500AU-8L (2016–2018)
  • CF500AU-8S (2016–2018)
  • UFORCE 550 (2013–2018)
  • XFORCE 550 (2014–2018)
  • ZFORCE 550 (2014–2018)
