Cylinder & Piston Kit With Gaskets 56.00mm Std 74-81 Yamaha DT125 4-STUD Head

Description

Cylinder and piston kit for Yamaha DT125 trail bikes with 4-stud head, using a 56 mm bore aluminium cylinder with a cast iron liner. Supplied with piston, rings, pin and gaskets for a direct OEM-style top-end replacement on 1974–1981 models. The cylinder can be rebored when required.

Features

  • Direct OEM replacement
  • Meets or exceeds OEM quality
  • 4-stud head models only
  • Aluminium cylinder with cast iron liner; can be rebored
  • Supplied with head and base gaskets
  • Some sharp edges may need attention before fitting
  • Easy to install; seek professional assistance if unsure
  • Cost-effective replacement option

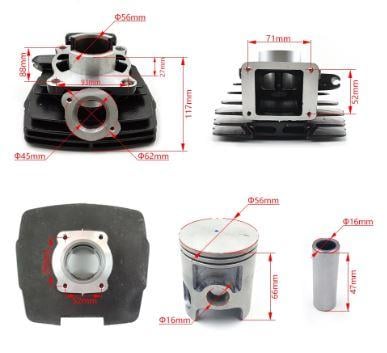

  • Check the image before ordering to avoid mistakes

Specifications

  • Part number: 56-K2911.56.CLK
  • Bore size: 56 mm
  • Cylinder material: aluminium
  • Liner material: cast iron
  • Components included: cylinder block; piston; piston rings kit; two piston pin retaining rings; piston pin; 4-hole head gasket; base gasket

Cross-Reference OEM Part Numbers

  • Cylinder: 2A6-11311-00-00
  • Gasket, Cylinder (base): 18G-11351-01-00; 18G-11351-02-00
  • Gasket, Cylinder Head: 2A6-11181-00-00
  • Piston (standard): 2A6-11631-00-96
  • Piston ringset: 2N4-11610-10-00 (alternate)
  • Piston pin: 137-11633-00-00; 137-11633-10-00

Vehicle Fitments

  • Yamaha DT125 1974–1981 (4-stud head models)

Cylinder & Piston Kit With Gaskets 56.00mm Std 74-81 Yamaha DT125 4-STUD Head

Product form

Cylinder and piston kit for Yamaha DT125 trail bikes with 4-stud head, using a 56 mm bore aluminium cylinder with... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-K2911.56.CLKB
    Barcode: 0120000052684

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Cylinder and piston kit for Yamaha DT125 trail bikes with 4-stud head, using a 56 mm bore aluminium cylinder with a cast iron liner. Supplied with piston, rings, pin and gaskets for a direct OEM-style top-end replacement on 1974–1981 models. The cylinder can be rebored when required.

    Features

    • Direct OEM replacement
    • Meets or exceeds OEM quality
    • 4-stud head models only
    • Aluminium cylinder with cast iron liner; can be rebored
    • Supplied with head and base gaskets
    • Some sharp edges may need attention before fitting
    • Easy to install; seek professional assistance if unsure
    • Cost-effective replacement option
    • Check the image before ordering to avoid mistakes

    Specifications

    • Part number: 56-K2911.56.CLK
    • Bore size: 56 mm
    • Cylinder material: aluminium
    • Liner material: cast iron
    • Components included: cylinder block; piston; piston rings kit; two piston pin retaining rings; piston pin; 4-hole head gasket; base gasket

    Cross-Reference OEM Part Numbers

    • Cylinder: 2A6-11311-00-00
    • Gasket, Cylinder (base): 18G-11351-01-00; 18G-11351-02-00
    • Gasket, Cylinder Head: 2A6-11181-00-00
    • Piston (standard): 2A6-11631-00-96
    • Piston ringset: 2N4-11610-10-00 (alternate)
    • Piston pin: 137-11633-00-00; 137-11633-10-00

    Vehicle Fitments

    • Yamaha DT125 1974–1981 (4-stud head models)
