Cylinder Sleeve 70-76 Ossa Mar Sdr Replica Explorer Super Pioneer 250 Vintco OW-118-052

Description

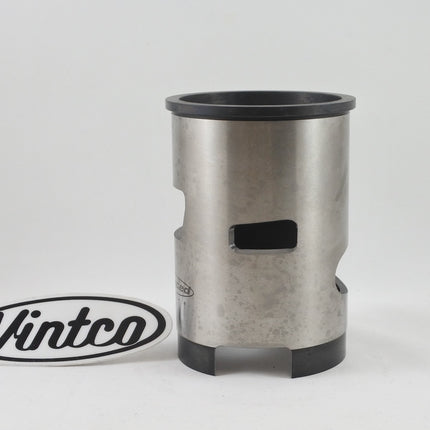

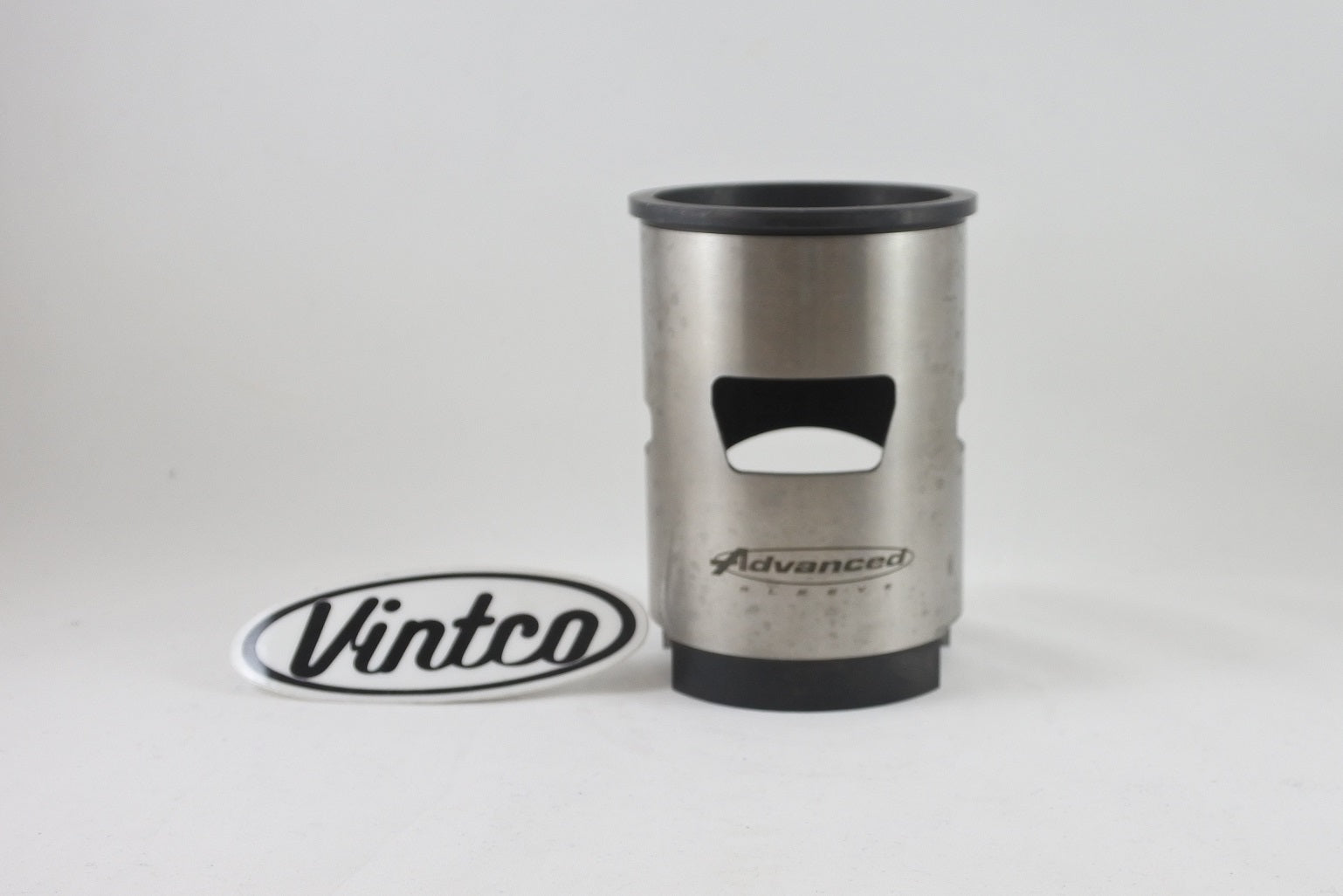

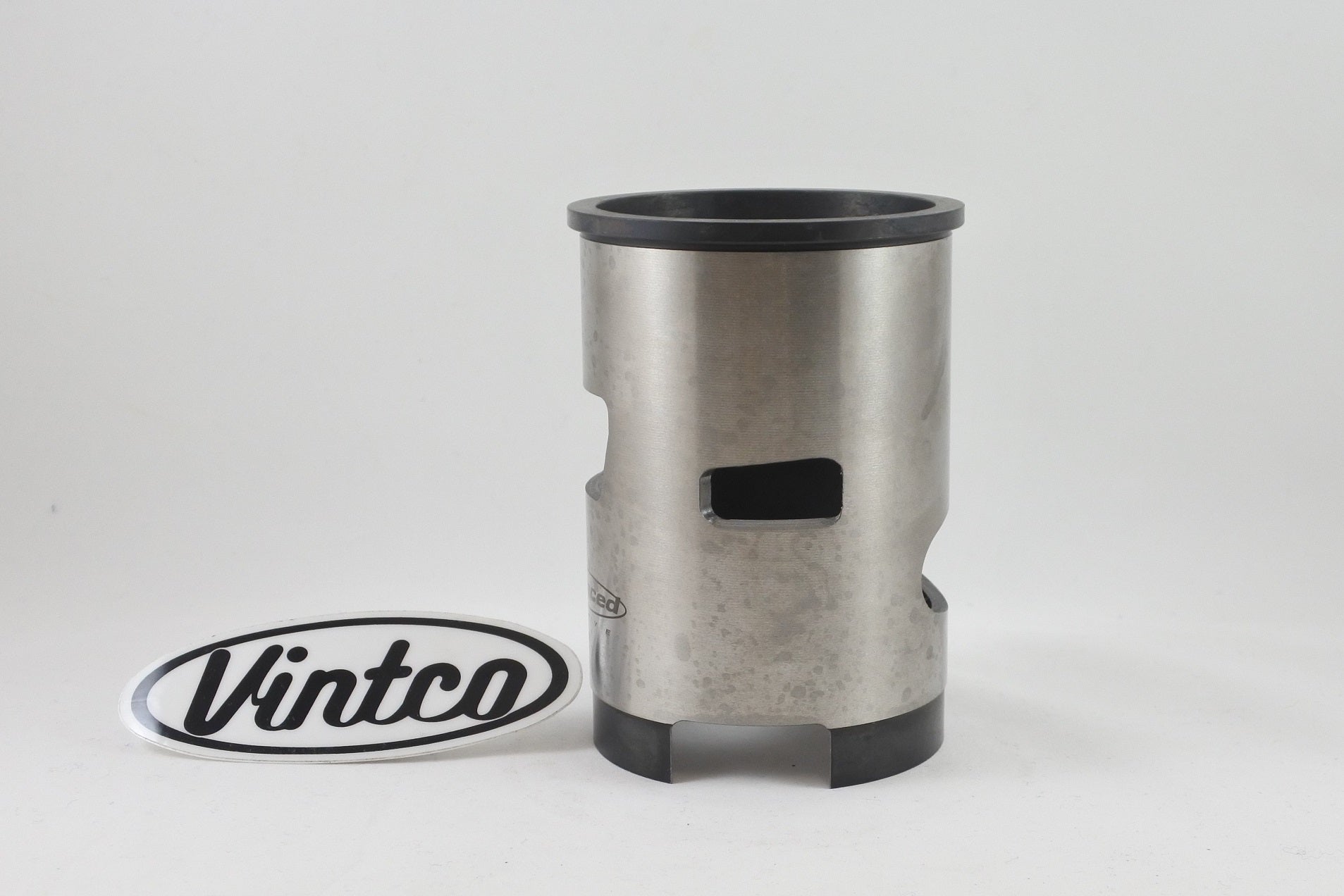

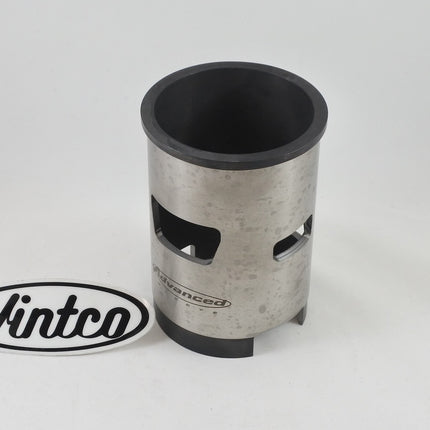

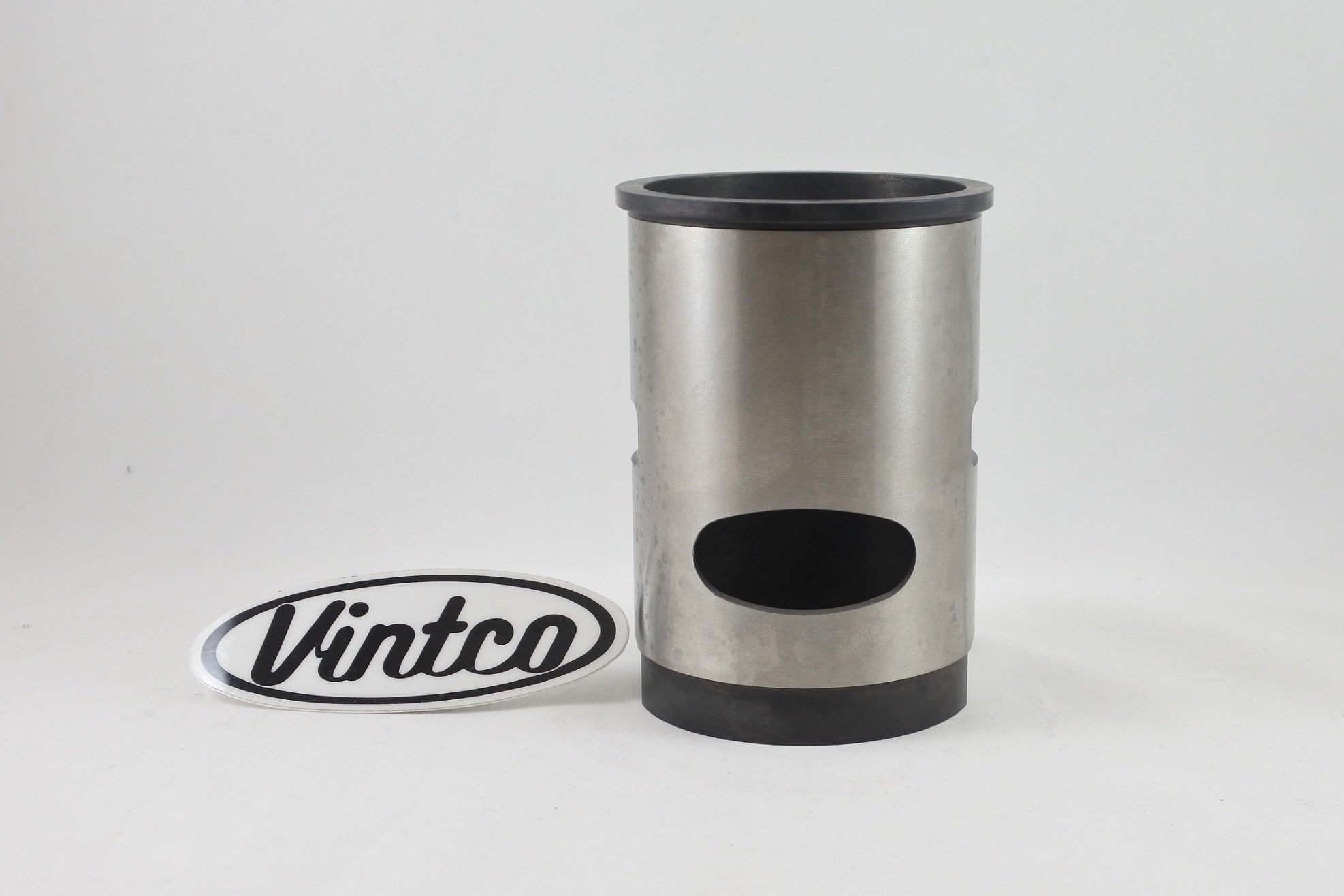

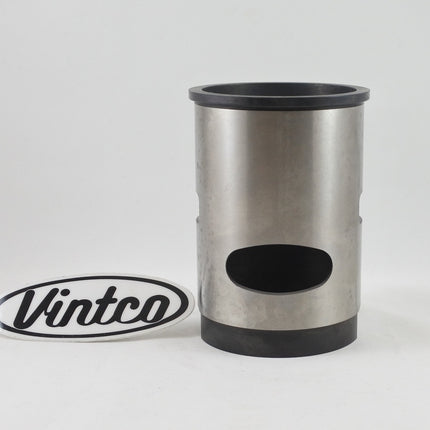

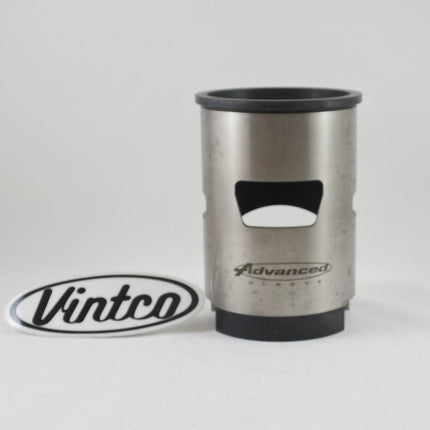

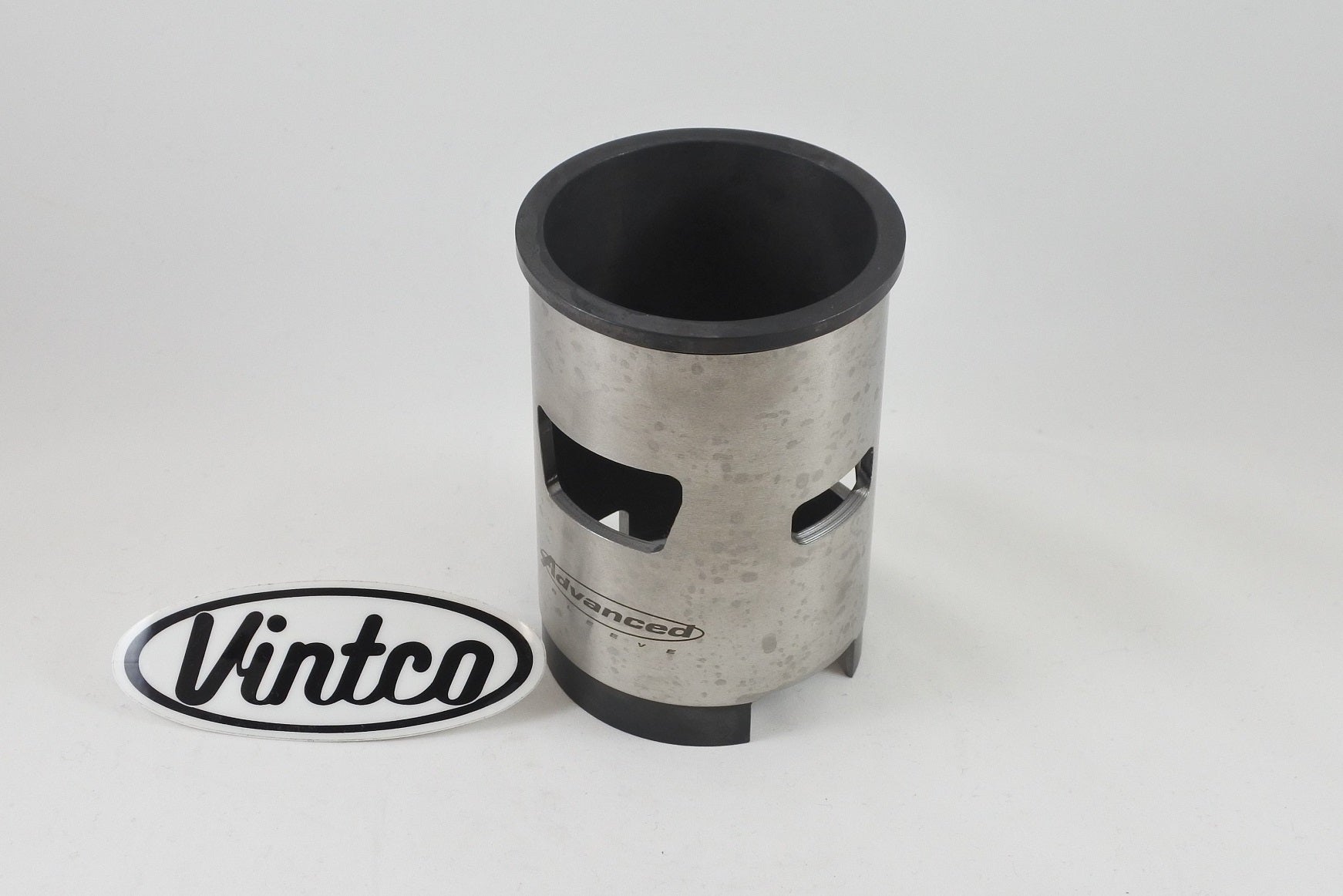

This VintCo cylinder sleeve is a replacement cast-iron liner for vintage Ossa 250 models, intended for installation by an experienced and qualified machinist when rebuilding a worn or damaged cylinder. It is manufactured in the USA for VintCo by Advanced Sleeve and is designed with correctly angled ports to reduce the amount of port-matching work required. The sleeve can be bored and honed to suit the stock-size VintCo piston kit specified for this application.

Features

  • Replacement cylinder sleeve for vintage Ossa 250 models
  • Suitable for cylinder restoration and rebuild work
  • USA-made cast-iron construction
  • Made for VintCo by Advanced Sleeve
  • Ports are angled correctly to reduce port-matching work
  • Intended for installation by an experienced and qualified machinist
  • Can be bored and honed to suit the stock-size VintCo piston kit

Specifications

  • VintCo Part Number: OW-118-052
  • Piston Part Number: OW-133-003-S.00
  • Bore: 72 mm
  • Height: 115.8 mm
  • Outside Diameter: 78 mm
  • Flange Outside Diameter: 82.95 mm
  • Flange Height: 4.1 mm
  • Wall Thickness: 3.5 mm
  • Spigot Outside Diameter: 76.8 mm
  • Spigot Height: 13 mm
  • Exhaust Port Location: 37.6 mm

Vehicle Fitments

  • 1970 Ossa Pioneer 250cc
  • 1971 Ossa Pioneer 250cc
  • 1972 Ossa Pioneer 250cc
  • 1972 Ossa MAR Mick Andrews Replica 250cc
  • 1973 Ossa SDR Six Day Replica
  • 1973 Ossa Explorer 250cc
  • 1973 Ossa MAR Mick Andrews Replica 250cc
  • 1974 Ossa Explorer 250cc
  • 1974 Ossa Super Pioneer
  • 1975 Ossa Super Pioneer
  • 1976 Ossa Super Pioneer

Cylinder Sleeve 70-76 Ossa Mar Sdr Replica Explorer Super Pioneer 250 Vintco OW-118-052
