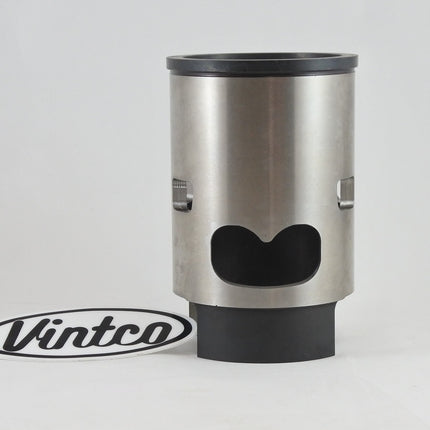

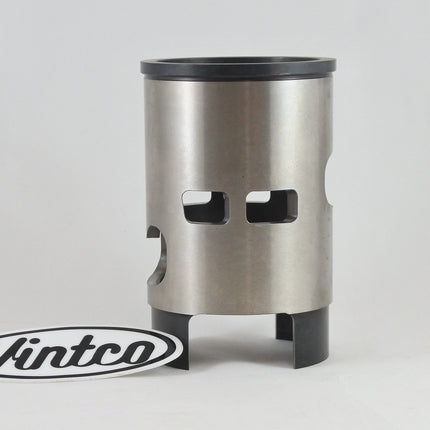

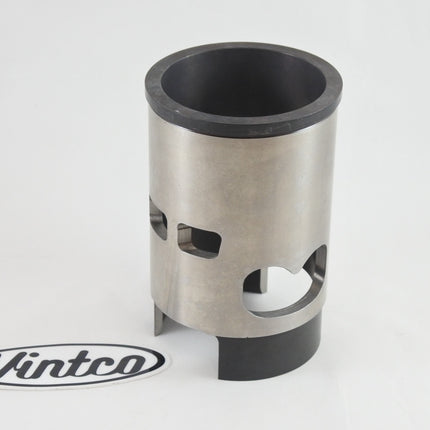

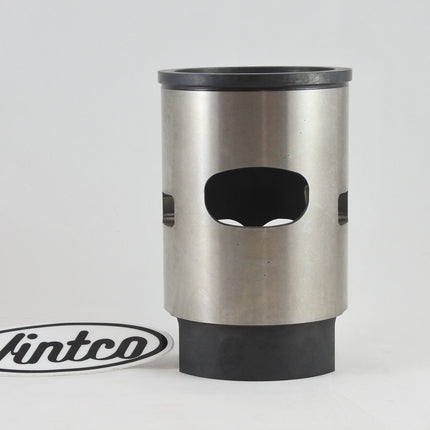

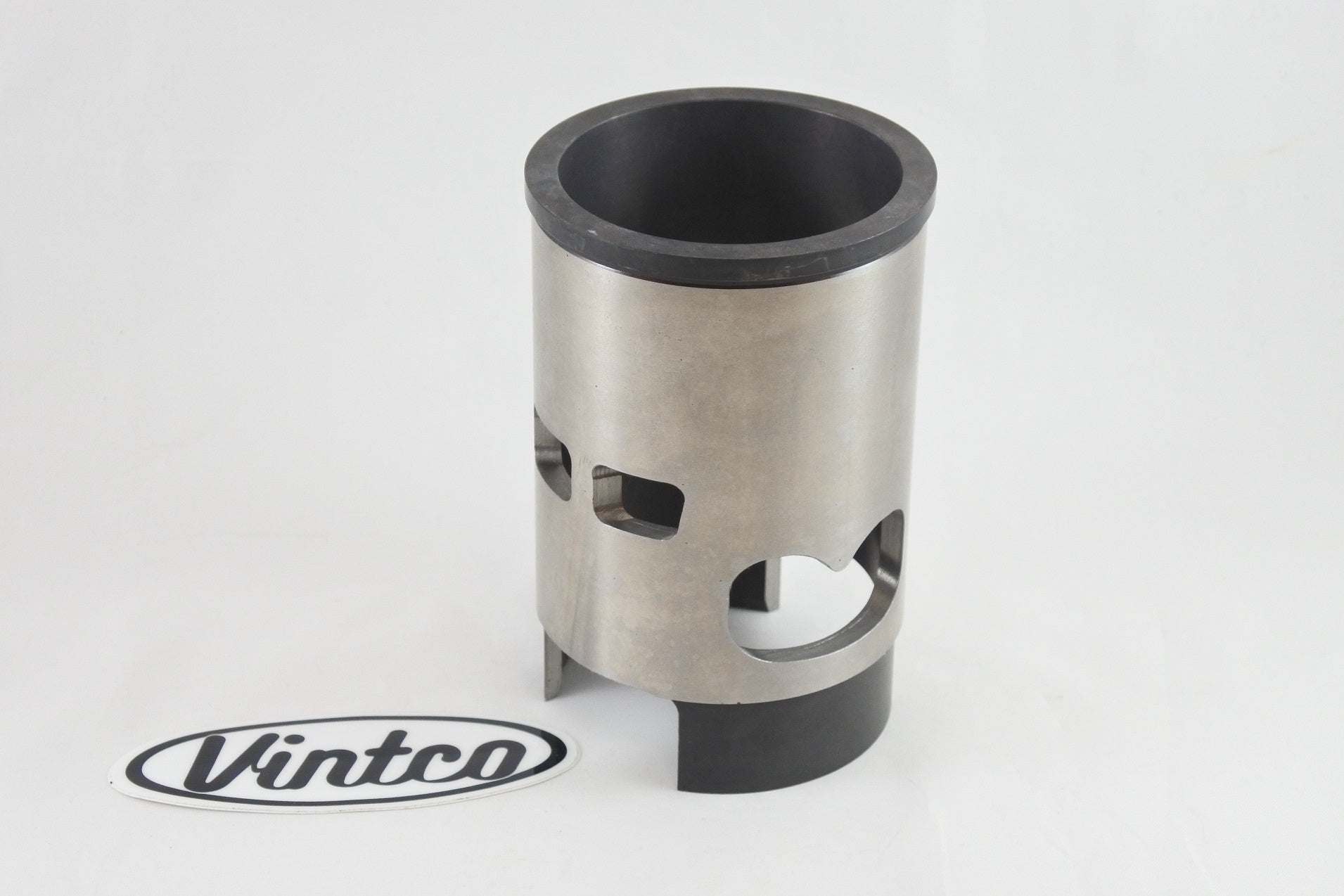

Cylinder Sleeve 72-75 Kawasaki H2 750 71mm Vintco SLK02A

Description

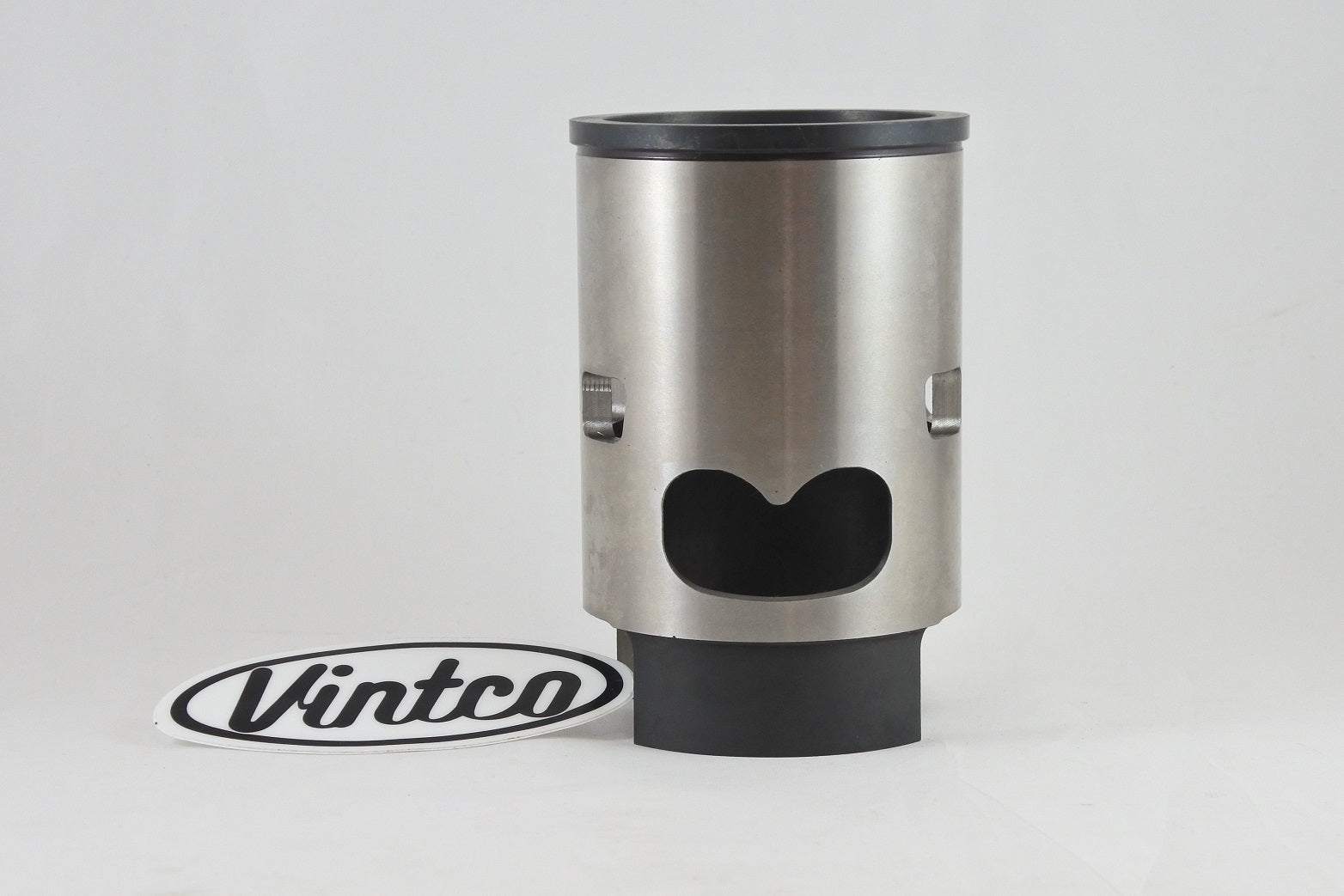

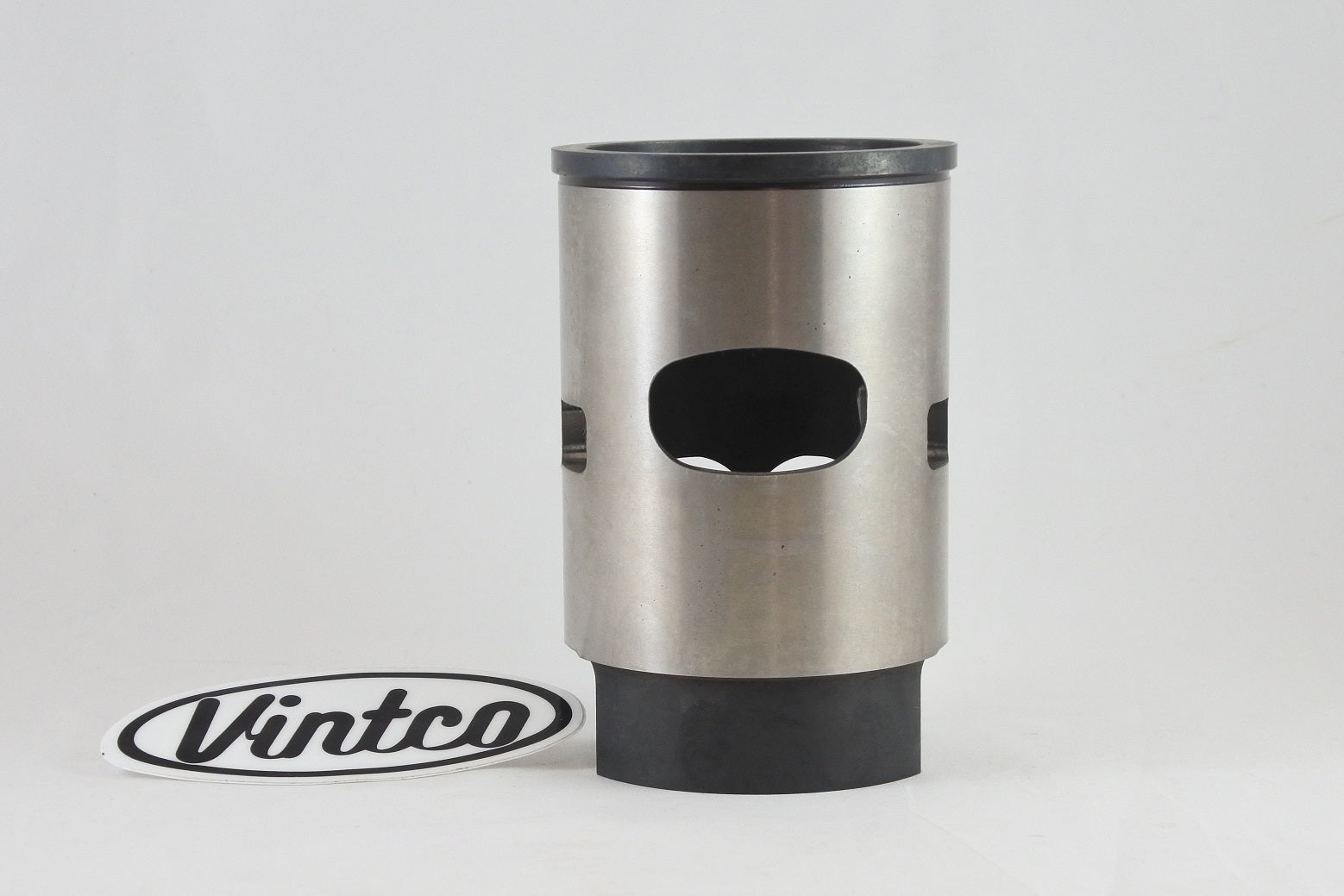

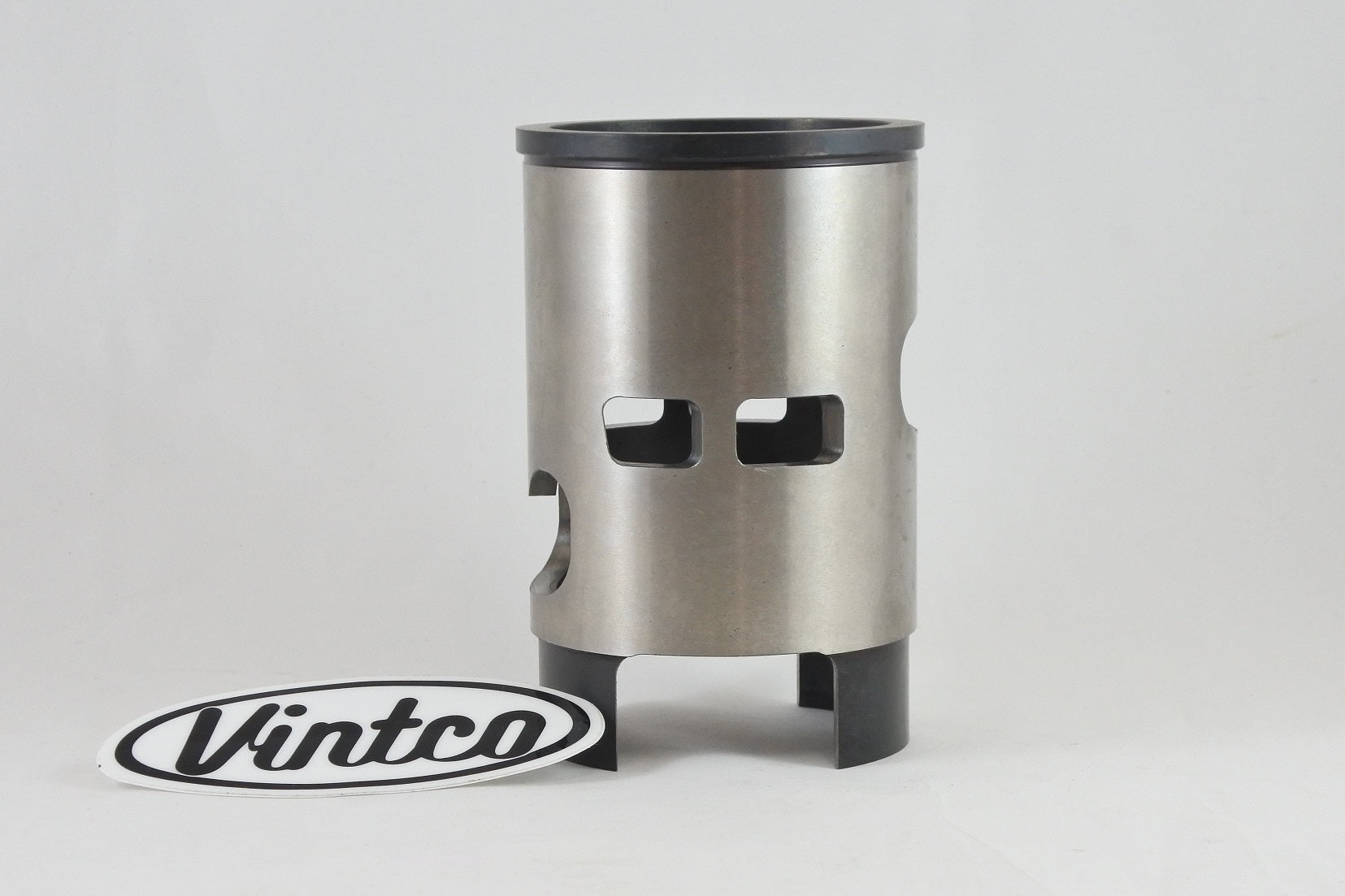

VintCo SLK02A is a USA-made cast-iron cylinder sleeve for 1972-1975 Kawasaki H2-750 models. Supplied for one cylinder only and made for VintCo by Advanced Sleeve, it provides a replacement option where original cylinders are difficult to source. The sleeve is manufactured using modern materials and production methods for OEM-level fit and performance, with correctly angled ports to reduce port-matching work. It can be bored and honed to suit a stock-size VintCo piston kit, and the listed dimensions are intended for installation by an experienced and qualified machinist.

Features

  • Replacement cylinder sleeve for vintage Kawasaki H2-750 models
  • Fits one cylinder only
  • Correctly angled ports reduce port-matching work compared with other sleeves
  • Can be bored and honed to suit a stock-size VintCo piston kit
  • Original sleeves must be machined out; they do not press out

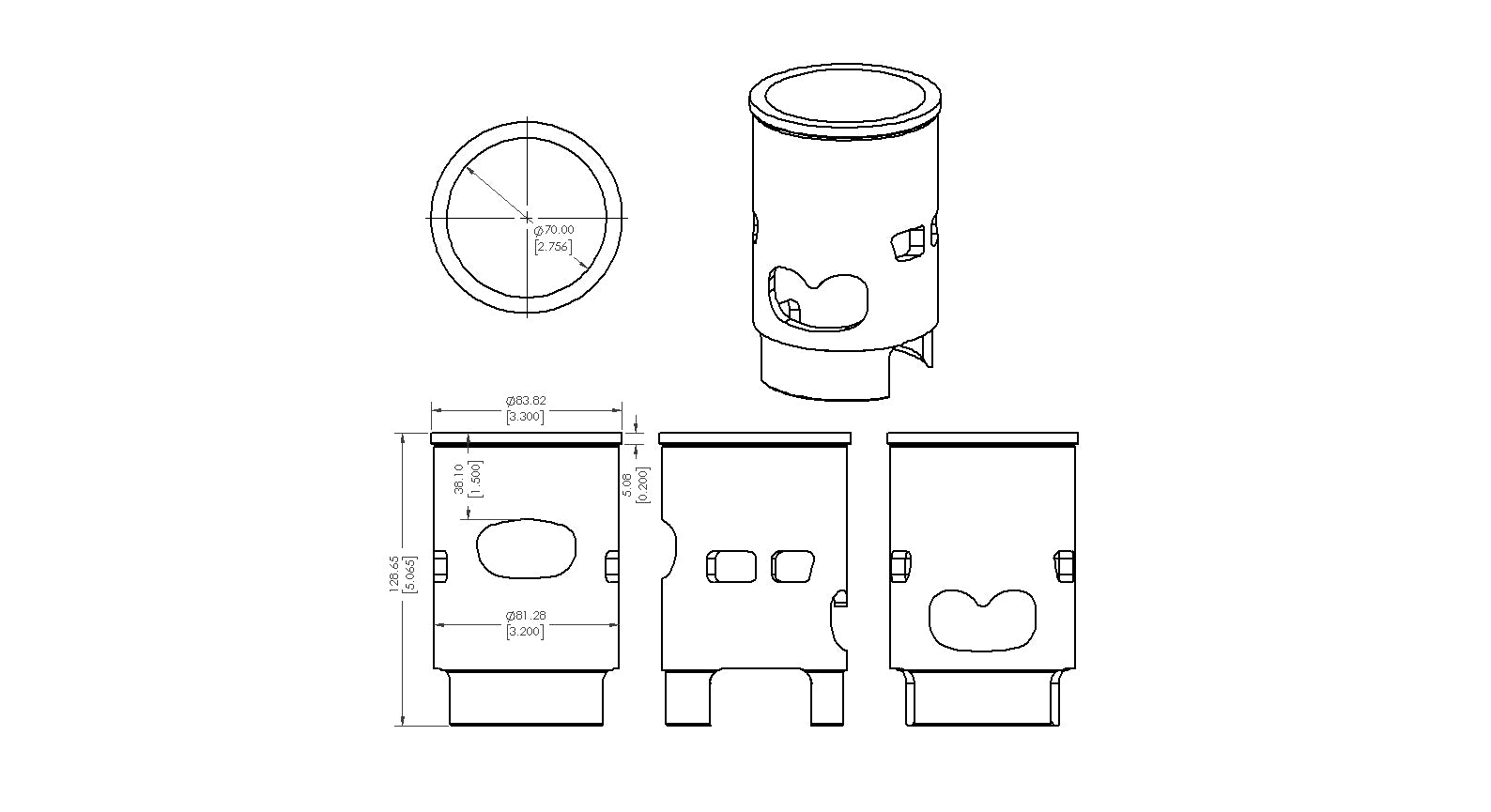

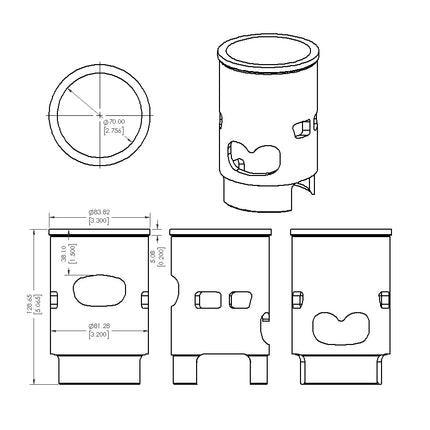

Specifications

  • VintCo Part Number: SLK02A
  • Made for VintCo by Advanced Sleeve
  • Material: Cast iron
  • Country of manufacture: USA
  • Compatible piston part number: PSK02-00
  • Bore: 71 mm
  • Height: 128.6 mm
  • Outside diameter: 81.3 mm
  • Flange outside diameter: 83.8 mm
  • Flange height: 5.1 mm
  • Wall thickness: 5.6 mm
  • Intake: 26.9 mm
  • Exhaust port location: 37.8 mm

Vehicle Fitments

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750

Cylinder Sleeve 72-75 Kawasaki H2 750 71mm Vintco SLK02A

Product form

VintCo SLK02A is a USA-made cast-iron cylinder sleeve for 1972-1975 Kawasaki H2-750 models. Supplied for one cylinder only and made... Read more

1 in stock 1-2 business days

£208.93 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-SLK02A
    Barcode: 0120000089956

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo SLK02A is a USA-made cast-iron cylinder sleeve for 1972-1975 Kawasaki H2-750 models. Supplied for one cylinder only and made for VintCo by Advanced Sleeve, it provides a replacement option where original cylinders are difficult to source. The sleeve is manufactured using modern materials and production methods for OEM-level fit and performance, with correctly angled ports to reduce port-matching work. It can be bored and honed to suit a stock-size VintCo piston kit, and the listed dimensions are intended for installation by an experienced and qualified machinist.

    Features

    • Replacement cylinder sleeve for vintage Kawasaki H2-750 models
    • Fits one cylinder only
    • Correctly angled ports reduce port-matching work compared with other sleeves
    • Can be bored and honed to suit a stock-size VintCo piston kit
    • Original sleeves must be machined out; they do not press out

    Specifications

    • VintCo Part Number: SLK02A
    • Made for VintCo by Advanced Sleeve
    • Material: Cast iron
    • Country of manufacture: USA
    • Compatible piston part number: PSK02-00
    • Bore: 71 mm
    • Height: 128.6 mm
    • Outside diameter: 81.3 mm
    • Flange outside diameter: 83.8 mm
    • Flange height: 5.1 mm
    • Wall thickness: 5.6 mm
    • Intake: 26.9 mm
    • Exhaust port location: 37.8 mm

    Vehicle Fitments

    • 1972 Kawasaki H2-750
    • 1973 Kawasaki H2-750
    • 1974 Kawasaki H2-750
    • 1975 Kawasaki H2-750
