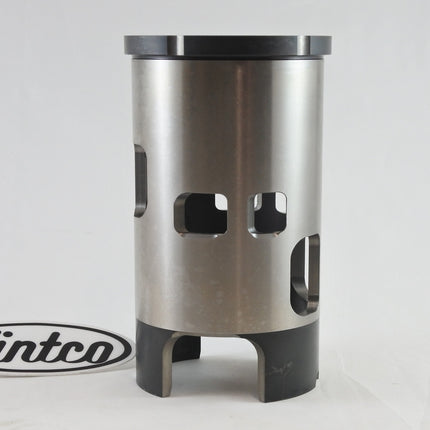

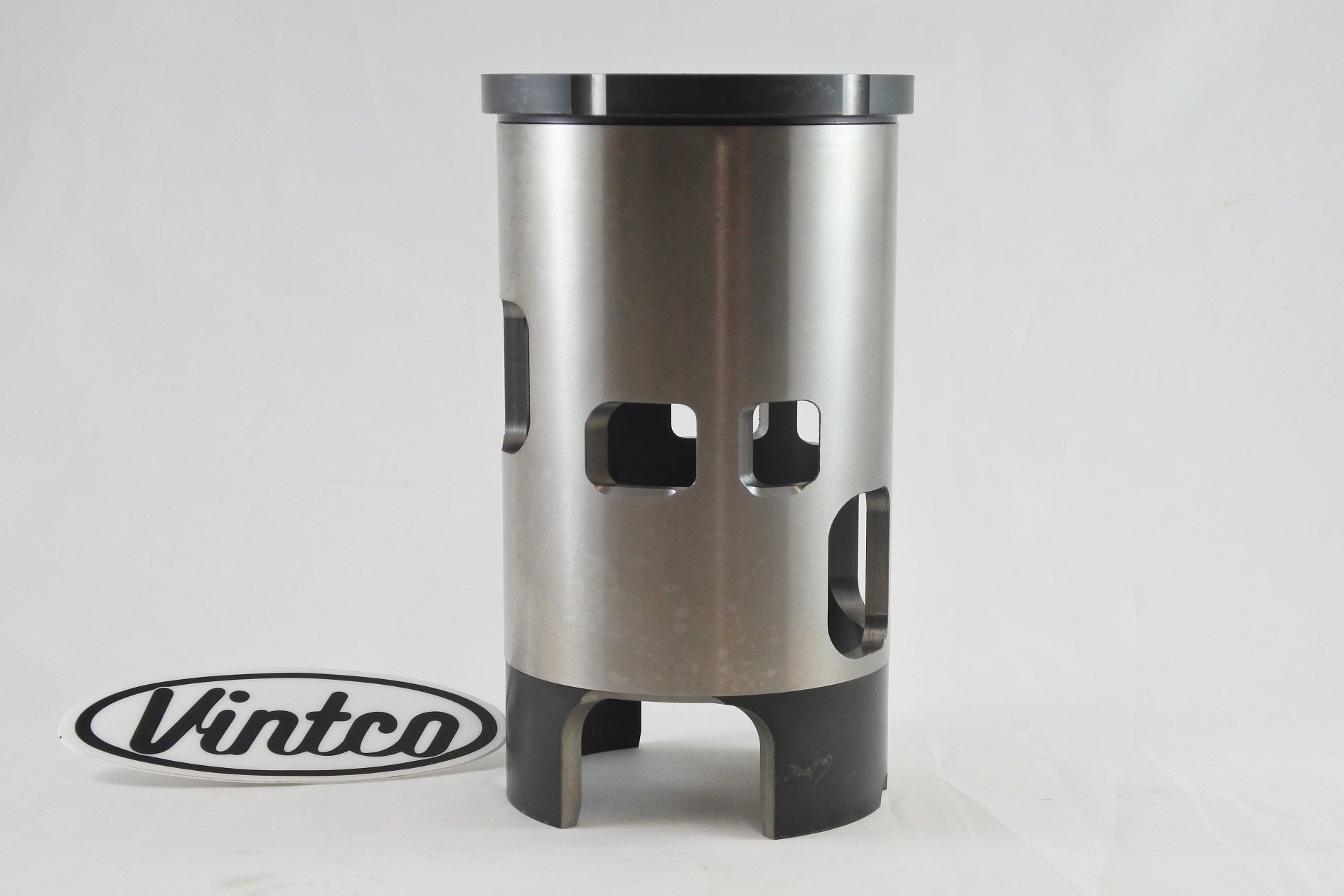

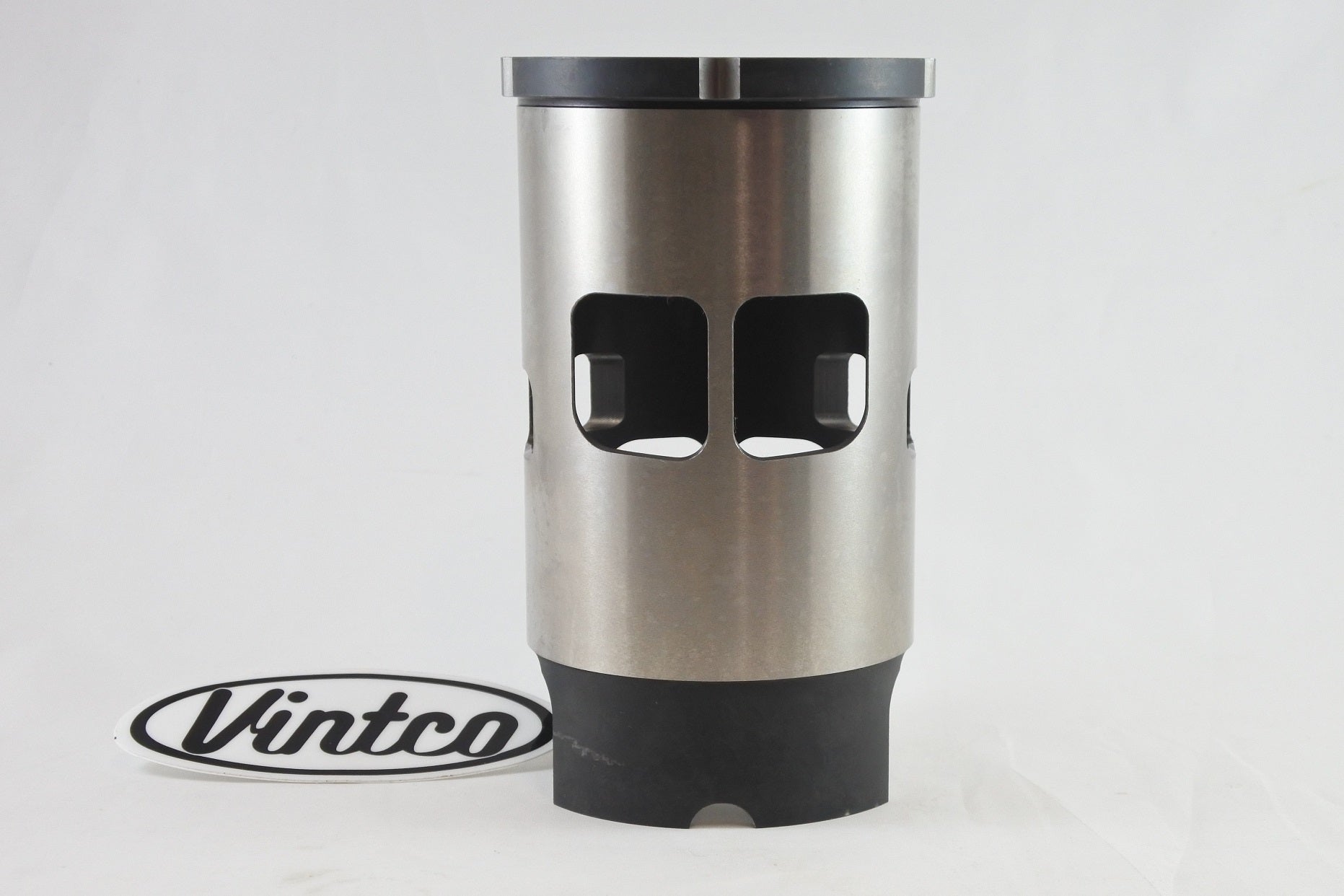

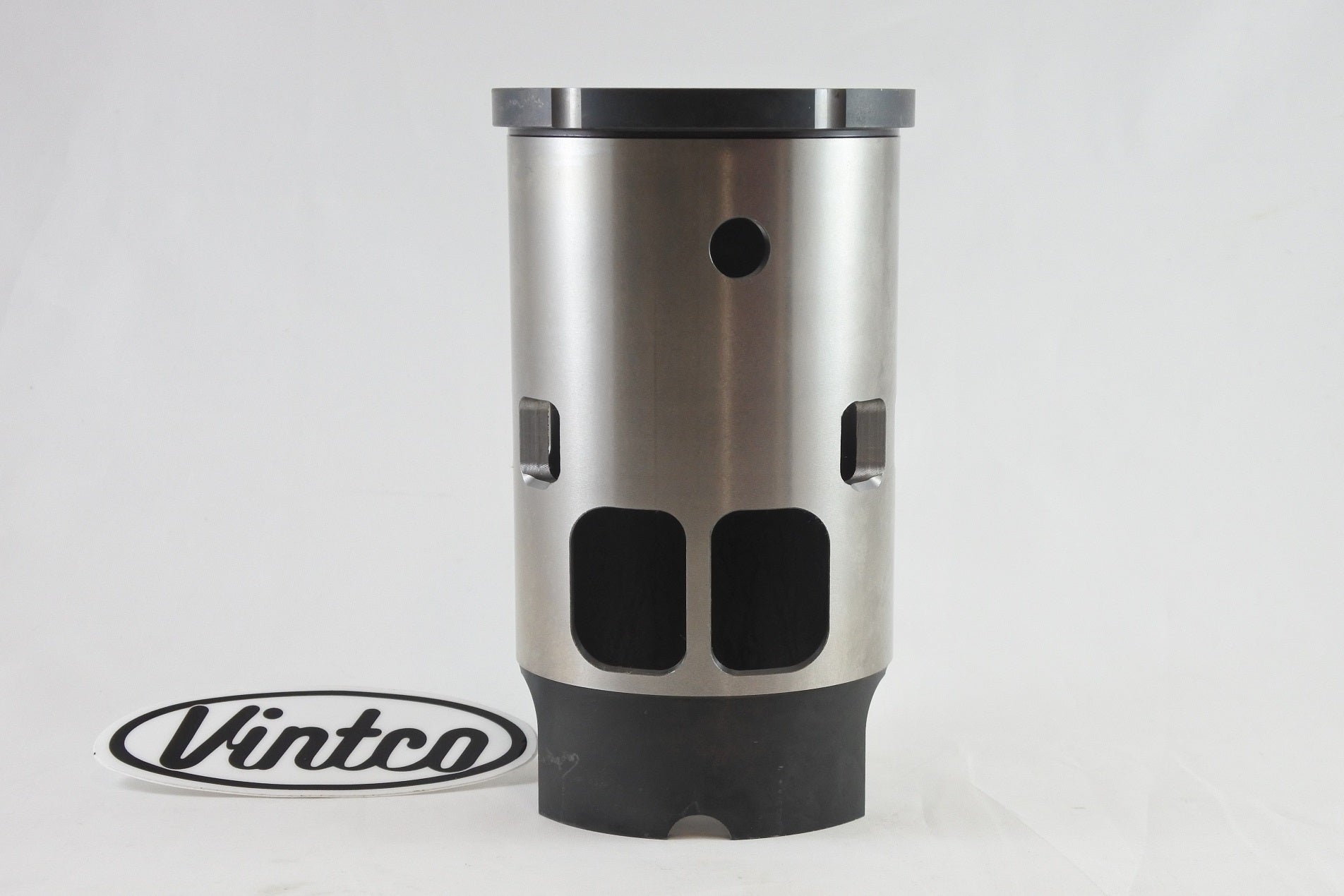

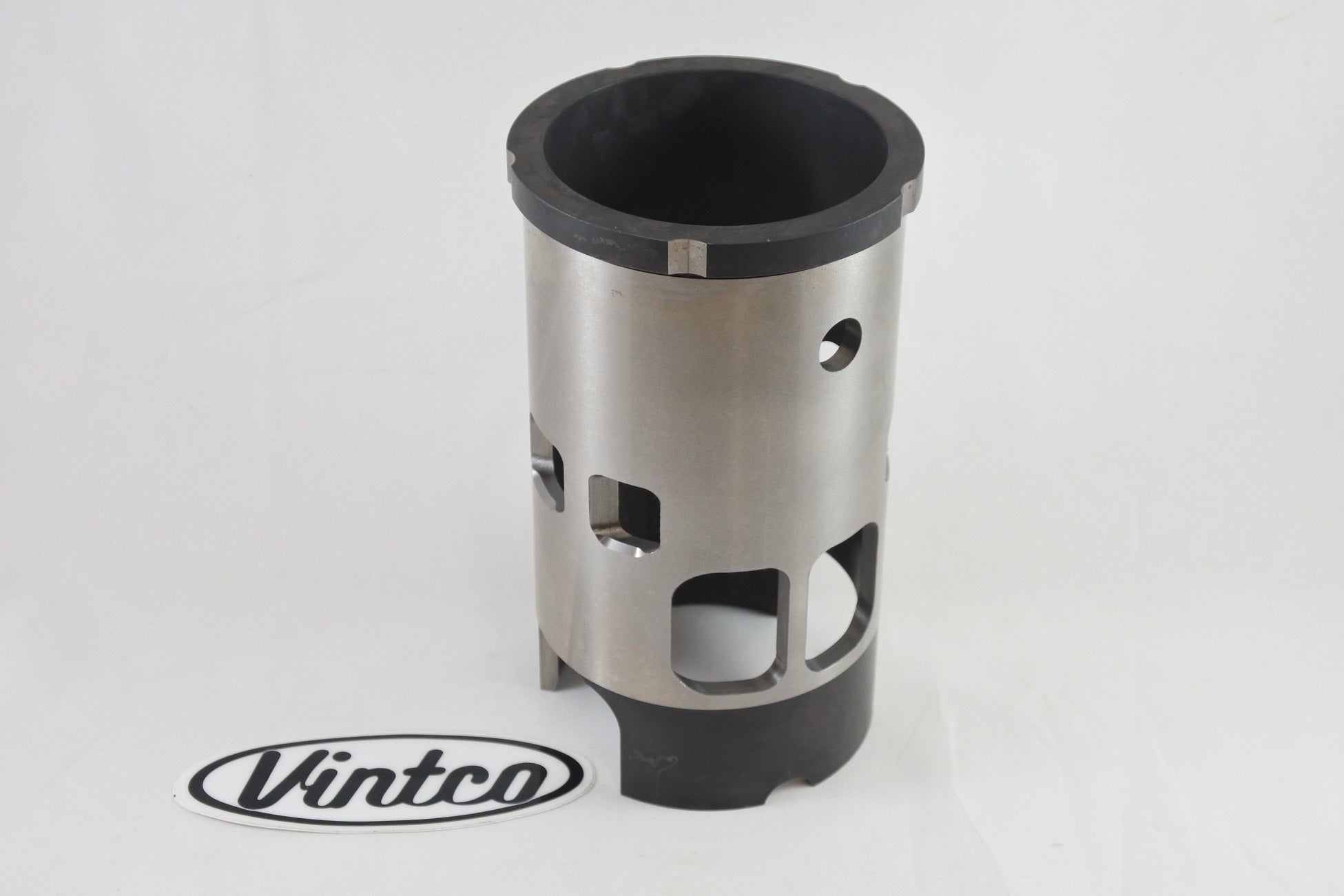

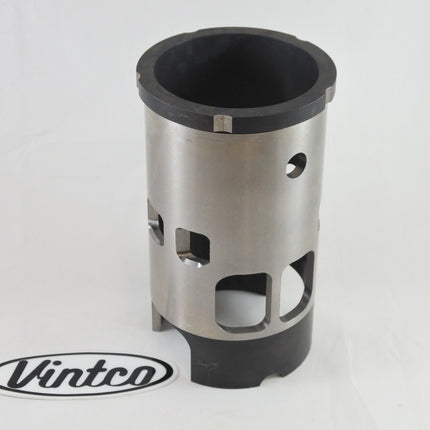

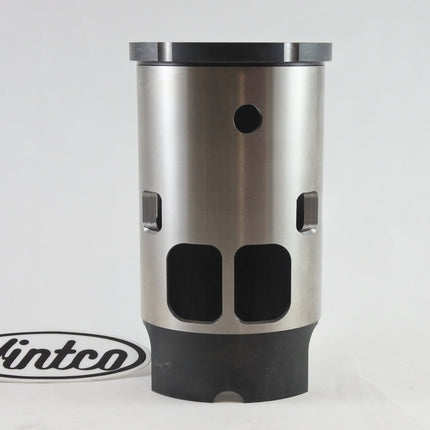

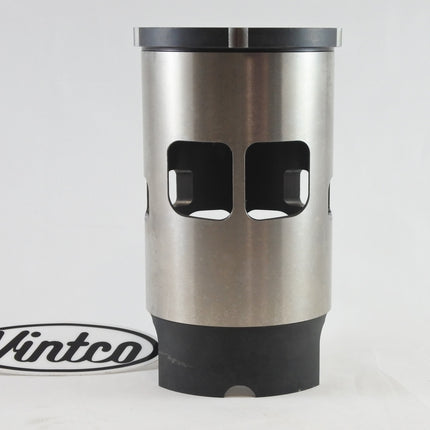

Cylinder Sleeve 74-81 Maico 400 77mm Vintco SLM02A

Description

VintCo SLM02A is a replacement cylinder sleeve for 1974-1981 Maico 400 models, intended for refurbishing original cylinders on vintage machines. Made in the USA for VintCo by Advanced Sleeve, it is produced using modern manufacturing methods for OEM-equivalent fitment and performance. The ports are correctly angled to reduce port matching work, and the sleeve can be bored and honed to suit the stock-size VintCo piston kit. Installation dimensions are provided for use by an experienced and qualified machinist.

Features

  • Replacement cylinder sleeve for vintage Maico 400 models
  • Intended for refurbishing worn or damaged original cylinders
  • Correctly angled ports reduce port matching work during installation
  • Can be bored and honed to suit the stock-size VintCo piston kit
  • Designed for installation by an experienced and qualified machinist

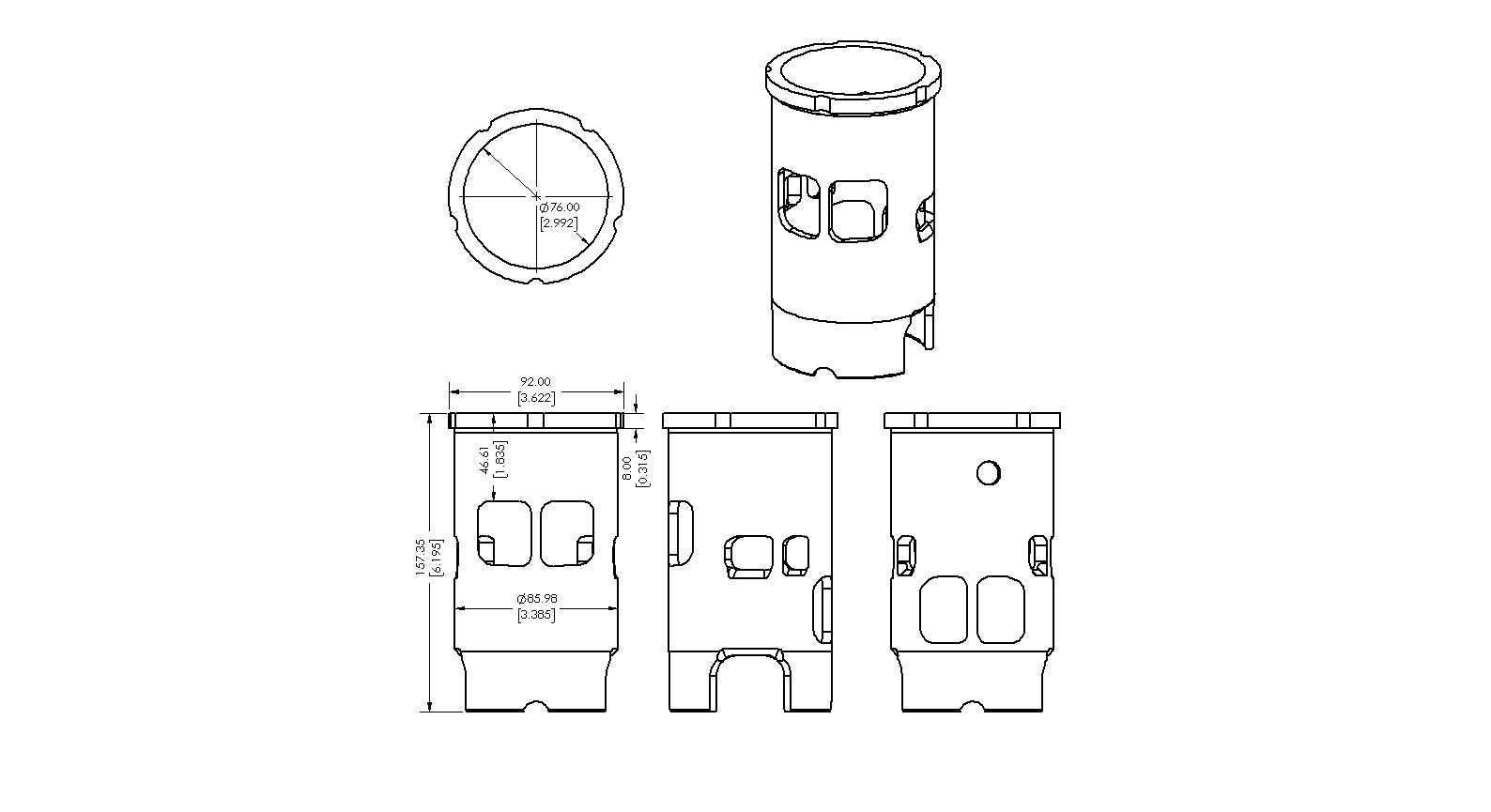

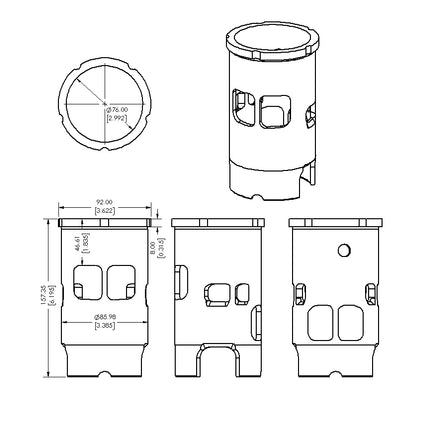

Specifications

  • VintCo Part Number: SLM02A
  • Made for VintCo by Advanced Sleeve
  • Made in the USA
  • Material: Cast iron
  • Compatible piston part number: PSM02-00
  • Bore: 77 mm
  • Height: 157.5 mm
  • Outside diameter: 86 mm
  • Flange outside diameter: 92 mm
  • Flange height: 8.1 mm
  • Wall thickness: 5.1 mm
  • Intake: 35.7 mm
  • Exhaust port location: 46.5 mm

Vehicle Fitments

  • 1974 Maico 400
  • 1975 Maico 400
  • 1976 Maico 400
  • 1977 Maico 400
  • 1978 Maico 400
  • 1979 Maico 400
  • 1980 Maico 400
  • 1981 Maico 400

Cylinder Sleeve 74-81 Maico 400 77mm Vintco SLM02A

Product form

VintCo SLM02A is a replacement cylinder sleeve for 1974-1981 Maico 400 models, intended for refurbishing original cylinders on vintage machines.... Read more

1 in stock 1-2 business days

£224.11 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-SLM02A
    Barcode: 0120000088546

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    VintCo SLM02A is a replacement cylinder sleeve for 1974-1981 Maico 400 models, intended for refurbishing original cylinders on vintage machines. Made in the USA for VintCo by Advanced Sleeve, it is produced using modern manufacturing methods for OEM-equivalent fitment and performance. The ports are correctly angled to reduce port matching work, and the sleeve can be bored and honed to suit the stock-size VintCo piston kit. Installation dimensions are provided for use by an experienced and qualified machinist.

    Features

    • Replacement cylinder sleeve for vintage Maico 400 models
    • Intended for refurbishing worn or damaged original cylinders
    • Correctly angled ports reduce port matching work during installation
    • Can be bored and honed to suit the stock-size VintCo piston kit
    • Designed for installation by an experienced and qualified machinist

    Specifications

    • VintCo Part Number: SLM02A
    • Made for VintCo by Advanced Sleeve
    • Made in the USA
    • Material: Cast iron
    • Compatible piston part number: PSM02-00
    • Bore: 77 mm
    • Height: 157.5 mm
    • Outside diameter: 86 mm
    • Flange outside diameter: 92 mm
    • Flange height: 8.1 mm
    • Wall thickness: 5.1 mm
    • Intake: 35.7 mm
    • Exhaust port location: 46.5 mm

    Vehicle Fitments

    • 1974 Maico 400
    • 1975 Maico 400
    • 1976 Maico 400
    • 1977 Maico 400
    • 1978 Maico 400
    • 1979 Maico 400
    • 1980 Maico 400
    • 1981 Maico 400
