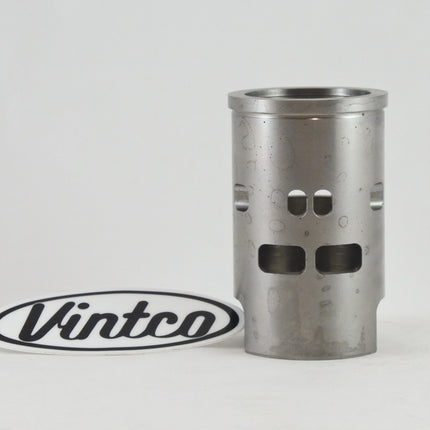

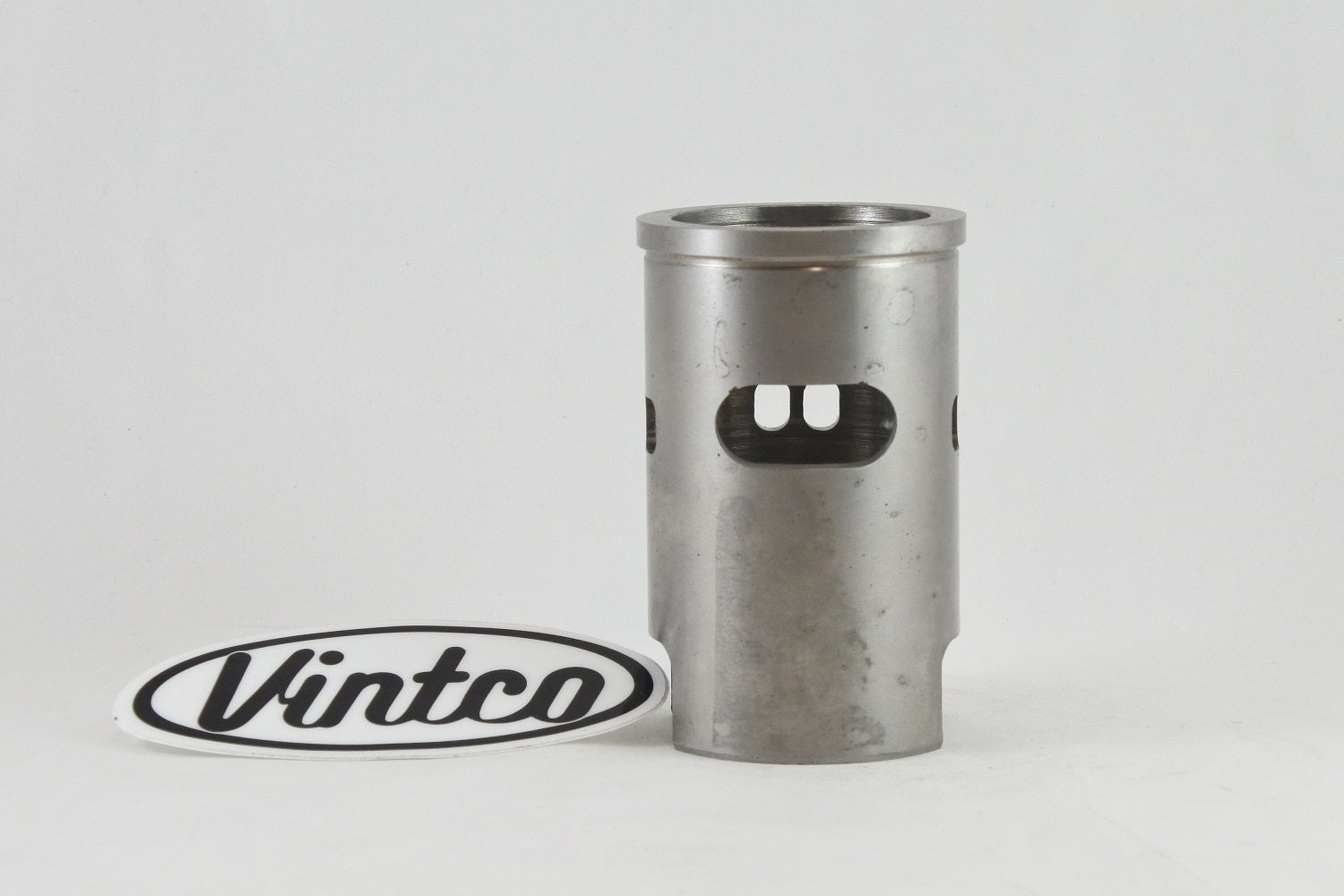

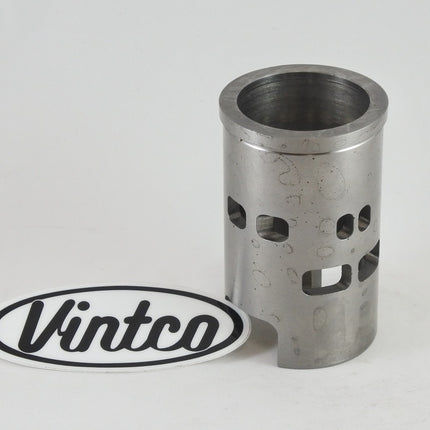

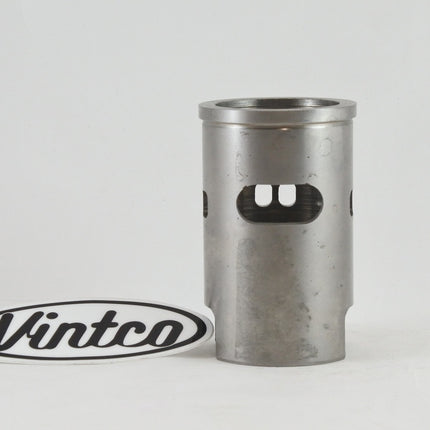

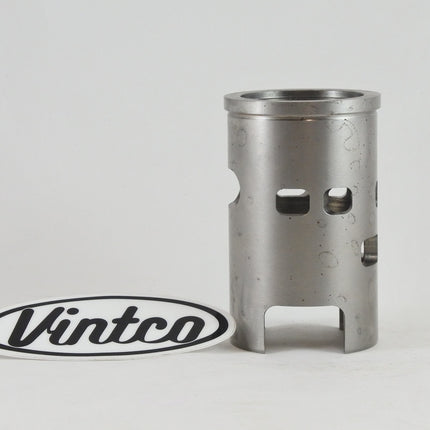

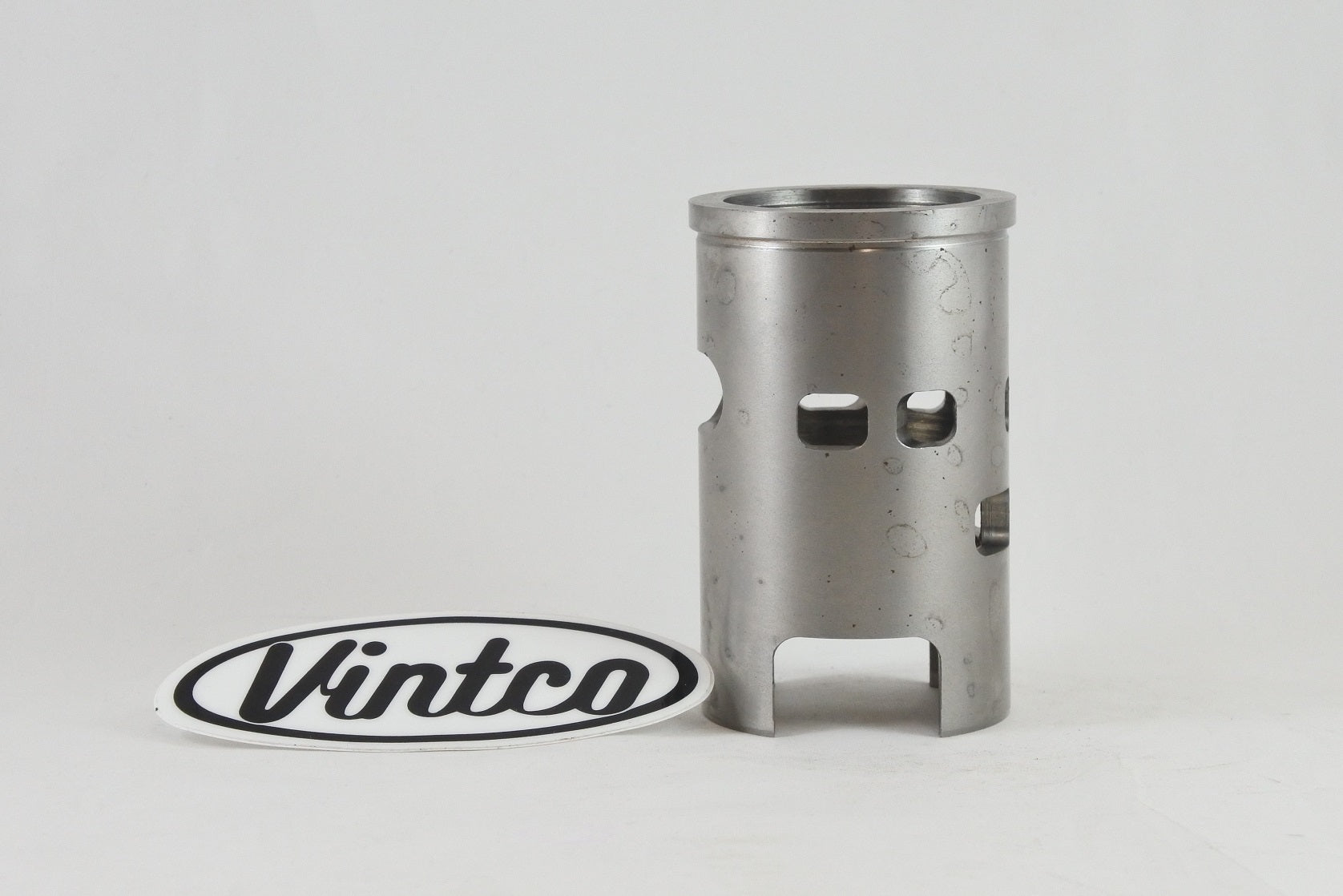

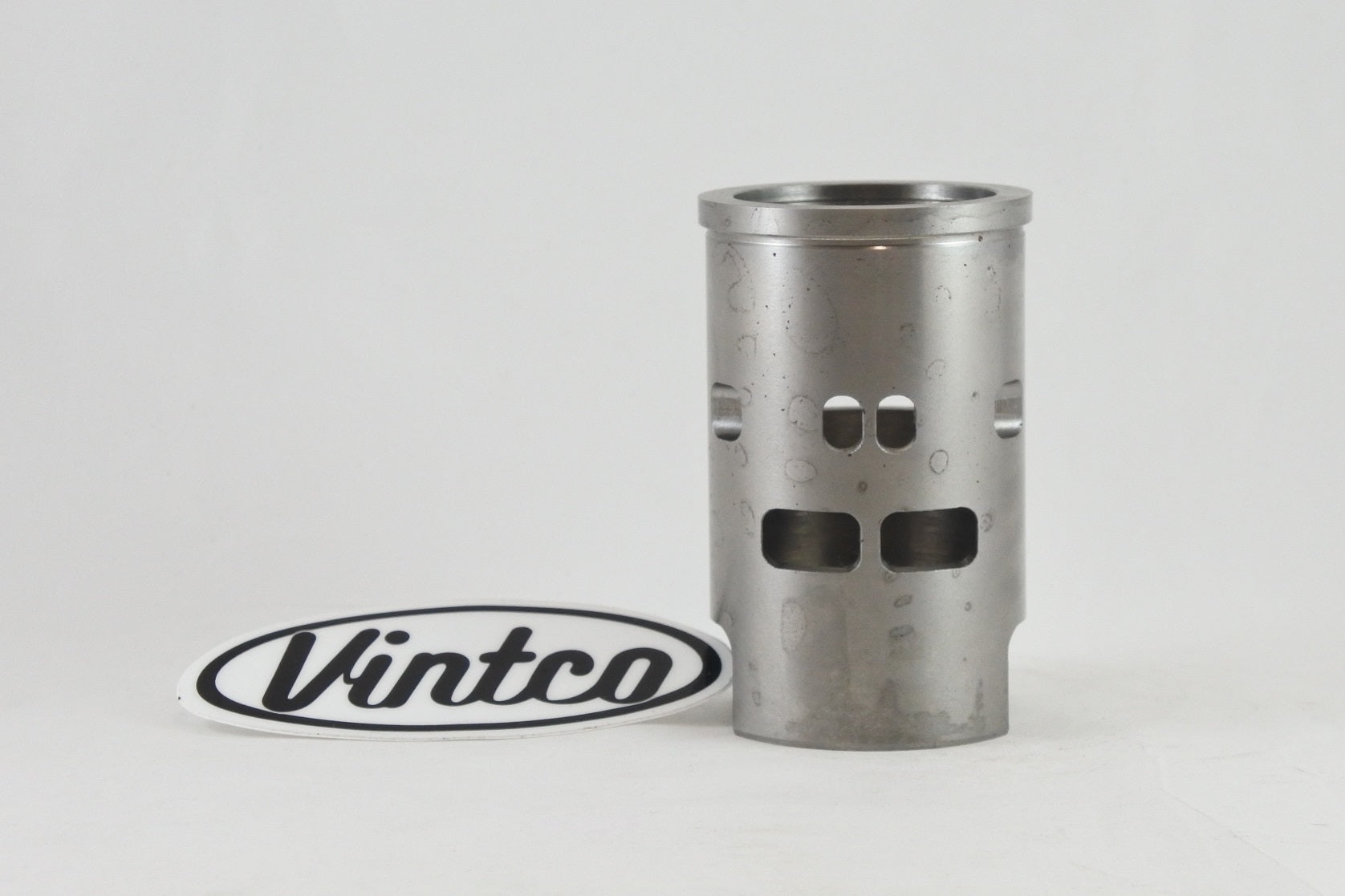

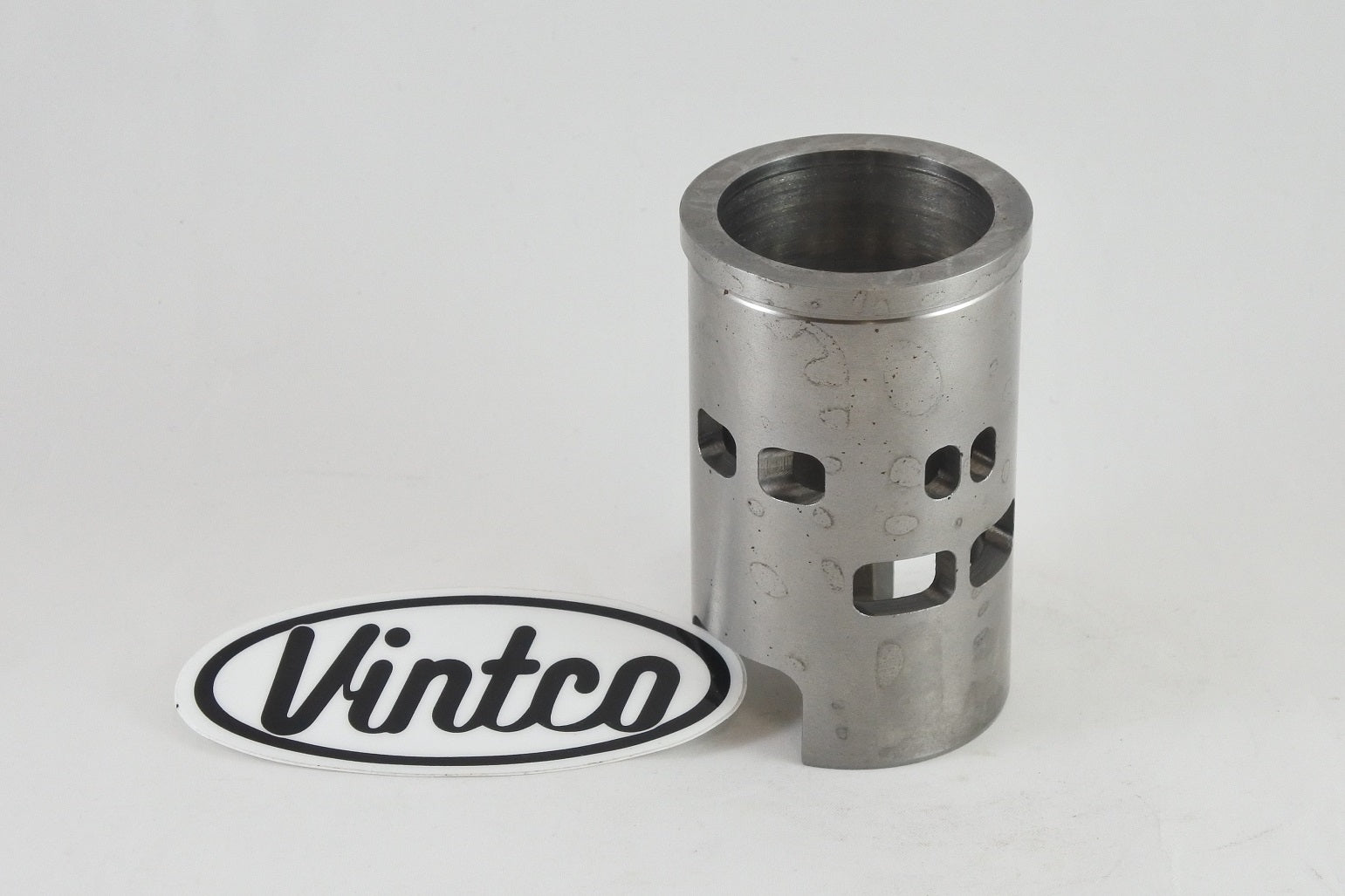

Cylinder Sleeve 77-81 Suzuki RM 80 49mm Vintco SLS10A

Description

This cast-iron cylinder sleeve is a replacement liner for 1977-1981 Suzuki RM80 models, intended for rebuilding original cylinders where complete replacements can be difficult to source. Made in the USA for VintCo by Advanced Sleeve, it is manufactured using modern materials and production techniques and is designed to provide OEM-level or better fit and performance. The ports are correctly angled to reduce the amount of port-matching work required, and the sleeve can be bored and honed to suit the stock-size VintCo piston kit. Installation dimensions are provided for use by an experienced and qualified machinist.

Features

  • Replacement cylinder sleeve for 1977-1981 Suzuki RM80 models
  • Intended for rebuilding original cylinders on vintage machines
  • Correctly angled ports reduce port-matching work during installation
  • Can be bored and honed to suit the stock-size VintCo piston kit
  • Intended for installation by an experienced and qualified machinist

Specifications

  • VintCo Part Number: SLS10A
  • Product Type: Cylinder Sleeve
  • Material: Cast iron
  • Made in the USA
  • Made for VintCo by Advanced Sleeve
  • Compatible piston part number: PSS10-00

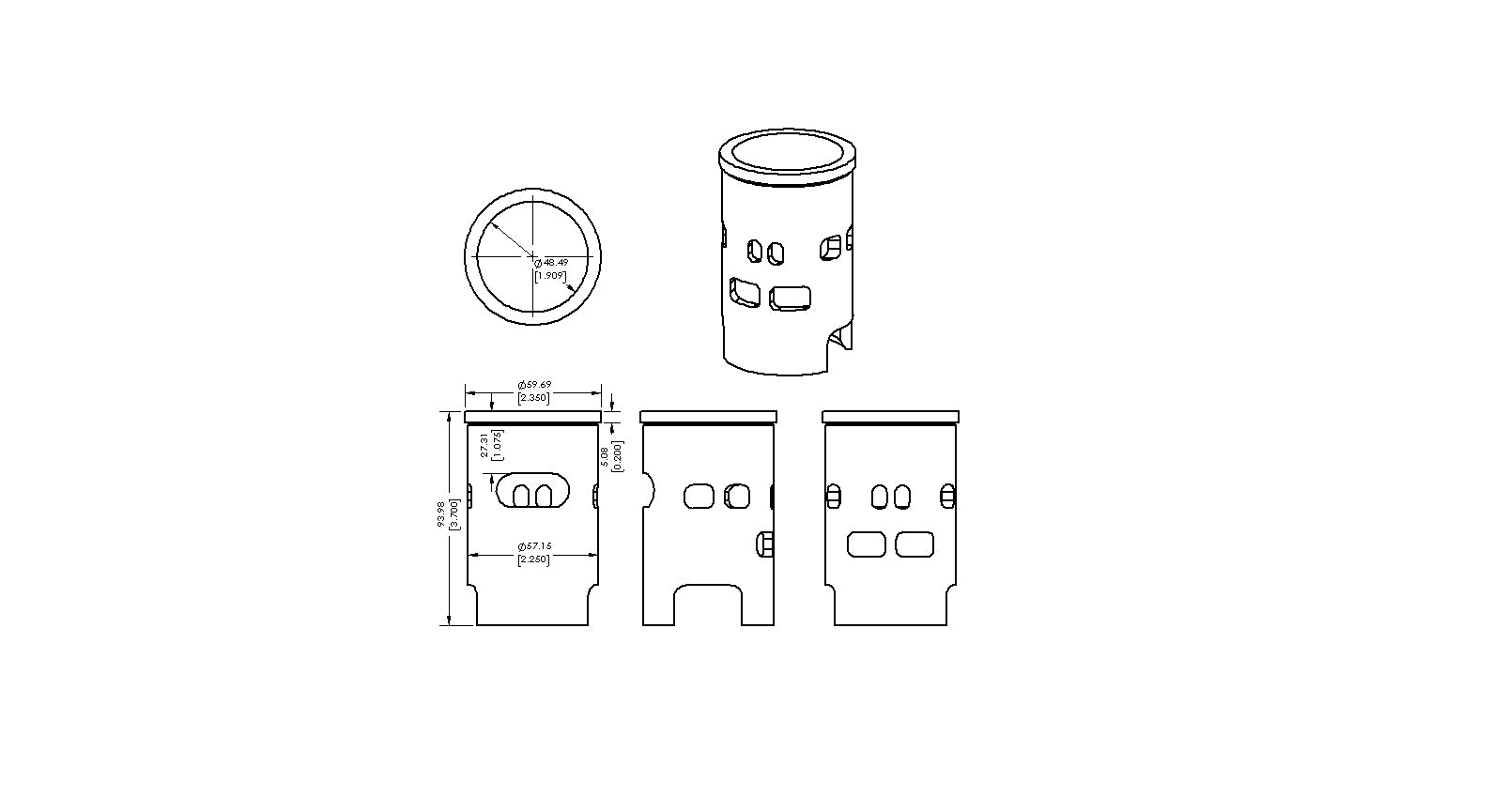

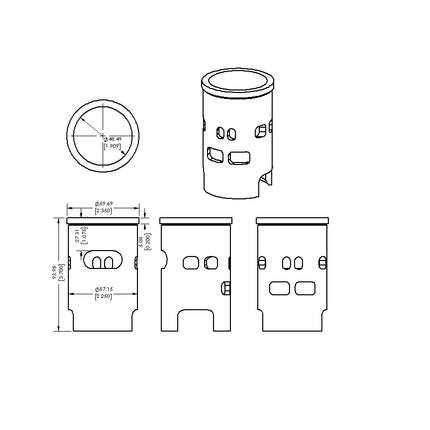

  • Bore: 49 mm
  • Height: 95.3 mm
  • Outer diameter: 57.1 mm
  • Flange outer diameter: 59.7 mm
  • Flange height: 5.1 mm
  • Wall thickness: 5.1 mm
  • Intake: 11 mm
  • Exhaust port location: 27.4 mm

Vehicle Fitments

  • 1977 Suzuki RM80
  • 1978 Suzuki RM80
  • 1979 Suzuki RM80
  • 1980 Suzuki RM80
  • 1981 Suzuki RM80

Cylinder Sleeve 77-81 Suzuki RM 80 49mm Vintco SLS10A

Product form

This cast-iron cylinder sleeve is a replacement liner for 1977-1981 Suzuki RM80 models, intended for rebuilding original cylinders where complete... Read more

1 in stock 1-2 business days

£173.93 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: VIN-SLS10A
    Barcode: 0120000088614

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This cast-iron cylinder sleeve is a replacement liner for 1977-1981 Suzuki RM80 models, intended for rebuilding original cylinders where complete replacements can be difficult to source. Made in the USA for VintCo by Advanced Sleeve, it is manufactured using modern materials and production techniques and is designed to provide OEM-level or better fit and performance. The ports are correctly angled to reduce the amount of port-matching work required, and the sleeve can be bored and honed to suit the stock-size VintCo piston kit. Installation dimensions are provided for use by an experienced and qualified machinist.

    Features

    • Replacement cylinder sleeve for 1977-1981 Suzuki RM80 models
    • Intended for rebuilding original cylinders on vintage machines
    • Correctly angled ports reduce port-matching work during installation
    • Can be bored and honed to suit the stock-size VintCo piston kit
    • Intended for installation by an experienced and qualified machinist

    Specifications

    • VintCo Part Number: SLS10A
    • Product Type: Cylinder Sleeve
    • Material: Cast iron
    • Made in the USA
    • Made for VintCo by Advanced Sleeve
    • Compatible piston part number: PSS10-00
    • Bore: 49 mm
    • Height: 95.3 mm
    • Outer diameter: 57.1 mm
    • Flange outer diameter: 59.7 mm
    • Flange height: 5.1 mm
    • Wall thickness: 5.1 mm
    • Intake: 11 mm
    • Exhaust port location: 27.4 mm

    Vehicle Fitments

    • 1977 Suzuki RM80
    • 1978 Suzuki RM80
    • 1979 Suzuki RM80
    • 1980 Suzuki RM80
    • 1981 Suzuki RM80
