Description
ARCTIC CAT ATV
650 H1/TBX 2007-09
700 TBX/H1 EFI 4X4 2010-17
ALTERRA TBX 700 2018-19
ARCTIC CAT UTV
HDX 500 XT 2016-17
PROWLER 500 HDX 2014-15
PROWLER 550 XT 4X4 2010-15
PROWLER 650 H1/XT AUTO 4X4 2007-09
HDX 700 XT / XT CREW 2017
PROWLER 700 HDX 2011-16
PROWLER 700 XT/XTX 4X4 2007-17
PROWLER 1000 H2 2011
PROWLER 1000 XT 2015-17
PROWLER 1000 XTZ 4X4 2009-14

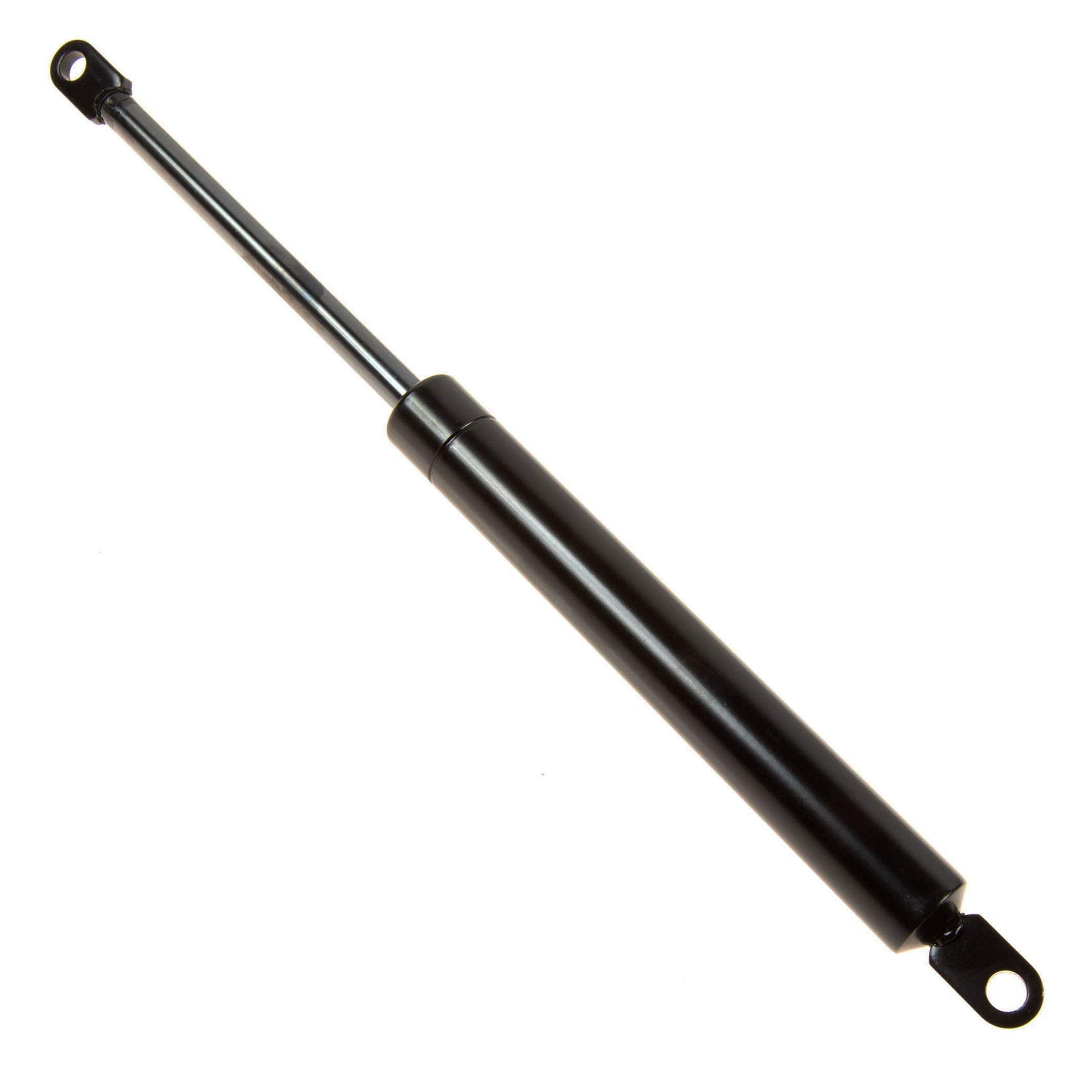

SHOCK DUMP BOX. BRONCO AT-04907
Exteneded Length (C to C) 335mm
Closed length. 212mm
Stroke 123mm
Shaft Dia. 10mm
Tube Dia. 22.1mm
Damper Force 41KGS
Top & Bottom Eyelet. OD. 8.3mm x Wide 5mm
S45C(shaft) + Zinc alloy (hook) + STKM 12C(tube)
Nitrogen treatment(shaft) + Black coating (tube)
Cross Reference Numbers Only:
AT-04907, 2506-194
Assemblies where 7044456 is used
2016 GENERAL 1000 EPS (R16RGE99A7/AE/AV) - Body, Box, Mounting
2016 R16RGE99A7/AE/AV POLARIS GENERAL 1000 EPS R16RGE99A7/AE/AV (R21) - Body, Box, Mounting R16rge99a7/Ae/Av
2016 R16RGE99A7/AE/AV POLARIS GENERAL 1000 EPS R16RGE99A7/AE/AV (R22) - Body, Box, Mounting R16rge99a7/Ae/Av
2016 R16RGE99A7/AE/AV POLARIS GENERAL 1000 EPS R16RGE99A7/AE/AV (R23) - Body, Box, Mounting R16rge99a7/Ae/Av
2016 R16RGE99A7/AE/AV POLARIS GENERAL 1000 EPS R16RGE99A7/AE/AV (R26) - Body, Box, Mounting R16rge99a7/Ae/Av
2017 GENERAL 1000 EPS (R17RGE99A7/A9/AW/AM) - Body, Box, Mounting
2017 POLARIS GENERAL 1000 4P MD (R17RHE99NU) - Body, Box, Mounting
2017 POLARIS GENERAL 1000 4P PS (R17RHE99AU) - Body, Box, Mounting
2017 POLARIS GENERAL 1000 EPS (R17RGE99A7/A9/AW/AM/KAK) - Body, Box, Mounting
2017 POLARIS GENERAL 1000 PS MD (R17RGE99NM/NW) - Body, Box, Mounting
2017 R17RGE99A7/A9/AW/AM/KAK POLARIS GENERAL 1000 EPS R17RGE99A7/A9/AW/AM/KAK (R21) - Body, Box, Mounting R17rge99a7/A9/Aw/Am/Kak
2017 R17RT_99 RANGER 1000 XP ALL OPTIONS R17RT_99 (R22) - Body, Box, Mounting R17rge99a7/A9/Aw/Am/Kak
2018 POLARIS GENERAL 1000 4P MD (R18RHE99NK) - Body, Box, Mounting
2018 POLARIS GENERAL 1000 4P PS (R18RHE99BK/K99BS) - Body, Box, Mounting R18rhe99bk/Kbs
2018 POLARIS GENERAL 1000 EPS (R18RGE99BM/BB/B7/KBS/UB9/BG) - Body, Box, Mounting R18rge99bm/Bb/B7/Kbs/Ub9/Ubg
2018 POLARIS GENERAL 1000 PS MD (R18RGE99FM/EFB/SCM/SCB/SFM/CCM) - Body, Box, Mounting
2019 POLARIS GENERAL 1000 4P PS RC (R19RHE99AD) - Body, Box, Mounting
2019 POLARIS GENERAL 1000 4P PS RC (R19RHE99AD/BD/LD/K99AK/BK) - Body, Box, Mounting R19rhe99ad/Bd/Ld/Kak/Bk
2019 POLARIS GENERAL 1000 EPS (R19RGE99A2/AR/UAF/UAM) - Body, Box, Mounting /Ua9
2019 POLARIS GENERAL 1000 EPS (R19RGE99A2/EAR/EBR/UAF/UBF/UAM/UBM/UA9/UB9/UAL/UBL/KAK/KBK) - Body, Box, Mounting R19rge99a2/Ar/Uaf/Ubf/Uam/Ua9/Ual/Ubl/Kak/Kbk
2019 POLARIS GENERAL 1000 EPS EU TR ZUG MD (R19RGE99F2/FF/SC2/SFF/PCF/PFF) - Body, Box, Mounting
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| ARCTIC CAT |
HDX XT 500 |
2016-2017 |
| ARCTIC CAT |
HDX XT 700 |
2017 |
| ARCTIC CAT |
HDX CREW XT 700 |
2017 |
| ARCTIC CAT |
PROWLER XT 1000 |
2015-2017 |
| ARCTIC CAT |
PROWLER HDX 500 |
2014-2015 |
| ARCTIC CAT |
PROWLER XTZ 1000 |
2009-2014 |
| ARCTIC CAT |
PROWLER XT 550 |
2010-2015 |
| ARCTIC CAT |
TBX 700 |
2010-2017 |
| ARCTIC CAT |
TBX 650 |
2007-2009 |
| ARCTIC CAT |
PROWLER XTX 700 |
2007-2017 |
| ARCTIC CAT |
PROWLER XT 650 |
2007-2009 |
| ARCTIC CAT |
PROWLER XT 700 |
2007-2017 |
| ARCTIC CAT |
PROWLER HDX 700 |
2011-2016 |
| ARCTIC CAT |
PROWLER H2 1000 |
2011 |
| ARCTIC CAT |
PROWLER H1 650 |
2007-2009 |
| ARCTIC CAT |
H1 EFI 700 |
2010-2017 |
| ARCTIC CAT |
H1 650 |
2007-2009 |
| ARCTIC CAT |
ALTERRA TBX 700 |
2018-2019 |
