Description
POLARIS ATV
SPORTSMAN 570 EFI UTE 2014-2017,
SPORTSMAN 570 EFI X2 EPS ALL 2015-2018,

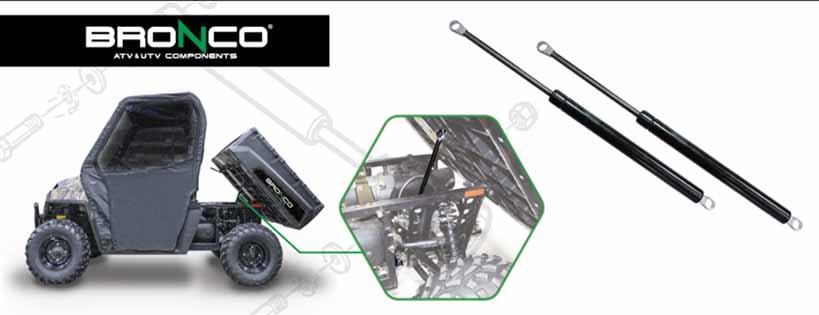

SHOCK DUMP BOX. BRONCO AT-04904
Exteneded Length (C to C) 260mm
Closed length. 192mm
Stroke 68mm
Shaft Dia. 8mm
Tube Dia. 19mm
Damper Force 22KGS
Top & Bottom Eyelet. OD. 8mm x Wide 4.7mm
S45C(shaft) + Zinc alloy (hook) + STKM 12C(tube)
Nitrogen treatment(shaft) + Black coating (tube)
Cross Reference Numbers Only:
AT-04904, 7044142,
Assemblies where 7044142 is used
2014 SPORTSMAN 570 EFI UTE HD EPS (A14MX5ETH) - Body, Rear Box Frame And Pivot
2015 SPORTSMAN 570 EFI UTE HD (A15SUH57AH) - Body, Rear Box Frame And Pivot
2015 SPORTSMAN 570 EFI X2 EPS (A15SWE57AA/AD) - Body, Rear Box Frame And Pivot
2015 SPORTSMAN 570 EFI X2 EPS EUROPE (A15SWE57FA) - Body, Rear Box Frame And Pivot
2016 SPORTSMAN 570 EFI UTE HD (A16SUH57N6) - Body, Rear Box Frame And Pivot
2016 SPORTSMAN 570 EFI UTE MD (A16SUE57F1) - Body, Rear Box Frame And Pivot
2016 SPORTSMAN 570 EFI UTE TRACTOR (A16SUS57C1) - Body, Rear Box Frame And Pivot
2016 SPORTSMAN 570 EFI X2 EPS (A16SWE57A1/A7) - Body, Rear Box Frame And Pivot
2016 SPORTSMAN 570 EPS UTE QUAD (A16SUC57C1) - Body, Rear Box Frame And Pivot
2017 SPORTSMAN 570 EFI UTE (A17SUH57N5) - Body, Rear Box Frame And Pivot
2017 SPORTSMAN 570 EFI X2 EPS (A17SWE57A1) - Body, Rear Box Frame And Pivot
2017 SPORTSMAN 570 X2 EPS MD (A17SWE57N1) - Body, Rear Box Frame And Pivot
2017 SPORTSMAN 570 X2 EPS TRACTOR (A17SWS57C1/C2/E1/E2) - Body, Rear Box Frame And Pivot
2018 SPORTSMAN 570 EFI UTE (A18SUE57N5) - Body, Rear Box Frame And Pivot
2018 SPORTSMAN 570 EFI X2 EPS (A18SWE57B1) - Body, Rear Box Frame And Pivot
2018 SPORTSMAN 570 X2 EPS EU (A18SWE57F1) - Body, Rear Box Frame And Pivot
2018 SPORTSMAN 570 X2 EPS TRACTOR (A18SWS57C1/C2/E2) - Body, Rear Box Frame And Pivot
2019 SPORTSMAN 570 EFI UTE (A19SUE57D5) - Body, Rear Box Frame And Pivot
2019 SPORTSMAN 570 EFI X2 EPS (A19SWE57B1) - Body, Rear Box Frame And Pivot
2019 SPORTSMAN 570 X2 EPS EUN (A19SWE57R1) - Body, Rear Box Frame And Pivot
2019 SPORTSMAN 570 X2 EPS TRACTOR (A19SWS57P1/P2) - Body, Rear Box Frame And Pivot
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| POLARIS |
SPORTSMAN EFI X2 EPS 570 |
2015-2018 |
| POLARIS |
SPORTSMAN EFI UTE 570 |
2014-2017 |
