Description

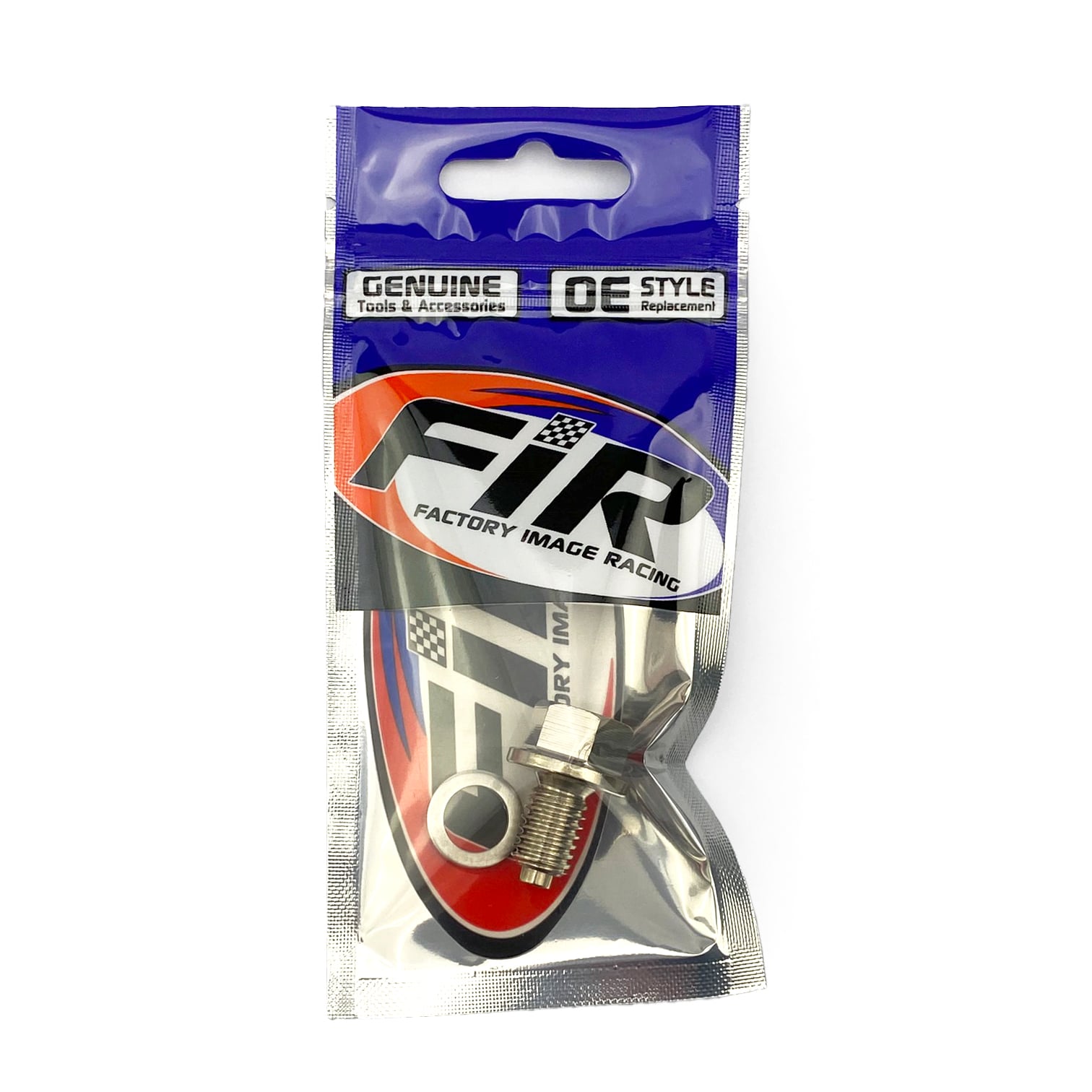

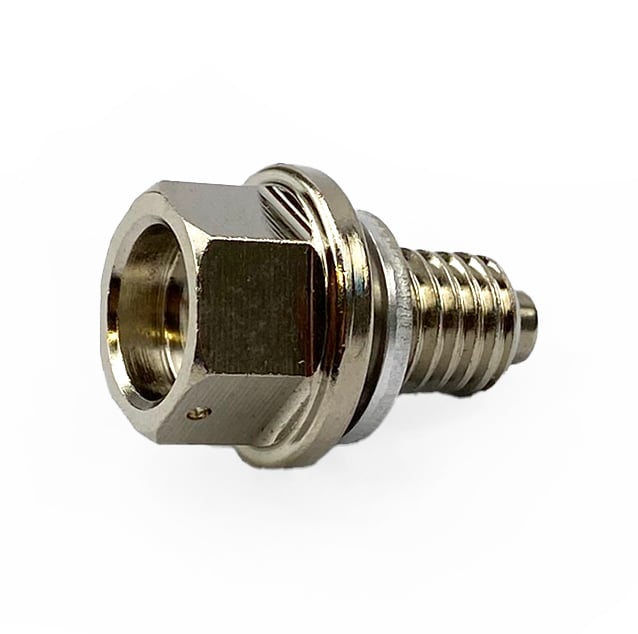

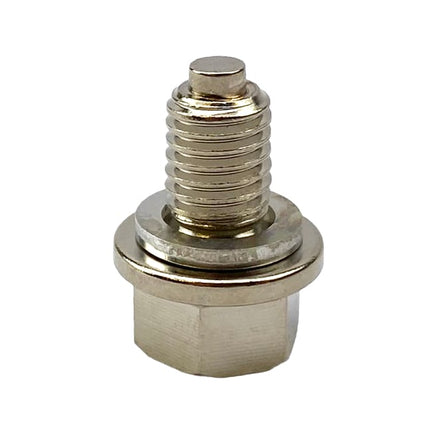

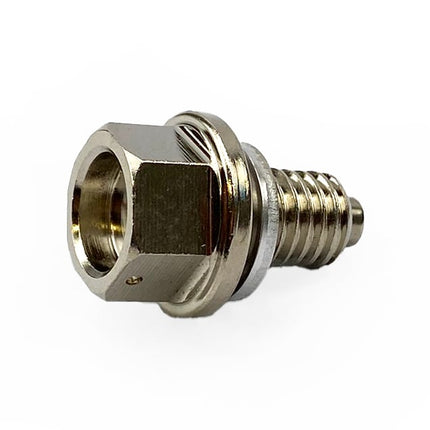

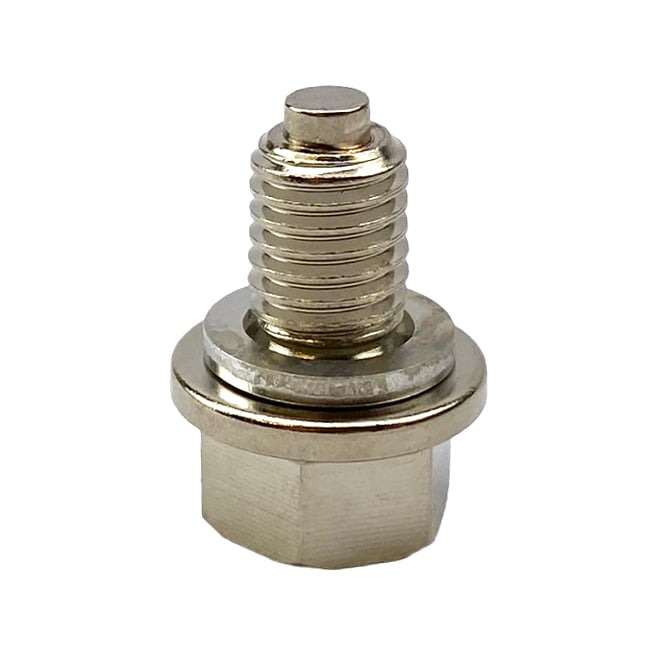

ENGINE DRAIN PLUG M10 x 1.50mm STEEL
- 2000-16 KX65
- 2001-16 KX85
- 1998-16 KX100
- 1996-05 KX125
- 1996-07 KX250
- 2009-10 KX250
- 2004-08 KX250F
- 1992-04 KX500
- With Magnet.
- With safety wire hole.
- Size M10 x 1.50mm, Thread Length 14mm, Flange Dia 18mm
- Steel with BPZ bright zinc plated.
- With Sealing washer.
Steel Drain plugs are more reliable than alloy, the head will not round or snap off and the Magnet will not come loos as in alloy types.
Pulling iron and steel wear compoments from the oil, Reducing oil loading and oxididation rates. Early warning if something is going wrong in the engine. Drain plug will give you oil changes into engine wear evaluation. why let your motors destruct from metal shavings and contaminents being carried all over the inside of your high dollar expensive motor!!! This plug has a magnet on the tip end to collect and keep out of harms way all metal shavings/chips/powder created by the engine.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- FIR-BRAND products are a high quality. Tools, Accessories and Part all
- Please see image before ordering to avoid mistakes.
Part No. 08-506 (radhouse.co.uk)
Cross reference numbers ONLY.
L35-646B, K&L 15-4120, 92066-1437, 92066-1437
KAWASAKI
1992 KX500 (KX500-E4) - Crankcase
1993 KX500 (KX500-E5) - Crankcase
1994 KX500 (KX500-E6) - Crankcase
1995 KX500 (KX500-E7) - Crankcase
1996 KX125 (KX125-K3) - Crankcase
1996 KX250 (KX250-K3) - Crankcase
1996 KX500 (KX500-E8) - Crankcase
1997 KX125 (KX125-K4) - Crankcase
1997 KX250 (KX250-K4) - Crankcase
1997 KX500 (KX500-E9) - Crankcase
1998 KX125 (KX125-K5) - Crankcase
1998 KX250 (KX250-K5) - Crankcase
1998 KX500 (KX500-E10) - Crankcase
1999 KX125 (KX125-L1) - Crankcase
1999 KX250 (KX250-L1) - Crankcase
1999 KX500 (KX500-E11) - Crankcase
2000 KX125 (KX125-L2) - Crankcase
2000 KX250 (KX250-L2) - Crankcase
2000 KX500 (KX500-E12) - Crankcase
2000 KX65 (KX65-A1) - Crankcase
2001 KX100 (KX100-D1) - Crankcase
2001 KX125 (KX125-L3) - Crankcase
2001 KX250 (KX250-L3) - Crankcase
2001 KX500 (KX500-E13) - Crankcase
2001 KX65 (KX65-A2) - Crankcase
2001 KX85 (KX85-A1) - Crankcase
2002 KX100 (KX100-D2) - Crankcase
2002 KX125 (KX125-L4) - Crankcase
2002 KX250 (KX250-L4) - Crankcase
2002 KX500 (KX500-E14) - Crankcase
2002 KX65 (KX65-A3) - Crankcase
2002 KX85 (KX85-A2) - Crankcase
2003 KX100 (KX100-D3) - Crankcase
2003 KX125 (KX125-M1) - Crankcase
2003 KX250 (KX250-M1) - Crankcase
2003 KX500 (KX500-E15) - Crankcase
2003 KX65 (KX65-A4) - Crankcase
2003 KX85 (KX85-A3) - Crankcase
2004 KX100 (KX100-D4) - Crankcase
2004 KX125 (KX125-M2) - Crankcase
2004 KX250 (KX250-M2) - Crankcase
2004 KX250F (KX250-N1) - Crankcase
2004 KX500 (KX500-E16) - Crankcase
2004 KX65 (KX65-A5) - Crankcase
2004 KX85 (KX85-A4) - Crankcase
2005 KX100 (KX100-D5) - Crankcase
2005 KX125 (KX125-M3) - Crankcase
2005 KX250 (KX250-R1) - Crankcase
2005 KX250F (KX250-N2) - Crankcase
2005 KX65 (KX65-A6) - Crankcase
2005 KX85 (KX85-A5) - Crankcase
2006 KX100 (KX100D6F) - Crankcase
2006 KX250 (KX250R6F) - Crankcase
2006 KX250F (KX250T6F) - Crankcase
2006 KX65 (KX65A6F) - Crankcase
2006 KX85 (KX85A6F) - Crankcase
2007 KX100 (KX100D7F) - Crankcase
2007 KX250 (KX250R7F) - Crankcase
2007 KX250F (KX250T7F) - Crankcase
2007 KX65 (KX65A7F) - Crankcase
2007 KX85 (KX85A7F) - Crankcase
2008 KX100 (KX100D8F) - Crankcase
2008 KX250F (KX250T8F) - Crankcase
2008 KX65 (KX65A8F) - Crankcase
2008 KX85 (KX85A8F) - Crankcase
2009 KX100 (KX100D9F) - Crankcase
2009 KX100 (KX100D9FA) - Crankcase
2009 KX250F (KX250W9F) - Crankcase
2009 KX250F (KX250W9FA) - Crankcase
2009 KX65 (KX65A9F) - Crankcase
2009 KX65 (KX65A9FA) - Crankcase
2009 KX85 (KX85A9F) - Crankcase
2009 KX85 (KX85A9FA) - Crankcase
2010 KX250F (KX250XAFB) - Crankcase
2010 KX65 (KX65AAF) - Crankcase
2010 KX85 (KX85AAF) - Crankcase
2011 KX100 (KX100DBF) - Crankcase
2011 KX250F (KX250YBF) - Crankcase
2011 KX65 (KX65ABF) - Crankcase
2011 KX85 (KX85ABF) - Crankcase
2012 KX100 (KX100DCF) - Crankcase
2012 KX250F (KX250YCF) - Crankcase
2012 KX65 (KX65ACF) - Crankcase
2012 KX85 (KX85ACF) - Crankcase
2013 KX100 (KX100DDF) - Crankcase
2013 KX250F (KX250ZDF) - Crankcase
2013 KX65 (KX65ADF) - Crankcase
2013 KX85 (KX85ADF) - Crankcase
2014 KX100 (KX100FEF) - Crankcase
2014 KX250F (KX250ZEF) - Crankcase
2014 KX65 (KX65AEF) - Crankcase
2014 KX85 (KX85CEF) - Crankcase
2015 KX100 (KX100FFF) - Crankcase
2015 KX250F (KX250ZFF) - Crankcase
2015 KX65 (KX65AFF) - Crankcase
2015 KX85 (KX85CFF) - Crankcase
2016 KX100 (KX100FGF) - Crankcase
2016 KX250F (KX250ZGF) - Crankcase
2016 KX450F (KX450HGF) - Crankcase
2016 KX65 (KX65AGF) - Crankcase
2016 KX85 (KX85CGF) - Crankcase
2017 KX100 (KX100FHF) - Crankcase
2017 KX250F (KX252AHF) - Crankcase
2017 KX450F (KX450HHF) - Crankcase
2017 KX65 (KX65AHF) - Crankcase
2017 KX85 (KX85CHF) - Crankcase
2018 KX100 (KX100FJF) - Crankcase
2018 KX250F (KX252AJF) - Crankcase
2018 KX450F (KX450HJF) - Crankcase
2018 KX65 (KX65AJF) - Crankcase
2018 KX85 (KX85CJF) - Crankcase
2019 KX100 (KX100FKF) - Crankcase
2019 KX250 (KX252AKF) - Crankcase
2019 KX65 (KX65AKF) - Crankcase
2019 KX85 (KX85CKF) - Crankca
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
ALL |
1950-2020 |
