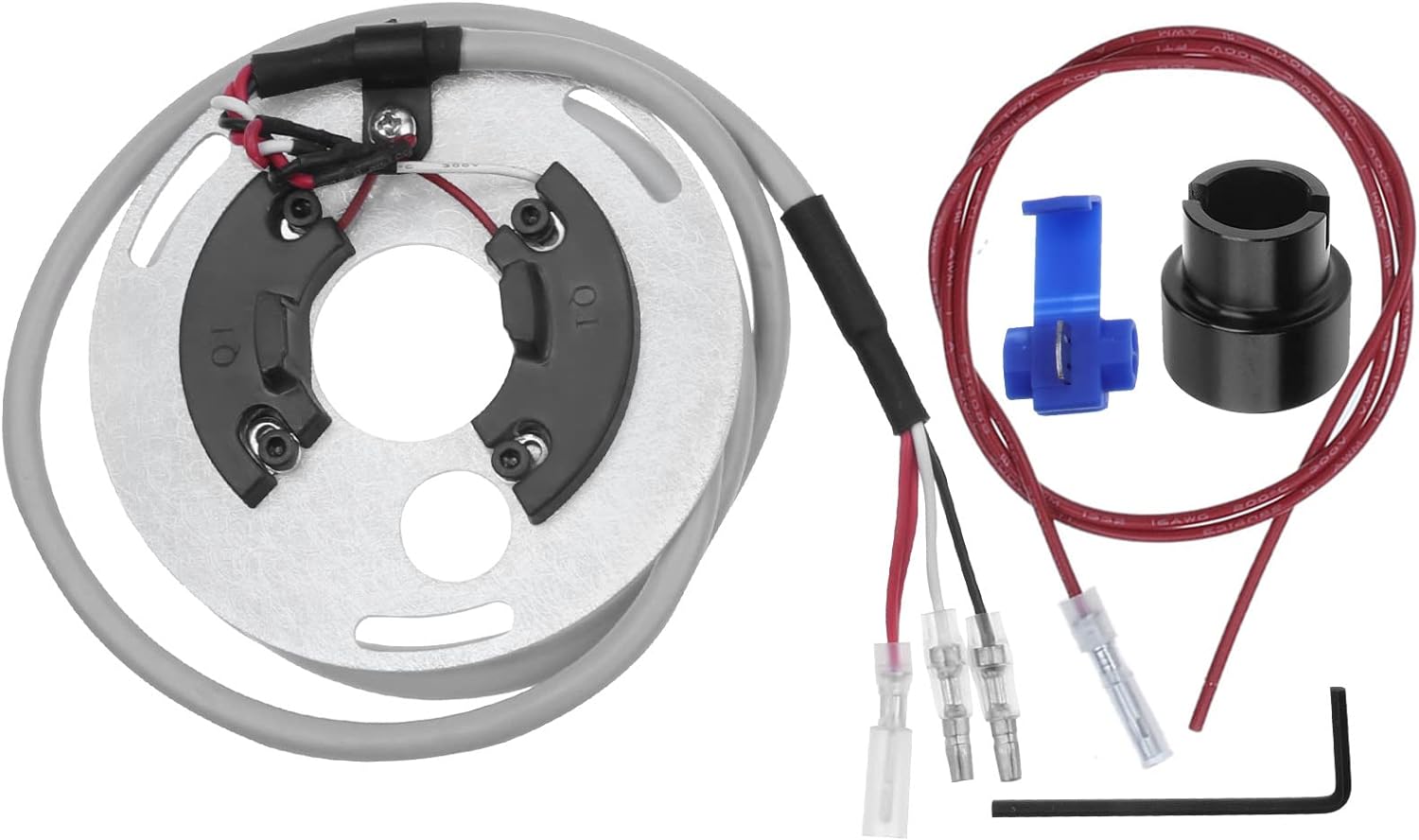

Electronic Ignition System Suzuki 1977-1978 GS550 GS750 Kd DS3-1

Description

The Dyna S DS3-1 is a self-contained electronic ignition system designed to replace the original points assembly in specific 1977-1978 Suzuki GS550 and GS750 models equipped with Kokusan Denso (KD) ignition systems. It utilizes a magnetic rotor with the original spark advancer, maintaining the factory advance curve.

Features

  • Replaces the entire points plate assembly
  • Mounts in the original position
  • Utilizes a magnetic rotor with the original spark advancer
  • Maintains the factory advance curve

Specification

  • Compatible with coils having at least 3-ohm primary resistance
  • Designed for use with stock or aftermarket coils

Cross-Reference OEM Part Numbers

  • DS3-1

Vehicle Fitments

  • Suzuki GS550B (1977)
  • Suzuki GS550C/EC (1978)
  • Suzuki GS750B (1977)
  • Suzuki GS750C/EC (1978)

Note: This ignition system is compatible only with models equipped with Kokusan Denso (KD) ignition systems. To verify compatibility, remove the points cover and check the advancer; it should be stamped with "KD." If it's stamped "ND" (Nippondenso), the DS3-2 ignition system is required instead.

Electronic Ignition System Suzuki 1977-1978 GS550 GS750 Kd DS3-1

Product form

The Dyna S DS3-1 is a self-contained electronic ignition system designed to replace the original points assembly in specific 1977-1978... Read more

9 in stock 1-2 business days

£108.51 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-A1179

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Dyna S DS3-1 is a self-contained electronic ignition system designed to replace the original points assembly in specific 1977-1978 Suzuki GS550 and GS750 models equipped with Kokusan Denso (KD) ignition systems. It utilizes a magnetic rotor with the original spark advancer, maintaining the factory advance curve.

    Features

    • Replaces the entire points plate assembly
    • Mounts in the original position
    • Utilizes a magnetic rotor with the original spark advancer
    • Maintains the factory advance curve

    Specification

    • Compatible with coils having at least 3-ohm primary resistance
    • Designed for use with stock or aftermarket coils

    Cross-Reference OEM Part Numbers

    • DS3-1

    Vehicle Fitments

    • Suzuki GS550B (1977)
    • Suzuki GS550C/EC (1978)
    • Suzuki GS750B (1977)
    • Suzuki GS750C/EC (1978)

    Note: This ignition system is compatible only with models equipped with Kokusan Denso (KD) ignition systems. To verify compatibility, remove the points cover and check the advancer; it should be stamped with "KD." If it's stamped "ND" (Nippondenso), the DS3-2 ignition system is required instead.
