Name: Engine Motor Mount YXM700 Viking, YXR700 Rhino, Bronco AT-09657, 5B4-21485-01-00
Brand: Bronco
SKU: 08-7471.BR
Price: 35.13 GBP
Availability: InStock

Engine Motor Mount YXM700 Viking, YXR700 Rhino, Bronco AT-09657, 5B4-21485-01-00

Bronco
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

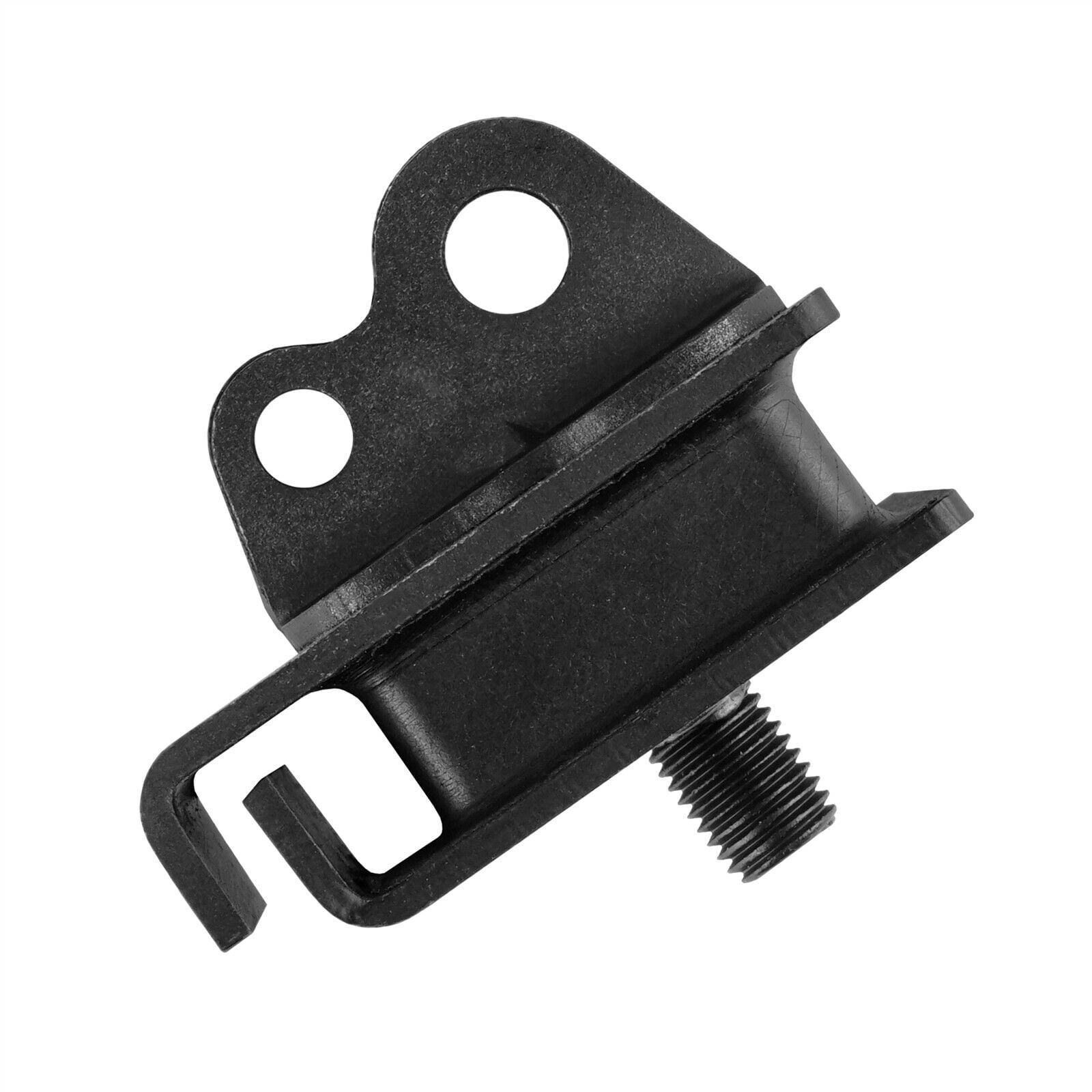

MOTOR MOUNT BRONCO AT-09657

YAMAHA

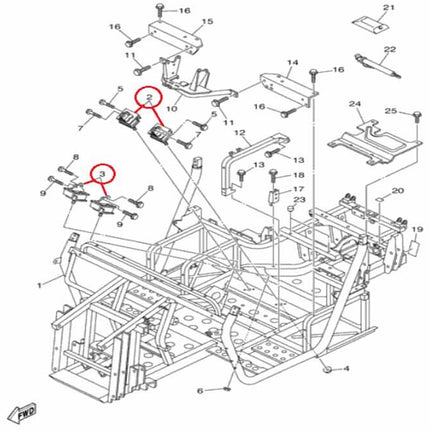

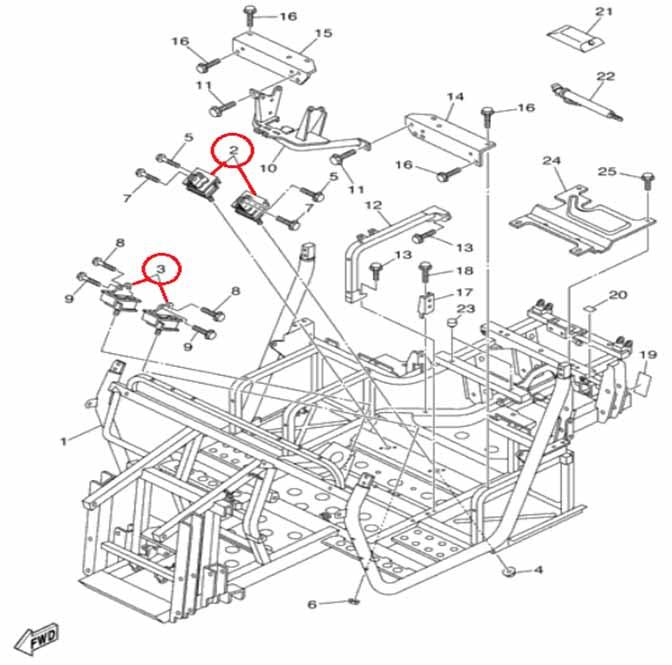

YEAR	MODEL	POSITION
2014-19	YXM700 VIKING	#2 REAR
2008-13	YXR700 RHINO	#3 FRONT & #2 REAR

Specification:	Bracket:
	L 60.8 mm (2.4")
	W 58.1 mm(2.29")
	T 27.5 mm(1.09")
	Rubber
	L 53.6 mm(2.11")
	W 43.5 mm(1.71")
	T 22.5 mm(0.89")
	Bolt:
	M10 x P. 1.25
	Length 17 mm (0.67")
	Hole size:
	10 mm(0.39") / 6.4 mm (0.25")

- BRONCO ATV / UTV products are a high quality replacement part and

Cross Reference Numbers Only:
5B4-21485-01-00, 5B4-21485-00-00,

2008 RHINO 700 FI (YXR70FXGR) - Frame
2008 RHINO 700 FI DUCKS UNLIMTED (YXR70FDUX) - Frame
2008 RHINO 700 FI HUNTER (YXR70FHX) - Frame
2008 RHINO 700 FI SPECIAL EDITION I (YXR70FSEPX) - Frame
2008 RHINO 700 FI SPECIAL EDITION II (YXR70FSP2X) - Frame
2008 RHINO 700 FI SPORT EDITION (YXR70FSPX) - Frame
2008 RHINO 700FI (YXR70FXR) - Frame
2009 RHINO 700 FI (YXR7FYGR) - Frame
2009 RHINO 700 FI (YXR7FYL) - Frame
2009 RHINO 700 FI DUCKS UNLIMITED (YXR7FDUY) - Frame
2009 RHINO 700 FI HUNTER (YXR7FHY) - Frame
2009 RHINO 700 FI SPECIAL EDITION (YXR7FSEYB) - Frame
2009 RHINO 700 FI SPECIAL EDITION (YXR7FSEYR) - Frame
2009 RHINO 700 FI SPORT EDITION (YXR7FSPY) - Frame
2009 RHINO 700 FI SPORT EDITION II (YXR7FSP2Y) - Frame
2011 RHINO 700 (YXR7FAGR) - Frame
2011 RHINO 700 (YXR7FAL) - Frame
2011 RHINO 700 (YXR7FAR) - Frame
2011 RHINO 700 HUNTER (YXR7FHA) - Frame
2011 RHINO 700 SPORT (YXR7FSPA) - Frame
2012 RHINO 700 (YXR7FBGR) - Frame
2012 RHINO 700 (YXR7FBL) - Frame
2012 RHINO 700 HUNTER EDITION (YXR7FHB) - Frame
2012 RHINO 700 SPORT EDITION (YXR7FSPB) - Frame
2013 RHINO 700 (YXR7FDGR) Pastel Deep Green - Frame
2013 RHINO 700 (YXR7FDR) Romantique Rouge - Frame
2013 RHINO 700 HUNTER EDITION (YXR7FHD) Yamaha Black (Camo) - Frame
2013 RHINO 700 SPORT EDITION (YXR7FSPD) Low Gloss Black - Frame
2014 VIKING 700 (YXM700DEG) - Frame
2014 VIKING 700 (YXM700DEL) - Frame
2014 VIKING 700 (YXM700DER) - Frame
2014 VIKING 700 EPS (YXM700PEG) - Frame
2014 VIKING 700 EPS (YXM700PEL) - Frame
2014 VIKING 700 EPS (YXM700PER) - Frame
2014 VIKING 700 EPS HUNTER (YXM700PHEH) - Frame
2014 VIKING 700 EPS SE (YXM700PSEB) - Frame
2014 VIKING 700 HUNTER (YXM700DHEH) - Frame
2015 VIKING (YXM700DFG) - Frame
2015 VIKING (YXM700DFL) - Frame
2015 VIKING (YXM700DFR) - Frame
2015 VIKING EPS (YXM700PFG) - Frame
2015 VIKING EPS (YXM700PFL) - Frame
2015 VIKING EPS (YXM700PFR) - Frame
2015 VIKING EPS HUNTER (YXM700PHFH) - Frame
2015 VIKING EPS SE (YXM700PSF) - Frame
2015 VIKING EPS SE (YXM700PSFS) - Frame
2015 VIKING HUNTER (YXM700DHFH) - Frame
2016 VIKING (YXM70VDXGG) - Frame
2016 VIKING (YXM70VDXGR) - Frame
2016 VIKING EPS (YXM70VPXGG) - Frame
2016 VIKING EPS (YXM70VPXGL) - Frame
2016 VIKING EPS (YXM70VPXGR) - Frame
2016 VIKING EPS HUNTER (YXM70VPHGH) - Frame
2016 VIKING EPS SPECIAL EDITION (YXM70VPSGB) - Frame
2016 VIKING HUNTER (YXM70VDHGH) - Frame
2016 VIKING VI (YXC70VDXGG) - Frame
2016 VIKING VI (YXC70VDXGR) - Frame
2016 VIKING VI EPS (YXC70VPXGG) - Frame
2016 VIKING VI EPS (YXC70VPXGL) - Frame
2016 VIKING VI EPS (YXC70VPXGR) - Frame
2016 VIKING VI EPS HUNTER (YXC70VPHGH) - Frame
2016 VIKING VI EPS RANCH EDITION (YXC70VPRGC) - Frame
2016 VIKING VI EPS SPECIAL EDITION (YXC70VPSGB) - Frame
2016 VIKING VI HUNTER (YXC70VDHGH) - Frame
2017 VIKING (YXM70VDHHH) - Frame
2017 VIKING (YXM70VDXHG) - Frame
2017 VIKING (YXM70VDXHR) - Frame
2017 VIKING EPS (YXM70VPAHL) - Frame
2017 VIKING EPS (YXM70VPXHG) - Frame
2017 VIKING EPS (YXM70VPXHR) - Frame
2017 VIKING EPS HUNTER (YXM70VPHHH) - Frame
2017 VIKING EPS SE (YXM70VPSHL) - Frame
2017 VIKING VI EPS (YXC70VPXHG) - Frame
2017 VIKING VI EPS (YXC70VPXHR) - Frame
2017 VIKING VI EPS HUNTER (YXC70VPHHH) - Frame
2017 VIKING VI EPS RANCH EDITION (YXC70VPRHC) - Frame
2017 VIKING VI EPS SPECIAL EDITION (YXC70VPSHL) - Frame
2018 VIKING (YXM70VDXJG) - Frame
2018 VIKING (YXM70VDXJR) - Frame
2018 VIKING EPS (YXM70VPAJS) - Frame
2018 VIKING EPS (YXM70VPXJG) - Frame
2018 VIKING EPS (YXM70VPXJR) - Frame
2018 VIKING EPS HUNTER (YXM70VPHJH) - Frame
2018 VIKING EPS RANCH EDITION (YXM70VPRJC) - Frame
2018 VIKING VI EPS (YXC70VPXJG) - Frame
2018 VIKING VI EPS (YXC70VPXJR) - Frame
2018 VIKING VI EPS HUNTER (YXC70VPHJH) - Frame
2018 VIKING VI EPS RANCH EDITION (YXC70VPRJC) - Frame
2019 VIKING (YXM70VDXKG) - Frame
2019 VIKING VI EPS (YXC70VPXKG) - Frame
2019 VIKING VI EPS HUNTER (YXC70VPHKH) - Frame
2019 VIKING VI EPS RANCH (YXC70VPRKC) - Frame

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YXR RHINO 700	2008-2013
YAMAHA	YXM VIKING 700	2014-2019
