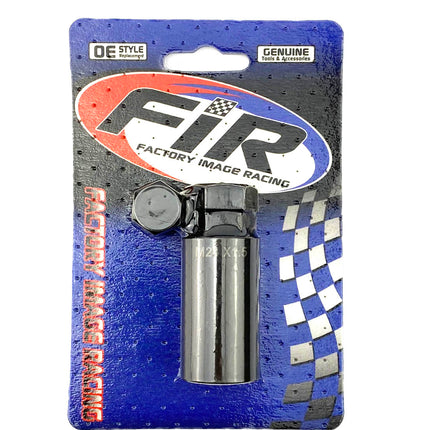

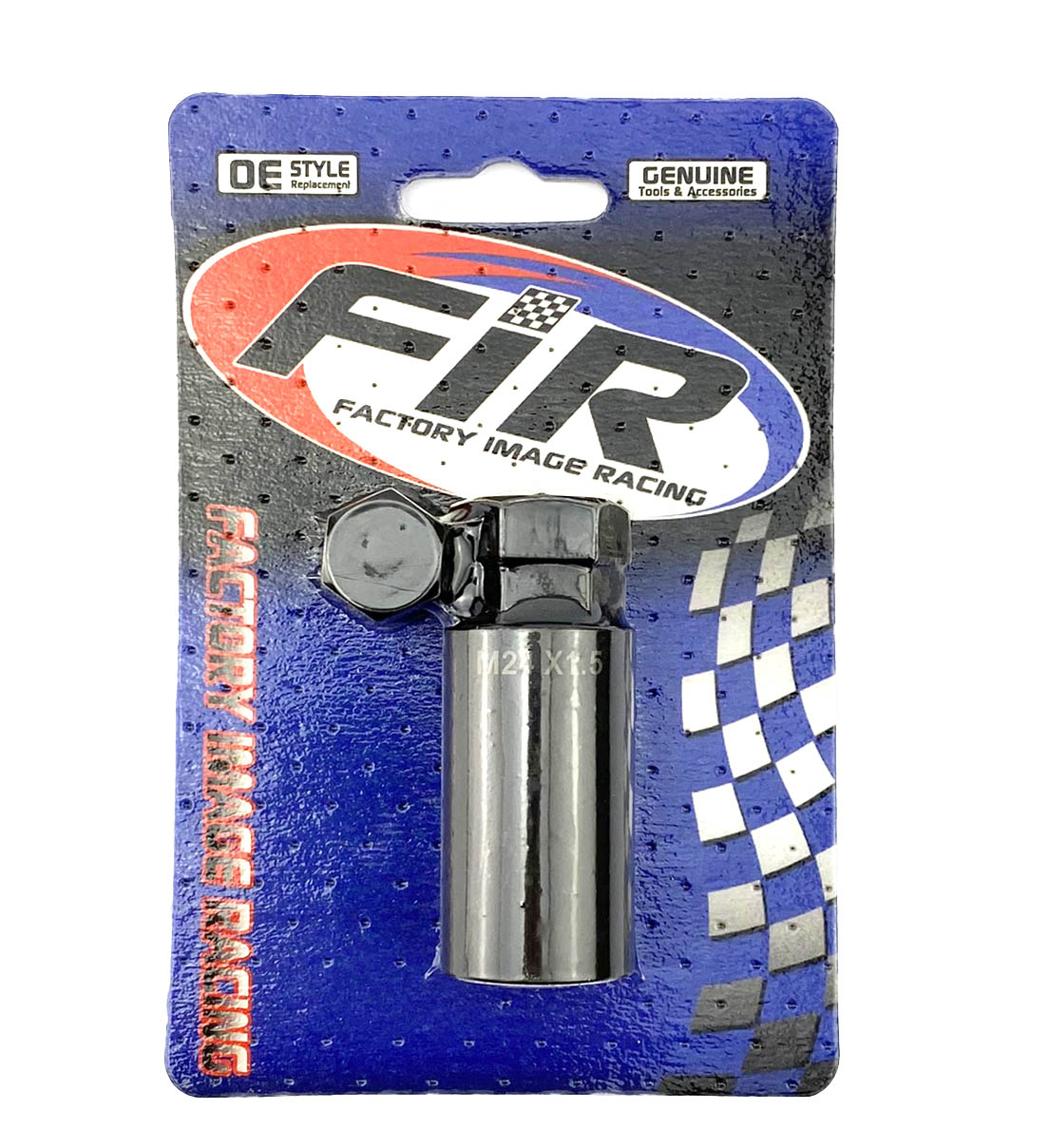

Flywheel Puller M24x1.5 RH Tool Head MX-12951

Description

This M24 x 1.50 right-hand flywheel puller is a 24 mm internal-thread workshop tool used to remove compatible motorcycle flywheels or rotors during engine service. It is suitable for selected Honda, Kawasaki, Suzuki and Yamaha off-road models where this thread size and puller type are required.

Features

  • Removes the flywheel or rotor where applicable.
  • Flywheel threads should be clean and free from damage before the puller is installed.
  • Copper grease should be applied to the puller threads to support long service life.
  • Puller should be fully screwed into the flywheel before tightening.
  • After tightening, the centre can be tapped with a hammer to help jolt the flywheel free if required.
  • Existing pullers should be checked for good thread condition before use to avoid flywheel damage.

Specifications

  • Thread size: M24 x 1.50.
  • Thread direction: right-hand.
  • Diameter: 24 mm.
  • Thread type: internal thread.
  • Material: high carbon steel.
  • Heat-treated construction.
  • Finish: hot black oxide.

Cross-Reference OEM Part Numbers

  • Honda OEM tool: 07AMCMEBA100 / 07AMC-MEBA100.
  • Kawasaki OEM tool: 57001-1565.
  • Suzuki OEM tool: K5700-11565-LPT.
  • Yamaha OEM tool: YM-04151.

Vehicle Fitments

  • Honda CRF150R 2007-2015.
  • Honda CRF250R 2004-2009.
  • Honda CRF250X 2004-2009.
  • Honda CRF450R 2002-2008.
  • Kawasaki KX250F 2004-2010.
  • Kawasaki KX450F 2006-2008.
  • Suzuki RM-Z250 2004-2009.
  • Suzuki RM-Z450 2005-2007.
  • Yamaha YZ250F 2014-2020.
  • Yamaha YZ450F 2006-2018.
