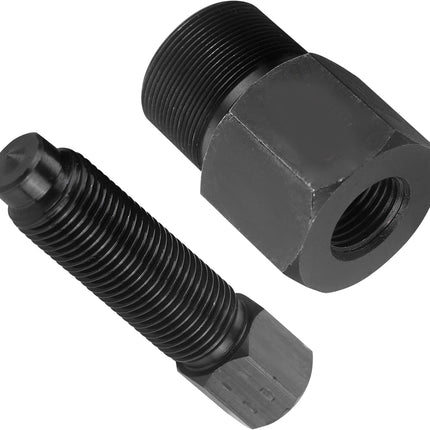

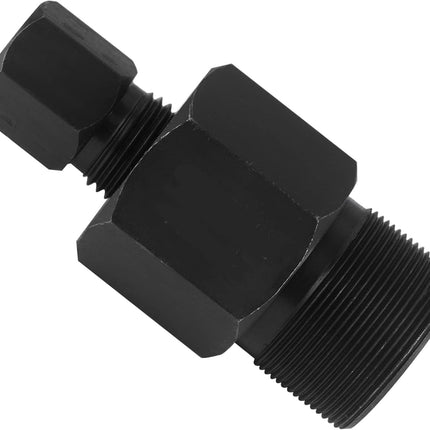

FLYWHEEL PULLER M27 x 1.00 LH THREAD Extractor Remover Tool

Description

Left-hand M27 × 1.00 thread flywheel/rotor puller designed for precise removal of magneto flywheels and rotors on a wide range of motorcycles. Manufactured from high-carbon steel with heat treatment and a corrosion-resistant black oxide finish, the tool uses a 17 mm drive and compact body for controlled application in confined spaces.

Features

  • Purpose-built for removing flywheels or rotors on compatible motorcycles
  • Left-hand external thread configuration for correct engagement with applicable flywheels
  • 17 mm drive head for positive engagement with standard tools
  • Use guidance: ensure flywheel threads are clean, apply copper grease to the puller threads, and screw the puller fully home before applying pressure

Specifications

  • Material: High-carbon steel (S45C)
  • Heat treatment: Yes
  • Finish: Black oxide
  • Thread: M27 × 1.00 LH (left-hand)
  • Bolt head size: 17 mm
  • Overall puller length: 67 mm
  • Body length: 42 mm

Cross-Reference OEM Part Numbers

  • BUZZETTI 5250
  • MOTION PRO 08-0026
  • MOTION PRO 35-5931
  • MOTION PRO MP1
  • YM-01189
  • 07933-0010000
  • 57001-252
  • 54629009044
  • 09930-30113

Vehicle Fitments

  • Honda CRF50F (2004–2011)
  • Honda XR50R (2000–2003)
  • Honda CRF70F (2004–2011)
  • Honda CR80/CR85 (1983–2008)
  • Honda CRF80F (2004–2011)
  • Honda XR80 (1979–2003)
  • Honda CRF100F (2004–2012)
  • Honda XR100/R (1981–2003)
  • Honda CR250R (1984–2007)
  • Honda CR450R (1981)
  • Honda CR500 (1984–2001)
  • Kawasaki KDX50 (2003–2006)
  • Kawasaki KX60 (1983–2003)
  • Kawasaki KX65 (2000–2012)
  • Kawasaki KDX80 (1980–1988)
  • Kawasaki KX80/85/100 (1998–2012)
  • Kawasaki KX125 (1993–2005)
  • Kawasaki KDX200 (1997–2006)
  • Kawasaki KDX220 (1997–2005)
  • Kawasaki KDX250 (1991–1994)
  • Kawasaki KX250 (1992–2007)
  • Kawasaki KX500 (1984–2004)
  • KTM 65 SX (1999–2012)
  • KTM 65 XC (2008)
  • KTM 85 SX (2004–2010)
  • KTM 85 XC (2008)
  • KTM 105 XC (2008–2012)
  • KTM 125 EXC (1998–2002)
  • KTM 125 SX (1998–2011)
  • KTM 144 SX (2008)
  • KTM 150 SX (2009–2010)
  • KTM 150 XC (2010–2011)
  • KTM 200 EXC (1998–2005)
  • KTM 200 MXC (1998–2002)
  • KTM 200 XC (2006–2009)
  • KTM 200 XC-W (2006–2012)
  • KTM 250 EXC (2000–2005)
  • KTM 250 MXC (2000–2002)
  • KTM 250 SX (2000–2012)
  • KTM 250 XC (2006–2007)
  • KTM 300 EXC/MXC (1998–2005)
  • KTM 300 XC/XC-W (2006–2007)
  • KTM 380 EXC/MXC/SX (1998–2001)
  • Suzuki RM60 (2003)
  • Suzuki RM65 (2003–2005)
  • Suzuki DR100 (1983–1990)
  • Suzuki RM100 (2003)
  • Suzuki DR125 (1982–1988)
  • Suzuki DR-Z125/L (2003–2009)
  • Suzuki RM125 (1996–2008)
  • Suzuki DR200 (1986–1988)
  • Suzuki RM250 (1989–2008)
  • Suzuki RMX250 (1989–1998)
  • Yamaha DT50 (1976–1988)
  • Yamaha IT125 (1980–1982)
  • Yamaha IT200 (1984–1985)
  • Yamaha TT250 (1980–1982)
  • Yamaha TT500 (1976–1981)
  • Yamaha TT-R125 (2000–2012)
  • Yamaha TT-R250 (2000–2001)
  • Yamaha PW50 (1981–2003)
  • Yamaha PW80 (1983–2003)
  • Yamaha RT100 (1990–1999)
  • Yamaha RT180 (1990–1995)
  • Yamaha WR250Z (1992–2003)
  • Yamaha WR500Z (1992–1993)
  • Yamaha YZ125 (1976–2008)
  • Yamaha YZ250 (1976–2008)
  • Yamaha YZ400F (1998–1999)
  • Yamaha YZ426F (2000–2001)
  • Yamaha YZ465 (1980–1981)
  • Yamaha YZ490 (1983–1990)
