Description

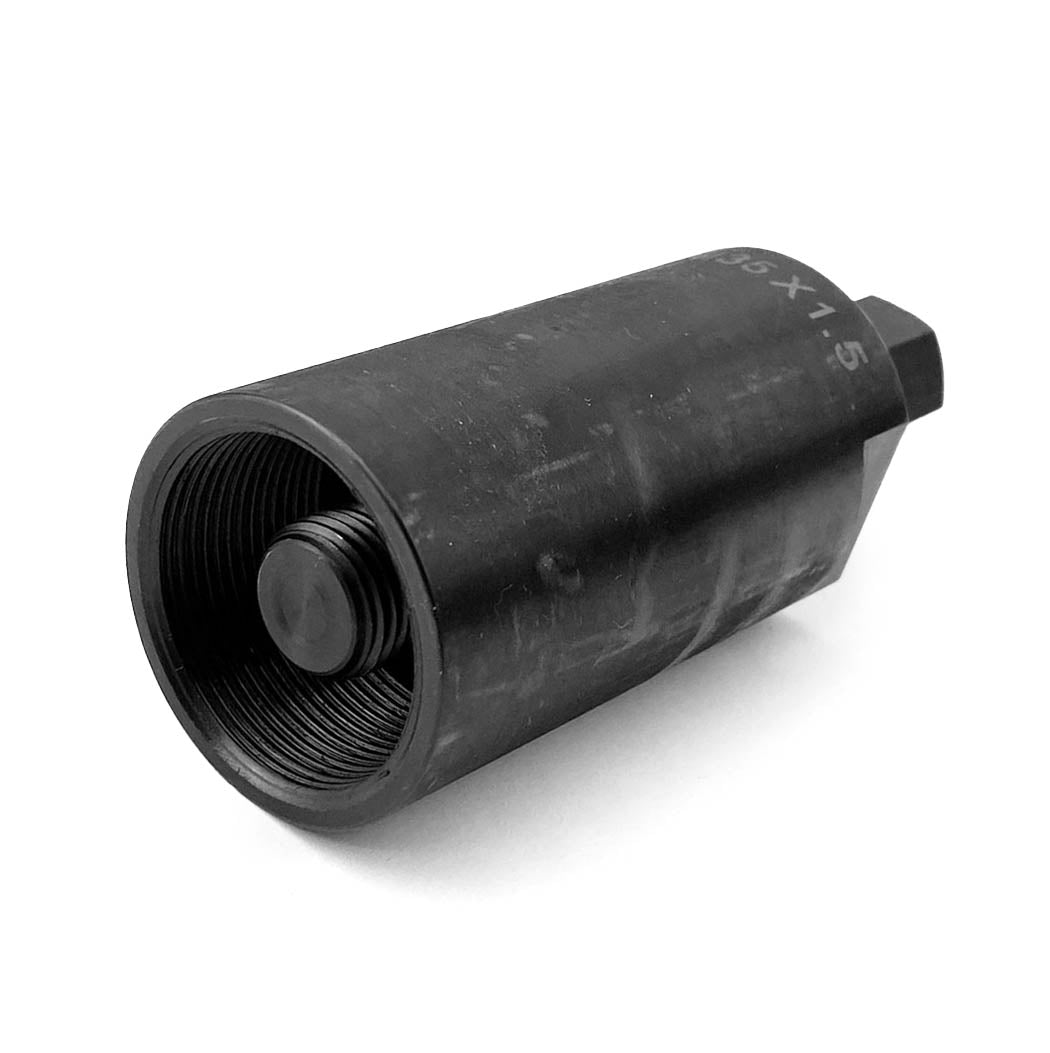

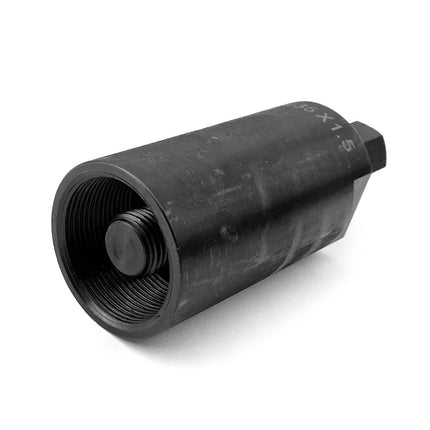

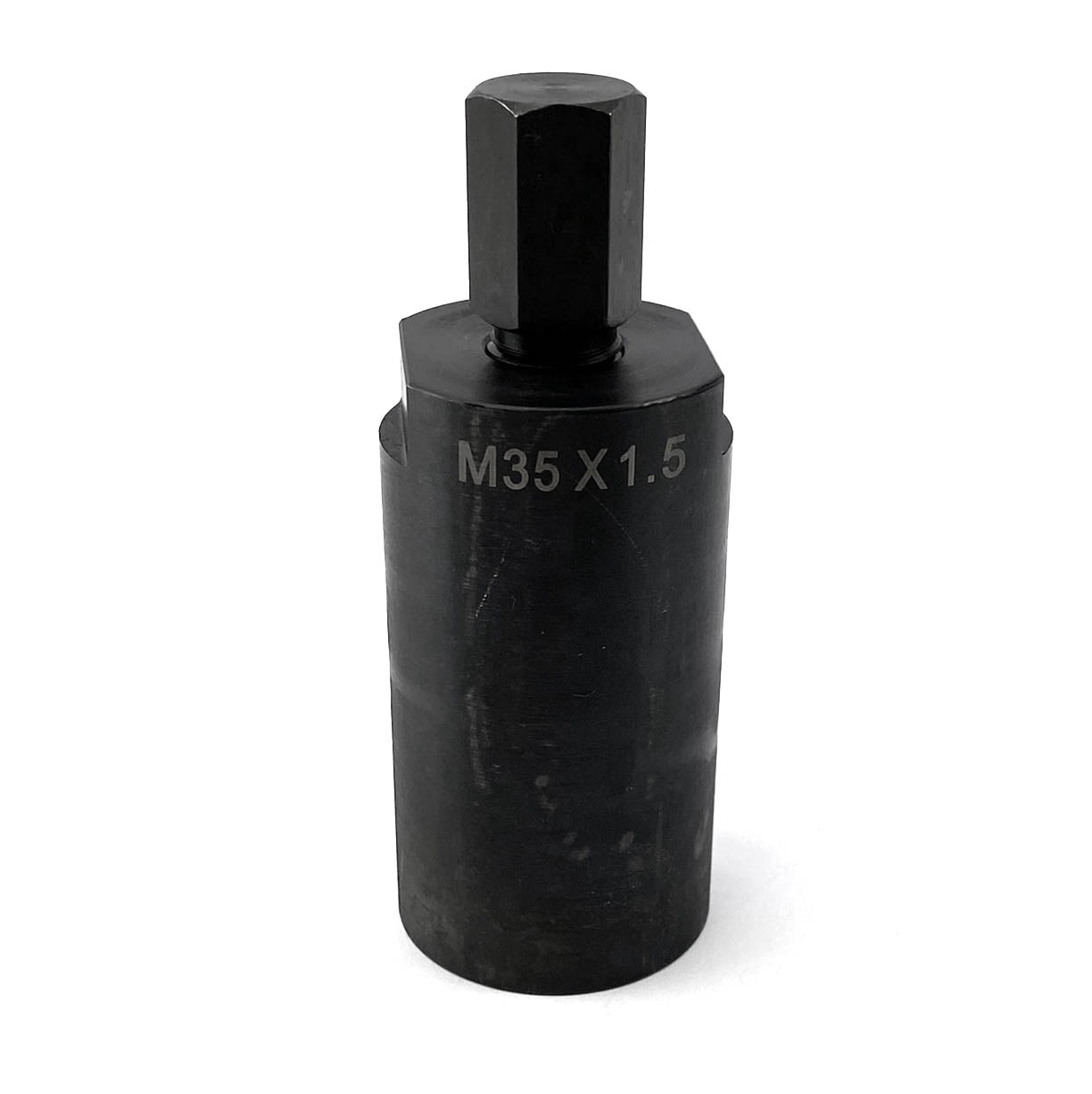

Flywheel Puller / Extractor M35x1.50 Right Hand. Internal Thread X 75 mm
YAMAHA
YFM 350 97, YFM 350ER 89-95, YFM 350FAH40 04, YFM350FW 89-99, YFM 350FX 95-96, YFM 350S/RT 04-05, YFM 350U 96-99, YFM 350X 89-03, YFM 35AS 04-05, YFM 35FX 97-03, YFM 35FXS 04-05, YFM 35XS 04-05, YFM 400A 00-02, YFM 400F 96-99,YFM 400FA 22-04, YFM 400FAHS 04-05, YFM 400FAT 05, YFM 400FM 00, YFM 400FS 04-05, YFM 400FT 05, YFM 400FW 99-03, YFM 400N 00-03, YFM 400P 01, YFM 400S 04-05, YFM 660F 02-06, 06 YFM 700R
Kawasaki:
EX 250E 1986-1987, EX 250F 1988-2007
Suzuki
DR250 1990-1993, DR250S/SE 90-95, DR350 90-99,DR350S 90- 93, DR350SE 94-99.
- Used for removal of the flywheel or rotor if applicable.
- Premium quality high carbon steel S45C.
- Heat treated for strength and durability.
- Durable hot black oxide finish.
Tips on use.
- Make sure the flywheel thread is clean of dirt and not damaged before screwing the puller in.
- Use copper grease on the puller threads, for long life.
- Make sure the puller is fully screwed into the flywheel.
- After tightening use a hammer on the centre and tap to jolt free [not always need].
- If using old flywheel pullers make sure the threads are in good condition before use to avoid damage to flywheel.

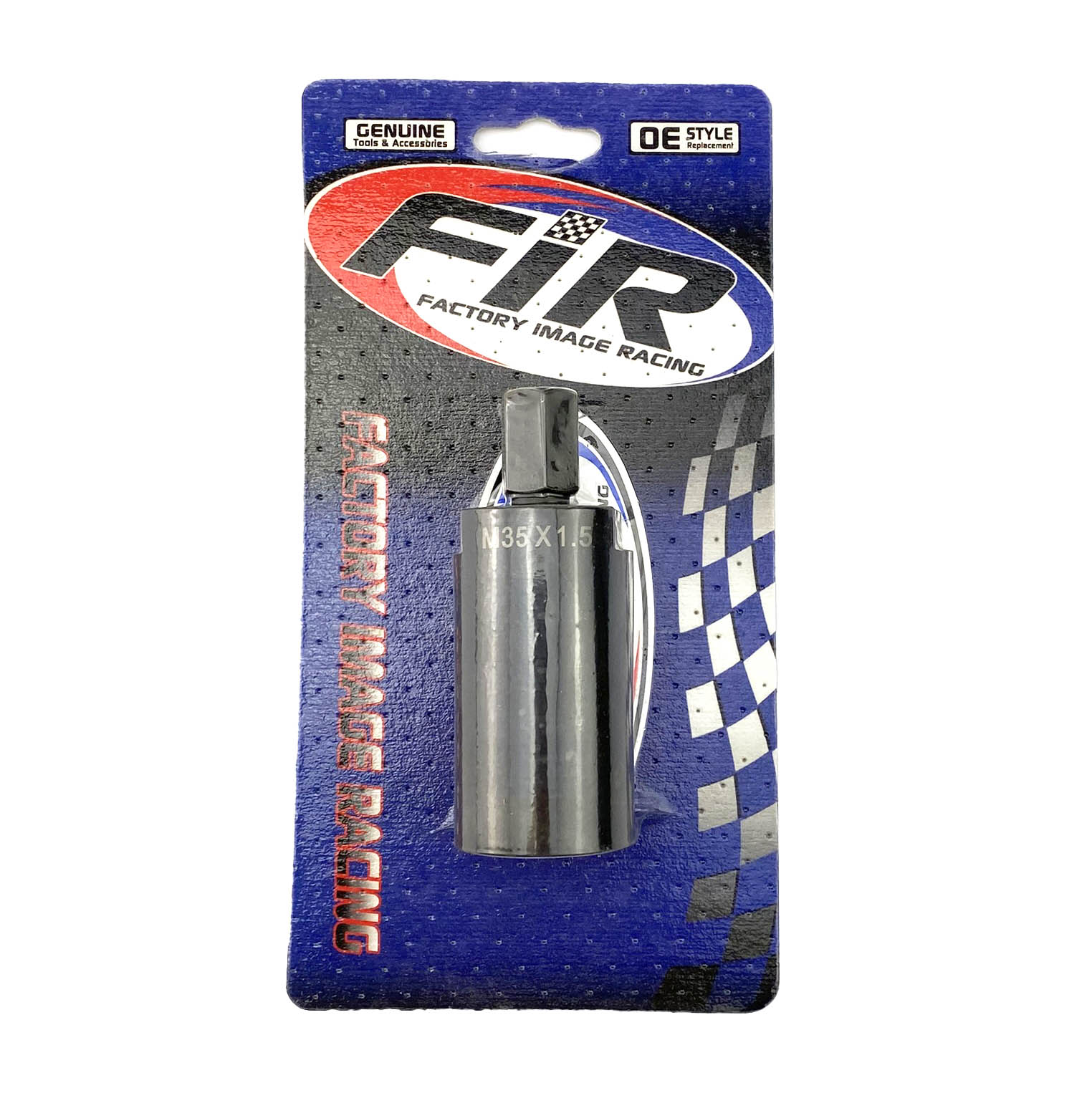

Part No. 00-376.DR [FACTORY IMAGE RACING].(radhouse.co.uk)
Cross Reference Numbers Only:
MP82, AT-12926, K&L 35-5952, MOTION PRO 08-0349, YM-01404,
