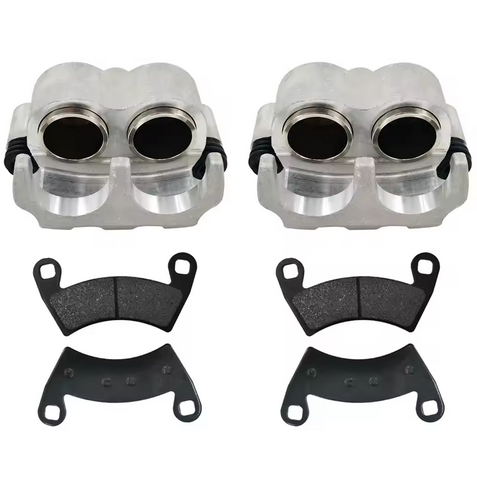

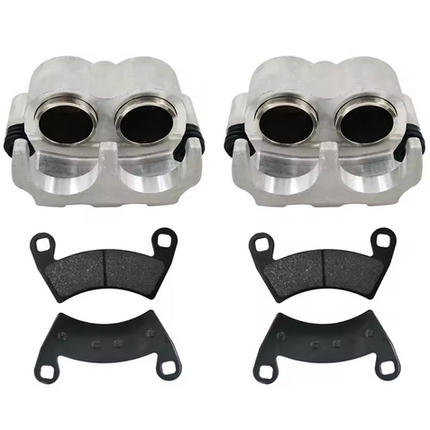

Front Brake Caliper Pair Pads 08-23 Polaris General Lsv Ranger Rzr Sportsman Ace 2203747 1911283

Description

This brake caliper set is a direct OEM-replacement assembly for selected Polaris Ranger, RZR, General, Brutus, Sportsman ACE and GEM vehicles manufactured between 2008 and 2023. Designed primarily for front brake applications, with verified rear compatibility on selected models, it provides dependable hydraulic braking performance using factory mounting points and connections.

Features

  • Complete left-hand and right-hand brake caliper set
  • Brake pads supplied pre-installed
  • Direct replacement for the original factory assemblies
  • Designed for consistent braking under demanding operating conditions
  • Manufactured to meet or exceed OEM requirements
  • Compatible with the original mounting and hydraulic connection arrangement
  • Straightforward installation; professional installation is recommended

Specifications

  • Brake system application: Front, with selected rear applications
  • Caliper configuration: Double bore
  • Caliper sides: Left-hand and right-hand
  • Piston diameter: 1.375 in
  • Seal diameter: 1.375 in
  • Bleeder screw thread: M7 × 1.0
  • Socket set screw thread: M10 × 1.0 × 8

Cross-Reference OEM Part Numbers

  • Front brake caliper assembly: 1911283
  • Front brake caliper assembly: 1911284
  • Mount and caliper assembly, double bore, metric: 1911282
  • Mount and caliper assembly, double bore, metric: 1912496
  • Brake pad kit, double bore, 1.375 in, containing two pads: 2203747
  • Brake pad kit, double bore, 1.375 in, containing two pads: 2205949
  • Front brake boot kit, including pin bushing boot and pin seal boot: 1930642
  • Pin bushing boot: 5412505
  • Pin seal boot: 5412506
  • Inner caliper seal, 1.375 in: 5412907
  • Brake piston, 1.375 in: 5138774
  • Brake caliper piston, 1.375 in: 5135134
  • M7 × 1.0 olive bleeder screw: 7081343
  • M10 × 1.0 × 8 socket set screw: 7518863
  • Front brake scraper: 5438948
  • Screw: 7516823
  • Brake caliper, double bore, left-hand: Part number not specified
  • Brake caliper, double bore, right-hand: Part number not specified

GEM Front Vehicle Fitments

  • ALL OPTIONS — 2013–2015, 2018
  • EM1400 ALL OPTIONS — 2015
  • EM1400 FLATBED — 2014

Polaris Front Vehicle Fitments

Polaris

  • GENERAL 1000, all listed variants (2016-2023)
  • GENERAL XP 1000 / XP SPORT 1000 / XP4, all listed variants (2021-2023)
  • POLARIS LSV 4X4 (2011-2012)
  • RANGER EV / 48V EV / EV MIDSIZE / EV-LEV / EV-INTL (2010-2015)
  • RANGER 500, 2X4 / 4X4 / CREW / MIDSIZE (2008-2013)
  • RANGER 570, CREW / FULL SIZE / XP (2014-2016)
  • RANGER 700, 4X4 / 6X6 / CREW (2008-2009)
  • RANGER 800, 4X4 / 6X6 / CREW / XP (2010-2015)
  • RANGER 900 / 900D / 902D / XP 900, all listed variants (2011-2022)
  • RANGER 1000 / 1000XP / XP 1000 / CREW / CREW XP, all listed variants (2015-2022)
  • RANGER DIESEL / HST (2014-2017; 2022)
  • RZR 4 / XP 4 800-1000, all listed variants (2010-2015; 2022)
  • RZR 900 / XP / XP 900 (2011-2014)
  • RZR XP 1000 / XP1000, all listed variants (2014-2020)
  • RZR RS1, all listed variants (2018-2022)
  • SPORTSMAN ACE, all listed variants (2014-2015)

Polaris (Rear)

  • RANGER 570 FULL SIZE CREW / XP (2015-2016)
  • RANGER 700 4X4 CREW (2008-2009)
  • RANGER 800, 4X4 CREW / 6X6 / CREW (2010-2017)
  • RANGER 900 / 900D / 900XP CREW, all listed variants (2013-2019)
  • RANGER 1000 / 1000XP CREW, all listed variants (2017-2018)
  • RZR 4 / XP 4 900, all listed variants (2012-2014)
  • RZR XP 1000 / XP1000 / XP 4 1000 (2014-2020)

Front Brake Caliper Pair Pads 08-23 Polaris General Lsv Ranger Rzr Sportsman Ace 2203747 1911283

Product form

This brake caliper set is a direct OEM-replacement assembly for selected Polaris Ranger, RZR, General, Brutus, Sportsman ACE and GEM... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 42-A1003.CAL
    Barcode: 0120000044764

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This brake caliper set is a direct OEM-replacement assembly for selected Polaris Ranger, RZR, General, Brutus, Sportsman ACE and GEM vehicles manufactured between 2008 and 2023. Designed primarily for front brake applications, with verified rear compatibility on selected models, it provides dependable hydraulic braking performance using factory mounting points and connections.

    Features

    • Complete left-hand and right-hand brake caliper set
    • Brake pads supplied pre-installed
    • Direct replacement for the original factory assemblies
    • Designed for consistent braking under demanding operating conditions
    • Manufactured to meet or exceed OEM requirements
    • Compatible with the original mounting and hydraulic connection arrangement
    • Straightforward installation; professional installation is recommended

    Specifications

    • Brake system application: Front, with selected rear applications
    • Caliper configuration: Double bore
    • Caliper sides: Left-hand and right-hand
    • Piston diameter: 1.375 in
    • Seal diameter: 1.375 in
    • Bleeder screw thread: M7 × 1.0
    • Socket set screw thread: M10 × 1.0 × 8

    Cross-Reference OEM Part Numbers

    • Front brake caliper assembly: 1911283
    • Front brake caliper assembly: 1911284
    • Mount and caliper assembly, double bore, metric: 1911282
    • Mount and caliper assembly, double bore, metric: 1912496
    • Brake pad kit, double bore, 1.375 in, containing two pads: 2203747
    • Brake pad kit, double bore, 1.375 in, containing two pads: 2205949
    • Front brake boot kit, including pin bushing boot and pin seal boot: 1930642
    • Pin bushing boot: 5412505
    • Pin seal boot: 5412506
    • Inner caliper seal, 1.375 in: 5412907
    • Brake piston, 1.375 in: 5138774
    • Brake caliper piston, 1.375 in: 5135134
    • M7 × 1.0 olive bleeder screw: 7081343
    • M10 × 1.0 × 8 socket set screw: 7518863
    • Front brake scraper: 5438948
    • Screw: 7516823
    • Brake caliper, double bore, left-hand: Part number not specified
    • Brake caliper, double bore, right-hand: Part number not specified

    GEM Front Vehicle Fitments

    • ALL OPTIONS — 2013–2015, 2018
    • EM1400 ALL OPTIONS — 2015
    • EM1400 FLATBED — 2014

    Polaris Front Vehicle Fitments

    Polaris

    • GENERAL 1000, all listed variants (2016-2023)
    • GENERAL XP 1000 / XP SPORT 1000 / XP4, all listed variants (2021-2023)
    • POLARIS LSV 4X4 (2011-2012)
    • RANGER EV / 48V EV / EV MIDSIZE / EV-LEV / EV-INTL (2010-2015)
    • RANGER 500, 2X4 / 4X4 / CREW / MIDSIZE (2008-2013)
    • RANGER 570, CREW / FULL SIZE / XP (2014-2016)
    • RANGER 700, 4X4 / 6X6 / CREW (2008-2009)
    • RANGER 800, 4X4 / 6X6 / CREW / XP (2010-2015)
    • RANGER 900 / 900D / 902D / XP 900, all listed variants (2011-2022)
    • RANGER 1000 / 1000XP / XP 1000 / CREW / CREW XP, all listed variants (2015-2022)
    • RANGER DIESEL / HST (2014-2017; 2022)
    • RZR 4 / XP 4 800-1000, all listed variants (2010-2015; 2022)
    • RZR 900 / XP / XP 900 (2011-2014)
    • RZR XP 1000 / XP1000, all listed variants (2014-2020)
    • RZR RS1, all listed variants (2018-2022)
    • SPORTSMAN ACE, all listed variants (2014-2015)

    Polaris (Rear)

    • RANGER 570 FULL SIZE CREW / XP (2015-2016)
    • RANGER 700 4X4 CREW (2008-2009)
    • RANGER 800, 4X4 CREW / 6X6 / CREW (2010-2017)
    • RANGER 900 / 900D / 900XP CREW, all listed variants (2013-2019)
    • RANGER 1000 / 1000XP CREW, all listed variants (2017-2018)
    • RZR 4 / XP 4 900, all listed variants (2012-2014)
    • RZR XP 1000 / XP1000 / XP 4 1000 (2014-2020)
