Front Differential Rebuild Kit 15-21 Polaris Ranger Rzr Ace 1333750 3236647 3233956

Description

This Front Differential Rebuild Kit is designed for a wide range of Polaris models and includes all necessary components to restore proper function to the front differential. The kit features essential seals, bearings, rollers, and plates for a complete rebuild, ensuring compatibility with both utility and recreational off-road vehicles.

Features

  • Includes seals, O-rings, bearing, roller cage, sprague rollers, armature plate, hub assembly, gear ring, and pinion
  • Compatible with various Polaris Ranger, RZR, and ACE models
  • Provides components required for a full front differential rebuild

Specifications

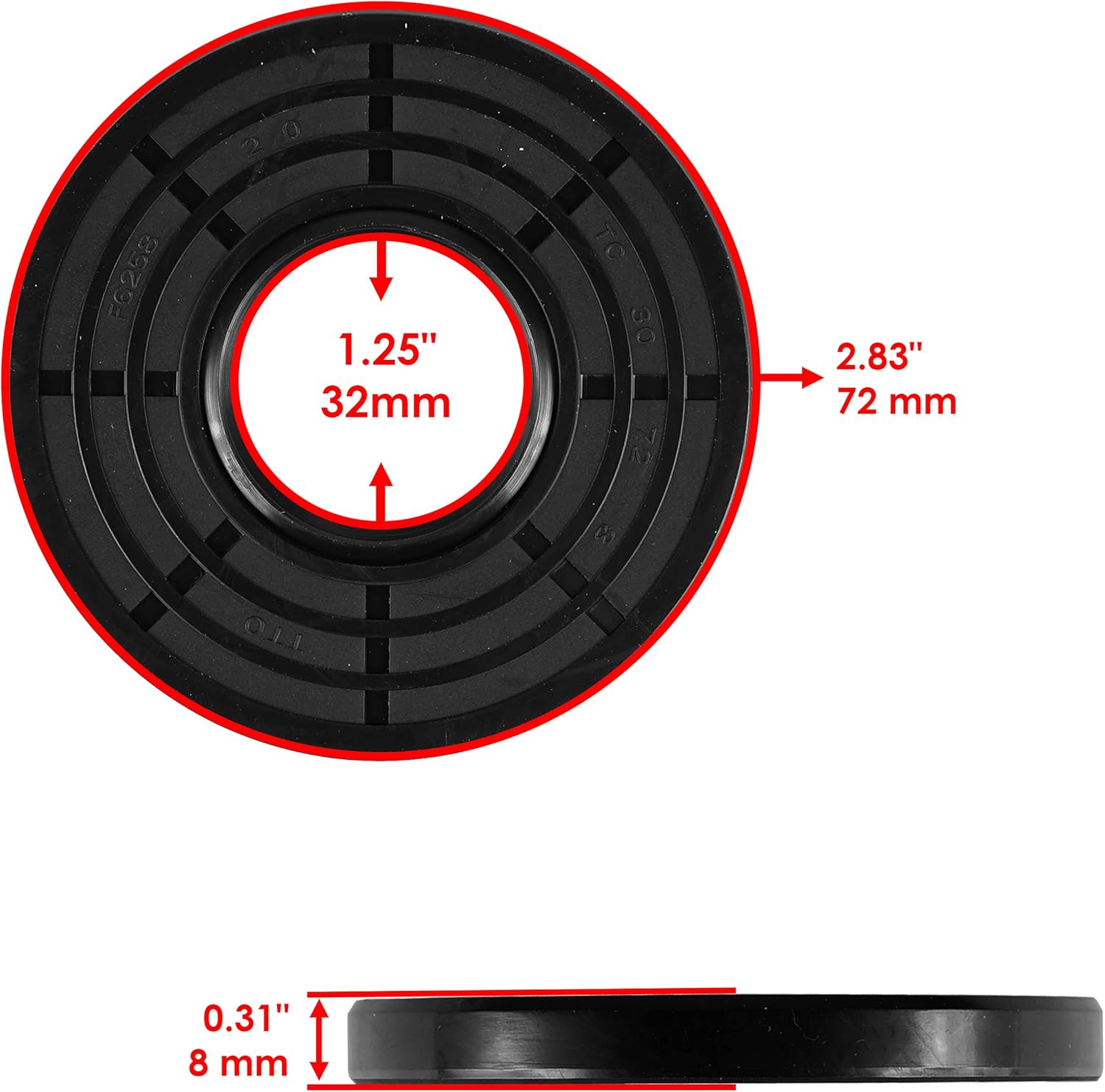

  • 1x Seal (3236647): ID 32mm (1.25"), OD 72mm (2.83"), Width 8mm (0.31")

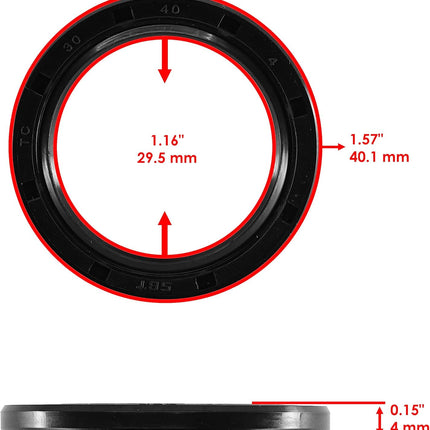

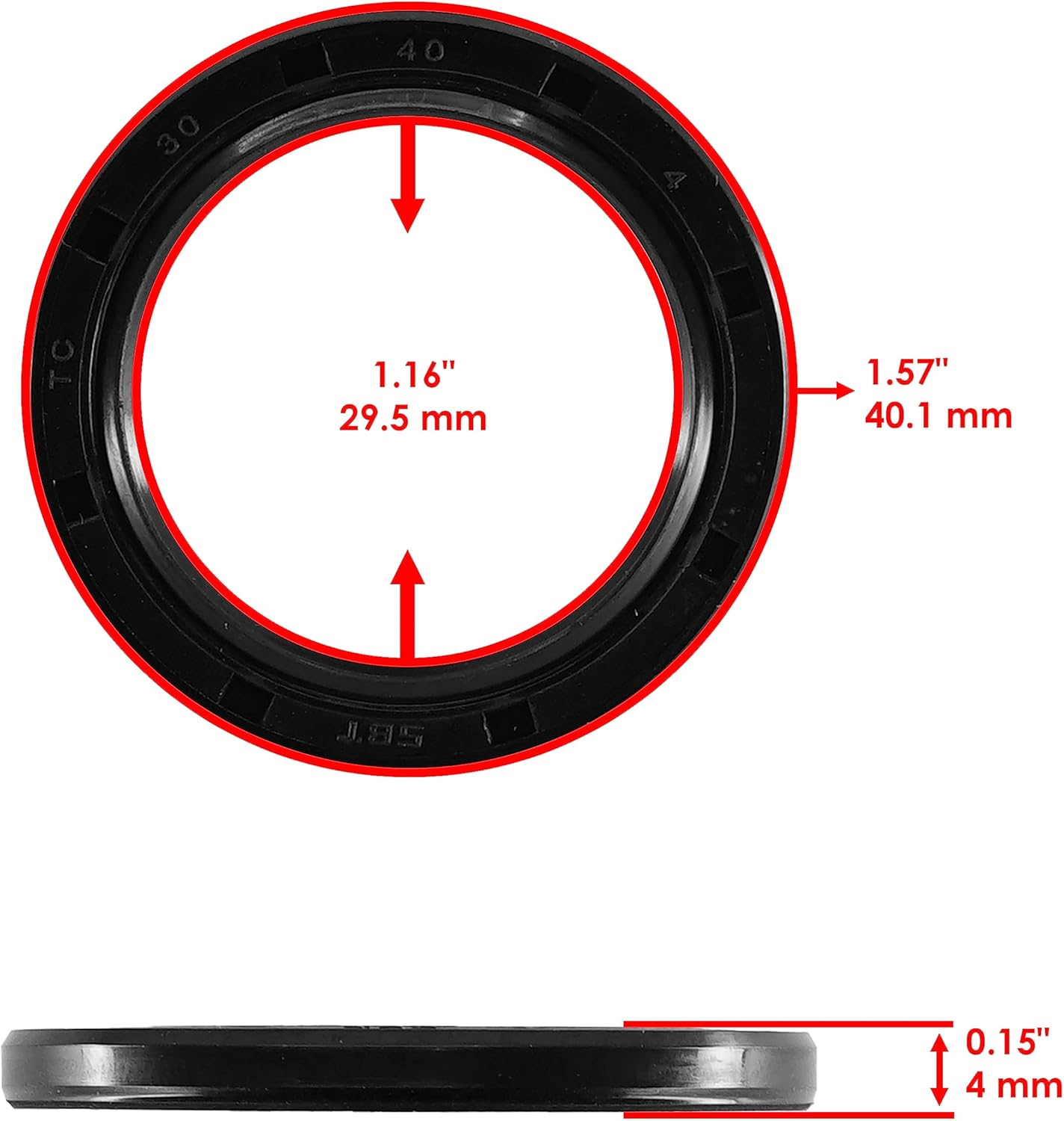

  • 2x Seals (3233956): ID 29.5mm (1.16"), OD 40.1mm (1.57"), Width 4mm (0.15")
  • 2x O-Rings (2203738, 2203739)

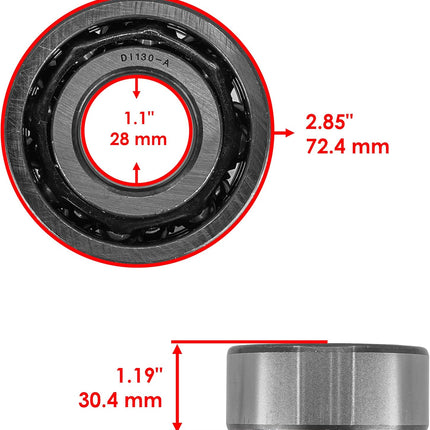

  • 1x Bearing (3235174): ID 28mm (1.1"), OD 72.4mm (2.85"), Width 30.4mm (1.19")

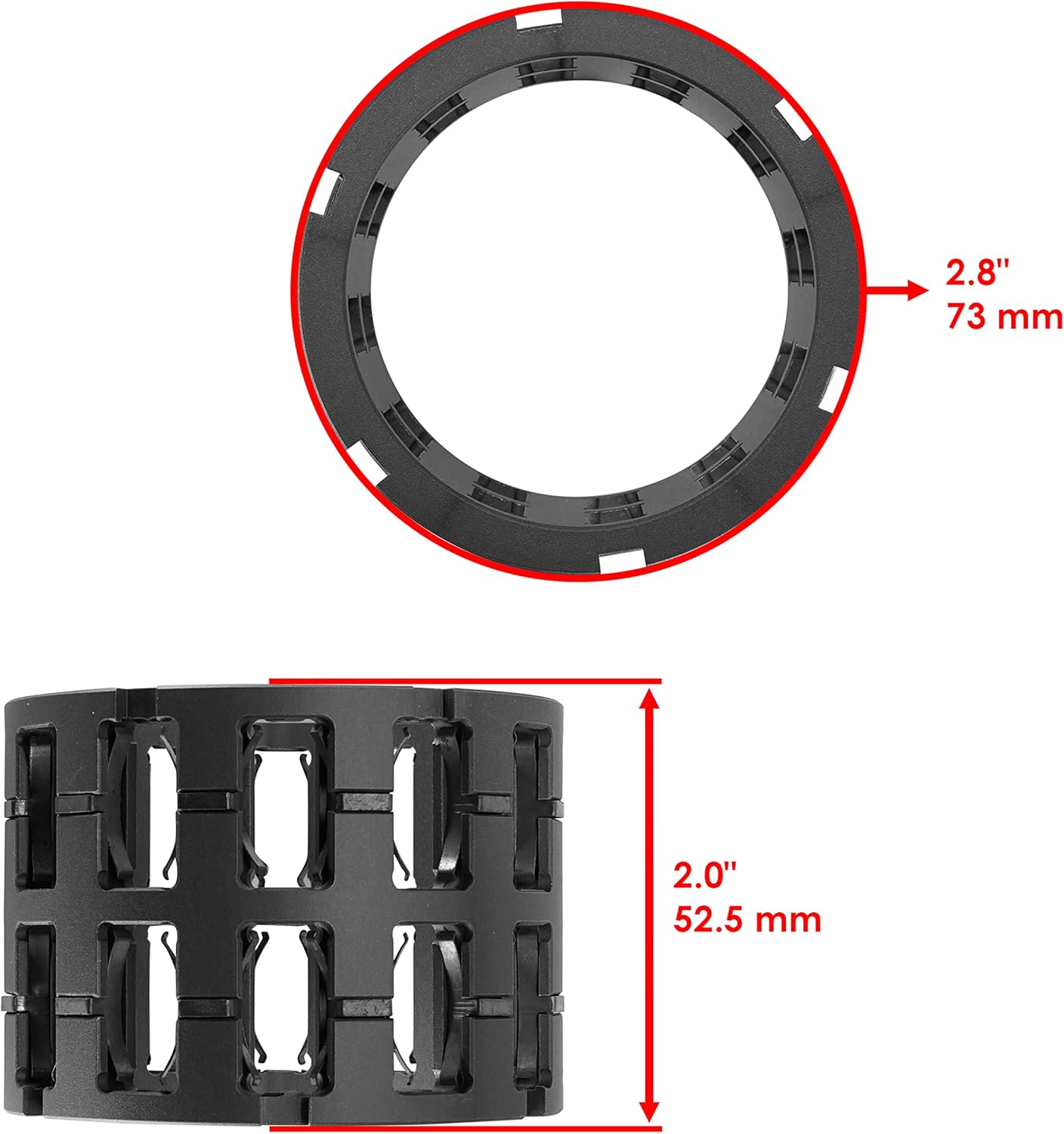

  • 1x Roller Cage (3235917, 3235844, 3235625): Height 52.5mm (2.0"), OD 73mm (2.8")
  • 24x Sprague Rollers (3234393, 3235624): Length 19mm (0.74")
  • 1x Armature Plate (3234407): ID 66mm (2.6"), OD 114mm (4.5")
  • 1x Plate (3236663, 3234402, 3235162, 3234908): ID 87mm (3.4"), Width 18.6mm (0.73")

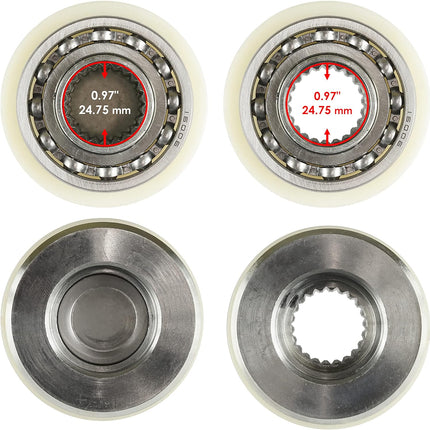

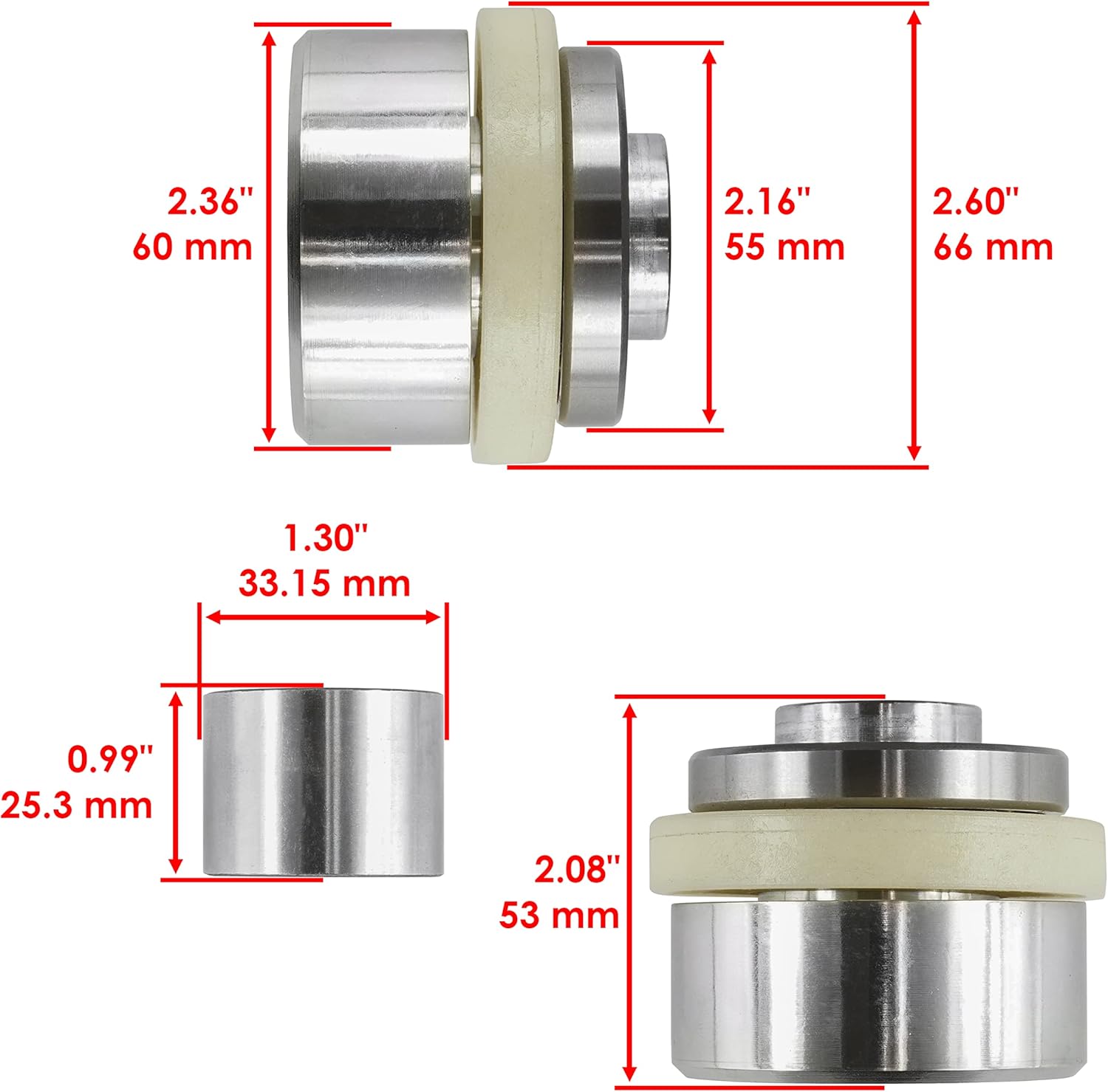

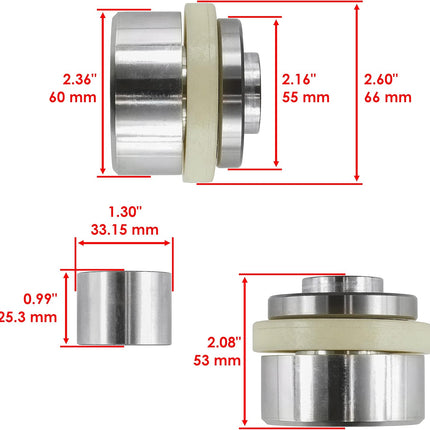

  • 1x Hub Assembly (3235169, 2203727, 2203728, 3235057, 3236683, 3236675, 323591)

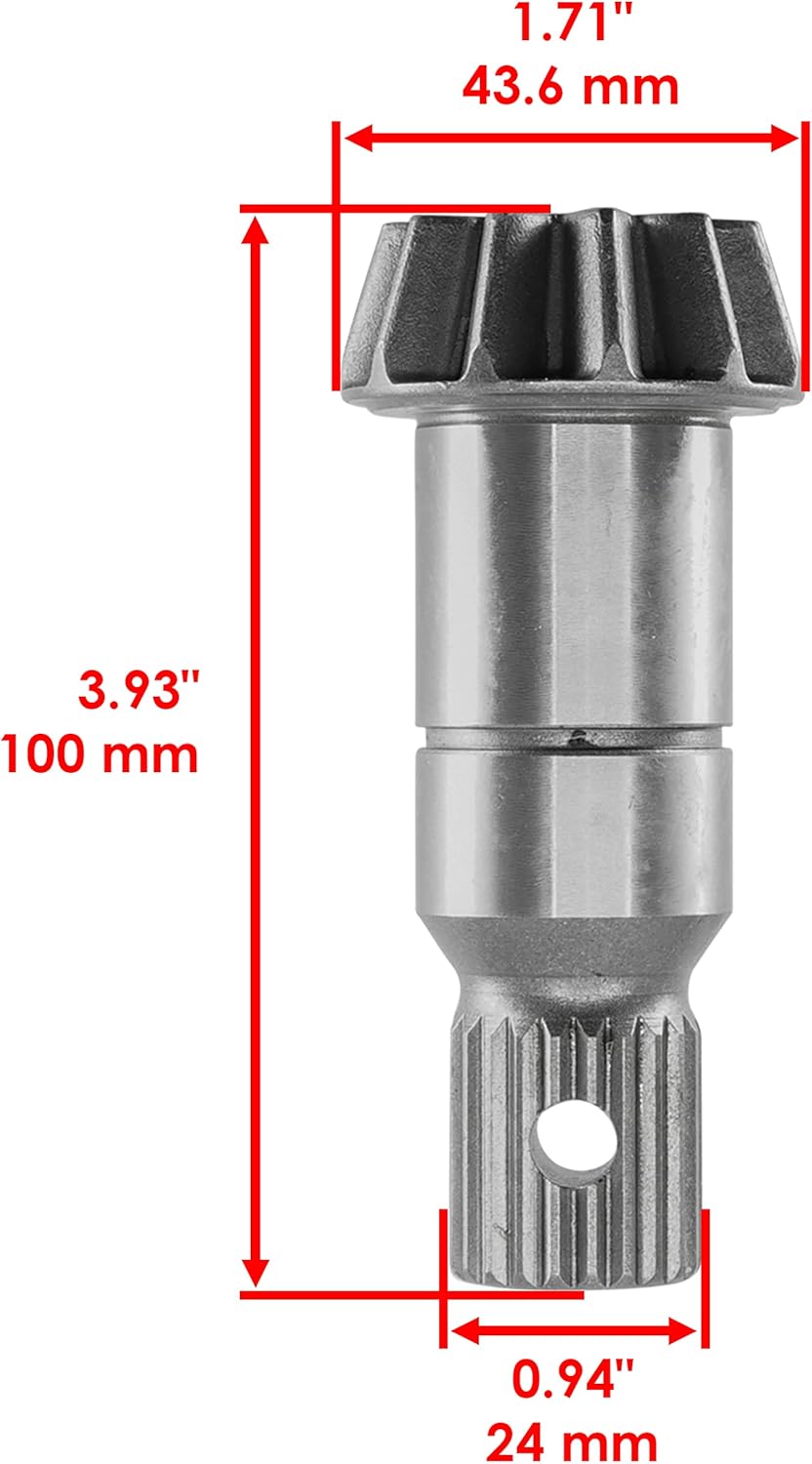

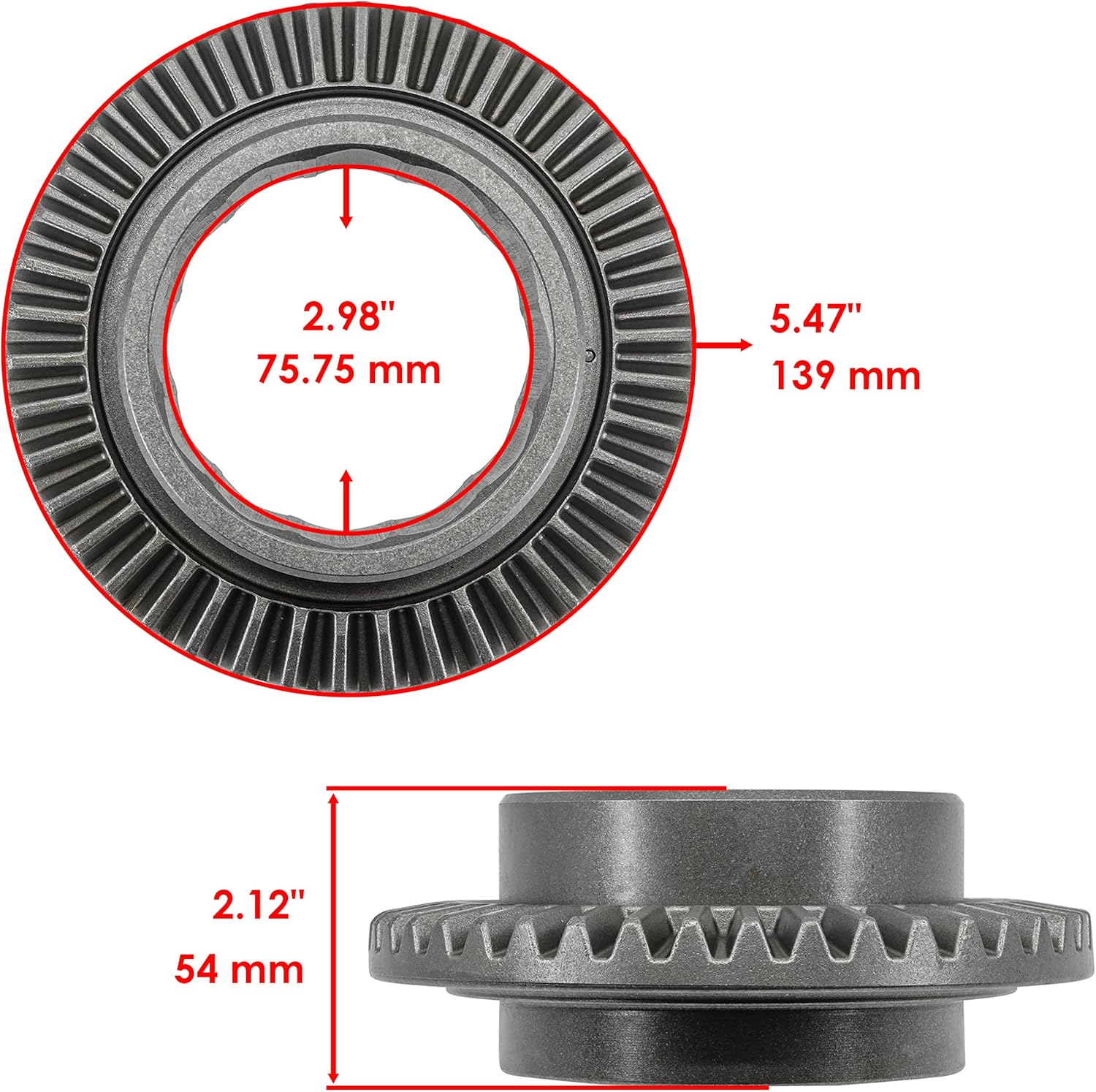

  • 1x Front Differential Gear Ring & Pinion (3239381, 3235173, 3235441): ID 75.75mm (2.98"), OD 139mm (5.47"), Height 54mm (2.12")

Cross-Reference OEM Part Numbers

  • 3236647, 3233956, 2203738, 2203739, 3235174, 3235917, 3235844, 3235625, 3234393, 3235624, 3234407, 3234402, 3235162, 3234908, 3235169, 2203727, 2203728, 3235057, 3236683, 3236675, 323591, 3239381, 3235173, 3235441

Vehicle Fitments

  • Polaris Ranger 1000 Diesel 2016-2018
  • Polaris Ranger 1000 Full Size 2020
  • Polaris Ranger Crew 1000 Diesel 2015-2018
  • Polaris RZR 570 2015-2020
  • Polaris RZR 570 Trail 2021
  • Polaris ACE 325 EFI 2016
  • Polaris ACE 570 EFI 2017
  • Polaris Ranger 570 2016-2021
  • Polaris Ranger 570 MD 2017
  • Polaris Ranger 570 LTN 2020
  • Polaris Ranger 570 Full Size 2016-2020
  • Polaris Ranger 500 2017-2021
  • Polaris Ranger Crew 570 EFI 2016-2021
  • Polaris Ranger Crew 570 Full Size 2016, 2020-2021
  • Polaris Ranger Crew 900 2015-2019
  • Polaris Ranger ETX 2016
  • Polaris ACE 500 SOHC 2017-2019
  • Polaris Pro XD 2019-2020
