Name: Fuel Valve Kit Yfm 660 F Grizzly 4x4 02-08, Fuel Star FS101-0041 Yamaha ATV, Tape / Petcock / Clips / Pipes / Bolts
Brand: Fuel Star
SKU: FS101-0041

Fuel Valve Kit Yfm 660 F Grizzly 4x4 02-08, Fuel Star FS101-0041 Yamaha ATV, Tape / Petcock / Clips / Pipes / Bolts

Fuel Star
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

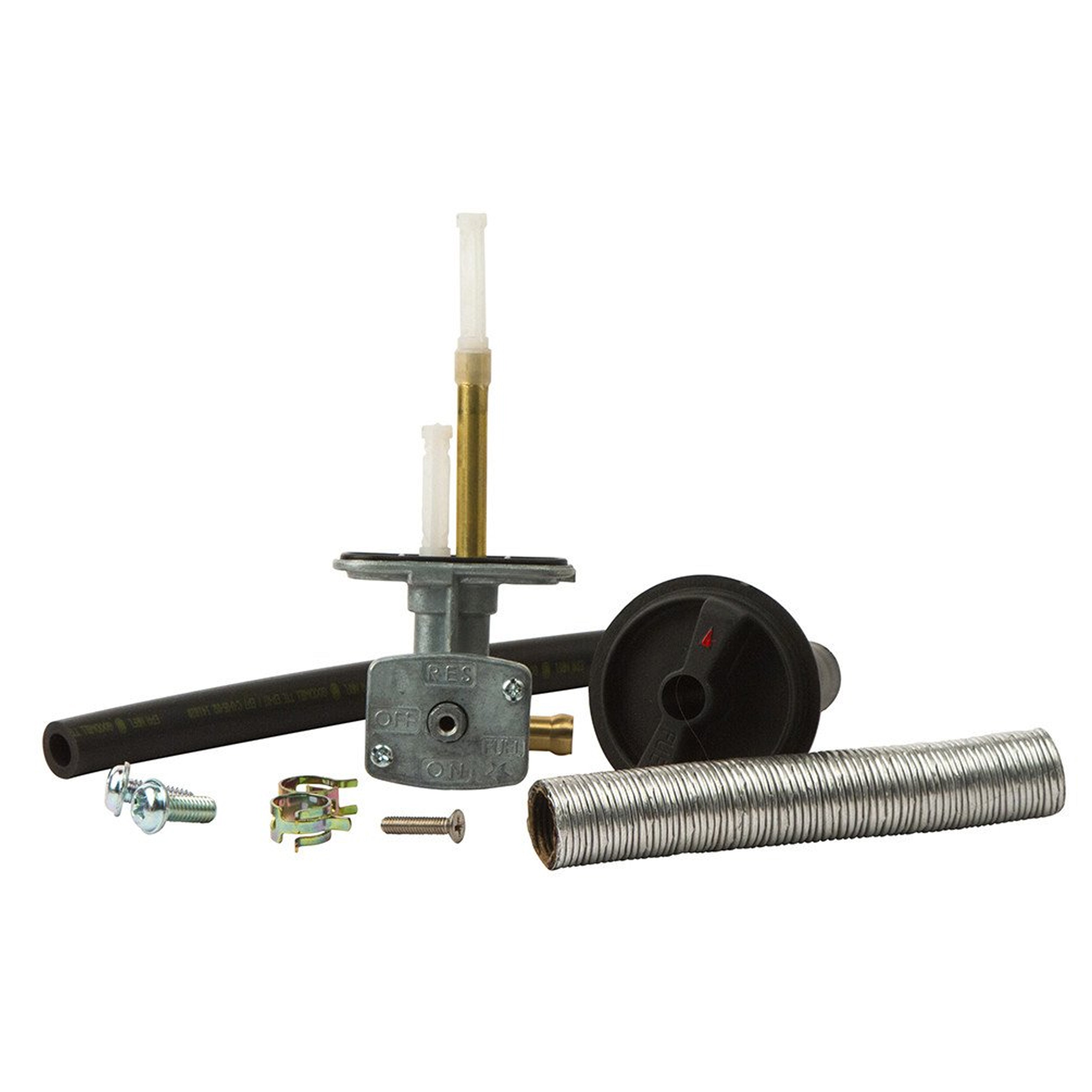

The Fuel Star FS101-0041 Fuel Valve Kit is a complete replacement petcock assembly designed for 2002–2008 Yamaha YFM660F Grizzly 4x4 models, including standard, Hunter, Special, Ducks Unlimited, and Limited Editions. This kit includes all essential components for installation and matches OEM specifications.

Features

Complete replacement fuel petcock assembly
Includes gasket, fuel line, clamps, mounting hardware, knob, and line wrap
Direct-fit design for specified Yamaha ATV models
Sold individually

Specifications

(1) Fuel petcock
(1) Gasket
(1) Rubber hose
(1) Black plastic knob
(1) Fuel line wrap
(2) 6mm-1.00 x 15mm flange head bolts
(1) 4mm-.7 x 16mm flat head bolt
(2) Hose clamps

Cross-Reference OEM Part Numbers

5KM-24500-01-00 (Fuel Cock Assy)
5KM-24500-10-00 (Fuel Cock Assy)
3AC-24523-00-00 (Valve Packing)
3AJ-24534-01-00 (Seal, Cock)
98507-03014-00 (Screw, Pan Head)
4X8-24512-00-00 (O-Ring)
90149-06011-00 (Screw)
5GH-24524-00-00 (Lever, Cock)
1NS-F4524-00-00 (Lever, Cock)
98707-04018-00 (Screw, Flat Head)
5KM-24311-10-00 (Pipe, Fuel 1)
5KM-24327-02-00 (Protector, Pipe)
90467-12053-00 (Clip)
90467-11044-00 (Clip)

Vehicle Fitments

2002 Yamaha YFM660F Grizzly 4x4
2003 Yamaha YFM660F Grizzly 4x4
2004 Yamaha YFM660F Grizzly 4x4
2002 Yamaha YFM660FH Grizzly 4x4 Hunter Edition
2003 Yamaha YFM660FH-H Grizzly 4x4 Hardwoods Hunter Edition
2003 Yamaha YFM660FH-WL Grizzly 4x4 Wetlands Hunter Edition
2004 Yamaha YFM660FH Grizzly 4x4 Hardwoods Hunter Edition
2004 Yamaha YFM660FH-WL Grizzly 4x4 Wetlands Hunter Edition
2003 Yamaha YFM660F-GY Grizzly 4x4 Limited Edition
2004 Yamaha YFM660FLE Grizzly 4x4 Limited Edition
2005 Yamaha YFM660FLE Grizzly 4x4 Limited Edition
2005 Yamaha YFM660FA Grizzly 4x4
2006 Yamaha YFM660FA Grizzly 4x4
2007 Yamaha YFM660FA Grizzly 4x4
2008 Yamaha YFM660FA Grizzly 4x4
2005 Yamaha YFM660FAHW Grizzly 4x4 Wetlands Hunter Edition
2006 Yamaha YFM660FAHD Grizzly 4x4 Ducks Unlimited Edition
2005 Yamaha YFM660FASE Grizzly 4x4 Special Edition
2006 Yamaha YFM660FASE Grizzly 4x4 Special Edition
2007 Yamaha YFM660FG Grizzly 4x4
2008 Yamaha YFM660FG Grizzly 4x4
2007 Yamaha YFM660FGH Grizzly 4x4 Hunter Edition
2008 Yamaha YFM660FGH Grizzly 4x4 Hunter Edition

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM F GRIZZLY 660	2002-2008
