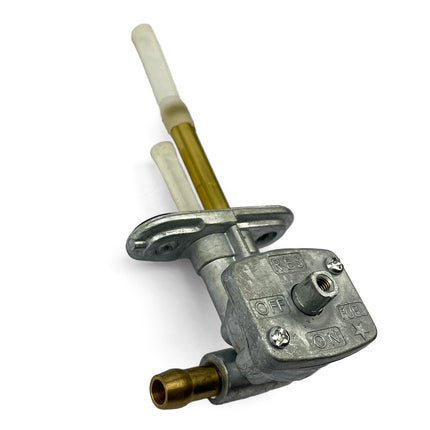

Name: Fuel Valve Kit YFM400/450 03-07, Fuel Star FS101-0051 Yamaha ATV, Tape / Petcock / Clips / Pipes / Bolts
Brand: Fuel Star
SKU: FS101-0051

Fuel Valve Kit YFM400/450 03-07, Fuel Star FS101-0051 Yamaha ATV, Tape / Petcock / Clips / Pipes / Bolts

Fuel Star
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

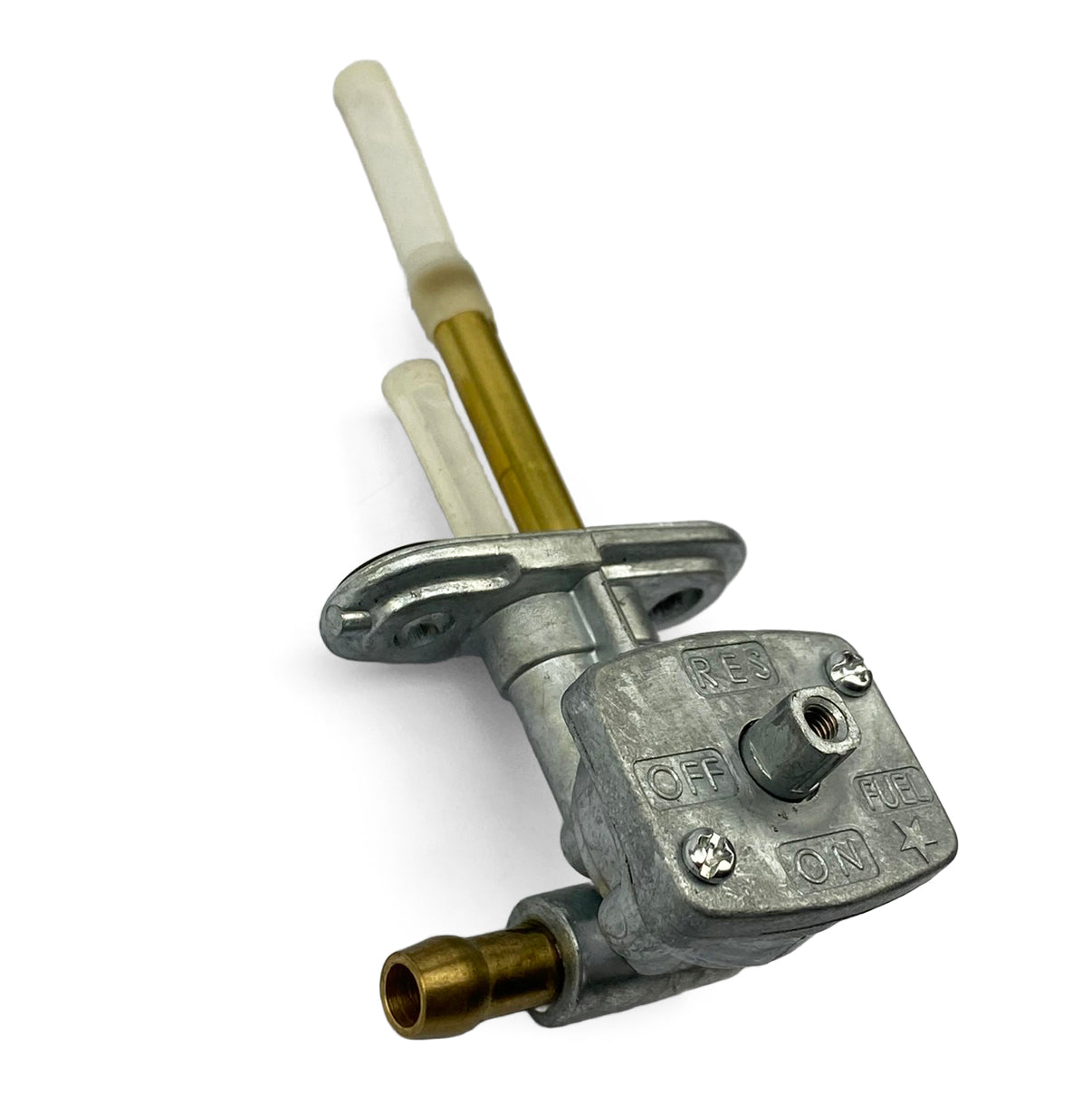

The FS101-0051 Fuel Star Fuel Valve Kit is a complete replacement petcock assembly engineered for compatibility with various Yamaha Kodiak and Grizzly 4x4 ATVs manufactured between 2003 and 2007. Designed to meet OEM specifications, this kit includes all components necessary for installation.

Features

Complete replacement fuel petcock assembly
Sold each

Specifications

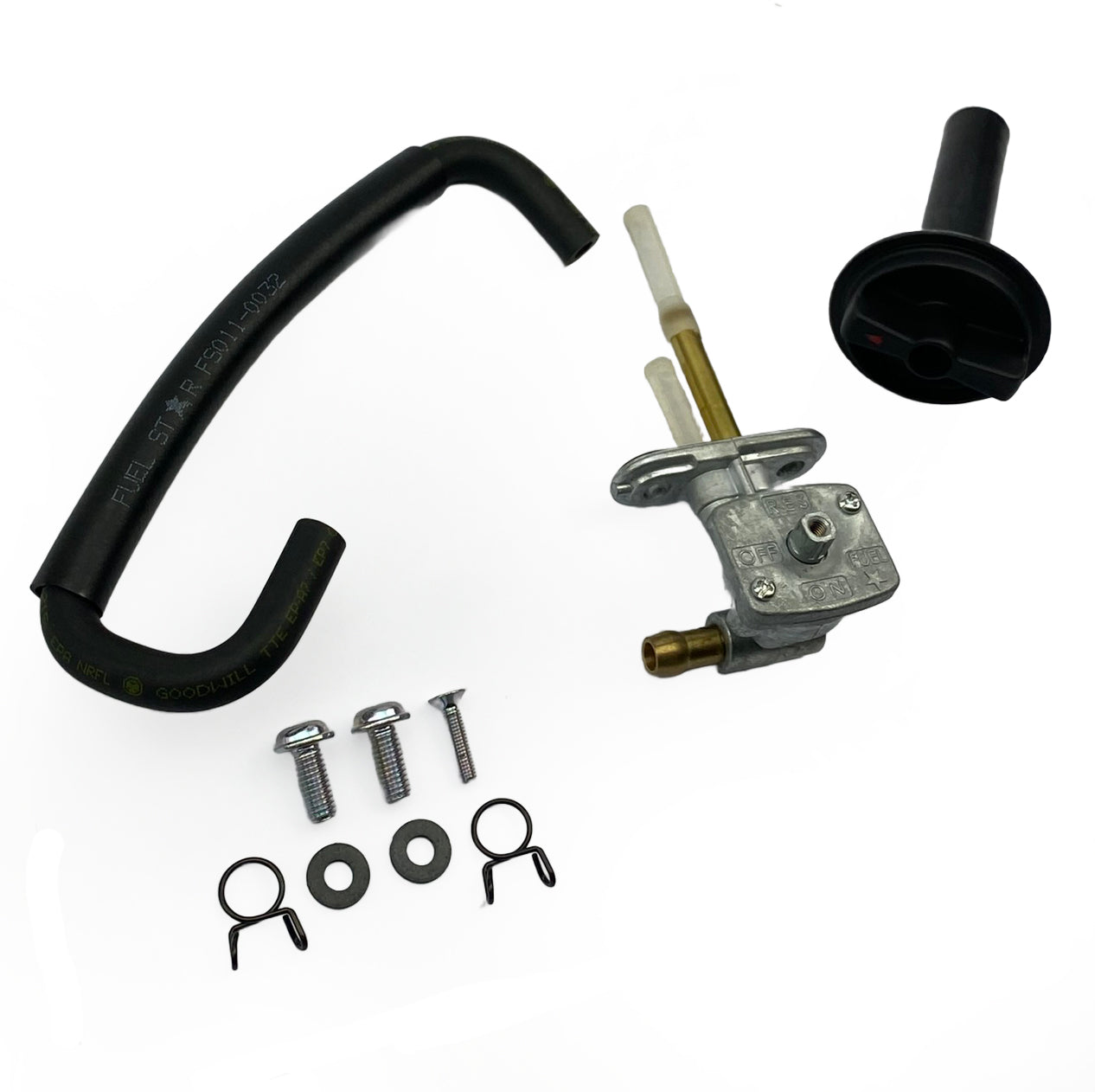

(1) Fuel valve assembly
(1) Rubber fuel line
(2) Fuel line clamps
(2) 6mm-1.00 x 15mm Phillips washer head bolts
(2) Mounting spacers
(1) Plastic on/off fuel knob
(1) 4mm-.70 x 15mm tapered Phillips head screw

Cross-Reference OEM Part Numbers

5GH-24500-00-00 (Fuel Cock Assy)
5GH-24500-10-00 (Fuel Cock Assy)
4X8-24512-00-00 (O-Ring)
98507-03014-00 (Screw, Pan Head)
3AJ-24534-00-00 (Seal, Cock)
3AJ-24534-01-00 (Seal, Cock)
3AJ-24523-00-00 (Valve Packing)
3AC-24523-00-00 (Valve Packing)
5GH-24524-00-00 (Lever, Cock)
1NS-F4524-00-00 (Lever, Cock)
98707-04018-00 (Screw, Flat Head)
90202-05193-00 (Washer, Plate)
90202-05187-00 (Washer, Plate)
90149-06011-00 (Screw)
5ND-F4311-00-00 (Pipe, Fuel 1 (YMUS))
3C2-F4311-00-00 (Pipe, Fuel 1 (YMUS))
90467-10008-00 (Clip)
90467-100A1-00 (Clip)

Vehicle Fitments

2003 Yamaha YFM400FA Kodiak 4x4 Ultramatic
2004 Yamaha YFM400FA Kodiak 4x4 Ultramatic
2005 Yamaha YFM400FA Kodiak 4x4 Ultramatic
2006 Yamaha YFM400FA Kodiak 4x4 Ultramatic
2003 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
2004 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
2005 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
2006 Yamaha YFM400FAH Kodiak 4x4 Ultramatic Hunter Edition
2007 Yamaha YFM400FG Grizzly 4x4
2007 Yamaha YFM400FGH Grizzly 4x4 Hunter Edition
2003 Yamaha YFM450FA Kodiak 4x4
2004 Yamaha YFM450FA Kodiak 4x4
2005 Yamaha YFM450FA Kodiak 4x4
2006 Yamaha YFM450FA Kodiak 4x4
2003 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
2004 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
2005 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
2006 Yamaha YFM450FAH Kodiak 4x4 Hunter Edition
2005 Yamaha YFM450FSE Kodiak 4x4 Special Edition
2006 Yamaha YFM450FSE Kodiak 4x4 Special Edition

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM KODIAK 450	2003-2006
YAMAHA	YFM KODIAK 400	2003-2006
YAMAHA	YFM GRIZZLY 400	2007

Fuel Valve Kit YFM400/450 03-07, Fuel Star FS101-0051 Yamaha ATV, Tape / Petcock / Clips / Pipes / Bolts
