GR5 KX Upper & Lower Shock Bolts, KX125 250 & 500 92150-1711 92002-1936 92002-1675

Description

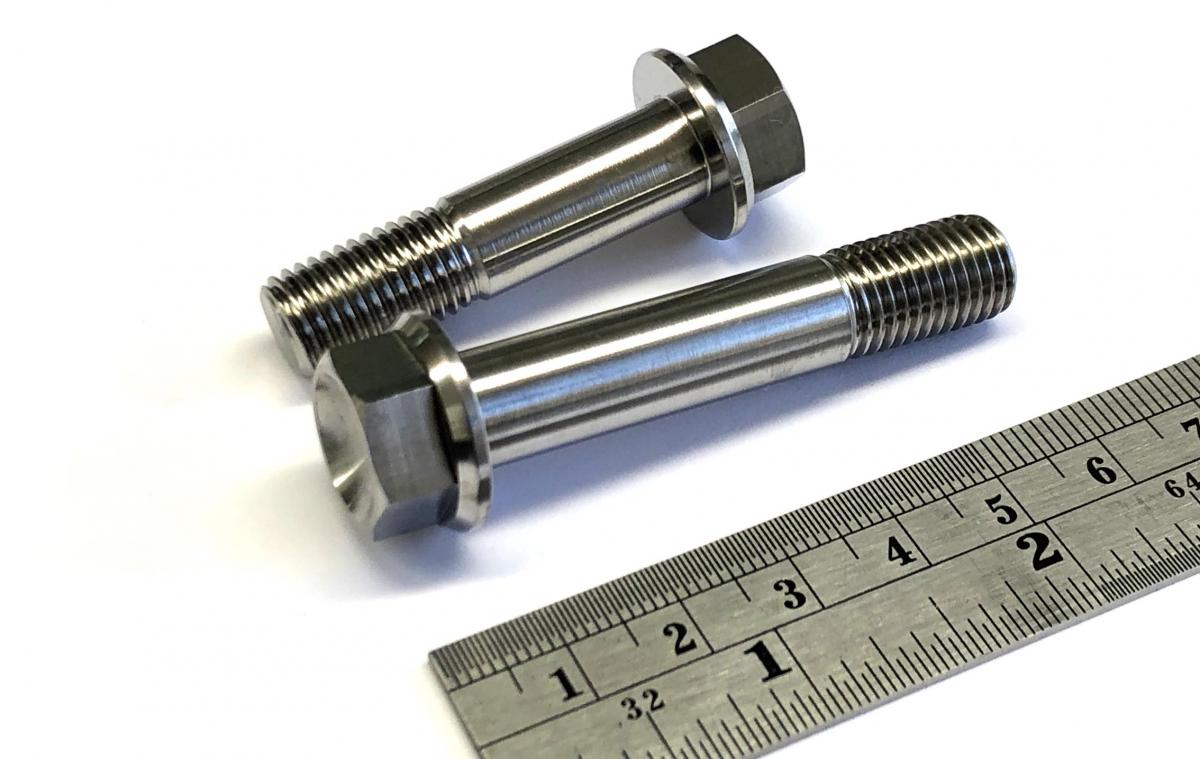

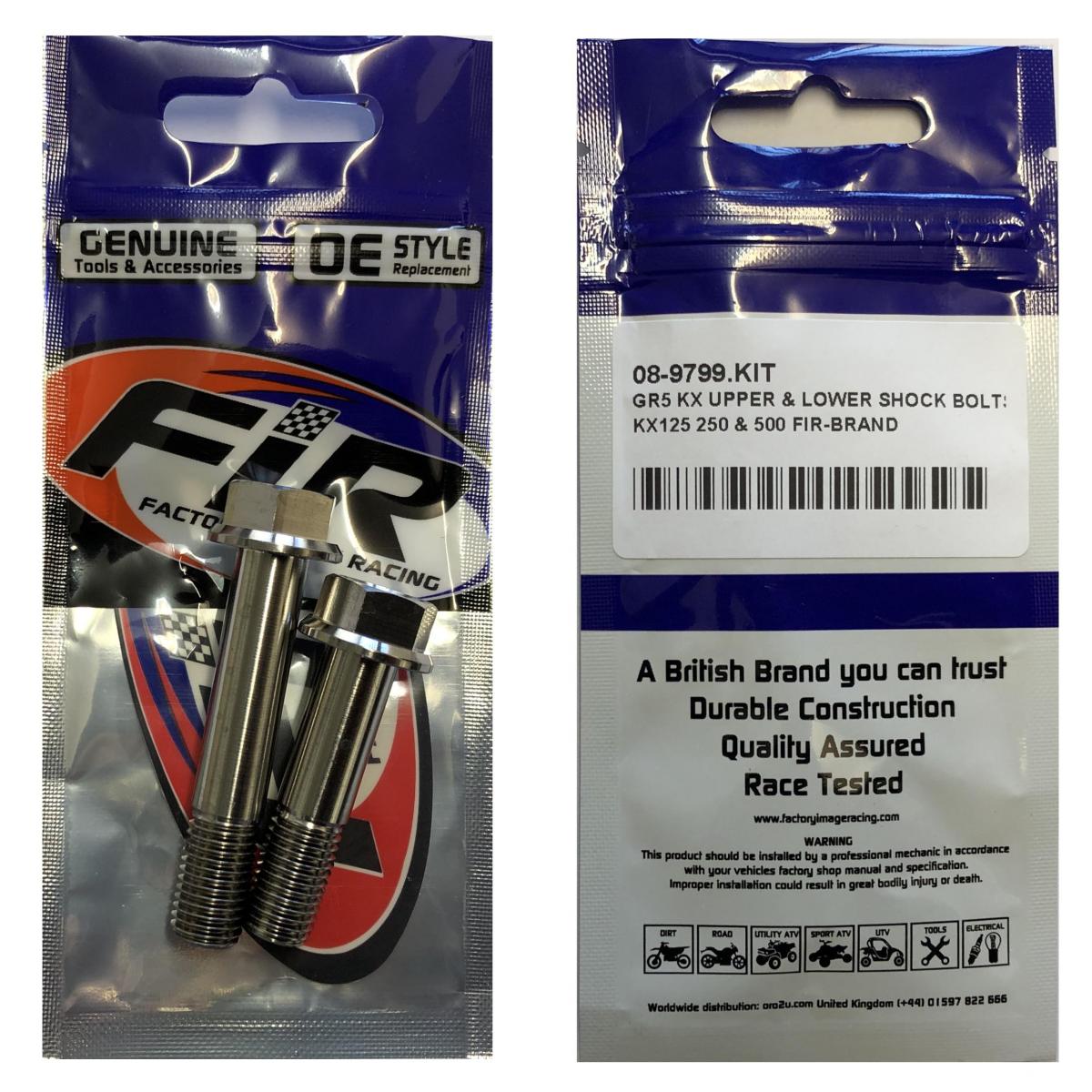

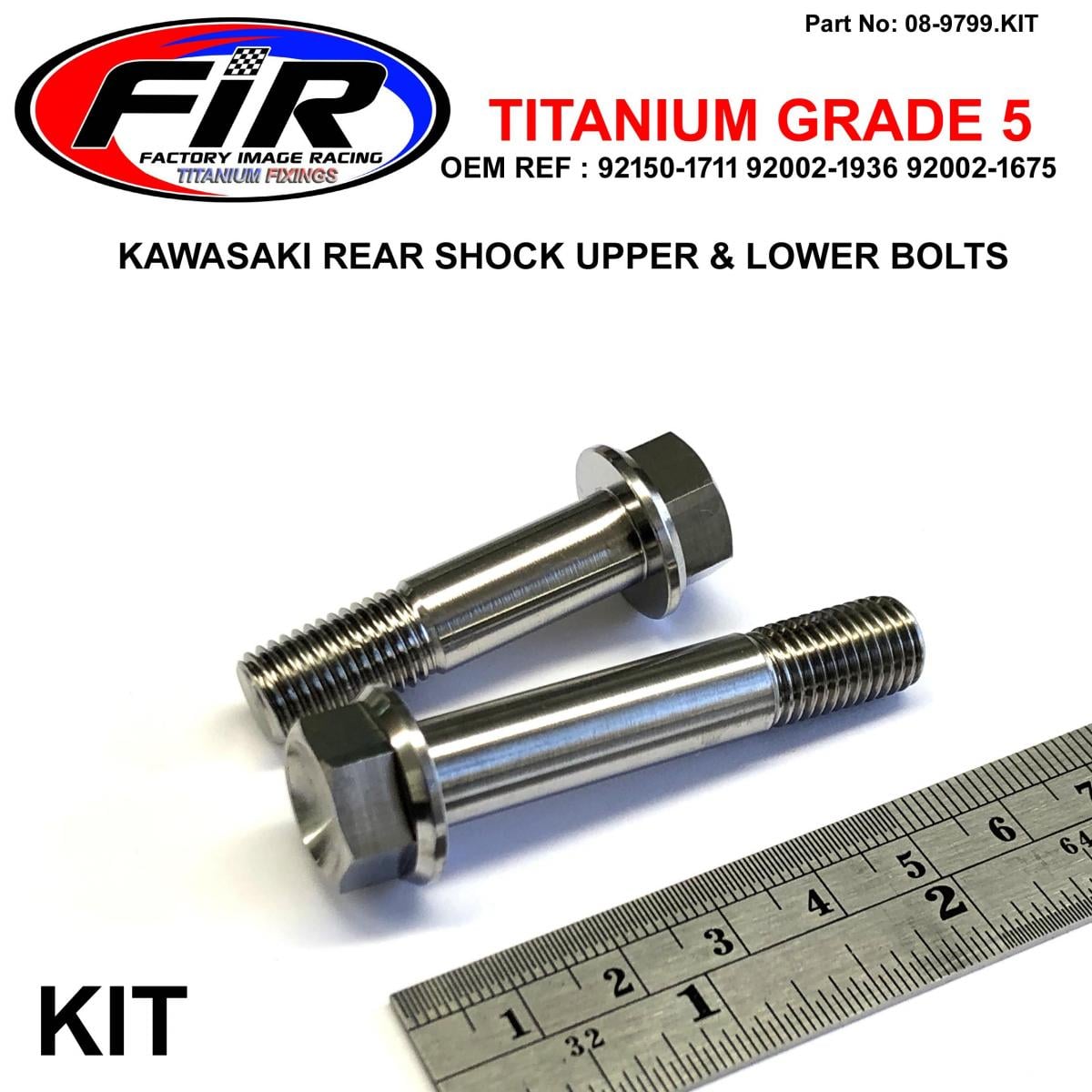

This Factory Image Racing Titanium Grade 5 rear shock bolt set comprising one 40mm lower bolt and one 53mm upper bolt for Kawasaki motorcycle rear suspension, frame fitting and engine mount applications. The bolts are CNC machined with rolled threads and are intended for use where a high-strength, lightweight and corrosion-resistant fastener is required.

Features

  • CNC machined construction
  • Rolled thread design
  • Suitable for motorcycle, cycle and general mechanical fastening applications
  • Designed for rear shock, rear suspension, frame fitting and engine mount use where listed
  • Corrosion-resistant titanium alloy construction
  • Supplied as one lower bolt and one upper bolt
  • Brand: Factory Image Racing

Specifications

  • Material: Grade 5 titanium alloy, 6Al/4V
  • Lower bolt thread diameter: M10
  • Lower bolt pitch: 1.25 mm
  • Lower bolt overall length: 40.00 mm
  • Lower bolt thread length: 17.00 mm
  • Lower bolt spanner hex: 14 mm
  • Lower bolt flange outside diameter: 18.45 mm
  • Lower bolt quantity: 1
  • Upper bolt thread diameter: M10
  • Upper bolt pitch: 1.25 mm
  • Upper bolt overall length: 53.00 mm
  • Upper bolt thread length: 17.00 mm
  • Upper bolt spanner hex: 14 mm
  • Upper bolt flange outside diameter: 18.45 mm
  • Upper bolt quantity: 1

Cross-Reference OEM Part Numbers

  • Lower 40 mm bolt: 92002-1675
  • Lower 40 mm bolt: 92150-1711
  • Upper 53 mm bolt: 92002-1936
  • Upper 53 mm bolt: 920021936

Vehicle Fitments

Kawasaki (Engine Mount)

  • KL250 Super Sherpa (2001-2004, 2009-2010)

Kawasaki (Frame & Fittings)

  • KFX450R (2008-2014)
  • KLX650 (1996)
  • KLX650R (1993-1996)
  • KX125 (1994-2002)
  • KX250 (1994-2002)

Kawasaki (Rear Suspension)

  • KD80 (1988-1990)
  • KDX200 (1995-2006)
  • KDX200R (1997-2001)
  • KDX220R (2002-2005)
  • KDX250 (1991-1994)
  • KFX450R (2008-2014)
  • KLX250 (1994-1996, 2006-2007, 2018-2020)
  • KLX250R (1994-1996)
  • KLX250S (2009-2014)
  • KLX250SF (2009-2010)
  • KLX300 (2021-2022)
  • KLX300R (1997-2022)
  • KLX300SM (2021-2022)
  • KLX650 (1993-1996)
  • KLX650R (1996)
  • KX80 Big Wheel (1987-1994)
  • KX85 (2001-2022)
  • KX100 (1995-2021)
  • KX112 (2022)
  • KX125 (1987-2002)
  • KX250 (1987-2002)
  • KX500 (1987-2004)
