Description
Factory Image Racing> Giving your machine the Factory look!

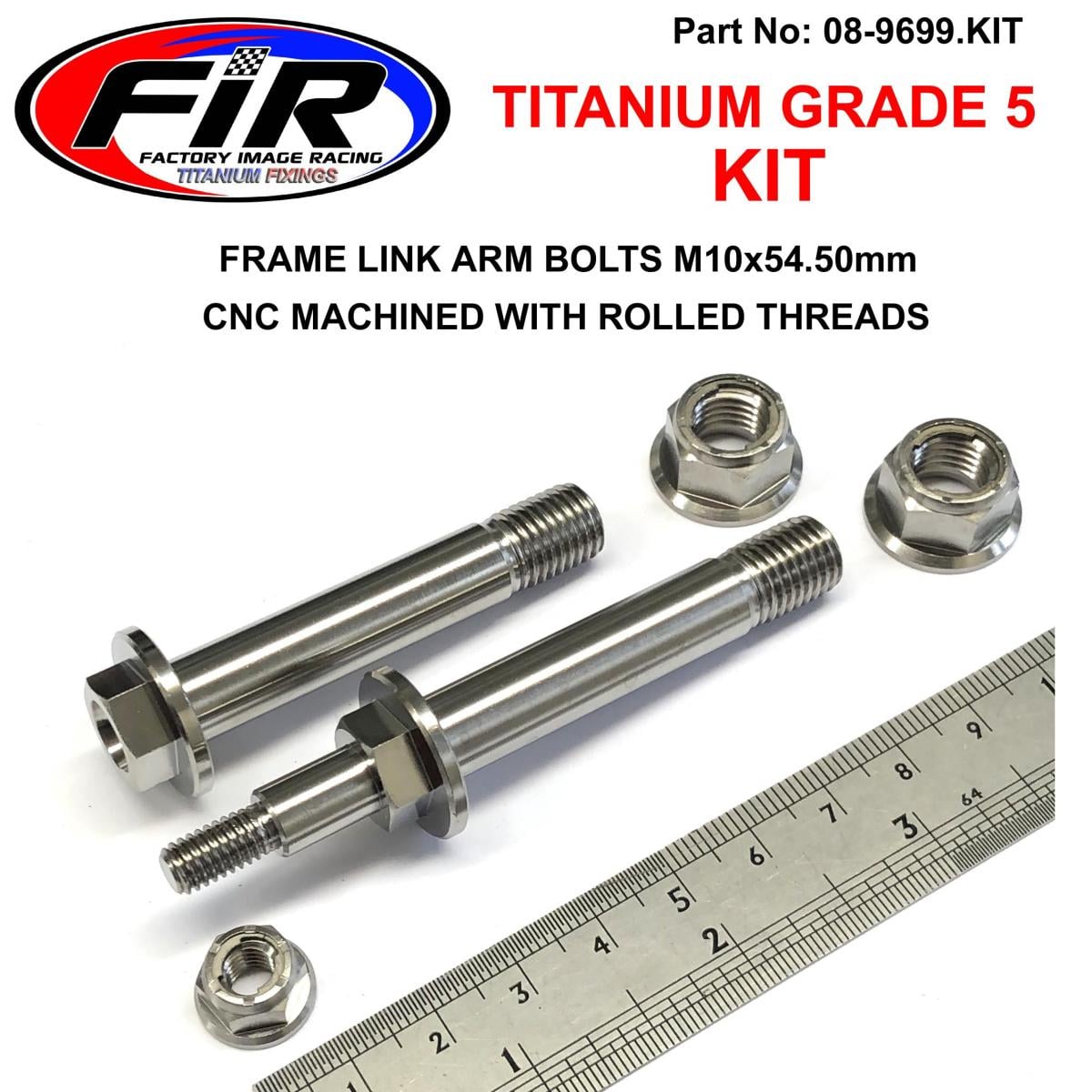

TITANIUM GRADE 5 HONDA
FRAME FIXING LINK PIN BOLTS
50% lighter then standard & strong then steel.
- Material: Aerospace Grade 5 (6Al/4V)
- Thread D: M10
- Pitch P: 1.25mm
-
PIN 1 length L: 82mm / 90133-MKE-A00 RIGHT STD BOLT
-
PIN 2 length L: 23 & 82mm / 90131-MKE-A00 LEFT CHAIN ROLLER
- NUT HEX: 14mm SPANNER FITMENT
- SUIT STANDARD LINK ARMS

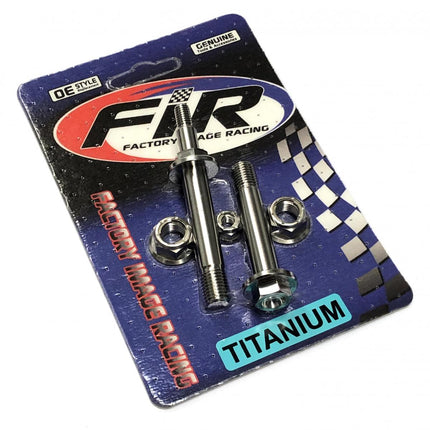

- KIT : 2 PINS & 3 NUTS
- NOTE: DON'T USE WASHER UNDER THE FLANGE NUTS
No more rusty hardware, Titanium is Corrosion proof. CNC machined from super-strong grade 5. titanium alloy used for its high strength super light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles & much more.
Cross references numbers only:
90133-MKE-A00 RIGHT STD BOLT
90131-MKE-A00 LEFT CHAIN ROLLER
90306-KZ4-711 M10X1.25 FLANGE NUT/ DON'T USE WASHER /
90301-473-003 M6x1.00 F NUT INSERT LOCK
Honda Motorcycle 2019 CRF450R AC Cushion Arm
Honda Motorcycle 2020 CRF450RX Cushion Arm
Honda Motorcycle 2020 CRF450R Cushion Arm
Honda Motorcycle 2020 CRF250R Cushion Arm
Honda Motorcycle 2019 CRF250RX AC Cushion Arm
Honda Motorcycle 2019 CRF450L AC Cushion Arm
Honda Motorcycle 2019 CRF450RWE AC Cushion Arm
Honda Motorcycle 2018 CRF450R AC Cushion Arm
Honda Motorcycle 2021 CRF450X - CRF450X Cushion Arm
Honda Motorcycle 2021 CRF450RWE - CRF450RWE Cushion Arm
Honda Motorcycle 2021 CRF250RX - CRF250RX Cushion Arm
Honda Motorcycle 2018 CRF250R AC Cushion Arm
Honda Motorcycle 2018 CRF450RX AC Cushion Arm
Honda Motorcycle 2021 CRF250R - CRF250R Cushion Arm
Honda Motorcycle 2019 CRF250R AC Cushion Arm
Honda Motorcycle 2019 CRF450X AC Cushion Arm
Honda Motorcycle 2019 CRF450RX AC Cushion Arm
Honda Motorcycle 2020 CRF450RWE Cushion Arm
Honda Motorcycle 2020 CRF250RX Cushion Arm
Honda Motorcycle 2020 CRF450L Cushion Arm
Honda Motorcycle 2017 CRF450R AC Cushion Arm
Honda Motorcycle 2017 CRF450RX AC Cushion Arm
Honda Motorcycle 2021 CRF450RL - CRF450RL Cushion Arm
Honda Motorcycle 2021 CRF450RX - CRF450RX Cushion Arm
Honda Motorcycle 2021 CRF450R - CRF450R Cushion Arm
Honda Motorcycle 2020 CRF450X Cushion Arm
