Name: GR5 M26x1.00mm Stem Nut Each, Titanium / CRF CR, / Cnc
Brand: Factory Image Racing Titanium
SKU: 16-390.TIT.GR5

GR5 M26x1.00mm Stem Nut Each, Titanium / CRF CR, / Cnc

Factory Image Racing Titanium
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

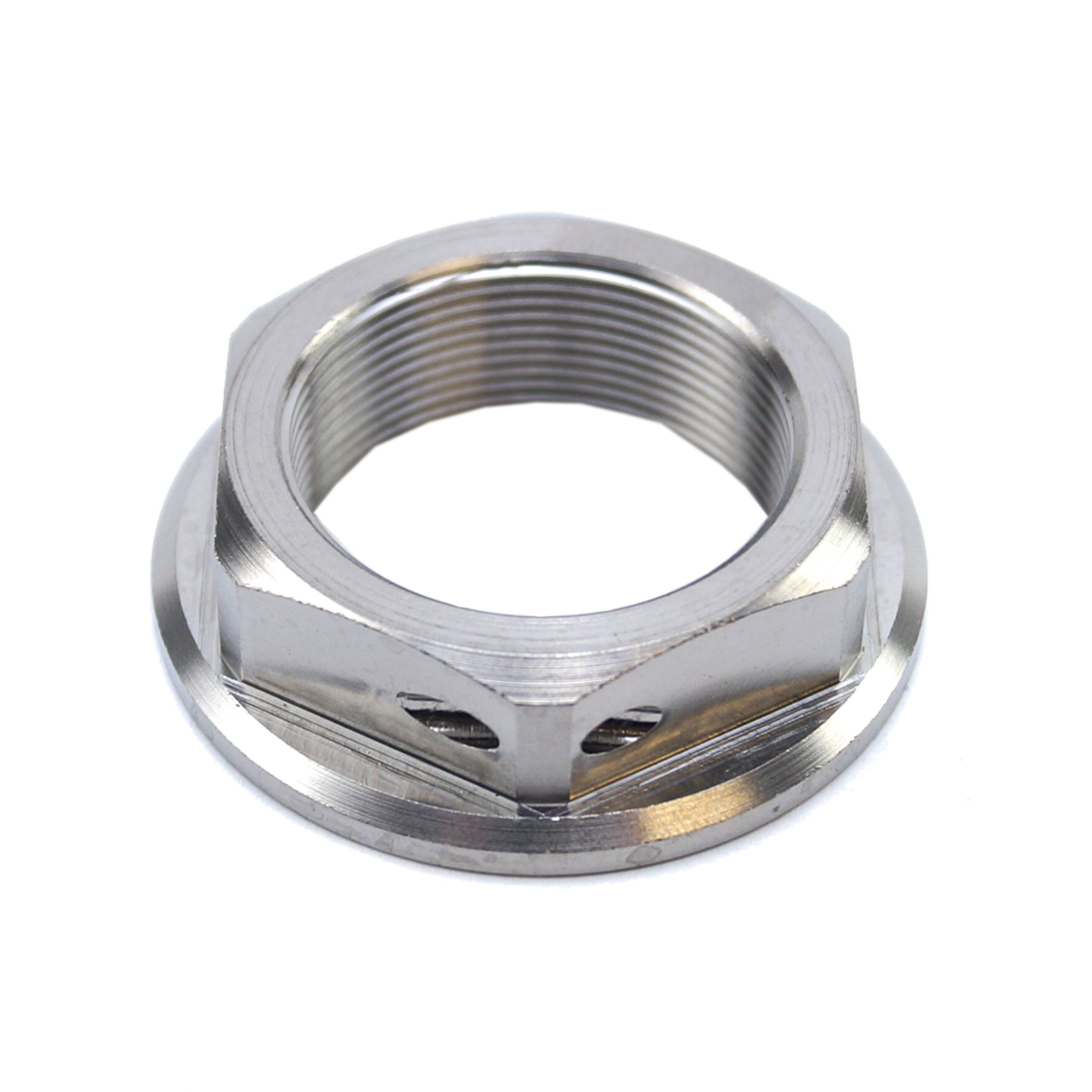

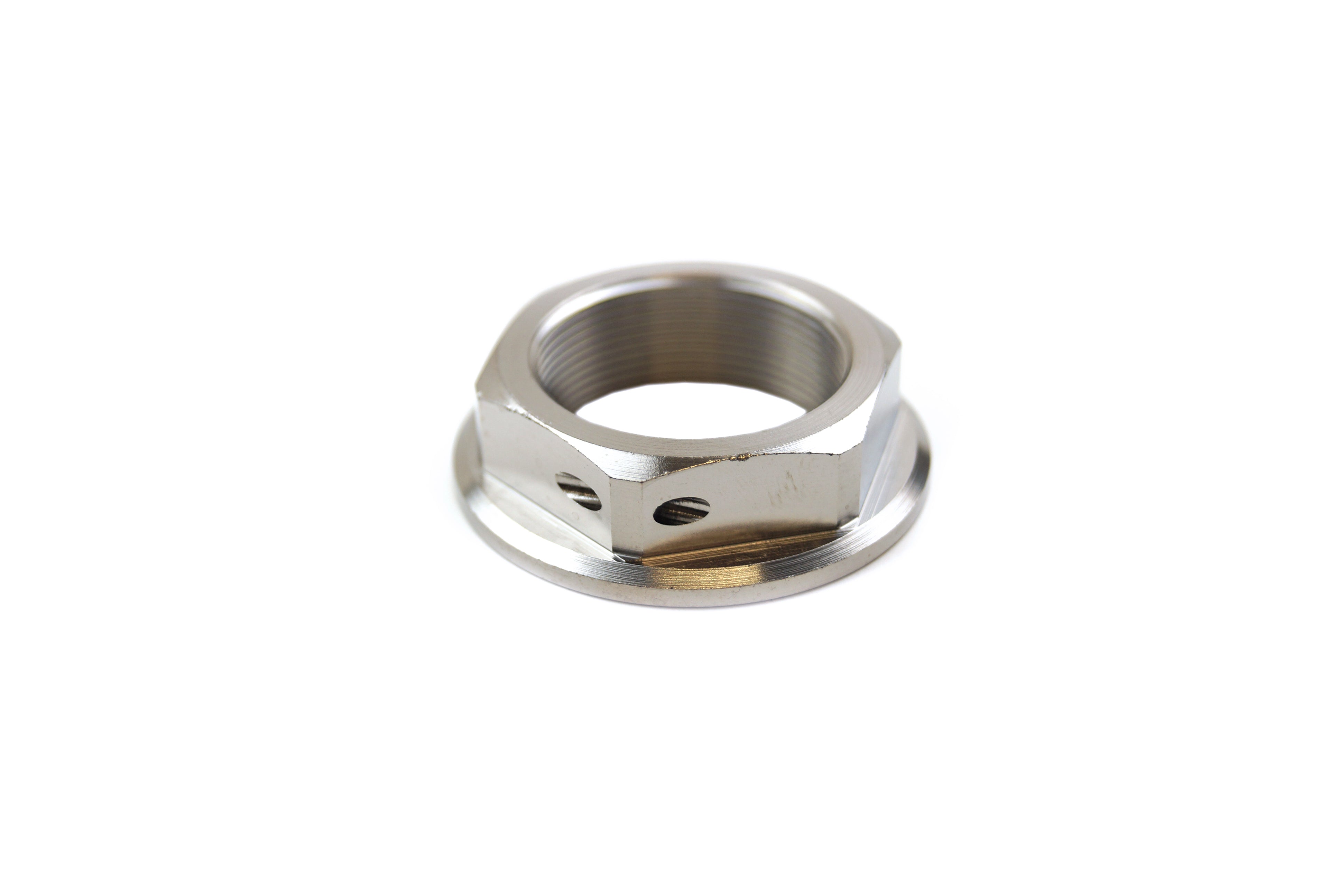

This Factory Image Racing titanium flange nut is designed for compatible Honda motorcycle applications where a lightweight, corrosion-resistant Grade 5 titanium fixing is required. It uses a smooth, flush flange face and is supplied as a single nut, with no washer required beneath the flange during installation.

Features

Titanium flange nut for compatible Honda models
Smooth, flush flange surface
Designed to be fitted without a washer under the flange nut
Supplied as a single fixing
Factory Image Racing fixing manufactured from Grade 5 titanium

Specifications

Material: Grade 5 titanium 6Al/4V
Thread pitch: M26 x 1.00 mm
Outer diameter: 40.00 mm
Overall height: 11.20 mm
Head hex size: 32 mm spanner
Pack quantity: 1

Cross-Reference OEM Part Numbers

50306-GN5-900
50306-GN5-830
90304-KZ4-J30
MX-08270

Vehicle Fitments

Honda

ANF125 (2007-2012)
CR125R (2001-2007)
FES125 (2005-2012)
FES125A (2007-2012)
SH125 (2013)
SH125A (2013)
SH125AD (2013)
SH125D (2013)
WW125 (2013)
WW125EX2 (2012)
FES150 (2007-2009)
FES150A (2007-2009)
CR250R (2001-2007)
CRF250R (2004-2020)
CRF250RH (2017)
CRF250RX (2019-2020)
CRF250X (2005-2020)
NSS250A (2008-2011)
NSS250S (2008-2011)
SH300 (2007-2013)
SH300A (2007-2013)
SH300AR (2008)
SH300R (2008, 2012-2013)
SH300RA (2012-2013)
FJS400 (2011)
FJS400A (2009-2011)
FJS400D (2009-2010)
CRF450L (2019-2020)
CRF450R (2004-2020)
CRF450RX (2018-2020)
CRF450X (2005-2020)
FJS600A (2005-2006, 2011-2012)
FJS600D (2005-2006, 2011)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CRF X 250	2004-2017
HONDA	CRF R 250	2004-2017
HONDA	CR 125	2001-2007
HONDA	CR 250	2001-2007
HONDA	CRF R 450	2004-2020

GR5 M26x1.00mm Stem Nut Each, Titanium / CRF CR, / Cnc

Factory Image Racing Titanium
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Factory Image Racing titanium flange nut is designed for compatible Honda motorcycle applications where a lightweight, corrosion-resistant Grade 5... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 16-390.TIT.GR5

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Factory Image Racing titanium flange nut is designed for compatible Honda motorcycle applications where a lightweight, corrosion-resistant Grade 5 titanium fixing is required. It uses a smooth, flush flange face and is supplied as a single nut, with no washer required beneath the flange during installation.

Features

Titanium flange nut for compatible Honda models
Smooth, flush flange surface
Designed to be fitted without a washer under the flange nut
Supplied as a single fixing
Factory Image Racing fixing manufactured from Grade 5 titanium

Specifications

Material: Grade 5 titanium 6Al/4V
Thread pitch: M26 x 1.00 mm
Outer diameter: 40.00 mm
Overall height: 11.20 mm
Head hex size: 32 mm spanner
Pack quantity: 1

Cross-Reference OEM Part Numbers

50306-GN5-900
50306-GN5-830
90304-KZ4-J30
MX-08270

Vehicle Fitments

Honda

ANF125 (2007-2012)
CR125R (2001-2007)
FES125 (2005-2012)
FES125A (2007-2012)
SH125 (2013)
SH125A (2013)
SH125AD (2013)
SH125D (2013)
WW125 (2013)
WW125EX2 (2012)
FES150 (2007-2009)
FES150A (2007-2009)
CR250R (2001-2007)
CRF250R (2004-2020)
CRF250RH (2017)
CRF250RX (2019-2020)
CRF250X (2005-2020)
NSS250A (2008-2011)
NSS250S (2008-2011)
SH300 (2007-2013)
SH300A (2007-2013)
SH300AR (2008)
SH300R (2008, 2012-2013)
SH300RA (2012-2013)
FJS400 (2011)
FJS400A (2009-2011)
FJS400D (2009-2010)
CRF450L (2019-2020)
CRF450R (2004-2020)
CRF450RX (2018-2020)
CRF450X (2005-2020)
FJS600A (2005-2006, 2011-2012)
FJS600D (2005-2006, 2011)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CRF X 250	2004-2017
HONDA	CRF R 250	2004-2017
HONDA	CR 125	2001-2007
HONDA	CR 250	2001-2007
HONDA	CRF R 450	2004-2020
