Description

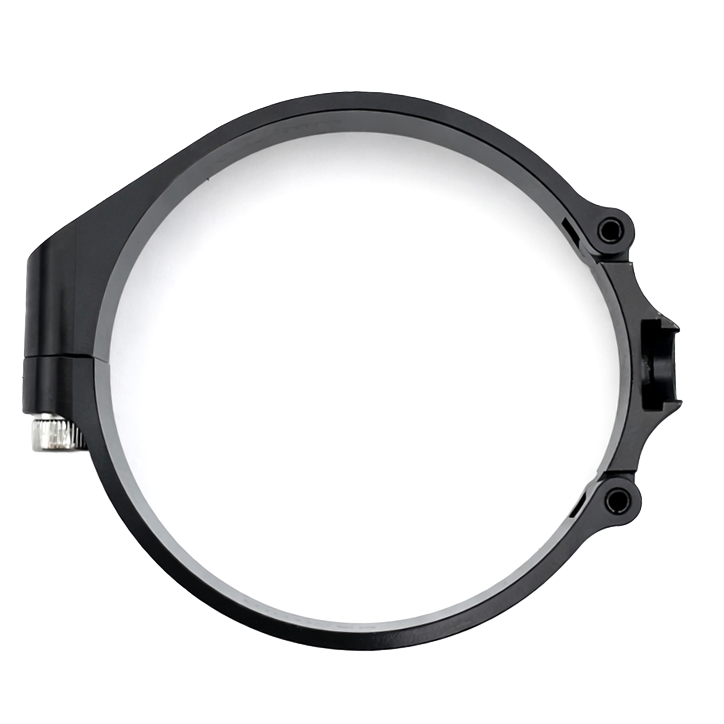

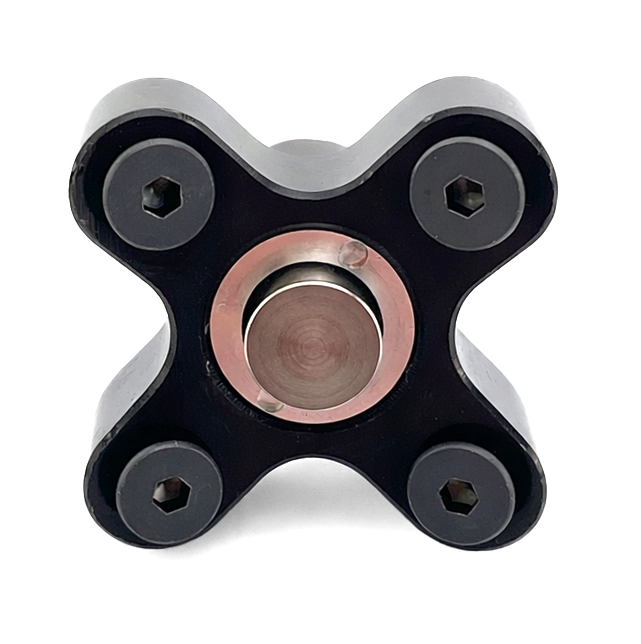

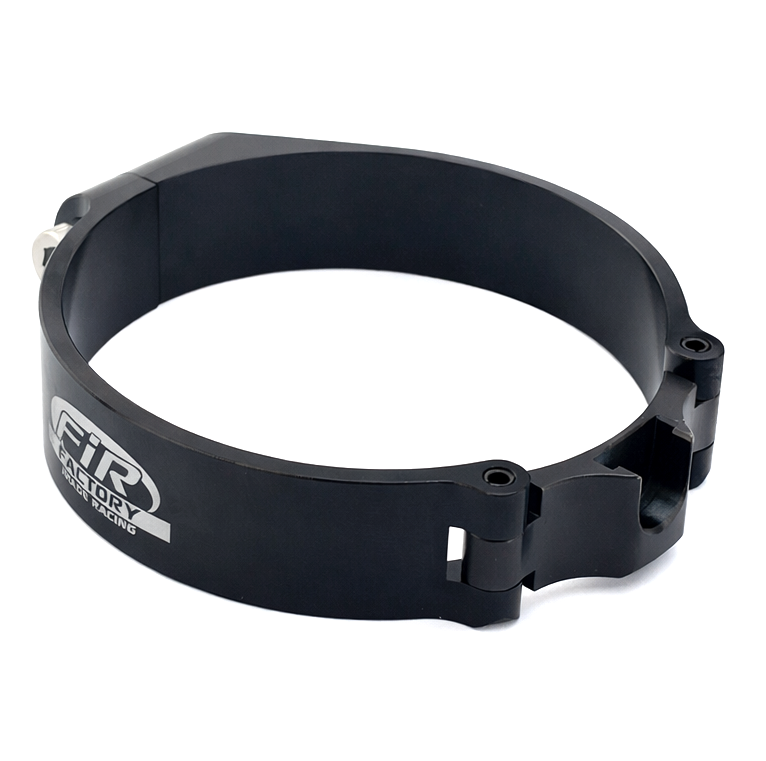

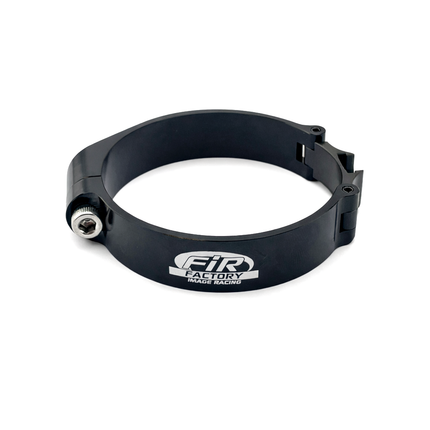

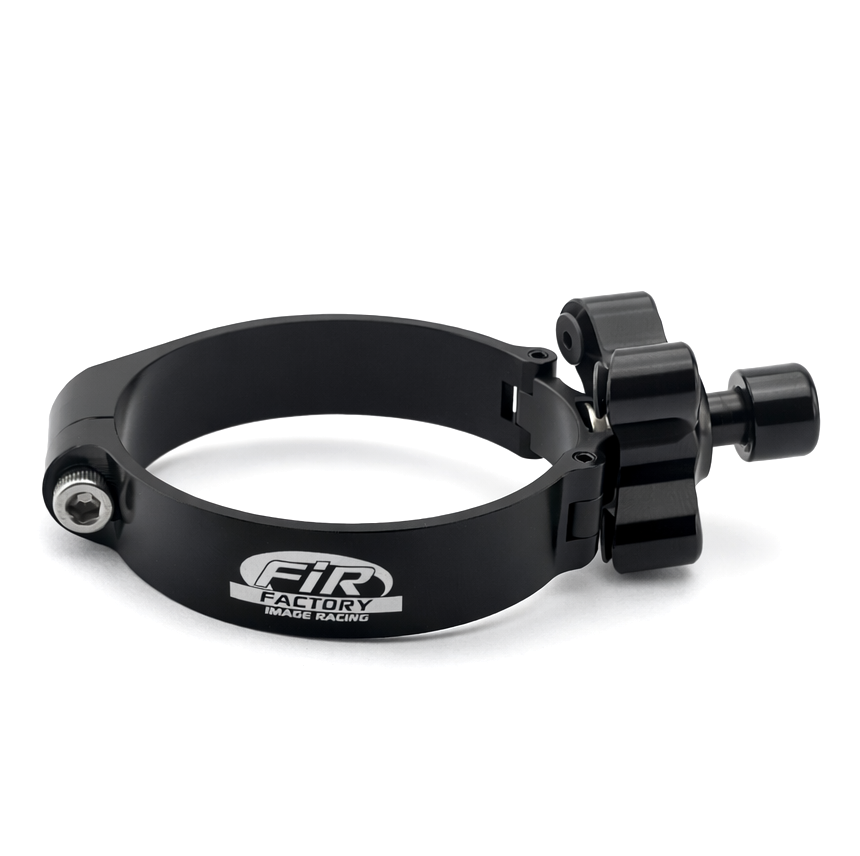

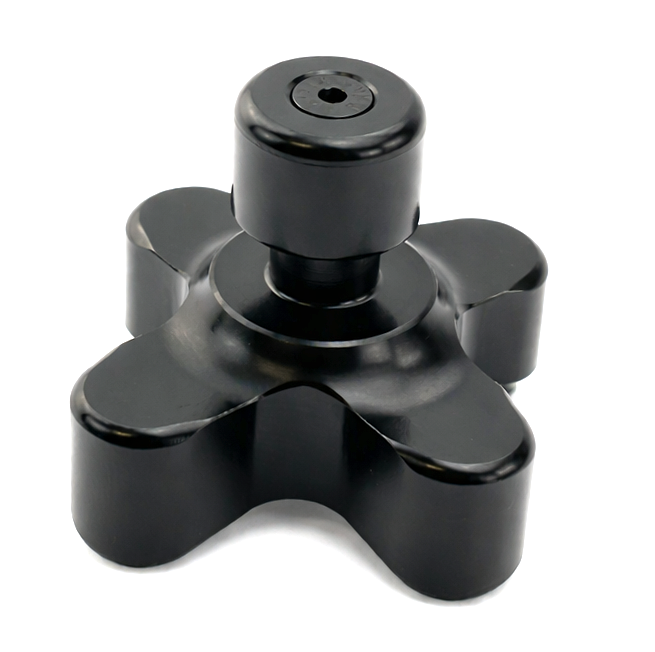

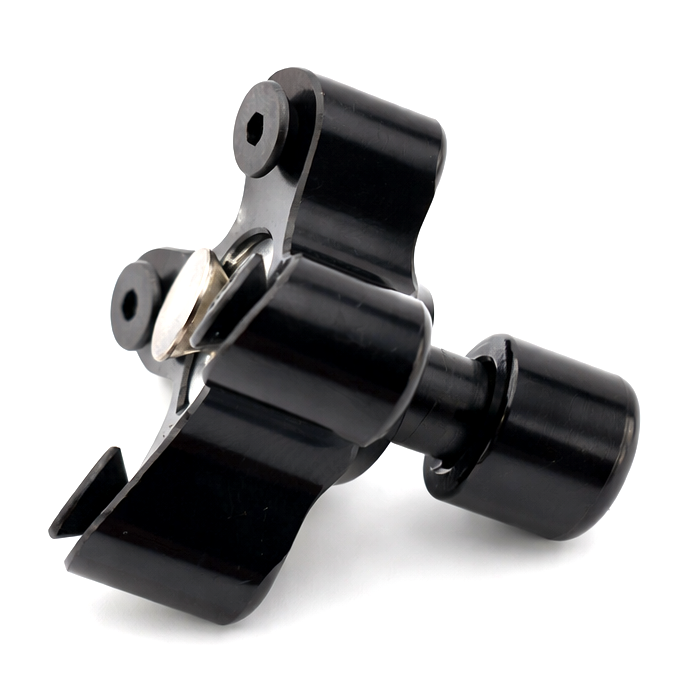

Factory Image Racing (FIR) Hole Shot Launch Control in black (MX-04021) for Yamaha YZ/YZF models. This fork-mounted holeshot device locks the front suspension in a compressed position for starts to help keep the front tyre down, then releases easily and automatically when the front brake is applied or the mechanism is disengaged by suspension movement over a bump.

Features

Holds the front suspension down for starts to help reduce front-end lift
Releases by applying the front brake or by suspension movement over a bump
Sealed lockdown assembly helps keep dirt and dust out to maintain a clean mechanism

Specifications

Colour: Black
Catch band material: 6061-T6 billet aluminium
Button material: Aluminium
Pin material: Stainless steel
Inside diameter: 63.5 mm
Outside diameter: 67.5 mm
Height: 19 mm
Inner groove: Yes
Supplied without instruction sheet
Part number: MX-04021

Vehicle Fitments

Yamaha YZ125 2010-2015
Yamaha YZ250 2010-2015
Yamaha YZF250F 2010-2015
Yamaha YZF450F 2010-2015

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2001-2003
SUZUKI	RM Z 250	2004-2006
YAMAHA	YZ 125	2005-2021
KAWASAKI	KX F 250	2004-2005
YAMAHA	YZ 125	2005-2019
YAMAHA	YZ 250	2005-2019
YAMAHA	YZ F 450	2010-2016
KAWASAKI	KX 125	1999-2008
YAMAHA	YZ 250	2005-2021
YAMAHA	YZ F 250	2005-2019
YAMAHA	YZ F 250	2005-2021
YAMAHA	YZ F 450	2005-2019
YAMAHA	YZ F 450	2005-2021
YAMAHA	WR F 250	2005-2019
YAMAHA	WR F 250	2005-2021
YAMAHA	WR F 450	2005-2019
YAMAHA	WR F 450	2005-2021
KAWASAKI	KX 250	1999-2008
HONDA	CR 125	1997-2007
YAMAHA	YZ F 250	2010-2016
YAMAHA	YZ 125	2010-2017
YAMAHA	YZ 250	2010-2017

Hole Shot Device 10-15 Yamaha YZ Yzf 125 250 450 Black MX-04021

Factory Image Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Factory Image Racing (FIR) Hole Shot Launch Control in black (MX-04021) for Yamaha YZ/YZF models. This fork-mounted holeshot device locks... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 45-600.BK.FIR
Barcode: 0120000087785

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Factory Image Racing (FIR) Hole Shot Launch Control in black (MX-04021) for Yamaha YZ/YZF models. This fork-mounted holeshot device locks the front suspension in a compressed position for starts to help keep the front tyre down, then releases easily and automatically when the front brake is applied or the mechanism is disengaged by suspension movement over a bump.

Features

Holds the front suspension down for starts to help reduce front-end lift
Releases by applying the front brake or by suspension movement over a bump
Sealed lockdown assembly helps keep dirt and dust out to maintain a clean mechanism

Specifications

Colour: Black
Catch band material: 6061-T6 billet aluminium
Button material: Aluminium
Pin material: Stainless steel
Inside diameter: 63.5 mm
Outside diameter: 67.5 mm
Height: 19 mm
Inner groove: Yes
Supplied without instruction sheet
Part number: MX-04021

Vehicle Fitments

Yamaha YZ125 2010-2015
Yamaha YZ250 2010-2015
Yamaha YZF250F 2010-2015
Yamaha YZF450F 2010-2015

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2001-2003
SUZUKI	RM Z 250	2004-2006
YAMAHA	YZ 125	2005-2021
KAWASAKI	KX F 250	2004-2005
YAMAHA	YZ 125	2005-2019
YAMAHA	YZ 250	2005-2019
YAMAHA	YZ F 450	2010-2016
KAWASAKI	KX 125	1999-2008
YAMAHA	YZ 250	2005-2021
YAMAHA	YZ F 250	2005-2019
YAMAHA	YZ F 250	2005-2021
YAMAHA	YZ F 450	2005-2019
YAMAHA	YZ F 450	2005-2021
YAMAHA	WR F 250	2005-2019
YAMAHA	WR F 250	2005-2021
YAMAHA	WR F 450	2005-2019
YAMAHA	WR F 450	2005-2021
KAWASAKI	KX 250	1999-2008
HONDA	CR 125	1997-2007
YAMAHA	YZ F 250	2010-2016
YAMAHA	YZ 125	2010-2017
YAMAHA	YZ 250	2010-2017
