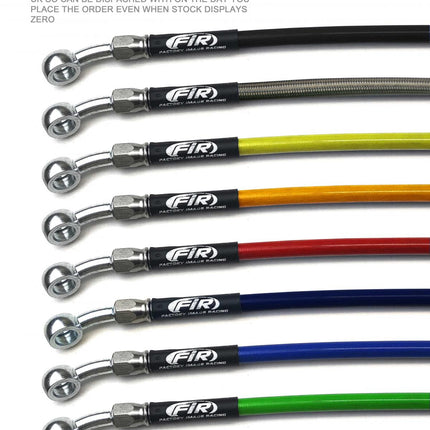

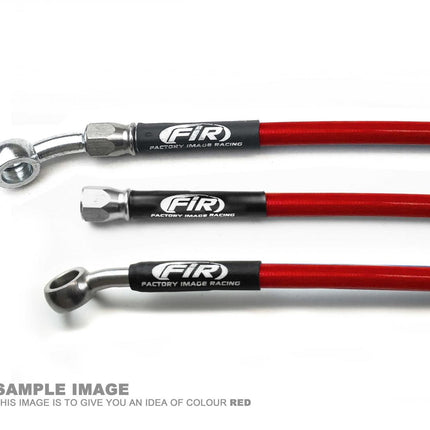

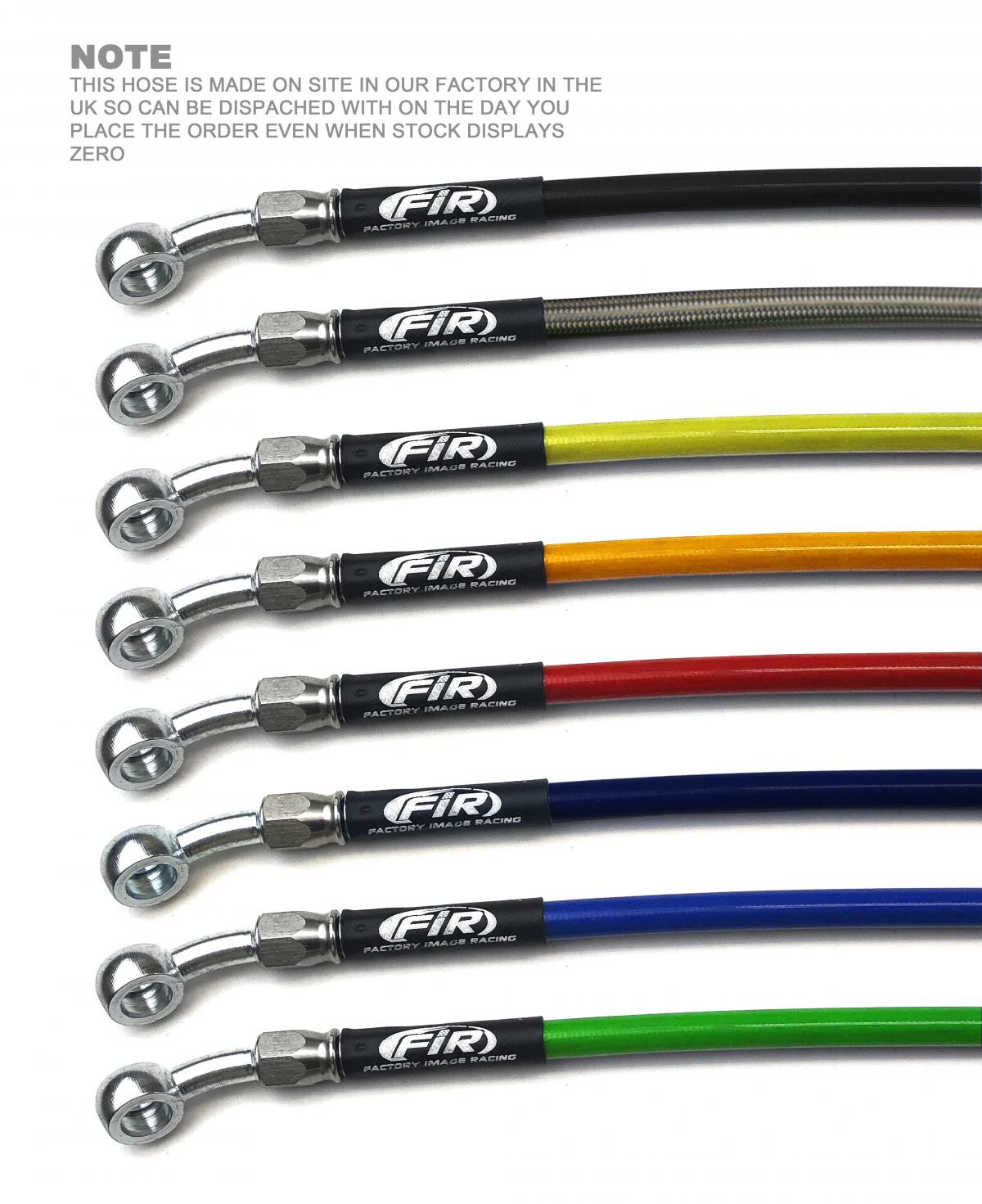

Name: Hose Rear Brake Red +2, TRX450R 2004-2009 Honda FIR, Kit Done
Brand: Factory Image Racing
SKU: 02-019.RD+2
Price: 32.35 GBP
Availability: InStock

Hose Rear Brake Red +2, TRX450R 2004-2009 Honda FIR, Kit Done

Factory Image Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The M10 20° banjo quick-disconnect dry break fitting delivers precise functionality for brake and clutch systems, allowing component removal without fluid loss or introducing air. It is purpose-designed to interface with AN3 (JIC 600-03, 3/8×24) fittings and requires specific banjo bolts for correct installation.

Features

Quick-disconnect mechanism prevents fluid loss and avoids air ingress during system maintenance
Compatible with JIC 600-03 (3/8 x 24) and AN3 fittings
Intended for use with Factory Image Racing swivel hose fittings
Installation requires 25mm long banjo bolts

Specifications

Size: M10
Angle: 20°
Thread: AN3 (JIC 600-03, 3/8 x 24)
Total length: 75mm ±1mm
Compatible brake hose end: BUILDALINE 02-622 (3/8 UNF female concave)

Cross-Reference OEM Part Numbers

M10×1.00 banjo bolt: 02-200.Z.HEX.LONG
M10×1.25 banjo bolt: 02-201.Z.HEX.LONG

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	TRX R 450	2004-2008

Hose Rear Brake Red +2, TRX450R 2004-2009 Honda FIR, Kit Done

Factory Image Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The M10 20° banjo quick-disconnect dry break fitting delivers precise functionality for brake and clutch systems, allowing component removal without... Read more

59 in stock 1-2 business days

£32.35 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 02-019.RD+2

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The M10 20° banjo quick-disconnect dry break fitting delivers precise functionality for brake and clutch systems, allowing component removal without fluid loss or introducing air. It is purpose-designed to interface with AN3 (JIC 600-03, 3/8×24) fittings and requires specific banjo bolts for correct installation.

Features

Quick-disconnect mechanism prevents fluid loss and avoids air ingress during system maintenance
Compatible with JIC 600-03 (3/8 x 24) and AN3 fittings
Intended for use with Factory Image Racing swivel hose fittings
Installation requires 25mm long banjo bolts

Specifications

Size: M10
Angle: 20°
Thread: AN3 (JIC 600-03, 3/8 x 24)
Total length: 75mm ±1mm
Compatible brake hose end: BUILDALINE 02-622 (3/8 UNF female concave)

Cross-Reference OEM Part Numbers

M10×1.00 banjo bolt: 02-200.Z.HEX.LONG
M10×1.25 banjo bolt: 02-201.Z.HEX.LONG

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	TRX R 450	2004-2008
