Ignition Coil 66-83 Honda Z50 Cb Cl CT70 125 FT500 MR50 175 MT125 250 30700-KE2-942

Description

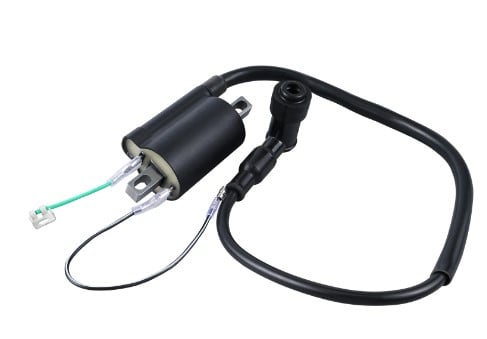

This 6 V AC single-output ignition HT coil is a replacement unit for a range of Honda Mini Trail, Monkey Bike, Elsinore, XL and XR motorcycles. It supplies the high-tension output required by the spark plug and uses a fixed low-tension wire with a bullet connector, a single HT lead and original-style mounting points.

Features

  • Direct replacement for the original ignition coil
  • Uses the standard mounting locations where dimensions match
  • Designed to accommodate increased electrical loads
  • Manufactured to OEM specifications
  • Matches the appearance of the original equipment
  • Factory tested before despatch

Specifications

  • Ignition system: 6 V AC
  • Output configuration: Single output
  • Low-tension connection: One fixed wire with male bullet connector
  • High-tension connection: Single HT lead
  • Centre-to-centre mounting-hole measurement: 60 mm
  • Additional stated mounting-hole spacing: 90 mm (3.5 in), measured centre to centre
  • Overall mounting-post length: 100 mm (4 in)
  • Coil length: 64 mm
  • High-tension spark-plug wire length: 16 in
  • Low-tension wire length: 6 in
  • Primary resistance: 1.8 ohms ±10%
  • Secondary resistance: 12.4 kΩ ±10%
  • Colour: Black

Cross-Reference OEM Part Numbers

  • 30400-045-035
  • 30500-120-005
  • 30500-120-003
  • 30500-165-033
  • 30500-165-013
  • 30500-165-023
  • 30530-126-921
  • 30500-098-671
  • 30530-330-405
  • 30400-107-007
  • 30400-107-154
  • 30400-137-670
  • 30500-115-013
  • 30400-129-670
  • 30500-128-013
  • 30500-950-405
  • 30500-355-003
  • 30530-355-003
  • 30500-131-003
  • 30500-153-003
  • 30500-437-010
  • 30700-098-153
  • 30700-098-158
  • 30700-259-810
  • 30700-KE2-942

Vehicle Fitments

  • Honda Z50 Mini Trail/Monkey Bike — year not specified
  • Honda Z50R Mini Trail/Monkey Bike — year not specified
  • Honda Z50AK Mini Trail — 1968-1971
  • Honda Z50A Mini Trail — 1968-1971
  • Honda Z50M — 1966-1969
  • Honda CB125 and CB125S — 1973-1978
  • Honda CL125 and CL125S — 1973-1974
  • Honda CT70, CT70H and Trail 70 — 1970-1982
  • Honda CT125 Trail 125 — 1977
  • Honda FT500 Ascot — 1982-1983
  • Honda MR50 Elsinore 50 — 1974-1975
  • Honda MR175 Elsinore — 1975-1977
  • Honda MT125 Elsinore — 1974-1976
  • Honda MT250 Elsinore — 1974-1976
  • Additional stated Honda applications include XL185 and XL/XR 70, 75, 80, 100, 125, 175, 185, 200, 250 and 350 models; years are not specified
  • Some applications may require wiring or mounting modifications

Important Information

  • Check the product image, wiring connections and mounting dimensions against the original component before ordering
  • Electrical components are non-returnable and supplied without warranty
