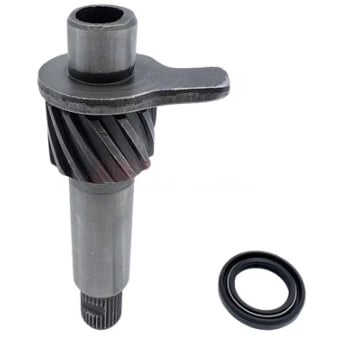

Kickstart Shaft + Seal 1986-2004 Yamaha YZ125 1LX-15660-03-00 93102-17263-00

Description

Kickstart shaft and seal supplied as a direct replacement part for engine rebuild and repair applications. Manufactured to exacting standards using high-tech materials to support reliability and performance, and intended to meet or exceed OEM quality requirements. Please see the image before ordering to avoid mistakes, as multiple versions are available and dimensions should be checked carefully before purchase.

Features

  • Direct OEM replacement
  • Manufactured to exacting standards for reliable engine rebuild work
  • Produced using high-tech materials for reliability and performance
  • Meets or exceeds OEM quality
  • Easy to install
  • Professional installation recommended if unsure
  • Please see the image before ordering to avoid mistakes
  • Multiple versions are available, so dimensions should be checked before ordering

Specifications

  • Dimensional tolerance: ±0.5 mm
  • Total length: 95 mm
  • Kick starter spline outer diameter: 13 mm
  • Kick starter spline inner diameter (threaded): 5.3 mm
  • Kick starter spline length: 17 mm
  • Main body length: 42.5 mm
  • Main body diameter: 16.9 mm
  • Gear width: 19 mm
  • Gear diameter: 26 mm
  • Gear teeth: 13
  • Locating plate thickness: 5 mm
  • Locating plate diameter: 29 mm
  • End pin length: 11 mm
  • End pin outer diameter: 14.85 mm
  • End pin inner diameter: 10.25 mm

Cross-Reference OEM Part Numbers

  • 1LX-15660-03-00
  • 1LX-15660-02-00
  • 1LX-15660-01-00
  • 93102-17263-00

Vehicle Fitments

  • Yamaha YZ125S (1986)
  • Yamaha YZ125T (1987)
  • Yamaha YZ125U (1988)
  • Yamaha YZ125W (1989)
  • Yamaha YZ125A (1990)
  • Yamaha YZ125B (1991)
  • Yamaha YZ125D1 (1992)
  • Yamaha YZ125 (YZ125J1) (1997)
  • Yamaha YZ125 (YZ125K1) (1998)
  • Yamaha YZ125 (YZ125L1) (1999)
  • Yamaha YZ125 (YZ125M1) (2000)
  • Yamaha YZ125 (YZ125N1) (2001)
  • Yamaha YZ125 (YZ125P) (2002)
  • Yamaha YZ125 (YZ125R) (2003)
  • Yamaha YZ125 (YZ125S1) (2004)

Kickstart Shaft + Seal 1986-2004 Yamaha YZ125 1LX-15660-03-00 93102-17263-00

Product form

Kickstart shaft and seal supplied as a direct replacement part for engine rebuild and repair applications. Manufactured to exacting standards... Read more

6 in stock 1-2 business days

£73.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 35-9000.A3

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Kickstart shaft and seal supplied as a direct replacement part for engine rebuild and repair applications. Manufactured to exacting standards using high-tech materials to support reliability and performance, and intended to meet or exceed OEM quality requirements. Please see the image before ordering to avoid mistakes, as multiple versions are available and dimensions should be checked carefully before purchase.

    Features

    • Direct OEM replacement
    • Manufactured to exacting standards for reliable engine rebuild work
    • Produced using high-tech materials for reliability and performance
    • Meets or exceeds OEM quality
    • Easy to install
    • Professional installation recommended if unsure
    • Please see the image before ordering to avoid mistakes
    • Multiple versions are available, so dimensions should be checked before ordering

    Specifications

    • Dimensional tolerance: ±0.5 mm
    • Total length: 95 mm
    • Kick starter spline outer diameter: 13 mm
    • Kick starter spline inner diameter (threaded): 5.3 mm
    • Kick starter spline length: 17 mm
    • Main body length: 42.5 mm
    • Main body diameter: 16.9 mm
    • Gear width: 19 mm
    • Gear diameter: 26 mm
    • Gear teeth: 13
    • Locating plate thickness: 5 mm
    • Locating plate diameter: 29 mm
    • End pin length: 11 mm
    • End pin outer diameter: 14.85 mm
    • End pin inner diameter: 10.25 mm

    Cross-Reference OEM Part Numbers

    • 1LX-15660-03-00
    • 1LX-15660-02-00
    • 1LX-15660-01-00
    • 93102-17263-00

    Vehicle Fitments

    • Yamaha YZ125S (1986)
    • Yamaha YZ125T (1987)
    • Yamaha YZ125U (1988)
    • Yamaha YZ125W (1989)
    • Yamaha YZ125A (1990)
    • Yamaha YZ125B (1991)
    • Yamaha YZ125D1 (1992)
    • Yamaha YZ125 (YZ125J1) (1997)
    • Yamaha YZ125 (YZ125K1) (1998)
    • Yamaha YZ125 (YZ125L1) (1999)
    • Yamaha YZ125 (YZ125M1) (2000)
    • Yamaha YZ125 (YZ125N1) (2001)
    • Yamaha YZ125 (YZ125P) (2002)
    • Yamaha YZ125 (YZ125R) (2003)
    • Yamaha YZ125 (YZ125S1) (2004)
