Description

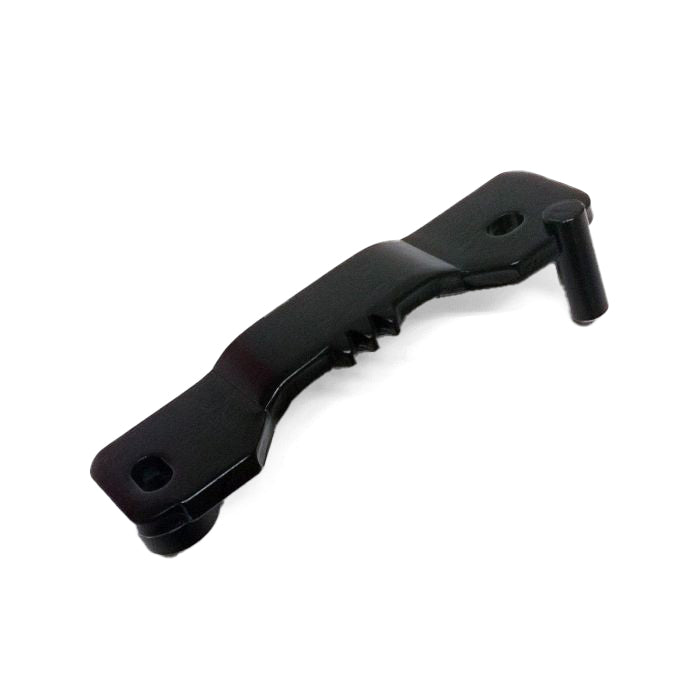

VARIATOR Drive blocks Piaggio 125cc and 150cc Engine 2 stk.

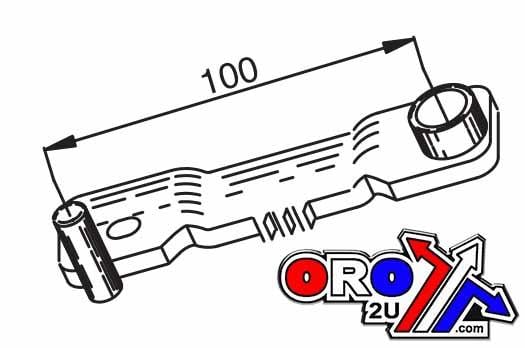

Size Center pin to Center bush hole. 100mm.
This special tool for locking the front variator allows quick and easy disassembly of the variator. If no tuner workshop missing. Note: Can be used in 2-stroke maxi scooter Piaggio / Gilera . There is something else mounted and may have to be drilled out a bit !!!
Front Variator Locking Tool for '06-'13 Vespa LX 150, '07-'13 Vespa S 150, '07-'13 LXV 150 '05-'09 Granturismo 200, '99-'05 ET4, '03-'07 Mojito 150, '08-'11 Aprilia SportCity One 125cc, '06-'12 Piaggio Fly 150, '11-'12 Typhoon 125
This tool is required to remove the front variator if you do not have access to an impact gun.
This tool locks the front variator (front pulley) so that you can remove the center nut and remove the drive belt or roller weights.
AF1 Racing recommended alternative to OEM part number 020368Y (ex AP8140535)

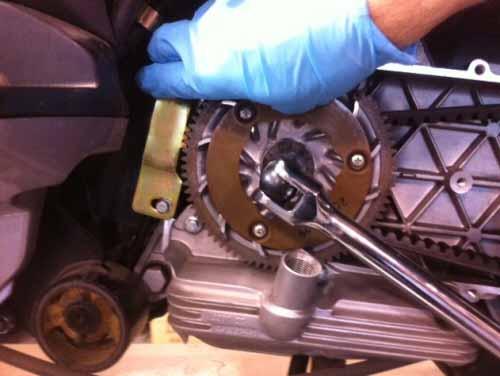

Installation photo (note that the mechanic is using his top hand to stabilize the Buzzetti tool).
Cross reference numbers ONLY.
OUT1093, Buzzetti 5430 00-7893.A3
