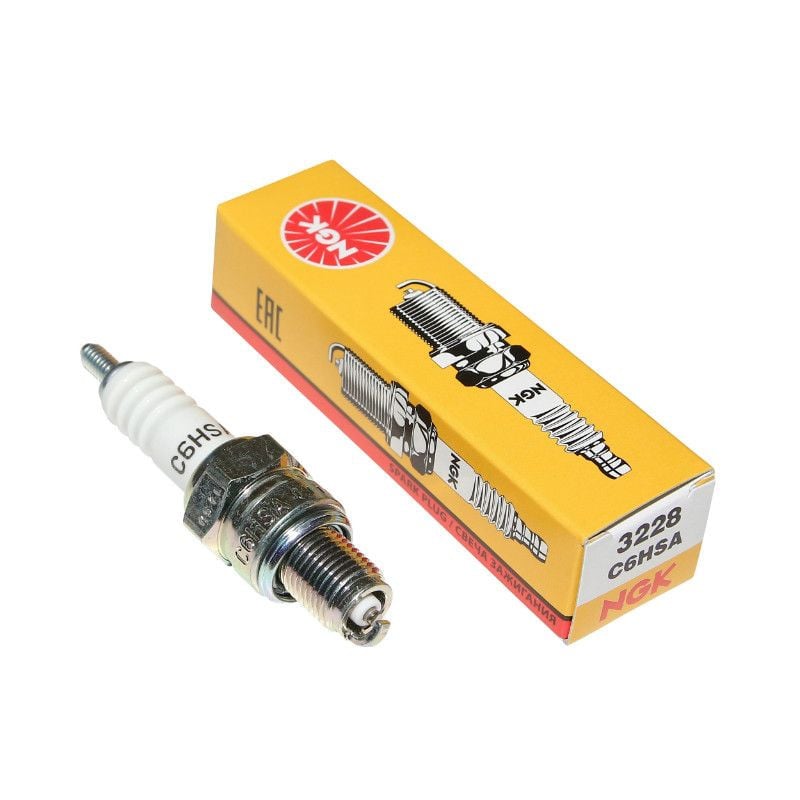

Ngk Spark Plug C6HSA 3228

Description

NGK Spark Plug - C6HSA

Features:

  • Wide heat range achieved using copper wire instead of conventional iron cores.
  • Copper dissipates heat quickly, cooling the electrode and insulator tip.
  • High-conduction copper and long nose insulator enhance pre-ignition resistance.
  • Designed for high-performance engines.
  • Sold individually.

Specifications:

  • Heat Range: 6
  • Thread Size: 10 mm
  • Reach: 12.7 mm (1/2")
  • Hex Size: 5/8" (16 mm)
  • Seal Type: Gasket Seat
  • Type: Non-Resistor
  • Terminal Type: Stud Terminal Threads (Terminal Nut not included; order part #067606-0051 if needed)
  • Gap: .028" (0.7 mm)
  • Units: Each
  • Weight: 0.12 lbs
  • Alternate/OEM Part Numbers: 3228, C6HSA
  • Part Number: 37-C6HSA (radhouse.co.uk)

Compatible Models:

Honda:

  • C70 Passport: 1980–1983
  • C70K: 1970–1973
  • C70M: 1970–1973
  • PC50 Little Honda: 1969–1970
  • Z50 Mini Trail: 1968–1978

Kawasaki:

  • KLT110: 1984–1986

Suzuki:

  • DR-Z110: 2003–2005

Yamaha:

  • XC125 Riva: 1985–2001
  • XC125Z Riva: 1986–1991

XV250 Route 66/Virago/V-Star:

  • Route 66: 1988–1990
  • Virago: 1995–2007
  • V-Star: 2008–2018

Product Summary:

  • Description: NGK C6HSA Traditional Spark Plug, 10mm Thread Size, 12.7mm (1/2") Reach, Gasket Seat, and Non-Resistor Type.
  • Details: Designed for extended service life and optimum performance. Corrugated ribs prevent flashover, and the pure alumina silicate ceramic insulator provides superior strength and heat transfer. Copper core and triple-sealed construction enhance heat dissipation and reliability.
