Description

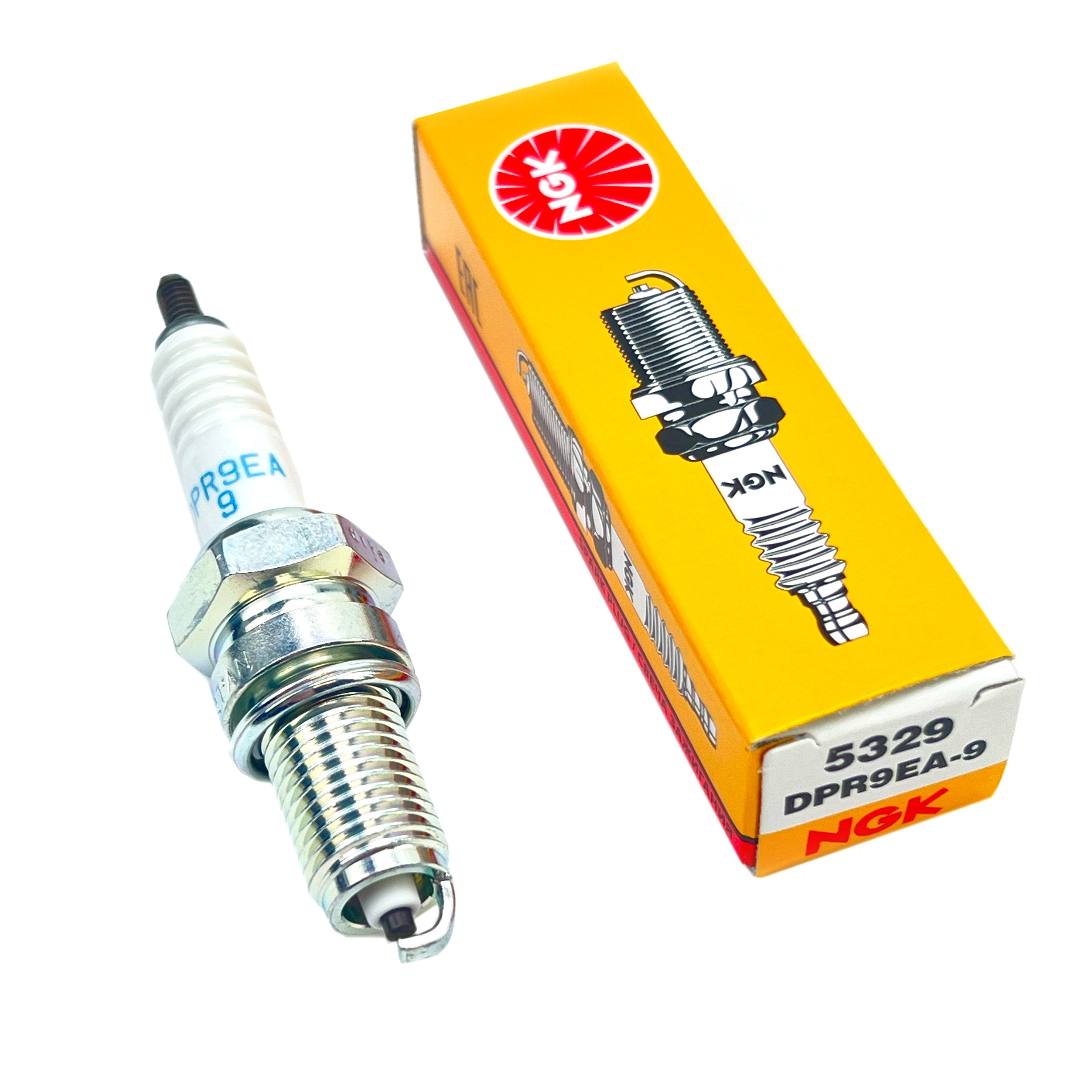

NGK Spark Plug - DPR9EA9
Product Highlights:
- NGK's wide heat range results from using copper wire in place of iron cores found in many conventional plugs.
- Copper dissipates heat quicker, cooling the electrode and insulator tip.
- Raised pre-ignition rating with high-conduction copper and long nose insulator.
- Meets the requirements of high-performance engines.
- Sold individually.
Specifications:
-
Heat Range: 9
-
Thread Size: 12 mm
-
Type: Resistor
-
Units: Each
-
Weight: 0.12 lbs
-
Reach: 19mm (3/4")
-
Hex Size: 11/16" (18mm)
-
Seat Type: Gasket
-
Gap: .035" (0.9mm)
-
Terminal Type: Stud Terminal Threads
Special Features:
- Projected tip for better performance.
- Triple-sealed and copper-cored for optimal heat removal and prevention of interior leakage.
- Corrugated ribs prevent flashover.
- Constructed with pure alumina silicate ceramic insulator for greater strength and better heat transfer.
Alternate/OEM Part Numbers:
Compatible Models
Honda:
1995 Honda CB1000
1994 Honda CB1000
1996 Honda CBR1000F
1995 Honda CBR1000F
1994 Honda CBR1000F
1993 Honda CBR1000F
1991 Honda CBR1000F
1990 Honda CBR1000F
1988 Honda CBR1000F Hurricane
1987 Honda CBR1000F Hurricane
1986 Honda VF1000R
1985 Honda VF1000R
1986 Honda VFR750F 750 Interceptor
Kawasaki:
2005 Kawasaki KL250 KLR
2004 Kawasaki KL250 KLR
2003 Kawasaki KL250 KLR
2002 Kawasaki KL250 KLR
2001 Kawasaki KL250 KLR
2000 Kawasaki KL250 KLR
1999 Kawasaki KL250 KLR
1998 Kawasaki KL250 KLR
1997 Kawasaki KL250 KLR
1996 Kawasaki KL250 KLR
1995 Kawasaki KL250 KLR
1994 Kawasaki KL250 KLR
1993 Kawasaki KL250 KLR
1992 Kawasaki KL250 KLR
1991 Kawasaki KL250 KLR
1990 Kawasaki KL250 KLR
1989 Kawasaki KL250 KLR
1988 Kawasaki KL250 KLR
1987 Kawasaki KL250 KLR
1986 Kawasaki KL250 KLR
1985 Kawasaki KL250 KLR
1984 Kawasaki KL250 KLR
1983 Kawasaki KL250 KLR
Suzuki:
1993 Suzuki DR250
1992 Suzuki DR250
1991 Suzuki DR250
1990 Suzuki DR250
1992 Suzuki DR250S
1991 Suzuki DR250S
1990 Suzuki DR250S
1995 Suzuki DR250SE
1994 Suzuki DR250SE
1993 Suzuki DR250SE
1993 Suzuki DR350
1992 Suzuki DR350
1991 Suzuki DR350
1990 Suzuki DR350
1993 Suzuki DR350S
1992 Suzuki DR350S
1991 Suzuki DR350S
1990 Suzuki DR350S
1993 Suzuki DR650S
1992 Suzuki DR650S
1991 Suzuki DR650S
1990 Suzuki DR650S
1995 Suzuki DR650SE
1994 Suzuki DR650SE
Triumph:
2016 Triumph America 865
2015 Triumph America 865
2016 Triumph America 865 LT
2015 Triumph America 865 LT
2005 Triumph Bonneville
2004 Triumph Bonneville
2003 Triumph Bonneville
2002 Triumph Bonneville
2001 Triumph Bonneville
2004 Triumph Bonneville T100
2003 Triumph Bonneville T100
2002 Triumph Bonneville T100
1997 Triumph Daytona 1200
1996 Triumph Daytona 1200
1995 Triumph Daytona 1200
2004 Triumph Speedmaster 865
2003 Triumph Speedmaster 865
1996 Triumph Sprint 900
1995 Triumph Sprint 900
2001 Triumph Sprint RS 955
2000 Triumph Sprint RS 955
2001 Triumph Sprint ST
2000 Triumph Sprint ST
1999 Triumph Sprint ST
2002 Triumph Trophy 900
2001 Triumph Trophy 900
2000 Triumph Trophy 900
1999 Triumph Trophy 900
1998 Triumph Trophy 900
1997 Triumph Trophy 900
1996 Triumph Trophy 900
1995 Triumph Trophy 900
Yamaha:
1993 Yamaha TDM850
1992 Yamaha TDM850
Part Number Reference:
Part No.: 37-DPR9EA9 (radhouse.co.uk)
Additional Notes:
NOTE: Does not include terminal nut. If necessary, order part #067606-0051.
NGK traditional plugs are constructed for longer life and optimum performance. Corrugated ribs prevent flashover. NGK uses only the purest alumina silicate in its ceramic insulator which gives all NGK plugs greater strength and better heat transfer. Copper-cored and triple-sealed to further aid in heat removal and prevent interior leakage.
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
DR S 350 |
1991-1994 |
| SUZUKI |
DR 750 |
1988-1990 |
| SUZUKI |
DR 800 |
1990-1992 |
