Oil Seal 12x22x9 Suzuki Gs Gsf GSX Gt Lt RM Sp Tc Tm Ts Vs 125 160 185 250 300 425 450 550, 09285-12006 Athena M730900305000

Description

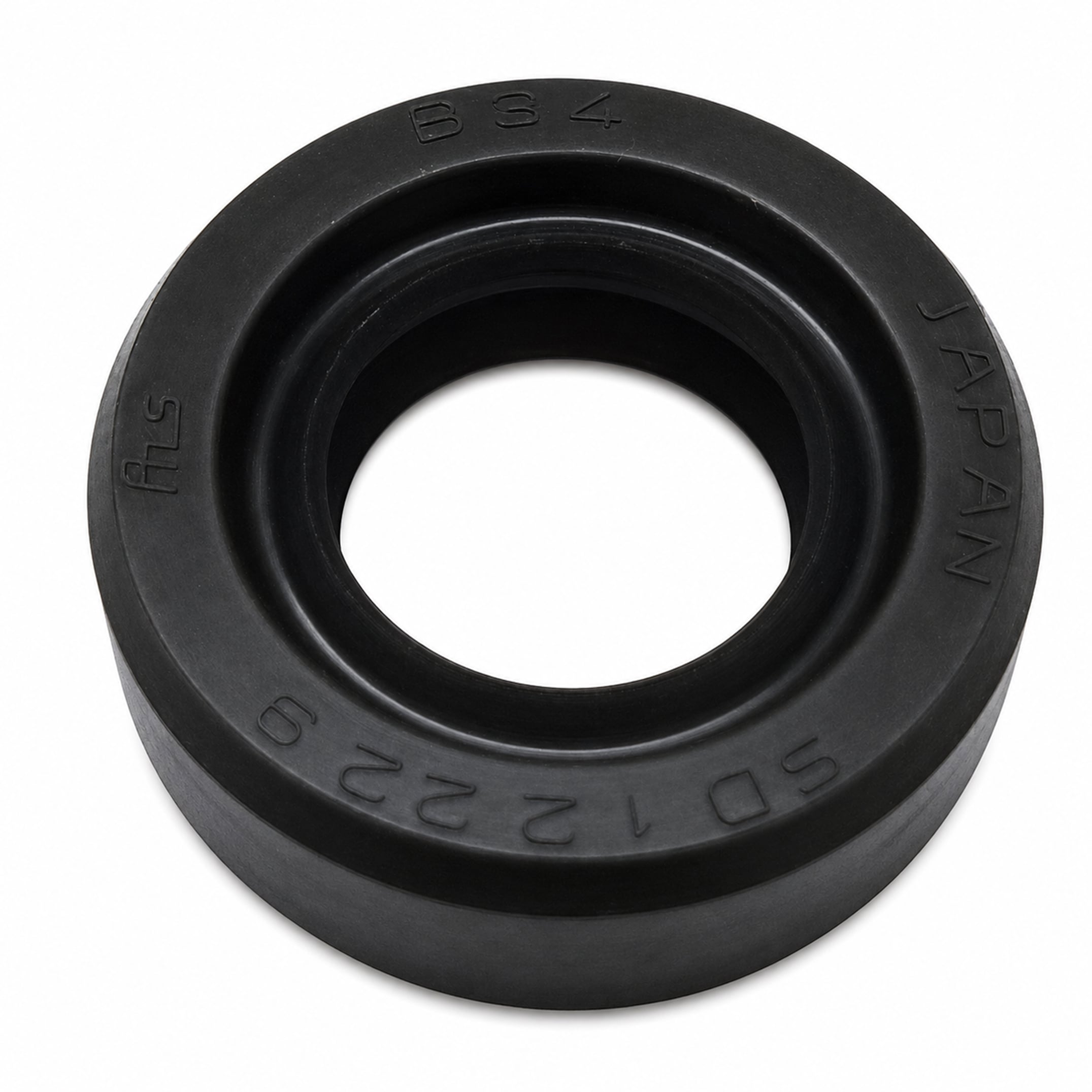

This Athena oil seal, with dimensions 12x22x9 mm, is a single-lip seal featuring an additional dust lip for enhanced protection. Manufactured from high-quality NBR (nitrile rubber), it is designed for use in gear shifter shaft applications across a wide range of Suzuki motorcycles and ATVs. The rubber exterior ensures optimal sealing against engine cases, making it a reliable OEM replacement.

Features

  • Oil seal with rubber exterior for improved fit and sealing

  • Single seal-lip and one dust lip for enhanced contamination protection

  • Manufactured from durable NBR (nitrile rubber)

  • Designed according to OEM specifications

  • Suitable for gear shifter shaft sealing applications

Specifications

  • Product: Oil Seal

  • Brand: Athena

  • Part Number: M730900305000 / 58-8091.ATH

  • Internal Diameter: 12 mm

  • External Diameter: 22 mm

  • Height: 9 mm

  • Type: SD (Single lip with Dust lip)

  • Net Weight: 0.01 kg

  • Material: NBR (Nitrile Rubber)

Cross-Reference OEM Part Numbers

  • Suzuki 09285-12006

  • Suzuki 0928512006

  • Replaces: 09285-12002 (Gear Shifter Shaft Seal)

Vehicle Fitments

  • Suzuki AL50 1971

  • Suzuki ALT50 1983–1984

  • Suzuki ALT125 1983–1986

  • Suzuki ALT185 1984–1986

  • Suzuki DR100 1985–1987

  • Suzuki DR125 1986–1996

  • Suzuki DR200 1986–2009

  • Suzuki DR250 1985–1995

  • Suzuki DR350 1990–1999

  • Suzuki DR650 1990–2009

  • Suzuki DS80 1978–2000

  • Suzuki DRZ70 2008–2009

  • Suzuki DRZ125 2004–2007

  • Suzuki F50 1971

  • Suzuki FZ50 1979–1983

  • Suzuki FA50 1980–1991

  • Suzuki FS50 1980–1981

  • Suzuki GN125 1982–1997

  • Suzuki GN250 1982–1988

  • Suzuki GN400 1980–1982

  • Suzuki GR650 1982-UP

  • Suzuki GS250 1980–1981

  • Suzuki GS300 1982–1983

  • Suzuki GS400 1977–1978

  • Suzuki GS425 1979

  • Suzuki GS450 1980–1988

  • Suzuki GS500 1989–2009

  • Suzuki GS550 1977–1986

  • Suzuki GS650 1981–1983

  • Suzuki GS700 1985

  • Suzuki GS750 1977–1999

  • Suzuki GS850 1979–1983

  • Suzuki GS1000 1978–1982

  • Suzuki GS1150 1984–1986

  • Suzuki GSF400 1991–1993

  • Suzuki GSF600 2001–2003

  • Suzuki GSF1200 1997–2005

  • Suzuki GSX600 1988–2006

  • Suzuki GSX750 1989–2006

  • Suzuki GSX1100 1988–1993

  • Suzuki GSXR50 1987

  • Suzuki GSXR600 1992–1993

  • Suzuki GSXR750 1986–1995

  • Suzuki GSXR1100 1987–1993

  • Suzuki GV700 1985

  • Suzuki GV1200 1985–1986

  • Suzuki GZ250 1999–2010

  • Suzuki GT185 1973–1977

  • Suzuki GT250 1973–1977

  • Suzuki GT380 1972–1977

  • Suzuki GT500 1976–1977

  • Suzuki GT550 1972–1977

  • Suzuki GT750 1972–1977

  • Suzuki JR50 1985–2007

  • Suzuki JR80 2001–2004

  • Suzuki LS650 1986–2009

  • Suzuki LT125 1983–1987

  • Suzuki LT160 1989–2004

  • Suzuki LT185 1984–1987

  • Suzuki LT230 1985–1993

  • Suzuki LT250 1985–1992

  • Suzuki LT300 1987–1989

  • Suzuki LT500 1987–1990

  • Suzuki LTF160 1991–2001

  • Suzuki LTF230 1986–1987

  • Suzuki MT50 1973

  • Suzuki RE5 1975–1976

  • Suzuki RM50 1978–1980

  • Suzuki RM60 1980–1983

  • Suzuki RM80 1977–1995

  • Suzuki RM100 1976–1981

  • Suzuki RM125 1975–1988

  • Suzuki RM250 1975–1988

  • Suzuki RM370 1976–1977

  • Suzuki RM400 1978–1980

  • Suzuki RM465 1981–1982

  • Suzuki RM500 1983–1984

  • Suzuki SP100 1983-UP

  • Suzuki SP125 1982–1988

  • Suzuki SP200 1986–1988

  • Suzuki SP250 1982–1985

  • Suzuki SP370 1978–1979

  • Suzuki SP400 1980

  • Suzuki SP500 1981–1983

  • Suzuki T125 1971

  • Suzuki T250 1971

  • Suzuki T350 1969–1972

  • Suzuki T500 1968–1975

  • Suzuki TC100 1973–1977

  • Suzuki TC120 1971

  • Suzuki TC125 1972–1977

  • Suzuki TC185 1974–1977

  • Suzuki TM75 1974–1976

  • Suzuki TM100 1974–1975

  • Suzuki TM125 1973–1975

  • Suzuki TM250 1972–1975

  • Suzuki TM400 1971–1975

  • Suzuki TS50 1971–1974

  • Suzuki TS75 1976–1977

  • Suzuki TS100 1973–1981

  • Suzuki TS125 1971–1981

  • Suzuki TS185 1971–1981

  • Suzuki TS250 1969–1981

  • Suzuki TS400 1972–1977

  • Suzuki TU250 2009

  • Suzuki VL800 2001–2009

  • Suzuki VS700 1986–1987

  • Suzuki VS750 1988–1991

  • Suzuki VS800 1992–2009

  • Suzuki VS1400 1987–2009

  • Suzuki VX800 1990–1993

  • Suzuki VZ800 2005–2009

  • Suzuki XN85 1983

Oil Seal 12x22x9 Suzuki Gs Gsf GSX Gt Lt RM Sp Tc Tm Ts Vs 125 160 185 250 300 425 450 550, 09285-12006 Athena M730900305000

Product form

This Athena oil seal, with dimensions 12x22x9 mm, is a single-lip seal featuring an additional dust lip for enhanced protection.... Read more

1 in stock 1-2 business days

£4.49 Incl. VAT
