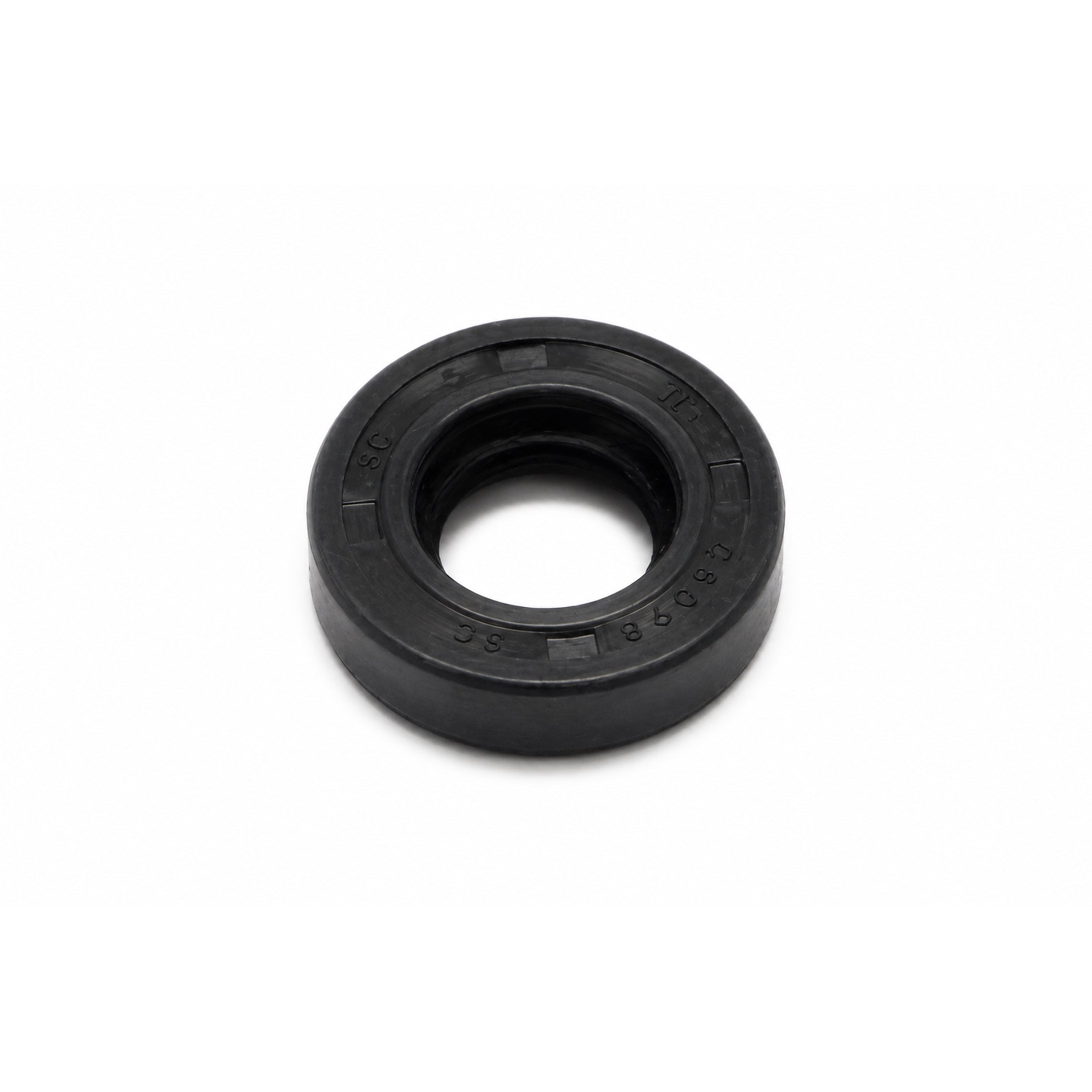

Oil Seal 8x18x5 93109-08017, Athena M730000140000

Description

ATHENA OIL SEALS - M730000140000

Description

Oil seal has generally the function of retaining a fluid, preventing its leaking. The outside has to ensure a fixed-fitting in the seat and its tightness. Thanks to its specific profile together with the radial force applied by the spring and the characteristics of the elastomer, the sealing lip flows on the shaft creating a barrier that prevents the leakage of the fluid both in static and dynamic condition. Every Athena oil seal is in accordance with the DIN 3760 requirements. Oil seals are available in different sizes, shapes and dimensions.

Technical features

  • External Diameter (mm) 18.00
  • Height 5.00
  • Internal Diameter (mm) 8.00
  • Net Weight (Kg) 0.01
  • Number Of Components 20
  • Type SC

Partner OEM code

  • PIAGGIO 847077
  • YAMAHA 9310908017
  • YAMAHA 9310208307

Vehicle Compatibility

  • 1986 MOTO-4 - YFM225S MIDDLE DRIVE GEAR
  • 1987 MOTO-4 - YFM225T MIDDLE DRIVE GEAR
  • 1987 MOTO-4 - YFM350ERT MIDDLE DRIVE GEAR
  • 1987 YFM350FWT MIDDLE DRIVE GEAR
  • 1988 MOTO-4 - YFM225U MIDDLE DRIVE GEAR
  • 1988 MOTO-4 - YFM350ERU MIDDLE DRIVE GEAR
  • 1988 TERRA PRO - YFP350U GOVERNOR
  • 1988 TERRA PRO - YFP350U SUB TRANSMISSION

Part No. 58-8126.ATH (radhouse.co.uk)

Oil Seal 8x18x5 93109-08017, Athena M730000140000

Product form

ATHENA OIL SEALS - M730000140000 Description Oil seal has generally the function of retaining a fluid, preventing its leaking. The... Read more

5 in stock 1-2 business days

£4.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 58-8126.ATH.YA

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    ATHENA OIL SEALS - M730000140000

    Description

    Oil seal has generally the function of retaining a fluid, preventing its leaking. The outside has to ensure a fixed-fitting in the seat and its tightness. Thanks to its specific profile together with the radial force applied by the spring and the characteristics of the elastomer, the sealing lip flows on the shaft creating a barrier that prevents the leakage of the fluid both in static and dynamic condition. Every Athena oil seal is in accordance with the DIN 3760 requirements. Oil seals are available in different sizes, shapes and dimensions.

    Technical features

    • External Diameter (mm) 18.00
    • Height 5.00
    • Internal Diameter (mm) 8.00
    • Net Weight (Kg) 0.01
    • Number Of Components 20
    • Type SC

    Partner OEM code

    • PIAGGIO 847077
    • YAMAHA 9310908017
    • YAMAHA 9310208307

    Vehicle Compatibility

    • 1986 MOTO-4 - YFM225S MIDDLE DRIVE GEAR
    • 1987 MOTO-4 - YFM225T MIDDLE DRIVE GEAR
    • 1987 MOTO-4 - YFM350ERT MIDDLE DRIVE GEAR
    • 1987 YFM350FWT MIDDLE DRIVE GEAR
    • 1988 MOTO-4 - YFM225U MIDDLE DRIVE GEAR
    • 1988 MOTO-4 - YFM350ERU MIDDLE DRIVE GEAR
    • 1988 TERRA PRO - YFP350U GOVERNOR
    • 1988 TERRA PRO - YFP350U SUB TRANSMISSION

    Part No. 58-8126.ATH (radhouse.co.uk)
