Pickup Coil Pulser Stator Trigger Cfmoto Cf Ch Cfq V3 V5 Honda Helix Cn Piaggio MP3 Sym Rv 250

Description

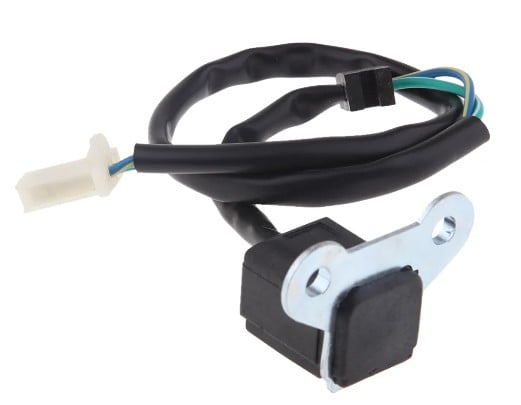

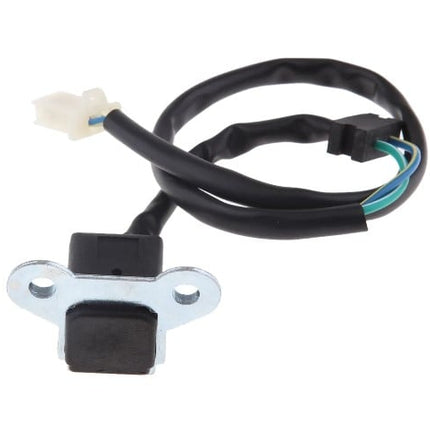

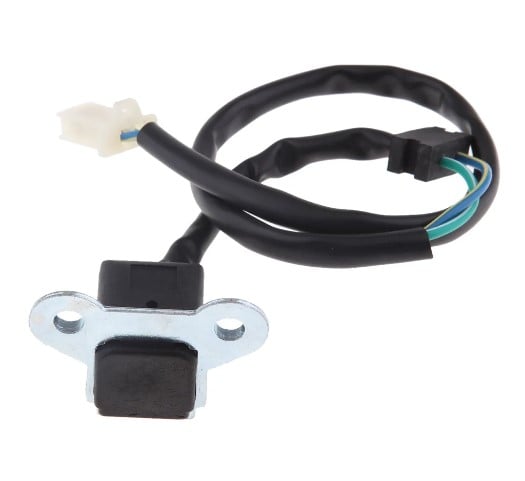

This motorcycle and ATV pickup coil, also known as a pulser or stator trigger, is a replacement ignition timing sensor for compatible liquid-cooled 250 cc applications. It detects engine position and sends the timing signal required by the CDI ignition system to trigger the spark at the correct point. Designed as a direct replacement, it uses the original mounting location and is suitable for a range of CF250/CN250-type scooters, motorcycles and ATVs.

Features

  • Direct replacement pickup coil using the original mounting location.
  • Manufactured to OEM-style specifications and intended to meet or exceed OEM quality standards while retaining the original-equipment appearance
  • Factory tested to verify correct operation.
  • Specified by the supplier as suitable for increased power loads.
  • Intended as a cost-effective replacement option.

Specifications

  • Connector: 2-pin plug.
  • Material: Aluminium and plastic.
  • Wire length: 41.5 cm / approximately 16.34 inches.

Cross-Reference OEM Part Numbers

  • 172MM-033000.
  • DN250-557.
  • SZ15300009.
  • 31130-SCC0-0000.
  • XF172MM-1051300.
  • YYSLL2501303.

Vehicle Fitments

  • CFMoto CF250 / CH250 – liquid-cooled 250 cc applications.
  • CFMoto V3 / V5 – CF250 applications.
  • Honda Helix CN250 – compatible CN250 application.
  • JMstar 250.
  • Jonway Master 250.
  • Lance Duke 250 / Lance 250.
  • NST 250 cc applications.
  • Roketa Bali 250.
  • SunL SL250-2.
  • Tank Touring 250DE.
  • Piaggio MP3 250.
  • SYM RV250.
  • Panzersport 250 cc applications where the connector and mounting arrangement match.

Package Contents

  • 1 x pickup coil.

Installation & Ordering Notes

  • Compare the product image, connector and mounting arrangement with the existing component before ordering, particularly where the same vehicle family may use different parts.
  • Installation is straightforward, although professional assistance is recommended if there is any uncertainty over fitting.
  • Electrical parts are not eligible for return.
  • Supplied with a satisfaction guarantee.

Pickup Coil Pulser Stator Trigger Cfmoto Cf Ch Cfq V3 V5 Honda Helix Cn Piaggio MP3 Sym Rv 250

Product form

This motorcycle and ATV pickup coil, also known as a pulser or stator trigger, is a replacement ignition timing sensor... Read more

5 in stock 1-2 business days

£25.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-A1133

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This motorcycle and ATV pickup coil, also known as a pulser or stator trigger, is a replacement ignition timing sensor for compatible liquid-cooled 250 cc applications. It detects engine position and sends the timing signal required by the CDI ignition system to trigger the spark at the correct point. Designed as a direct replacement, it uses the original mounting location and is suitable for a range of CF250/CN250-type scooters, motorcycles and ATVs.

    Features

    • Direct replacement pickup coil using the original mounting location.
    • Manufactured to OEM-style specifications and intended to meet or exceed OEM quality standards while retaining the original-equipment appearance
    • Factory tested to verify correct operation.
    • Specified by the supplier as suitable for increased power loads.
    • Intended as a cost-effective replacement option.

    Specifications

    • Connector: 2-pin plug.
    • Material: Aluminium and plastic.
    • Wire length: 41.5 cm / approximately 16.34 inches.

    Cross-Reference OEM Part Numbers

    • 172MM-033000.
    • DN250-557.
    • SZ15300009.
    • 31130-SCC0-0000.
    • XF172MM-1051300.
    • YYSLL2501303.

    Vehicle Fitments

    • CFMoto CF250 / CH250 – liquid-cooled 250 cc applications.
    • CFMoto V3 / V5 – CF250 applications.
    • Honda Helix CN250 – compatible CN250 application.
    • JMstar 250.
    • Jonway Master 250.
    • Lance Duke 250 / Lance 250.
    • NST 250 cc applications.
    • Roketa Bali 250.
    • SunL SL250-2.
    • Tank Touring 250DE.
    • Piaggio MP3 250.
    • SYM RV250.
    • Panzersport 250 cc applications where the connector and mounting arrangement match.

    Package Contents

    • 1 x pickup coil.

    Installation & Ordering Notes

    • Compare the product image, connector and mounting arrangement with the existing component before ordering, particularly where the same vehicle family may use different parts.
    • Installation is straightforward, although professional assistance is recommended if there is any uncertainty over fitting.
    • Electrical parts are not eligible for return.
    • Supplied with a satisfaction guarantee.
