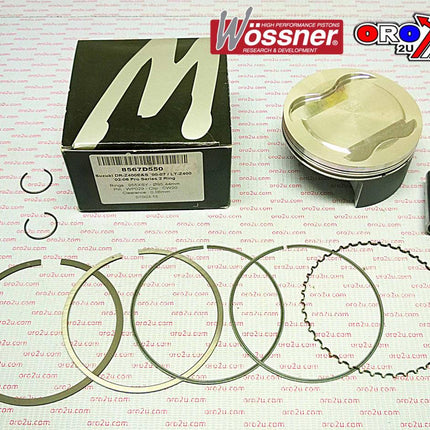

Name: Piston 00-14 DRZ400 90.00 Hc, Forged Wossner Kit 8567DA 13001-S006, 12111-29F00-0F0
Brand: Wossner
SKU: 56-W030.A.WO
Price: 230.23 GBP
Availability: InStock

Piston 00-14 DRZ400 90.00 Hc, Forged Wossner Kit 8567DA 13001-S006, 12111-29F00-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Wossner forged piston kit designed for superior strength and high compression performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.

Features

Forged construction for enhanced durability
Optimized heat transfer for improved performance
Elliptical design prevents localized pressure and piston collapse
High compression design for increased efficiency

Specifications

Bore: 89.94 mm
Piston Size: 90.00 mm
Displacement: 398 cm³
Stroke: 62.60 mm
Clearance: 0.06 mm
Wossner Compression Ratio: 13.50:1
OEM Compression Ratio: 12.50:1
Dome Volume: +0.50 cm³
Compression Height: 25.30 mm
Theoretical Weight: 247.00 g

Cross-Reference OEM Part Numbers

Lock: CW20
Pin: WP029
Ring Set: 900XSY
OEM Part Numbers: 13001-S006, 4714M09000, 12111-29F00-0F0

Vehicle Fitments

Suzuki DR-Z 400E (2000-2014)
Suzuki DR-Z 400S (2000-2002)
Suzuki LT-Z 400 (2002)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR Z 400	2000-2016
SUZUKI	DR Z 400	2000-2014
SUZUKI	LT Z QUADSPORT 400	2003-2018

Piston 00-14 DRZ400 90.00 Hc, Forged Wossner Kit 8567DA 13001-S006, 12111-29F00-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit designed for superior strength and high compression performance. Engineered for optimal heat transfer from the combustion... Read more

1 in stock 1-2 business days

£230.23 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W030.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit designed for superior strength and high compression performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.

Features

Forged construction for enhanced durability
Optimized heat transfer for improved performance
Elliptical design prevents localized pressure and piston collapse
High compression design for increased efficiency

Specifications

Bore: 89.94 mm
Piston Size: 90.00 mm
Displacement: 398 cm³
Stroke: 62.60 mm
Clearance: 0.06 mm
Wossner Compression Ratio: 13.50:1
OEM Compression Ratio: 12.50:1
Dome Volume: +0.50 cm³
Compression Height: 25.30 mm
Theoretical Weight: 247.00 g

Cross-Reference OEM Part Numbers

Lock: CW20
Pin: WP029
Ring Set: 900XSY
OEM Part Numbers: 13001-S006, 4714M09000, 12111-29F00-0F0

Vehicle Fitments

Suzuki DR-Z 400E (2000-2014)
Suzuki DR-Z 400S (2000-2002)
Suzuki LT-Z 400 (2002)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR Z 400	2000-2016
SUZUKI	DR Z 400	2000-2014
SUZUKI	LT Z QUADSPORT 400	2003-2018
