Name: Piston 96-97, 99 RM250 66.40, Wossner 8058DB Suzuki MX
Brand: Wossner
SKU: 56-W681.B.WO
Price: 169.84 GBP
Availability: InStock

Piston 96-97, 99 RM250 66.40, Wossner 8058DB Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

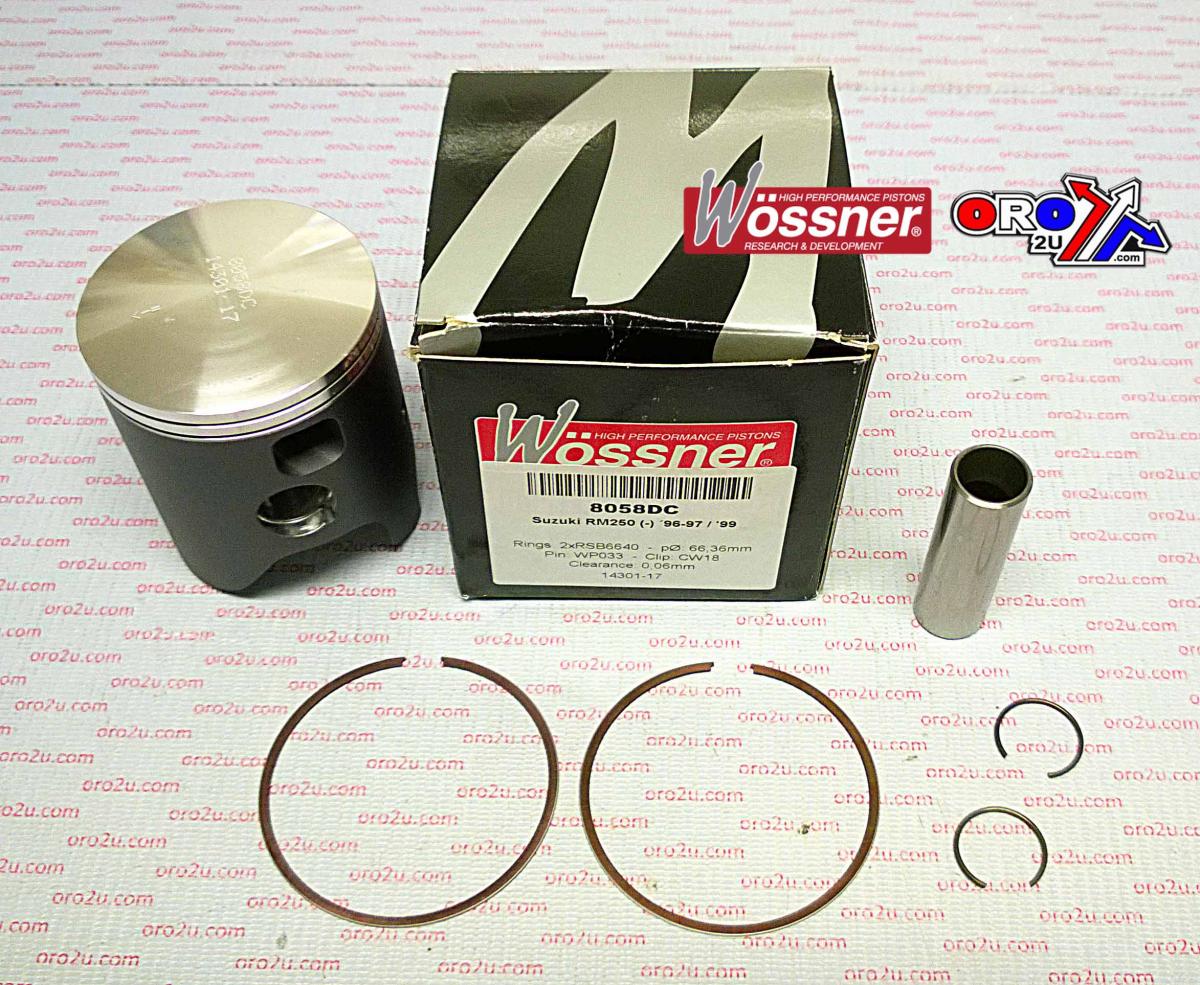

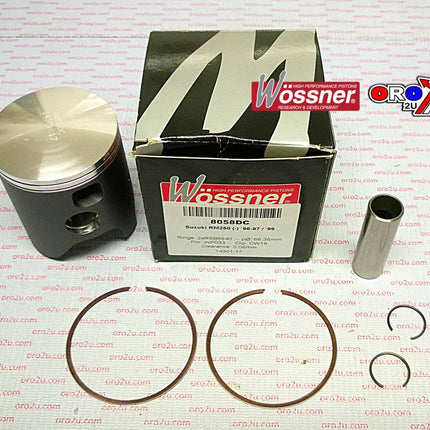

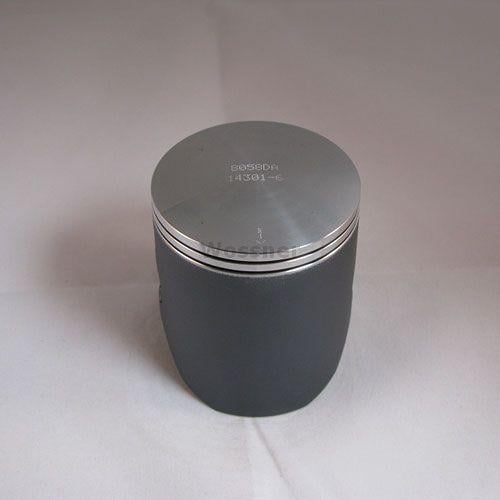

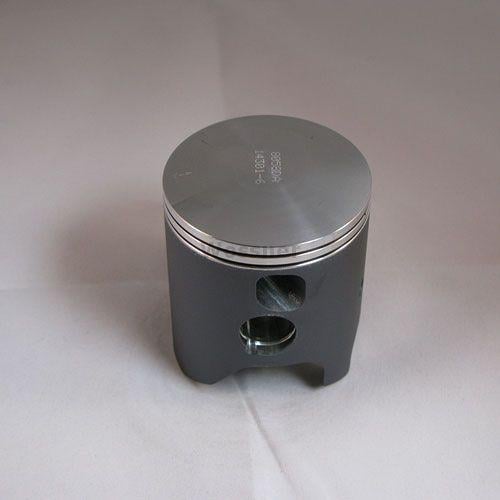

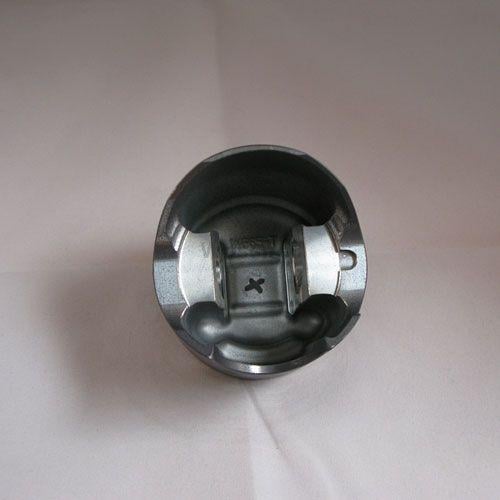

This Wossner forged piston kit is manufactured for Suzuki RM250 two-stroke engines from 1996 to 1997 and features a 68.01mm bore (+0.01mm oversize). Crafted in Germany, the piston utilises an elliptical design to manage thermal expansion, evenly distributing load and reducing the risk of collapse. It enhances heat transfer from the combustion chamber to the cylinder wall, supporting consistent engine operation in demanding conditions.

Features

Forged construction for increased strength and resilience
Elliptical piston shape ensures uniform bearing surface under heat expansion
Prevents localised stress and piston collapse
Promotes efficient heat transfer from combustion chamber
Precision-engineered in Germany

Specifications

Bore Size: 68.01mm (+0.01mm oversize)
Actual Diameter: 67.95mm
Compression Height: 38.00mm
Stroke: 72.00mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8023DB
Alternate Piston PN: 8058DB
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2026

Vehicle Fitments

1996 Suzuki RM250
1997 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	1996-1997
SUZUKI	RM 250	1999
