Name: Piston 96-97, 99 RM250 66.40, Wossner 8058DC Suzuki MX
Brand: Wossner
SKU: 56-W681.C.WO
Price: 169.84 GBP
Availability: InStock

Piston 96-97, 99 RM250 66.40, Wossner 8058DC Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

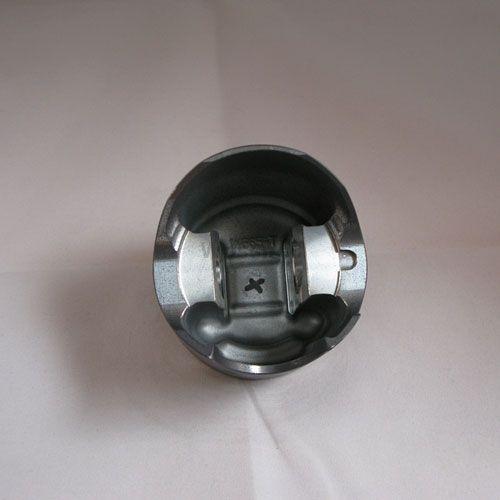

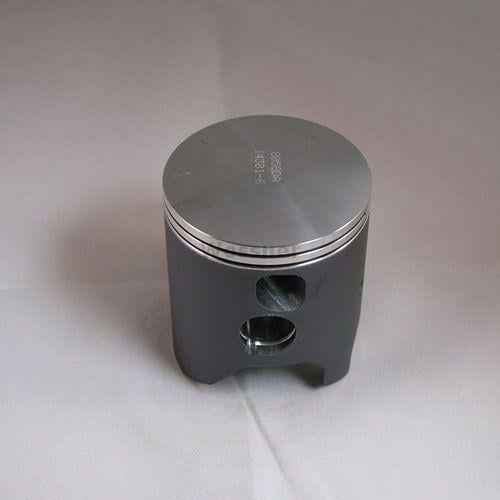

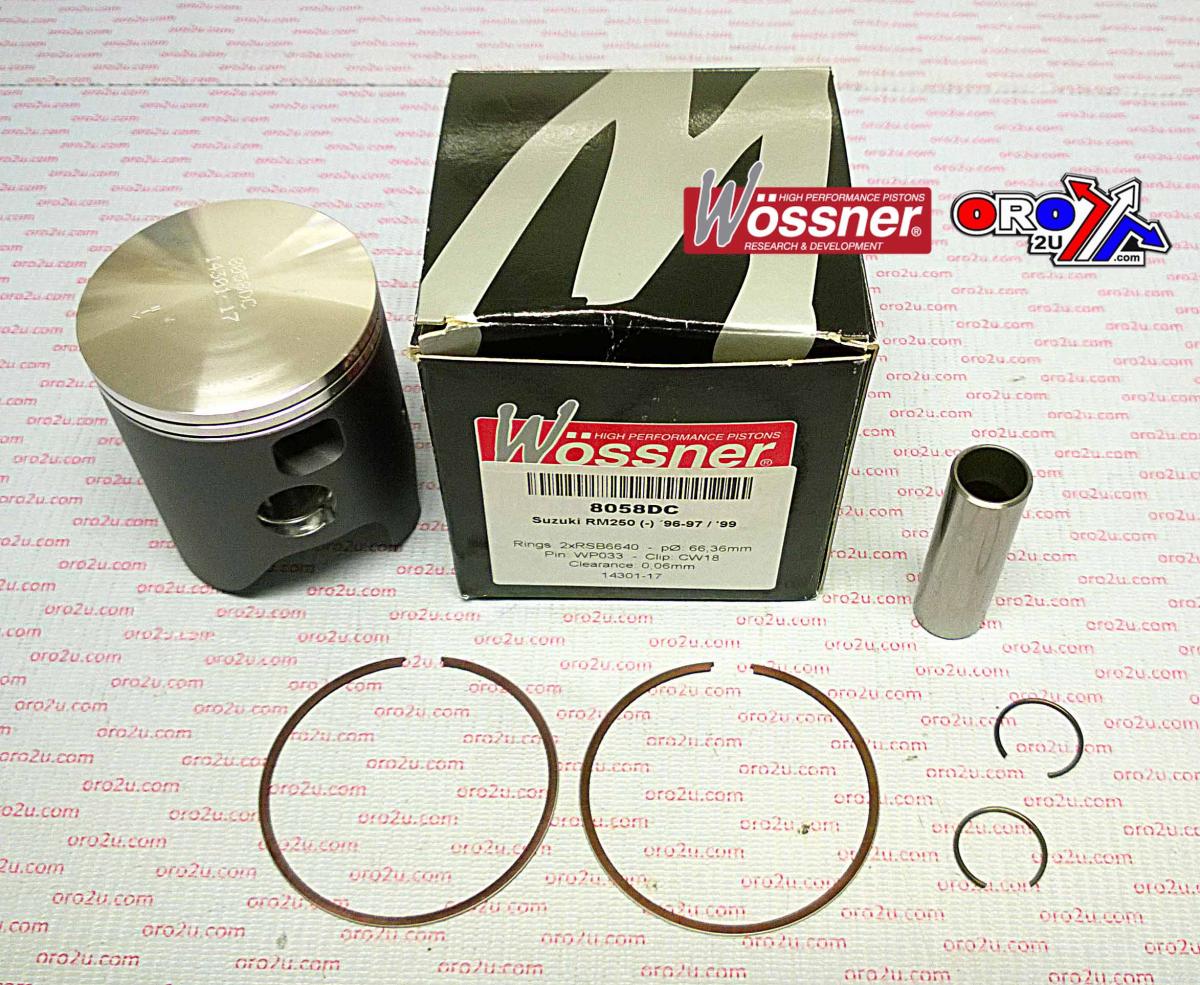

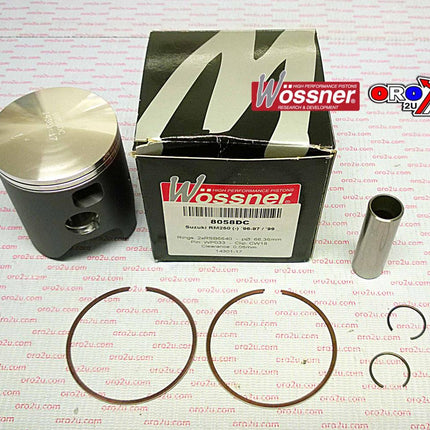

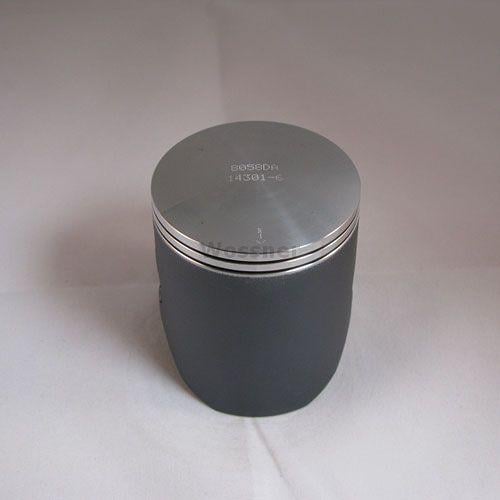

This Wossner forged piston kit is intended for Suzuki RM250 models from 1996 to 1997 and features a 68.02mm bore (+0.02mm oversize). Manufactured in Germany, it incorporates a precision-engineered elliptical design that evenly distributes thermal expansion stresses across the bearing surface. This reduces localised pressure and prevents piston collapse. The piston supports efficient heat transfer from the combustion chamber to the cylinder wall, enhancing engine stability and longevity in high-performance two-stroke applications.

Features

Forged piston construction for high durability
Elliptical profile ensures uniform expansion and stress distribution
Reduces risk of structural failure under operating heat
Supports combustion heat transfer for consistent engine performance
Engineered and manufactured in Germany

Specifications

Bore Size: 68.02mm (+0.02mm oversize)
Actual Diameter: 67.96mm
Compression Height: 38.00mm
Stroke: 72.00mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8023DC
Alternate Piston PN: 8058DC
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2026

Vehicle Fitments

1996 Suzuki RM250
1997 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	1996-1997
SUZUKI	RM 250	1999

Piston 96-97, 99 RM250 66.40, Wossner 8058DC Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit is intended for Suzuki RM250 models from 1996 to 1997 and features a 68.02mm bore... Read more

1 in stock 1-2 business days

£169.84 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W681.C.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit is intended for Suzuki RM250 models from 1996 to 1997 and features a 68.02mm bore (+0.02mm oversize). Manufactured in Germany, it incorporates a precision-engineered elliptical design that evenly distributes thermal expansion stresses across the bearing surface. This reduces localised pressure and prevents piston collapse. The piston supports efficient heat transfer from the combustion chamber to the cylinder wall, enhancing engine stability and longevity in high-performance two-stroke applications.

Features

Forged piston construction for high durability
Elliptical profile ensures uniform expansion and stress distribution
Reduces risk of structural failure under operating heat
Supports combustion heat transfer for consistent engine performance
Engineered and manufactured in Germany

Specifications

Bore Size: 68.02mm (+0.02mm oversize)
Actual Diameter: 67.96mm
Compression Height: 38.00mm
Stroke: 72.00mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8023DC
Alternate Piston PN: 8058DC
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2026

Vehicle Fitments

1996 Suzuki RM250
1997 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	1996-1997
SUZUKI	RM 250	1999
