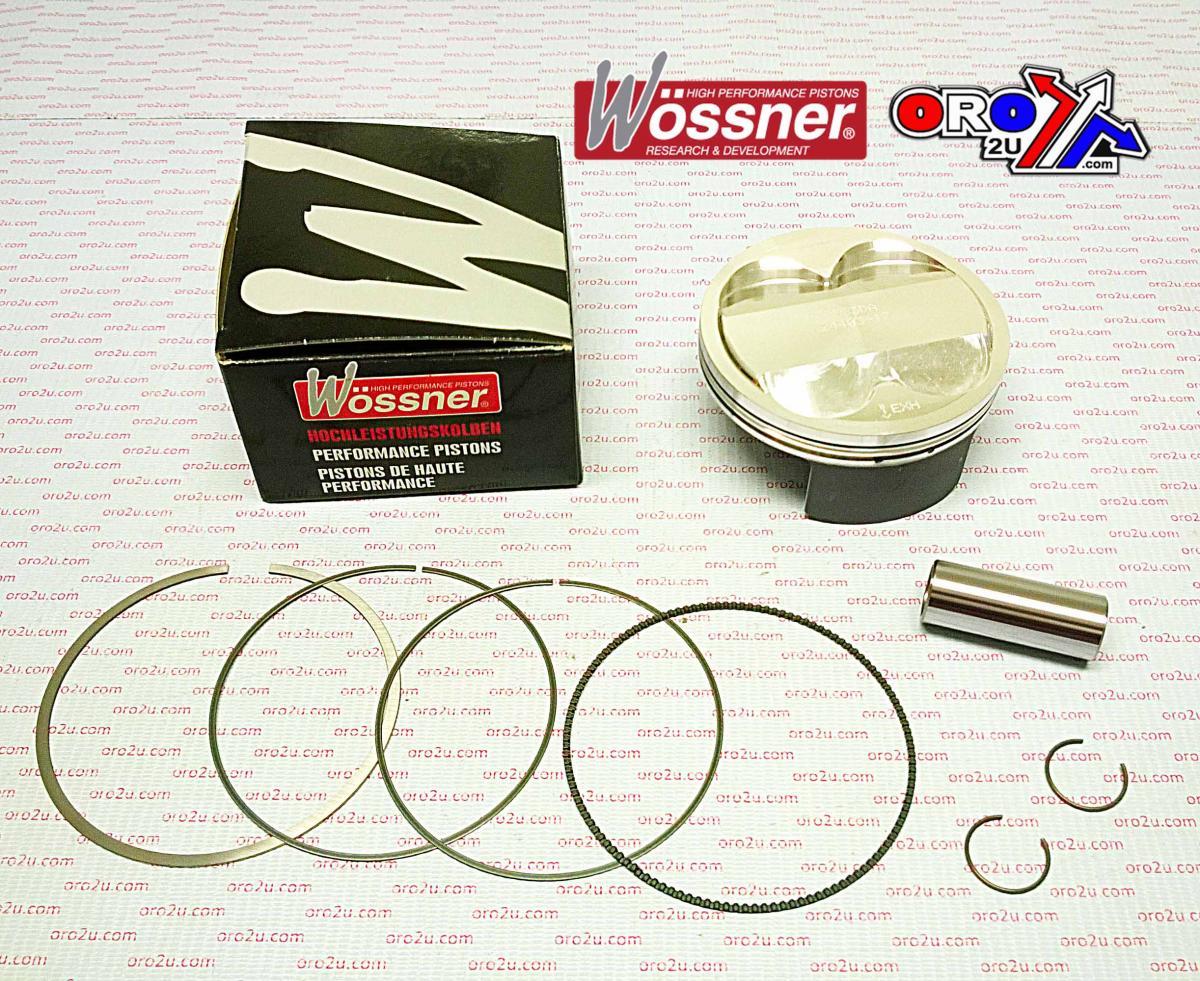

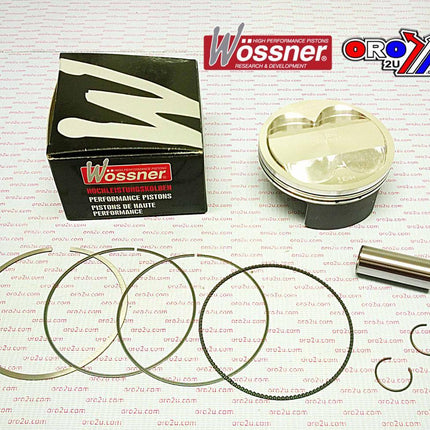

Name: Piston Kit 0-09 KTM520/525 100, Wossner 8583DB Forged
Brand: Wossner
SKU: 56-W024+00B.WO

Piston Kit 0-09 KTM520/525 100, Wossner 8583DB Forged

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.

Features

Forged construction for enhanced durability
Optimized heat transfer for improved performance
Elliptical design prevents localized pressure and piston collapse
OEM compression ratio for direct replacement

Specifications

Bore: 99.97 mm
Piston Size: 100.01 mm
Displacement: 449 cm³
Stroke: 68.00 mm
Clearance: 0.05 mm
Wossner Compression Ratio: OEM
OEM Compression Ratio: 12.00:1
Dome Volume: +0.80 cm³
Compression Height: 24.50 mm

Cross-Reference OEM Part Numbers

Lock: CW20
Pin: WP038
Ring Set: 1000ADS-2

Vehicle Fitments

KTM SX 520 (2000-2009)
KTM SX 525 (2000-2009)
KTM SXS 540 Racing (2006)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 520	2000-2002
KTM	EXC 520	2000-2002
KTM	SXS 540	2006
KTM	EXC 525	2003-2007
KTM	SX 525	2008-2010
KTM	EXC 525	2008-2010
