Name: Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700
Brand: Wossner
SKU: 56-W304_700

Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

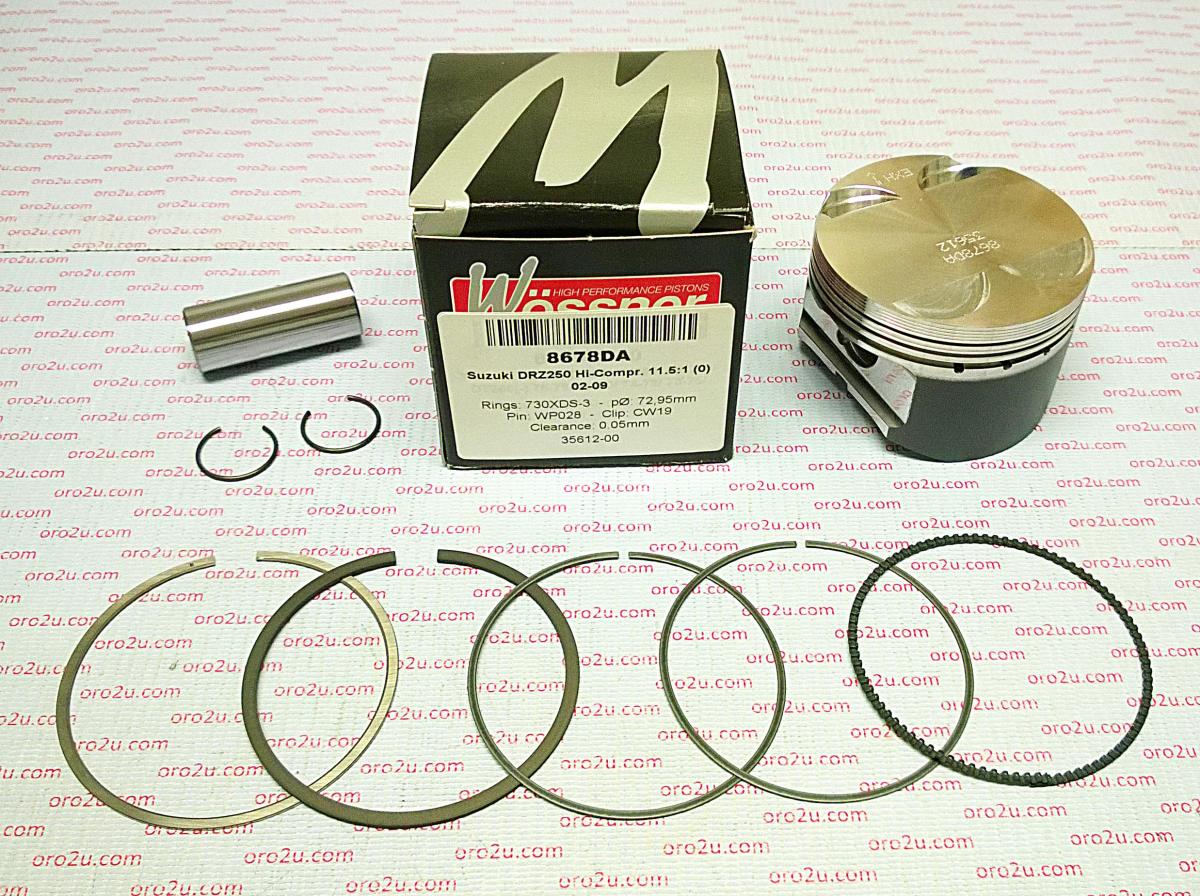

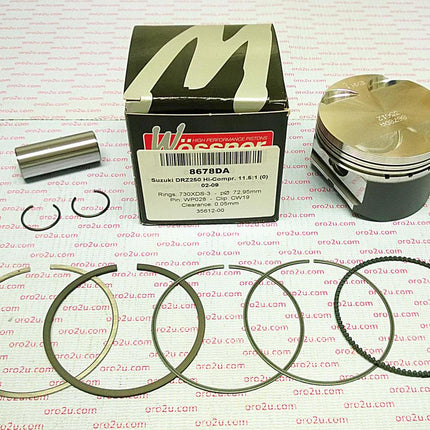

Wossner forged high-compression big bore piston kit with an 80mm bore (79.95mm) for Suzuki DR-Z250 (2001-2007). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Big bore design for enhanced displacement
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 80mm (79.95mm)
Compression Ratio: 11.5:1
Part Number: 8678D700
Lock Part Number: CW19
Pin Part Number: WP028
Ring Set Part Number: 800XDS
Stroke: 59.60mm
Clearance: 0.05mm
OEM Compression Ratio: 10.4:1
Dome Volume: -1.40 cm³
Compression Height: 24.00mm

Vehicle Fitments

Suzuki DR-Z250 (2001-2007)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR Z 250	2002-2009

Piston Kit 002-09 DRZ250 73 Hc, Forged Wossner 8678D700

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged high-compression big bore piston kit with an 80mm bore (79.95mm) for Suzuki DR-Z250 (2001-2007). Designed for superior strength... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W304_700

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged high-compression big bore piston kit with an 80mm bore (79.95mm) for Suzuki DR-Z250 (2001-2007). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Big bore design for enhanced displacement
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 80mm (79.95mm)
Compression Ratio: 11.5:1
Part Number: 8678D700
Lock Part Number: CW19
Pin Part Number: WP028
Ring Set Part Number: 800XDS
Stroke: 59.60mm
Clearance: 0.05mm
OEM Compression Ratio: 10.4:1
Dome Volume: -1.40 cm³
Compression Height: 24.00mm

Vehicle Fitments

Suzuki DR-Z250 (2001-2007)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR Z 250	2002-2009
