Name: Piston Kit 01-02 KX125 54.00 A, Wossner 8062DA 13001-1642
Brand: Wossner
SKU: 56-W783+00A.WO

Piston Kit 01-02 KX125 54.00 A, Wossner 8062DA 13001-1642

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

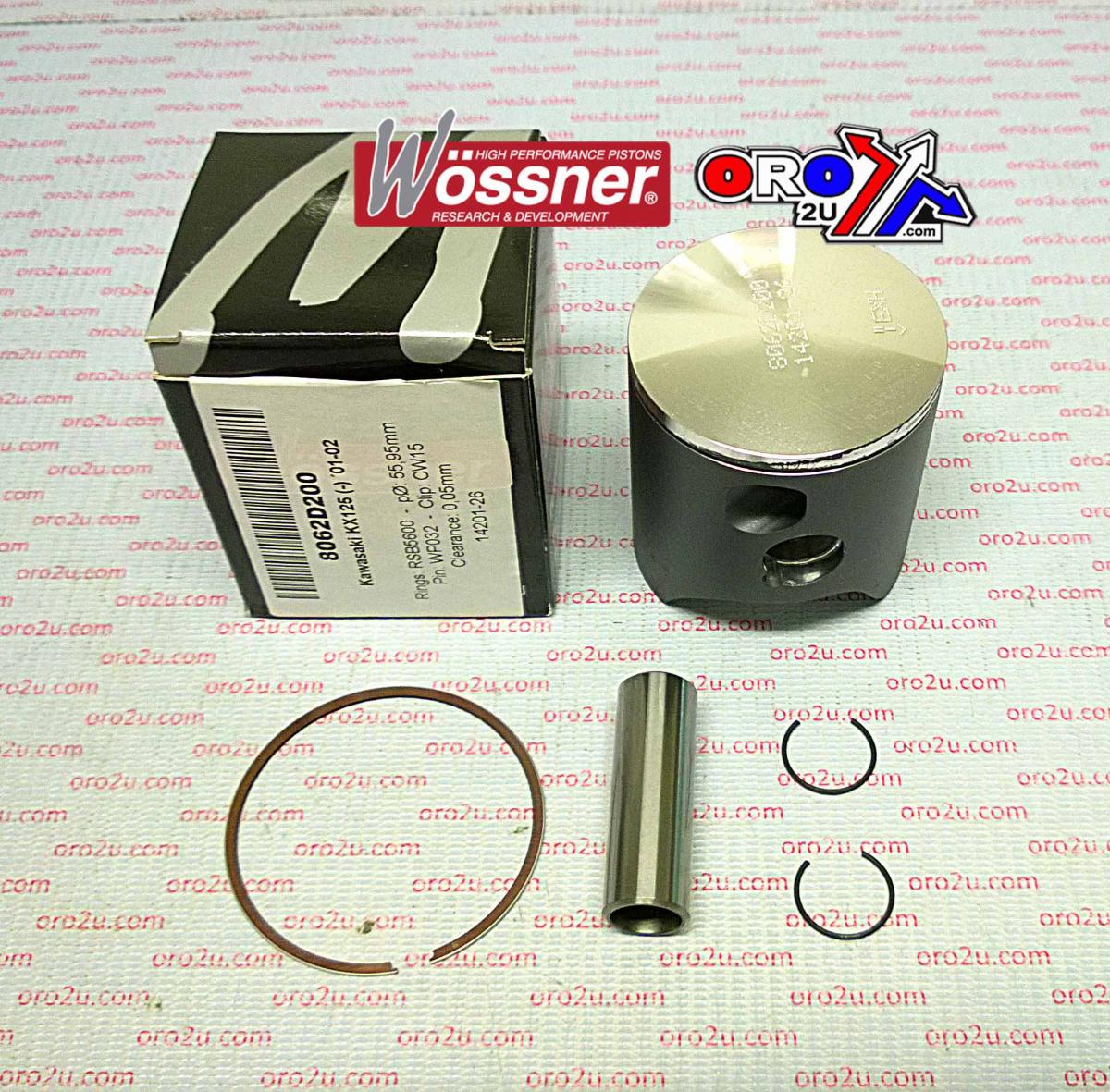

This Wossner piston kit features a 54.00mm bore with a 53.95mm actual piston diameter and is specifically designed for the Kawasaki KX125 from 2001 to 2002. Built with forged aluminium, it delivers high strength, optimised heat transfer, and structural reliability for 2-stroke engine applications.

Features

Forged piston ensures enhanced strength and long-lasting performance
Designed for efficient heat transfer from combustion chamber to cylinder walls
Elliptical profile provides uniform bearing surface during heat expansion
Minimises localised pressure and evenly distributes thrust loads
Helps prevent piston collapse under stress
Manufactured in Germany

Specifications

Bore: 54.00mm
Piston Diameter: 53.95mm
Display (cm³): 125
Stroke (mm): 45.80
Clearance (mm): 0.05
Compression Height (mm): 26.00
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

13001-1642
783M05400

Vehicle Fitments

Kawasaki KX125 2001–2002

Included Components

Lock: CW15
Pin: WP032
Ring Set: RSB5400
Part Number: 56-W783+00.A.WO (Piston PN# 8062DA)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	2001-2002

Piston Kit 01-02 KX125 54.00 A, Wossner 8062DA 13001-1642

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner piston kit features a 54.00mm bore with a 53.95mm actual piston diameter and is specifically designed for the... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W783+00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner piston kit features a 54.00mm bore with a 53.95mm actual piston diameter and is specifically designed for the Kawasaki KX125 from 2001 to 2002. Built with forged aluminium, it delivers high strength, optimised heat transfer, and structural reliability for 2-stroke engine applications.

Features

Forged piston ensures enhanced strength and long-lasting performance
Designed for efficient heat transfer from combustion chamber to cylinder walls
Elliptical profile provides uniform bearing surface during heat expansion
Minimises localised pressure and evenly distributes thrust loads
Helps prevent piston collapse under stress
Manufactured in Germany

Specifications

Bore: 54.00mm
Piston Diameter: 53.95mm
Display (cm³): 125
Stroke (mm): 45.80
Clearance (mm): 0.05
Compression Height (mm): 26.00
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

13001-1642
783M05400

Vehicle Fitments

Kawasaki KX125 2001–2002

Included Components

Lock: CW15
Pin: WP032
Ring Set: RSB5400
Part Number: 56-W783+00.A.WO (Piston PN# 8062DA)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	2001-2002
