Name: Piston Kit 01-02 KX125 54.00 B, Wossner 8062DB Kawasaki MX
Brand: Wossner
SKU: 56-W783+00B.WO

Piston Kit 01-02 KX125 54.00 B, Wossner 8062DB Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

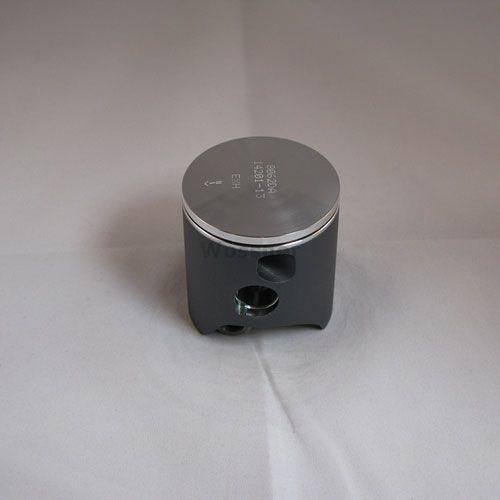

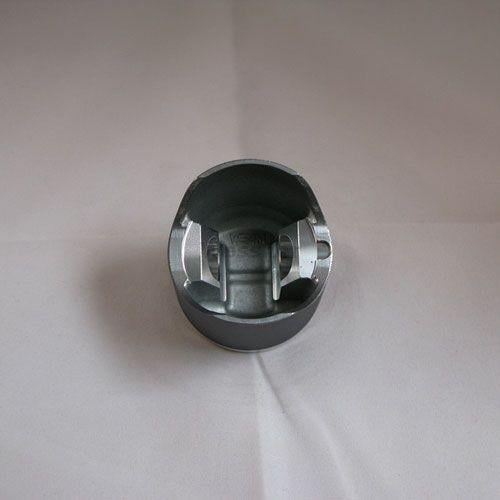

This Wossner piston kit with a 54.01mm bore and 53.96mm actual piston diameter is precisely engineered for the Kawasaki KX125 models from 2001 to 2002. Constructed from high-quality forged materials, it ensures durability, superior heat transfer, and consistent performance in 2-stroke engines.

Features

Forged piston design provides enhanced strength and durability
Promotes efficient heat transfer from combustion chamber to cylinder walls
Elliptical profile ensures even bearing surface during thermal expansion
Distributes thrust loads uniformly to prevent localised pressure and piston collapse
Manufactured in Germany

Specifications

Bore: 54.01mm
Piston Diameter: 53.96mm
Display (cm³): 125
Stroke (mm): 45.80
Clearance (mm): 0.05
Compression Height (mm): 26.00
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Vehicle Fitments

Kawasaki KX125 2001–2002

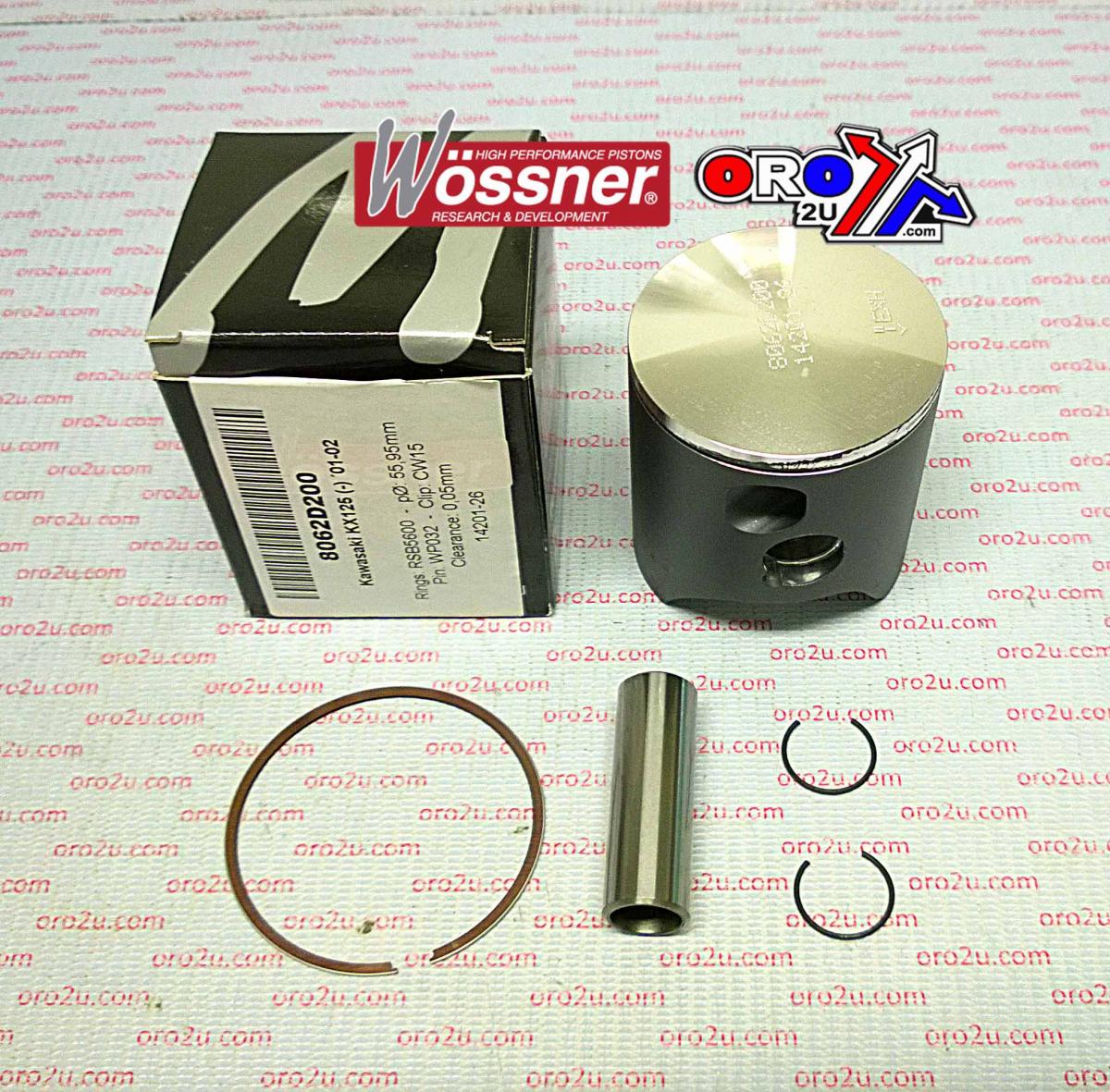

Included Components

Lock: CW15
Pin: WP032
Ring Set: RSB5400
Rod: P2034
Part Number: 56-W783+00B.WO (Piston PN# 8062DB)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	2001-2002
