Name: Piston Kit 02-18 RM85 48.00 B, Wossner 8103DB Suzuki MX
Brand: Wossner
SKU: 56-W806.B.WO

Piston Kit 02-18 RM85 48.00 B, Wossner 8103DB Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

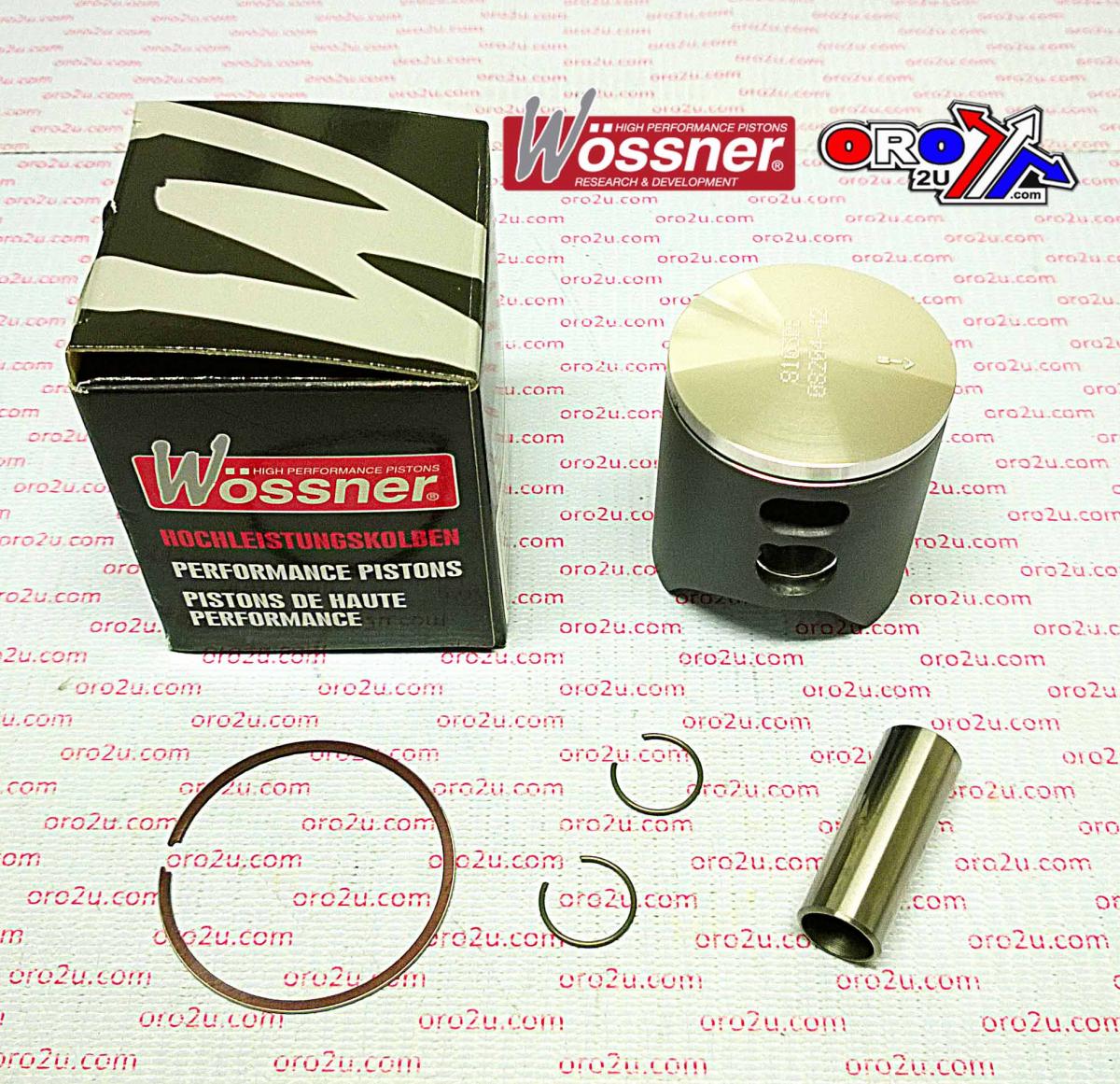

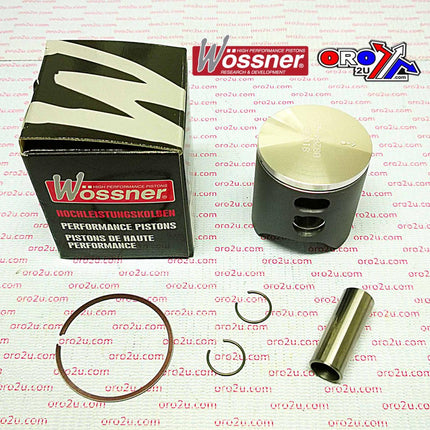

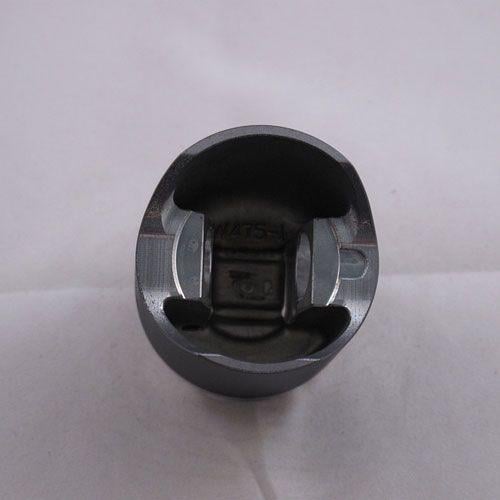

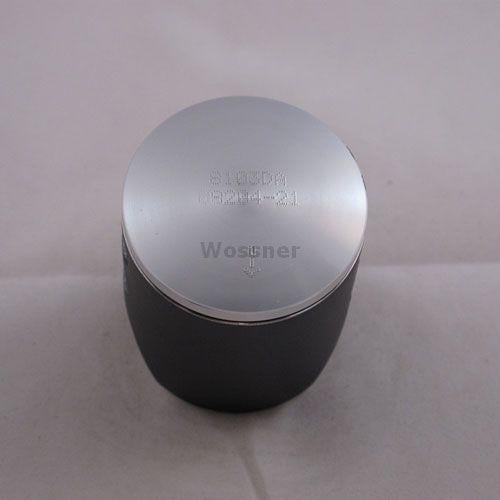

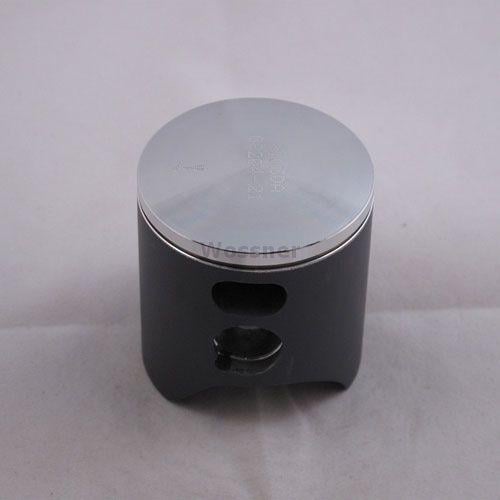

This Wossner forged piston kit with a 48.01mm bore (+0.01mm oversize) is designed for Suzuki RM85 models from 2002 to 2018. Manufactured in Germany, the piston is built for high-performance two-stroke engines, offering durability, consistent thermal performance, and precise mechanical balance. Its elliptical design ensures optimal load distribution and minimises stress under high-temperature expansion.

Features

Forged construction delivers maximum strength and resilience
Optimised for effective combustion chamber heat dissipation to cylinder walls
Elliptical profile provides uniform bearing surface and reduces piston collapse risk
Made in Germany

Specifications

Bore: 48.01mm
Actual Bore: 47.96mm
Engine Displacement: 84 cm³
Stroke: 46.80mm
Clearance: 0.05mm
Compression Ratio: 2-stroke (Wossner and OEM)
Compression Height: 27.00mm
Lock Part Number: CW14
Pin Part Number: WP058
Ring Set Part Number: RSB4800
Rod Part Number: P2007

Vehicle Fitments

Suzuki RM85 2002 - 2018

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 85	2002-2021
SUZUKI	RM 85	2002-2020
SUZUKI	RM 85	2002-2019
SUZUKI	RM 85	2002-2018
SUZUKI	RM 85	2002-2016

Piston Kit 02-18 RM85 48.00 B, Wossner 8103DB Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit with a 48.01mm bore (+0.01mm oversize) is designed for Suzuki RM85 models from 2002 to... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W806.B.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit with a 48.01mm bore (+0.01mm oversize) is designed for Suzuki RM85 models from 2002 to 2018. Manufactured in Germany, the piston is built for high-performance two-stroke engines, offering durability, consistent thermal performance, and precise mechanical balance. Its elliptical design ensures optimal load distribution and minimises stress under high-temperature expansion.

Features

Forged construction delivers maximum strength and resilience
Optimised for effective combustion chamber heat dissipation to cylinder walls
Elliptical profile provides uniform bearing surface and reduces piston collapse risk
Made in Germany

Specifications

Bore: 48.01mm
Actual Bore: 47.96mm
Engine Displacement: 84 cm³
Stroke: 46.80mm
Clearance: 0.05mm
Compression Ratio: 2-stroke (Wossner and OEM)
Compression Height: 27.00mm
Lock Part Number: CW14
Pin Part Number: WP058
Ring Set Part Number: RSB4800
Rod Part Number: P2007

Vehicle Fitments

Suzuki RM85 2002 - 2018

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 85	2002-2021
SUZUKI	RM 85	2002-2020
SUZUKI	RM 85	2002-2019
SUZUKI	RM 85	2002-2018
SUZUKI	RM 85	2002-2016
