Description

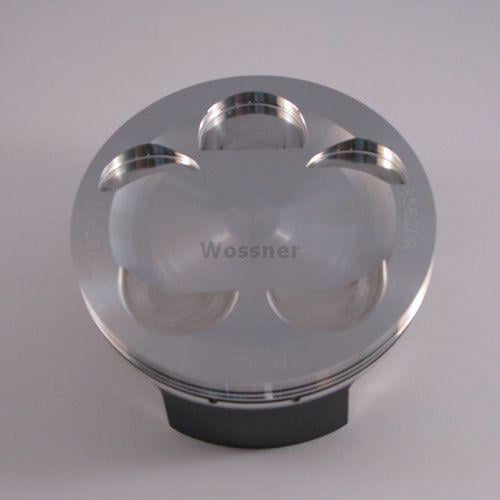

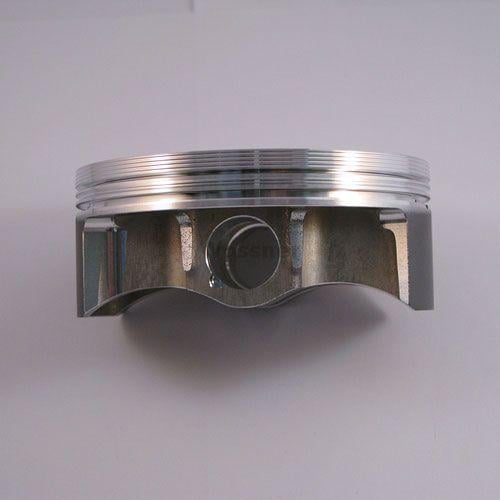

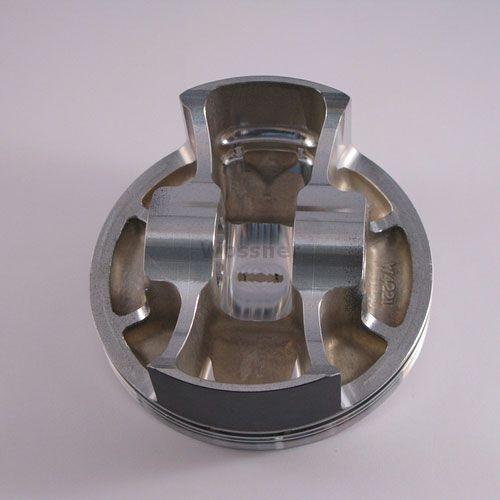

Piston kit 95mm Bore 94.96 Wossner 8570DA (STD)
YAMAHA
YZ450F 2003 - 2004,
WR450F 2003- 2004,
(HIGH COMPRESSION)
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part no 56-W4785.A.WO.HC (radhouse.co.uk)

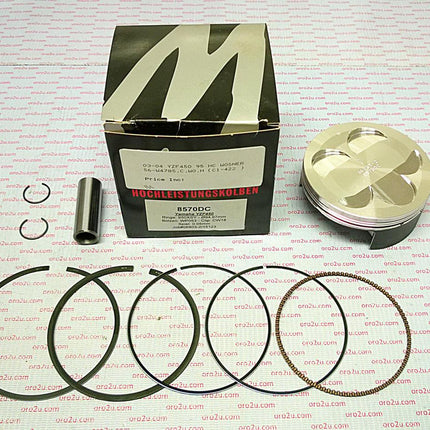

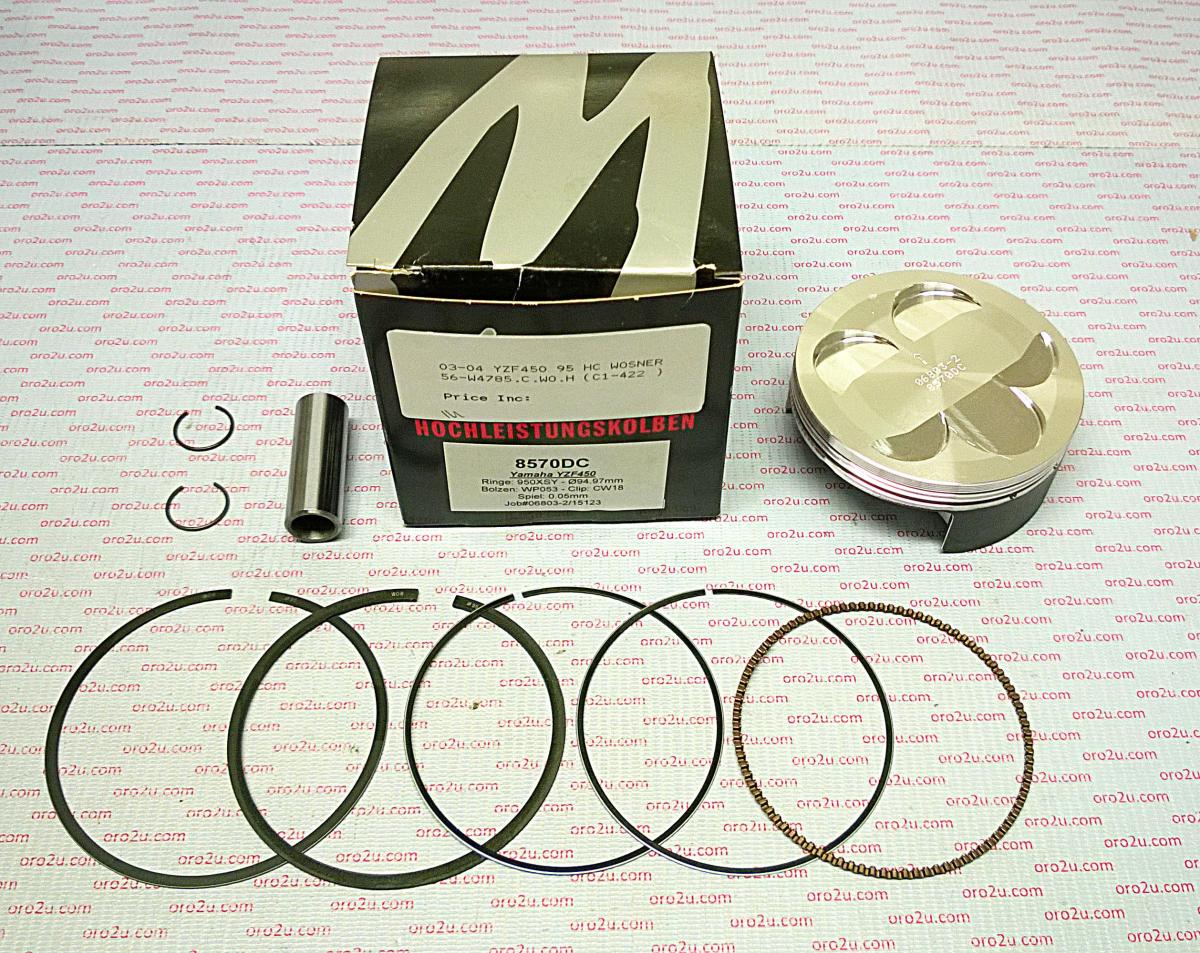

High compression Piston kit (8570DA) 94.96mm Std size (95mm)
Clip Part no CW18
Pin Part No WP053
Ring Part no 950ADS-2
Display (cm3) 449
Hub stroke (mm) 63.40
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.50:1
Dome volume (cm3) -7.80
Compression height (mm) 23.50
Theorectical weight (G)
Cross reference numbers ONLY.
5TJ-11631-00-00
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| GAS-GAS |
EC F 450 |
2013-2015 |
| YAMAHA |
YZ F 450 |
2003-2009 |
| YAMAHA |
WR F 450 |
2003-2015 |
| YAMAHA |
YZF 450 |
2003-2009 |
| YAMAHA |
WRF 450 |
2003-2015 |
| YAMAHA |
YZ F 450 |
2003-2005 |
| YAMAHA |
WRF 450 |
2003-2006 |
| YAMAHA |
WR F 450 |
2003-2006 |
| YAMAHA |
YZ F 450 |
2006-2009 |
| YAMAHA |
WR F 450 |
2003-2005 |
| GAS-GAS |
EC F 250 |
2013-2015 |
| YAMAHA |
YZF 450 |
2003-2004 |
| YAMAHA |
WR F 450 |
2007-2012 |
