Name: Piston Kit 03-09 RM250 66.40 C, Wossner 8086DC 2-RING Suzuki
Brand: Wossner
SKU: 56-W823.C.WO

Piston Kit 03-09 RM250 66.40 C, Wossner 8086DC 2-RING Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

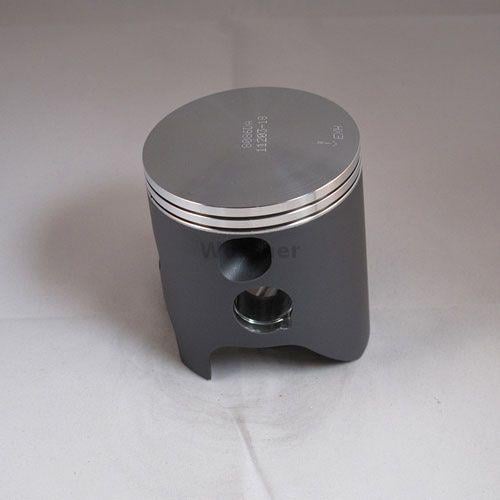

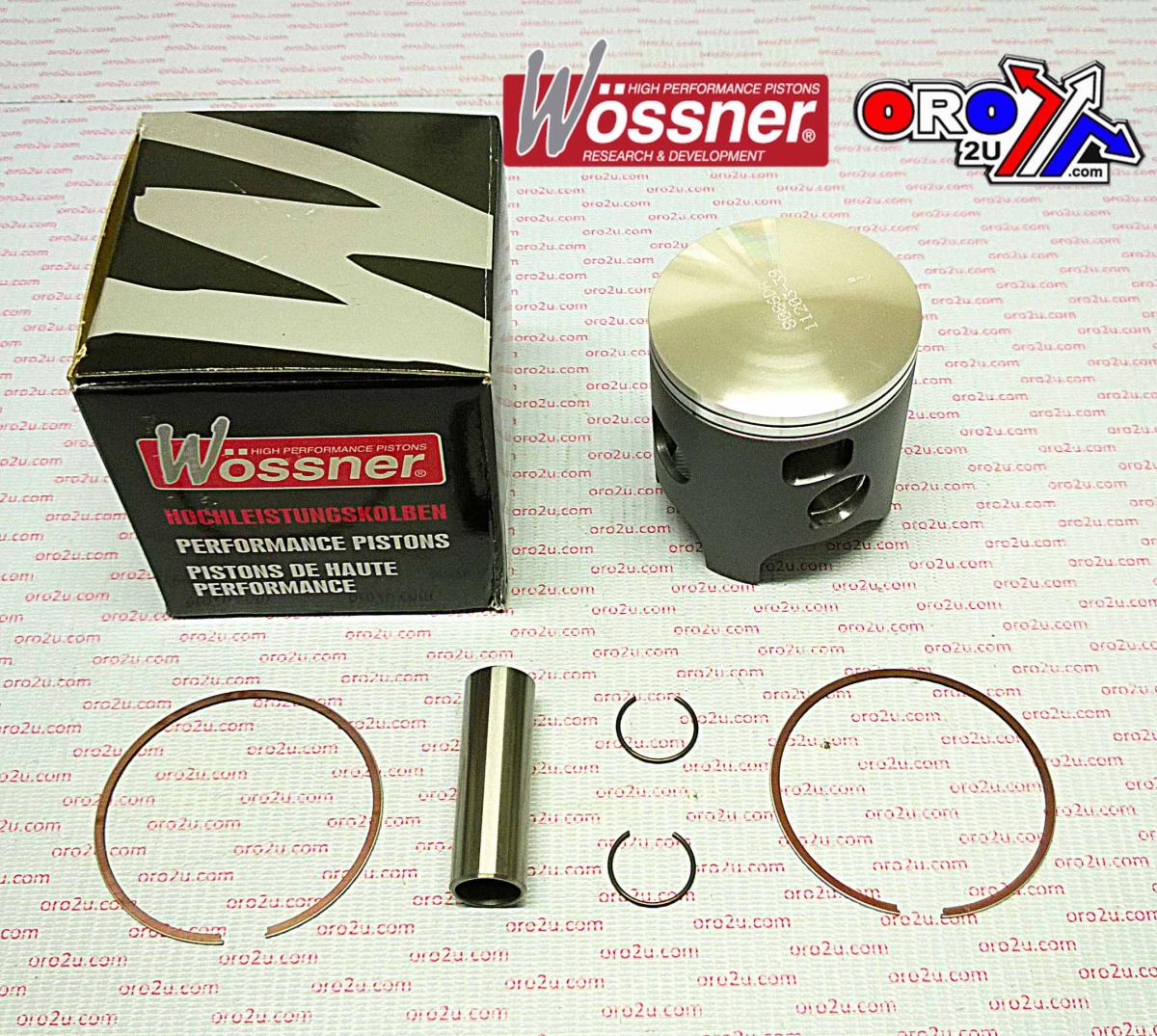

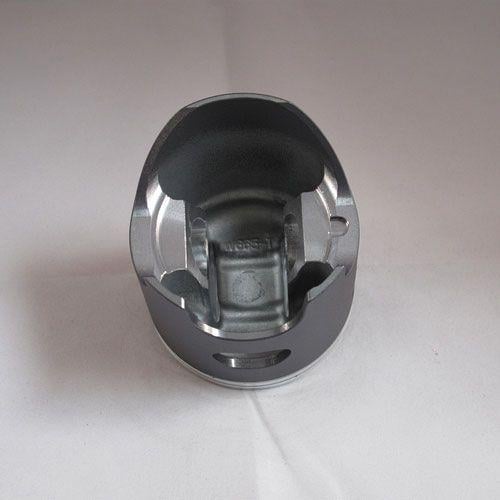

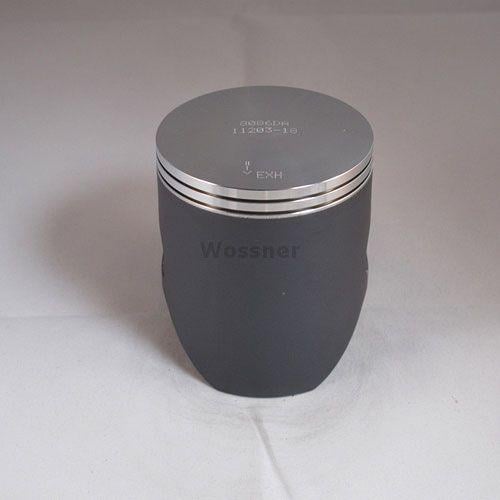

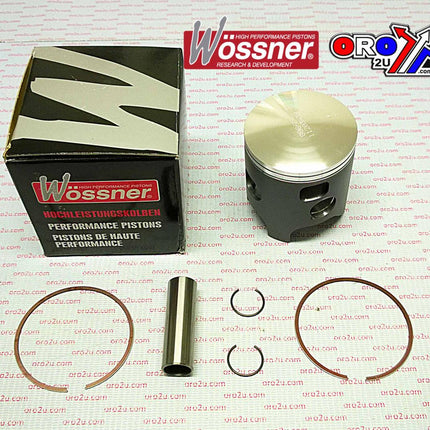

This Wossner forged piston kit is designed for the Suzuki RM250 models from 2003 to 2012. With a bore size of 66.42mm and a piston diameter of 66.36mm, this +0.02 oversize piston offers high strength, consistent thermal performance, and durability under extreme two-stroke engine conditions.

Features

Forged piston construction enhances strength and longevity
Optimised design promotes efficient heat transfer from combustion chamber to cylinder wall
Elliptical piston shape provides uniform bearing surface during heat expansion, minimising localised stress and reducing collapse risk
Manufactured in Germany to ensure high precision and consistent quality

Specifications

Bore Size: 66.42 mm
Piston Diameter: 66.36 mm
Compression Height: 38.00 mm
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Ratio: 2-stroke (Wossner and OEM)
Displacement: 249 cm³

Cross-Reference OEM Part Numbers

Wossner Piston Kit: 8086DC
Alternate Piston Kit Reference: 56-W823.C.WO
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2025

Vehicle Fitments

2003 Suzuki RM250
2004 Suzuki RM250
2005 Suzuki RM250
2006 Suzuki RM250
2007 Suzuki RM250
2008 Suzuki RM250
2009 Suzuki RM250
2010 Suzuki RM250
2011 Suzuki RM250
2012 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008
SUZUKI	RM 250	2003-2010

Piston Kit 03-09 RM250 66.40 C, Wossner 8086DC 2-RING Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit is designed for the Suzuki RM250 models from 2003 to 2012. With a bore size... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W823.C.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit is designed for the Suzuki RM250 models from 2003 to 2012. With a bore size of 66.42mm and a piston diameter of 66.36mm, this +0.02 oversize piston offers high strength, consistent thermal performance, and durability under extreme two-stroke engine conditions.

Features

Forged piston construction enhances strength and longevity
Optimised design promotes efficient heat transfer from combustion chamber to cylinder wall
Elliptical piston shape provides uniform bearing surface during heat expansion, minimising localised stress and reducing collapse risk
Manufactured in Germany to ensure high precision and consistent quality

Specifications

Bore Size: 66.42 mm
Piston Diameter: 66.36 mm
Compression Height: 38.00 mm
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Ratio: 2-stroke (Wossner and OEM)
Displacement: 249 cm³

Cross-Reference OEM Part Numbers

Wossner Piston Kit: 8086DC
Alternate Piston Kit Reference: 56-W823.C.WO
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2025

Vehicle Fitments

2003 Suzuki RM250
2004 Suzuki RM250
2005 Suzuki RM250
2006 Suzuki RM250
2007 Suzuki RM250
2008 Suzuki RM250
2009 Suzuki RM250
2010 Suzuki RM250
2011 Suzuki RM250
2012 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008
SUZUKI	RM 250	2003-2010
