Name: Piston Kit 03-09 RM250 67.00, Wossner 8086D060 2-RING Suzuki
Brand: Wossner
SKU: 56-W823_060.WO
Price: 171.66 GBP
Availability: InStock

Piston Kit 03-09 RM250 67.00, Wossner 8086D060 2-RING Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

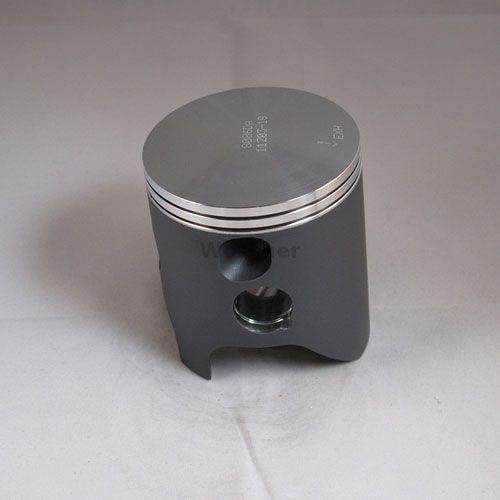

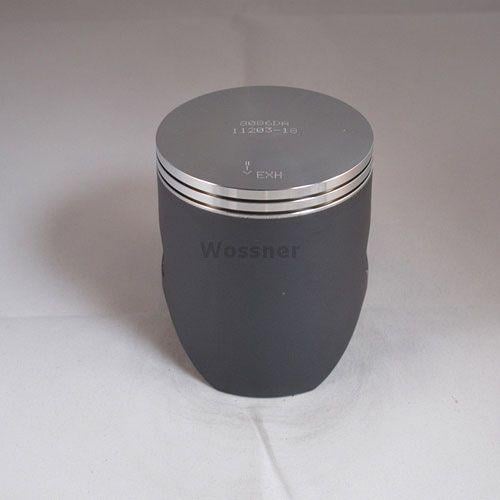

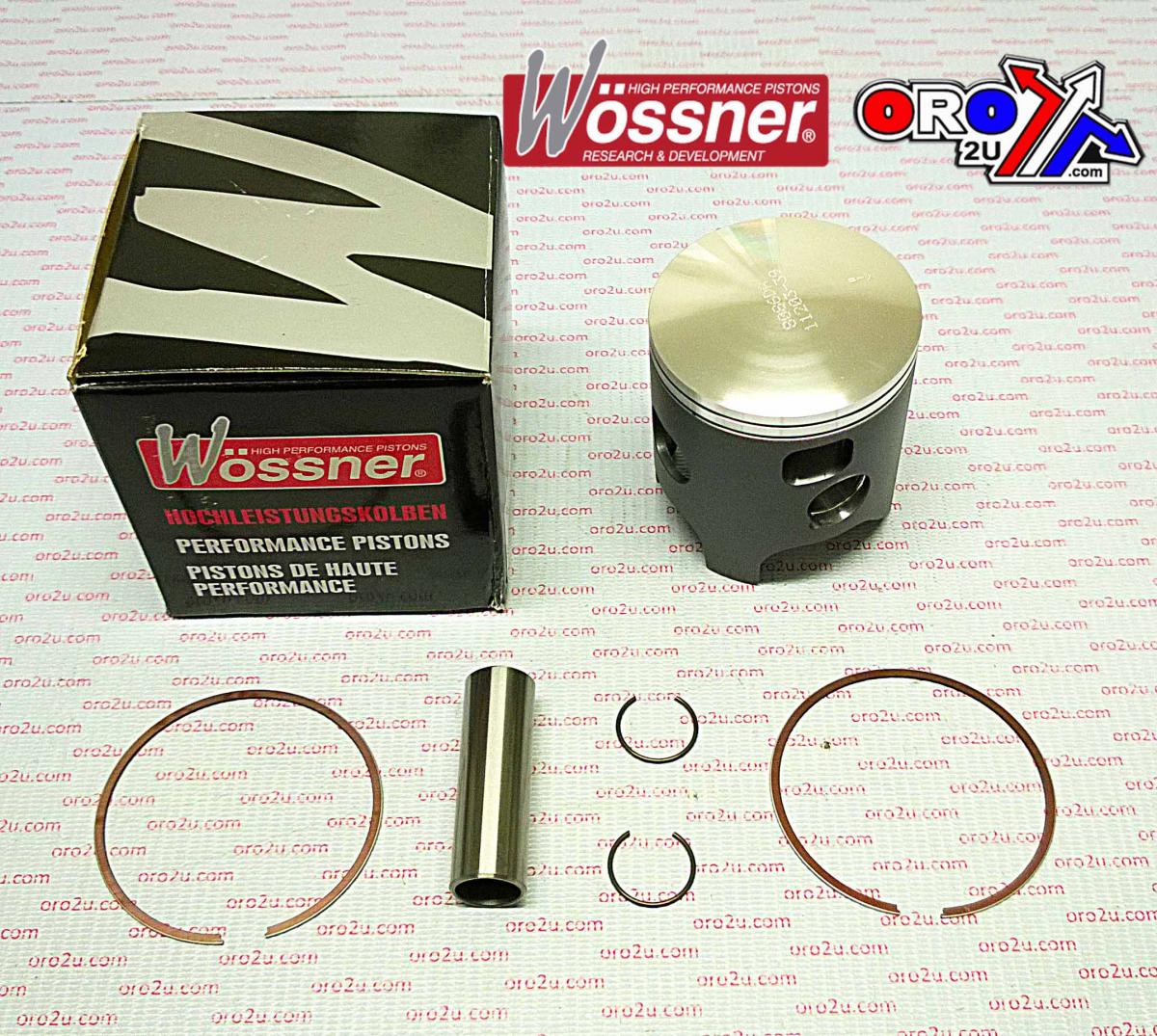

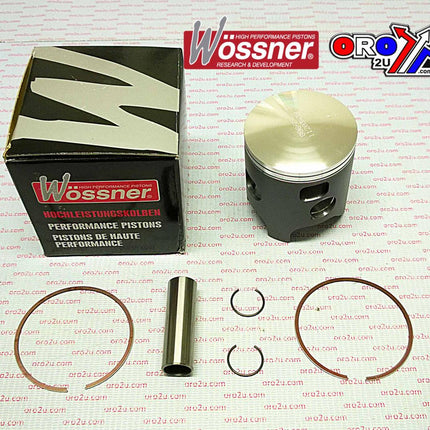

This Wossner forged piston kit is designed for the Suzuki RM250 from 2003 to 2012, featuring a 67.00mm bore and 66.94mm piston diameter. As a +0.60 oversize application, it offers enhanced strength and performance, specifically engineered for high-stress two-stroke environments with superior heat transfer and load distribution.

Features

Forged piston construction ensures exceptional strength and durability
Designed to optimise heat transfer from the combustion chamber to cylinder walls
Elliptical profile allows uniform surface contact under thermal expansion, minimising stress points and reducing risk of piston collapse
Precision-manufactured in Germany to ensure consistency and quality

Specifications

Bore Size: 67.00 mm
Piston Diameter: 66.94 mm
Compression Height: 38.00 mm
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Ratio: 2-stroke (Wossner and OEM)
Displacement: 249 cm³

Cross-Reference OEM Part Numbers

Wossner Piston Kit: 8086D060
Alternate Piston Kit Reference: 56-W823.060.WO
Lock: CW18
Pin: WP033
Ring Set: RSB6700 x2
Rod: P2025

Vehicle Fitments

2003 Suzuki RM250
2004 Suzuki RM250
2005 Suzuki RM250
2006 Suzuki RM250
2007 Suzuki RM250
2008 Suzuki RM250
2009 Suzuki RM250
2010 Suzuki RM250
2011 Suzuki RM250
2012 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008
SUZUKI	RM 250	2003-2010

Piston Kit 03-09 RM250 67.00, Wossner 8086D060 2-RING Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit is designed for the Suzuki RM250 from 2003 to 2012, featuring a 67.00mm bore and... Read more

1 in stock 1-2 business days

£171.66 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W823_060.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit is designed for the Suzuki RM250 from 2003 to 2012, featuring a 67.00mm bore and 66.94mm piston diameter. As a +0.60 oversize application, it offers enhanced strength and performance, specifically engineered for high-stress two-stroke environments with superior heat transfer and load distribution.

Features

Forged piston construction ensures exceptional strength and durability
Designed to optimise heat transfer from the combustion chamber to cylinder walls
Elliptical profile allows uniform surface contact under thermal expansion, minimising stress points and reducing risk of piston collapse
Precision-manufactured in Germany to ensure consistency and quality

Specifications

Bore Size: 67.00 mm
Piston Diameter: 66.94 mm
Compression Height: 38.00 mm
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Ratio: 2-stroke (Wossner and OEM)
Displacement: 249 cm³

Cross-Reference OEM Part Numbers

Wossner Piston Kit: 8086D060
Alternate Piston Kit Reference: 56-W823.060.WO
Lock: CW18
Pin: WP033
Ring Set: RSB6700 x2
Rod: P2025

Vehicle Fitments

2003 Suzuki RM250
2004 Suzuki RM250
2005 Suzuki RM250
2006 Suzuki RM250
2007 Suzuki RM250
2008 Suzuki RM250
2009 Suzuki RM250
2010 Suzuki RM250
2011 Suzuki RM250
2012 Suzuki RM250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	2003-2012
SUZUKI	RM 250	2003-2008
SUZUKI	RM 250	2003-2010
