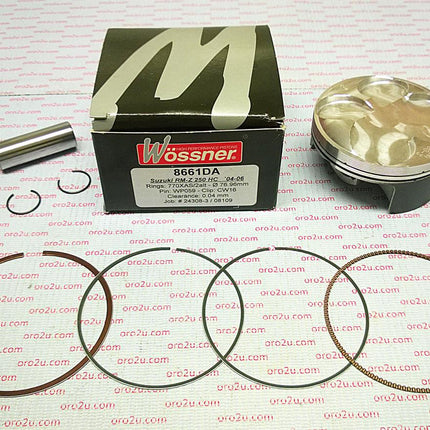

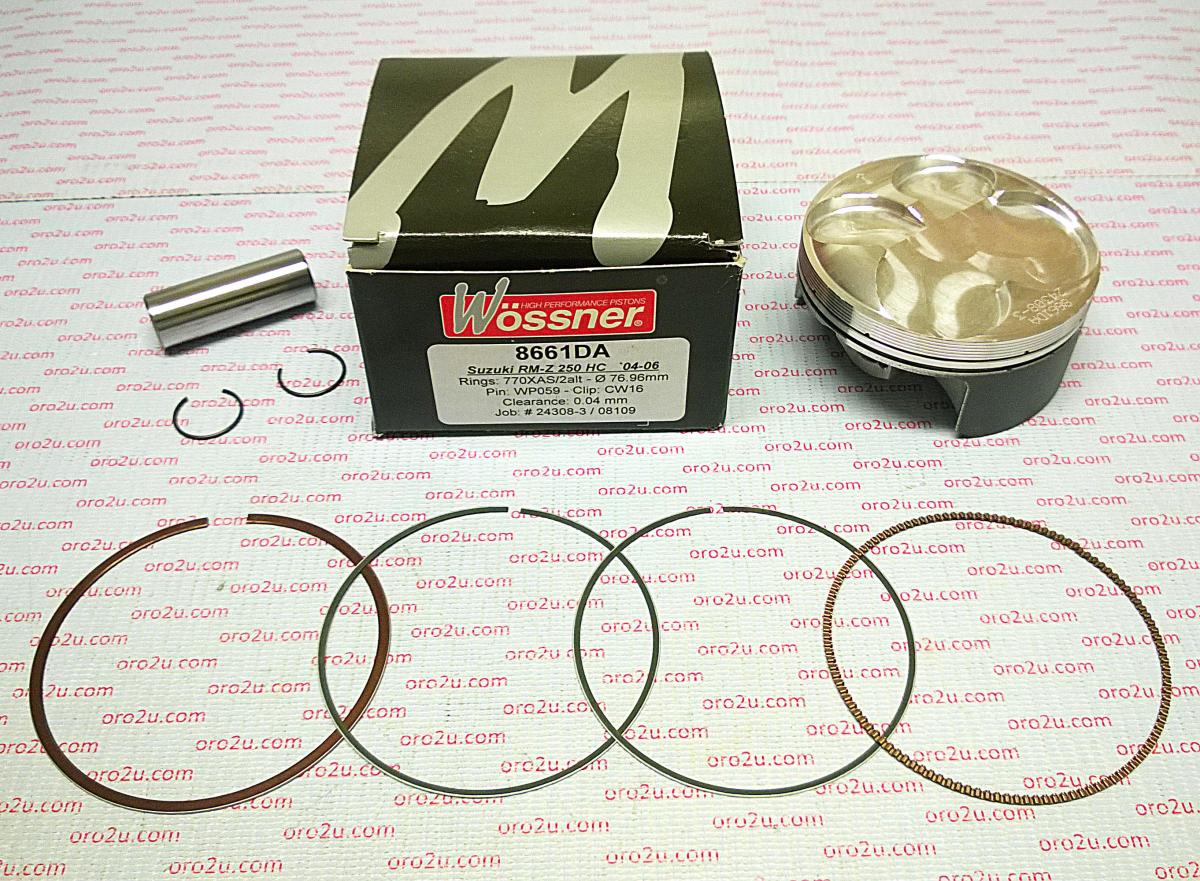

Name: Piston Kit 04-06 RMZ250 77 Hc, Forged Wossner 8661DC
Brand: Wossner
SKU: 56-W306.C.WO
Price: 215.61 GBP
Availability: InStock

Piston Kit 04-06 RMZ250 77 Hc, Forged Wossner 8661DC

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

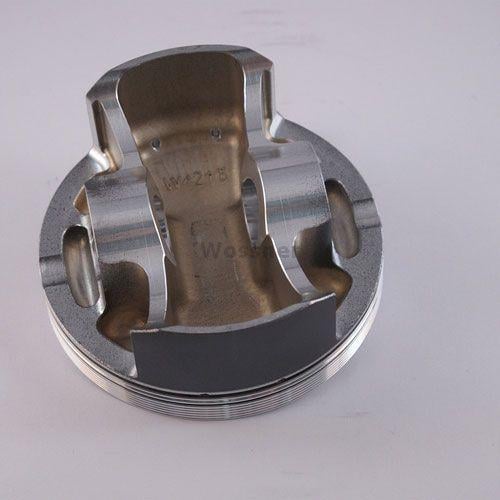

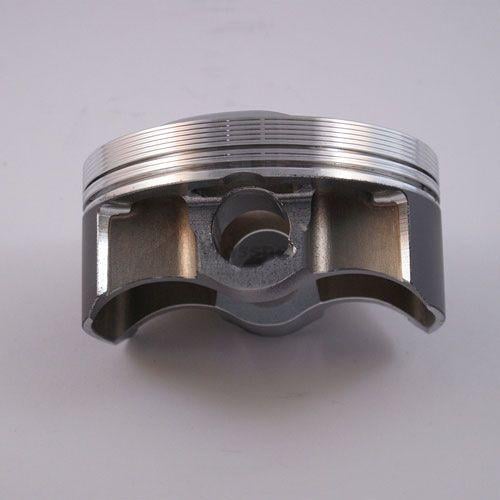

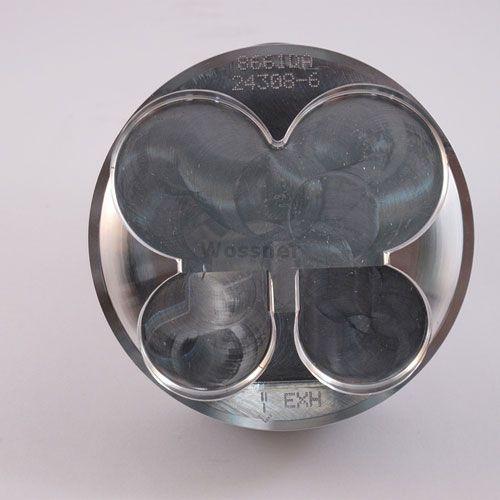

Wossner forged high-compression piston kit with a 77.02mm bore (76.98mm) for Suzuki RM-Z250 (2004-2006). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 77.02mm (76.98mm)
Compression Ratio: 13.5:1
Part Number: 8661DC
Lock Part Number: CW16
Pin Part Number: WP059
Ring Set Part Number: 770XAS-2
Rod Part Number: P4002
Displacement: 249 cm³
Stroke: 53.60mm
Clearance: 0.04mm
Wossner Compression Ratio: 13.2:1
OEM Compression Ratio: 12.6:1
Dome Volume: -4.00 cm³
Compression Height: 19.60mm

Vehicle Fitments

Suzuki RM-Z250 (2004-2006)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2004-2006

Piston Kit 04-06 RMZ250 77 Hc, Forged Wossner 8661DC

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged high-compression piston kit with a 77.02mm bore (76.98mm) for Suzuki RM-Z250 (2004-2006). Designed for superior strength and heat... Read more

2 in stock 1-2 business days

£215.61 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W306.C.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged high-compression piston kit with a 77.02mm bore (76.98mm) for Suzuki RM-Z250 (2004-2006). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 77.02mm (76.98mm)
Compression Ratio: 13.5:1
Part Number: 8661DC
Lock Part Number: CW16
Pin Part Number: WP059
Ring Set Part Number: 770XAS-2
Rod Part Number: P4002
Displacement: 249 cm³
Stroke: 53.60mm
Clearance: 0.04mm
Wossner Compression Ratio: 13.2:1
OEM Compression Ratio: 12.6:1
Dome Volume: -4.00 cm³
Compression Height: 19.60mm

Vehicle Fitments

Suzuki RM-Z250 (2004-2006)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2004-2006
