Name: Piston Kit 04-09 Hus 550FC/FC, Wossner Husaberg 8602DC 100
Brand: Wossner
SKU: 56-W176.C.WO

Piston Kit 04-09 Hus 550FC/FC, Wossner Husaberg 8602DC 100

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

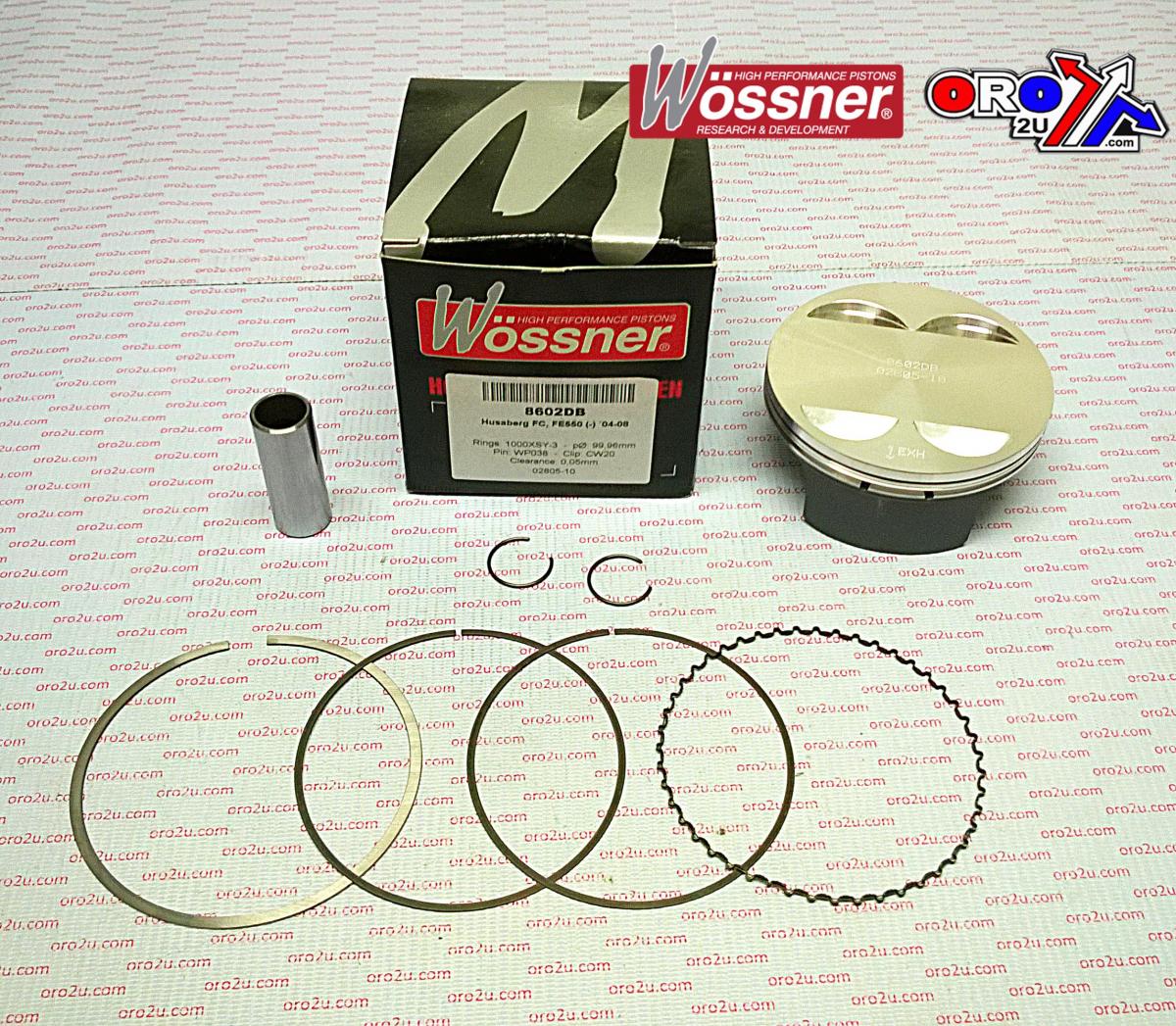

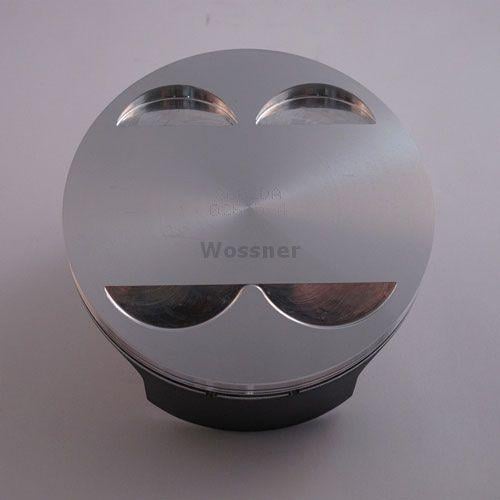

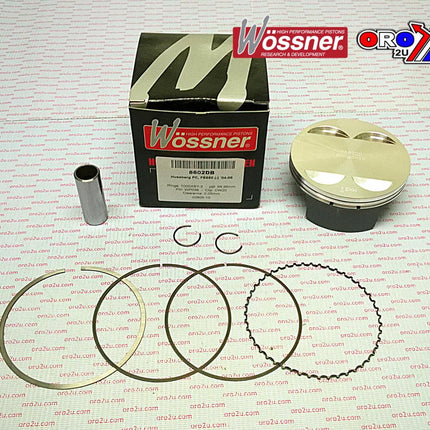

Wossner forged piston kit with a 100.02mm bore, designed for Husaberg FC550 and FE550 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

Forged piston for superior strength and design
Optimized heat transfer to cylinder walls
Elliptical design for uniform bearing surface and even thrust load distribution
Manufactured in Germany

Specifications

Bore: 100.02mm (+0.02mm oversize)
Standard size piston (PN# 8602DC)
Lock Part Number: CW20
Pin Part Number: WP038
Ring Set Part Number: 1000XSY
Displacement: 549 cm³
Stroke: 70.00mm
Clearance: 0.05mm
Wossner Compression Ratio: 12.50:1
OEM Compression Ratio: 11.80:1
Dome Volume: -2.30 cm³
Compression Height: 23.40mm

Cross-Reference OEM Part Numbers

Not provided

Vehicle Fitments

Husaberg FC 550 (2004-2008)
Husaberg FE 550 (2004-2008)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HUSABERG	FE 550	2004-2008
HUSABERG	FC 550	2004-2008
