Name: Piston Kit 04-10 RM125 54.00 A, Wossner 8098DA Suzuki MX 12110-36E31-0F0
Brand: Wossner
SKU: 56-W835.A.WO
Price: 127.34 GBP
Availability: InStock

Piston Kit 04-10 RM125 54.00 A, Wossner 8098DA Suzuki MX 12110-36E31-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

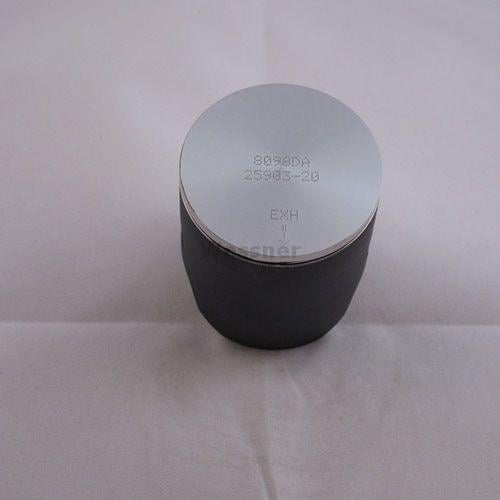

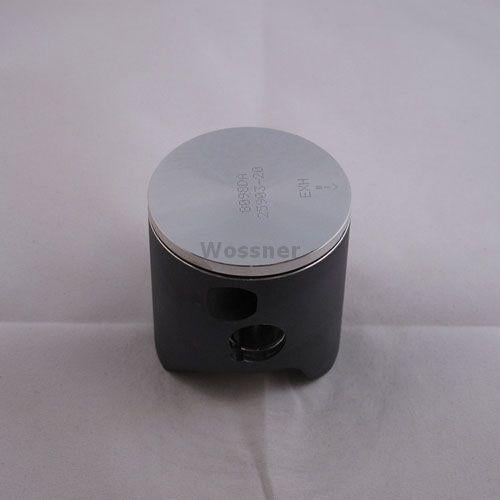

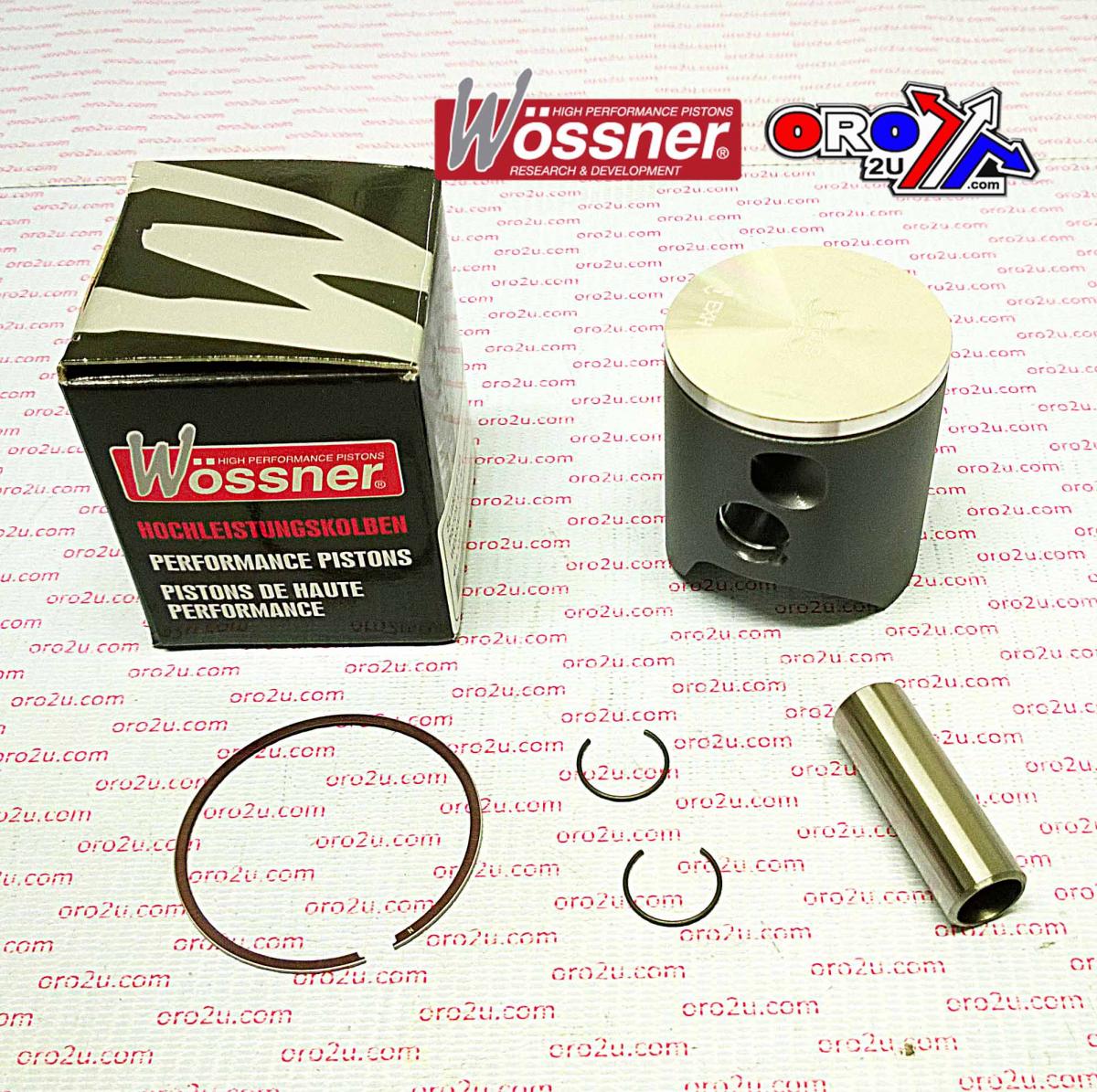

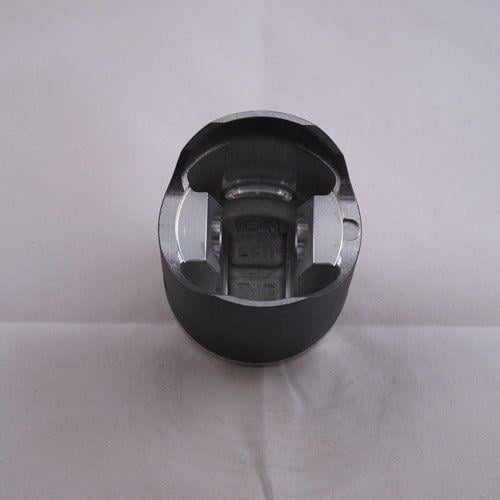

The Wossner 8098DA piston kit is a standard-size forged piston specifically designed for Suzuki RM125 models from 2004 to 2012. With a 54.00mm bore and a 53.95mm piston diameter, this piston delivers high strength and consistent thermal performance for two-stroke engines. Its elliptical shape enables even expansion and load distribution, minimising wear and preventing piston collapse. Precision-manufactured in Germany, this component ensures long-lasting reliability and performance under demanding conditions.

Features

Forged piston construction for superior durability and strength
Engineered for efficient heat transfer from combustion chamber to cylinder walls
Elliptical design distributes thrust loads evenly to reduce localised stress
Manufactured in Germany with high-precision standards

Specifications

Bore: 54.00 mm
Piston Diameter: 53.95 mm
Display Displacement: 125 cm³
Stroke: 54.50 mm
Piston Clearance: 0.05 mm
Compression Height: 29.50 mm
Compression Ratio (Wossner and OEM): 2-stroke
Lock Part Number: CW15
Pin Part Number: WP032
Ring Set Part Number: RSB5400
Rod Part Number: P2016

Cross-Reference OEM Part Numbers

12110-36E31-0F0
09104823
835M05400
12101-36821
12110-36F00-0F0
12141-36F00
12151-01B41
09381-15001

Vehicle Fitments

Suzuki RM125 2004 - 2012

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 125	2001-2006
SUZUKI	RM 125	2004-2008
SUZUKI	RM 125	2004-2011
SUZUKI	RM 125	2004-2010
KTM	SX 125	2001-2014

Piston Kit 04-10 RM125 54.00 A, Wossner 8098DA Suzuki MX 12110-36E31-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Wossner 8098DA piston kit is a standard-size forged piston specifically designed for Suzuki RM125 models from 2004 to 2012.... Read more

1 in stock 1-2 business days

£127.34 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W835.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Wossner 8098DA piston kit is a standard-size forged piston specifically designed for Suzuki RM125 models from 2004 to 2012. With a 54.00mm bore and a 53.95mm piston diameter, this piston delivers high strength and consistent thermal performance for two-stroke engines. Its elliptical shape enables even expansion and load distribution, minimising wear and preventing piston collapse. Precision-manufactured in Germany, this component ensures long-lasting reliability and performance under demanding conditions.

Features

Forged piston construction for superior durability and strength
Engineered for efficient heat transfer from combustion chamber to cylinder walls
Elliptical design distributes thrust loads evenly to reduce localised stress
Manufactured in Germany with high-precision standards

Specifications

Bore: 54.00 mm
Piston Diameter: 53.95 mm
Display Displacement: 125 cm³
Stroke: 54.50 mm
Piston Clearance: 0.05 mm
Compression Height: 29.50 mm
Compression Ratio (Wossner and OEM): 2-stroke
Lock Part Number: CW15
Pin Part Number: WP032
Ring Set Part Number: RSB5400
Rod Part Number: P2016

Cross-Reference OEM Part Numbers

12110-36E31-0F0
09104823
835M05400
12101-36821
12110-36F00-0F0
12141-36F00
12151-01B41
09381-15001

Vehicle Fitments

Suzuki RM125 2004 - 2012

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 125	2001-2006
SUZUKI	RM 125	2004-2008
SUZUKI	RM 125	2004-2011
SUZUKI	RM 125	2004-2010
KTM	SX 125	2001-2014
