Name: Piston Kit 04-17 XT660R 100 A, Forged Wossner 8617DA
Brand: Wossner
SKU: 56-W203.A.WO

Piston Kit 04-17 XT660R 100 A, Forged Wossner 8617DA

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

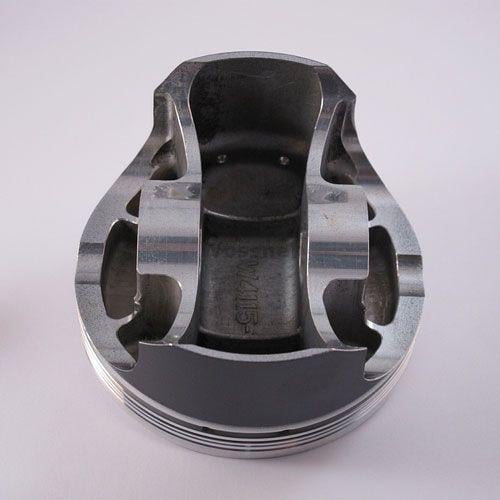

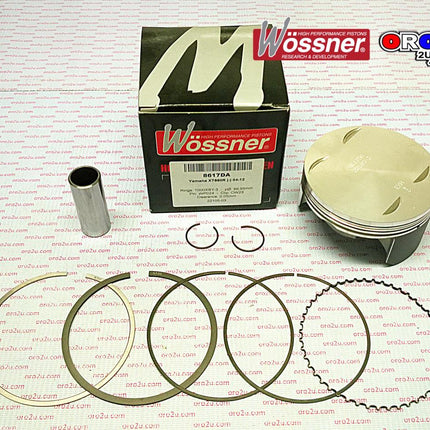

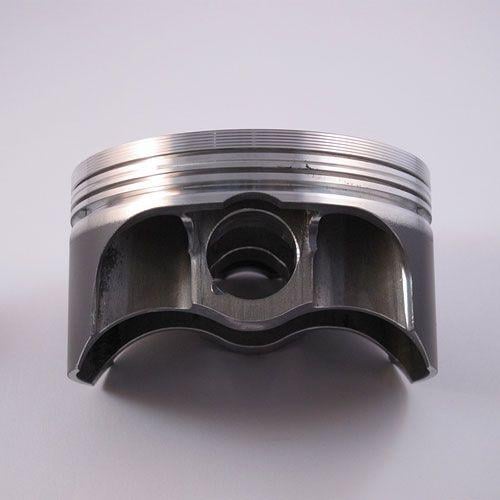

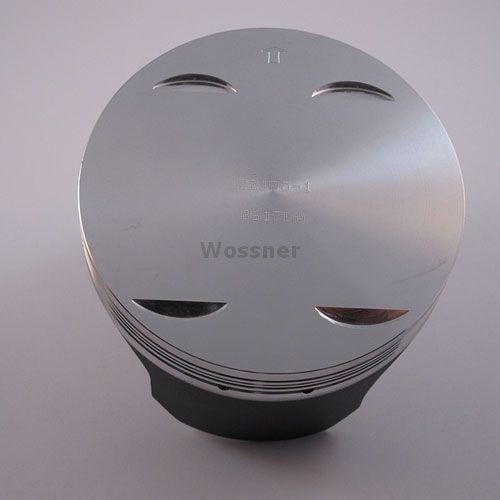

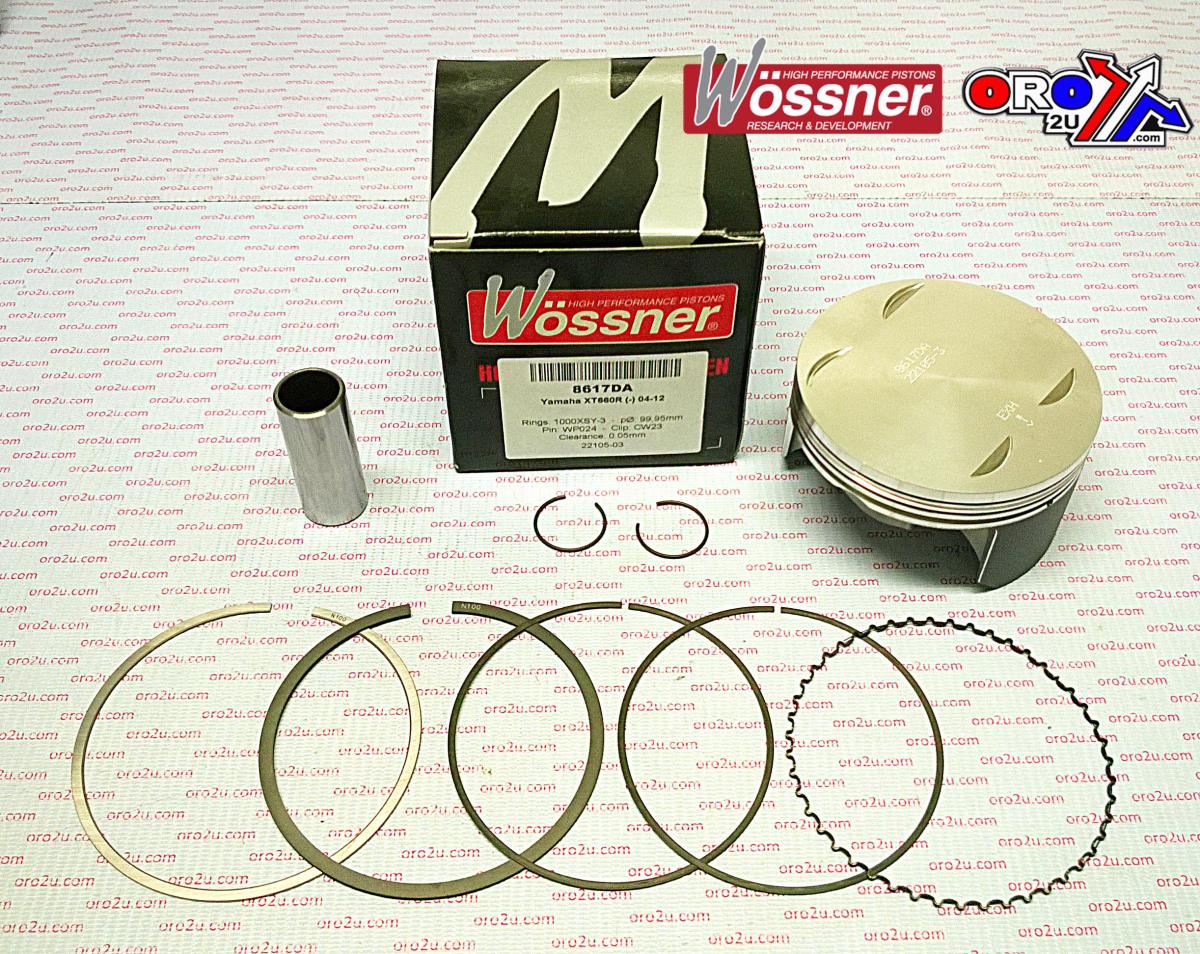

Piston kit 100mm Bore 99.95 Wossner 8617DA (STD)

YAMAHA
XT660R 2004-2017

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany

Part No. 56-W203.A.WO (radhouse.co.uk)
Wossner Piston Yamaha XT660R (PN# 8617DA)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3

Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)

Cross reference numbers ONLY.
5VK1163100, 5VK1160300, 5VK1163300, 5VK1163300,

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	XT R 660	2004-2011
YAMAHA	XT R 660	2004-2009
YAMAHA	XTZ 660	2008-2013
YAMAHA	XT R 660	2004-2012

Piston Kit 04-17 XT660R 100 A, Forged Wossner 8617DA

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Piston kit 100mm Bore 99.95 Wossner 8617DA (STD) YAMAHA XT660R 2004-2017 Wossner forged pistons are superior in strength and design.... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W203.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Piston kit 100mm Bore 99.95 Wossner 8617DA (STD)

YAMAHA
XT660R 2004-2017

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany

Part No. 56-W203.A.WO (radhouse.co.uk)
Wossner Piston Yamaha XT660R (PN# 8617DA)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3

Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)

Cross reference numbers ONLY.
5VK1163100, 5VK1160300, 5VK1163300, 5VK1163300,

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	XT R 660	2004-2011
YAMAHA	XT R 660	2004-2009
YAMAHA	XTZ 660	2008-2013
YAMAHA	XT R 660	2004-2012
