Name: Piston Kit 05-07 YZF250 77mm, Wossner 8614DA 3-RING, 5NL-11631-20-00
Brand: Wossner
SKU: 56-W189+00A.WO

Piston Kit 05-07 YZF250 77mm, Wossner 8614DA 3-RING, 5NL-11631-20-00

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

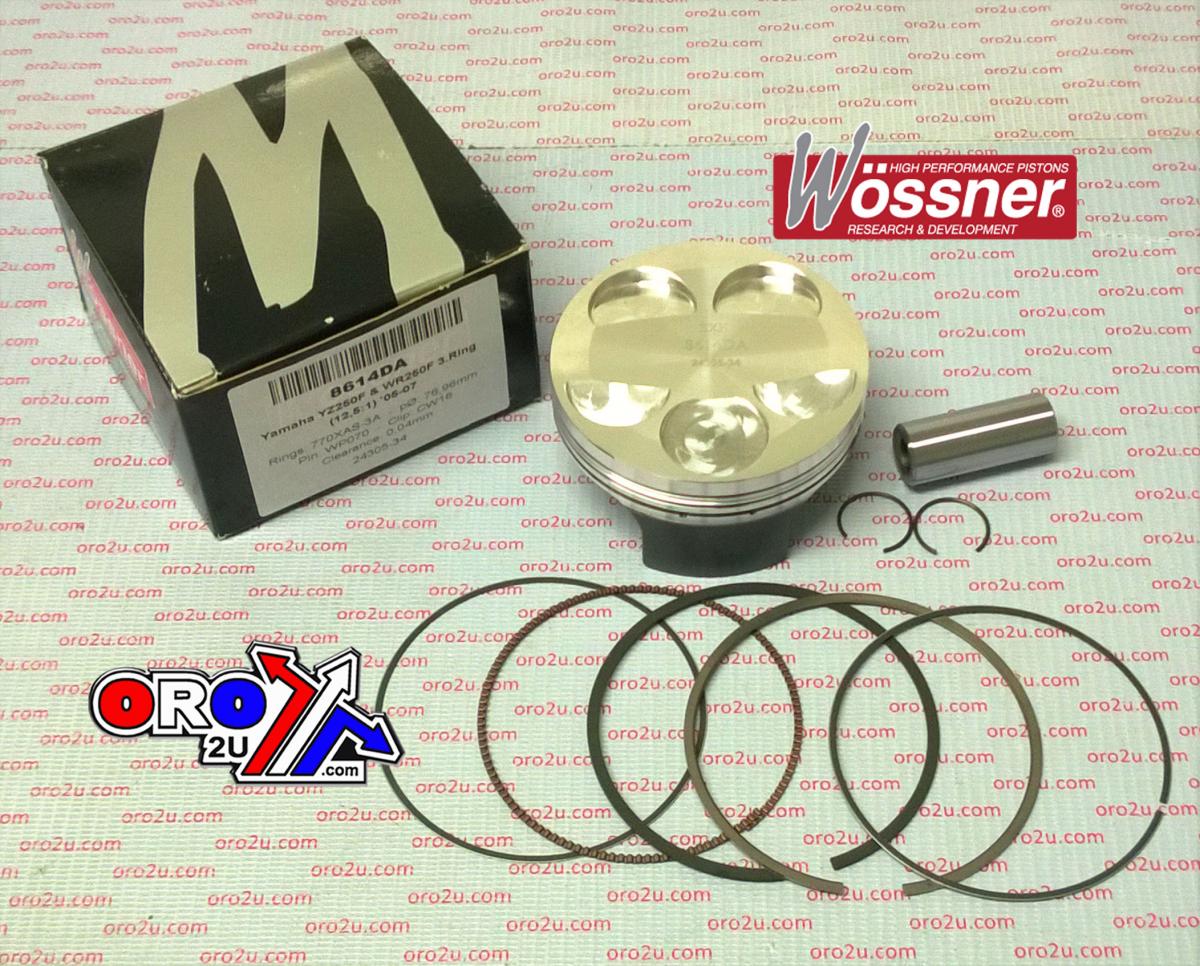

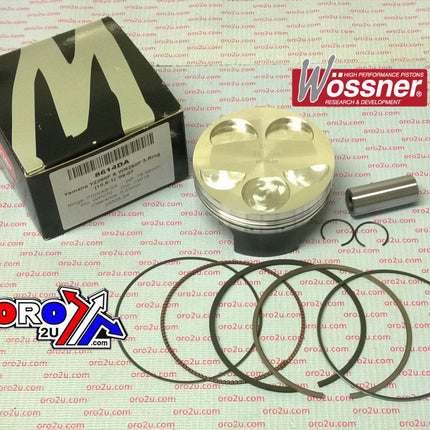

Wossner forged piston kit with a 77mm bore, designed for Yamaha WR250F, YZ250F, and Gas Gas EC250F models. This three-ring piston is engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

Forged piston for superior strength and design
Three-ring design for enhanced sealing and durability
Optimized heat transfer to cylinder walls
Elliptical design for uniform bearing surface and even thrust load distribution
Manufactured in Germany

Specifications

Bore: 77mm
Standard size piston (PN# 8614DA)
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS
Displacement: 249 cm³
Stroke: 53.6mm
Clearance: 0.04mm
Wossner Compression Ratio: OEM
OEM Compression Ratio: 12.50:1
Dome Volume: -4.50 cm³
Compression Height: 22.20mm

Cross-Reference OEM Part Numbers

5NL-11631-20-00

Vehicle Fitments

Yamaha WR250F (2005-2007)
Yamaha YZ250F (2005-2007)
Gas Gas EC250F (2010-2015)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GAS-GAS	EC F 250	2010-2015
YAMAHA	WRF 250	2005-2013
YAMAHA	YZF 250	2005-2007
YAMAHA	WRF 250	2005-2007

Piston Kit 05-07 YZF250 77mm, Wossner 8614DA 3-RING, 5NL-11631-20-00

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 77mm bore, designed for Yamaha WR250F, YZ250F, and Gas Gas EC250F models. This three-ring... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W189+00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 77mm bore, designed for Yamaha WR250F, YZ250F, and Gas Gas EC250F models. This three-ring piston is engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

Forged piston for superior strength and design
Three-ring design for enhanced sealing and durability
Optimized heat transfer to cylinder walls
Elliptical design for uniform bearing surface and even thrust load distribution
Manufactured in Germany

Specifications

Bore: 77mm
Standard size piston (PN# 8614DA)
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS
Displacement: 249 cm³
Stroke: 53.6mm
Clearance: 0.04mm
Wossner Compression Ratio: OEM
OEM Compression Ratio: 12.50:1
Dome Volume: -4.50 cm³
Compression Height: 22.20mm

Cross-Reference OEM Part Numbers

5NL-11631-20-00

Vehicle Fitments

Yamaha WR250F (2005-2007)
Yamaha YZ250F (2005-2007)
Gas Gas EC250F (2010-2015)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GAS-GAS	EC F 250	2010-2015
YAMAHA	WRF 250	2005-2013
YAMAHA	YZF 250	2005-2007
YAMAHA	WRF 250	2005-2007
