Name: Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DA 13001-0073
Brand: Wossner
SKU: 56-W303.A.WO

Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DA 13001-0073

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

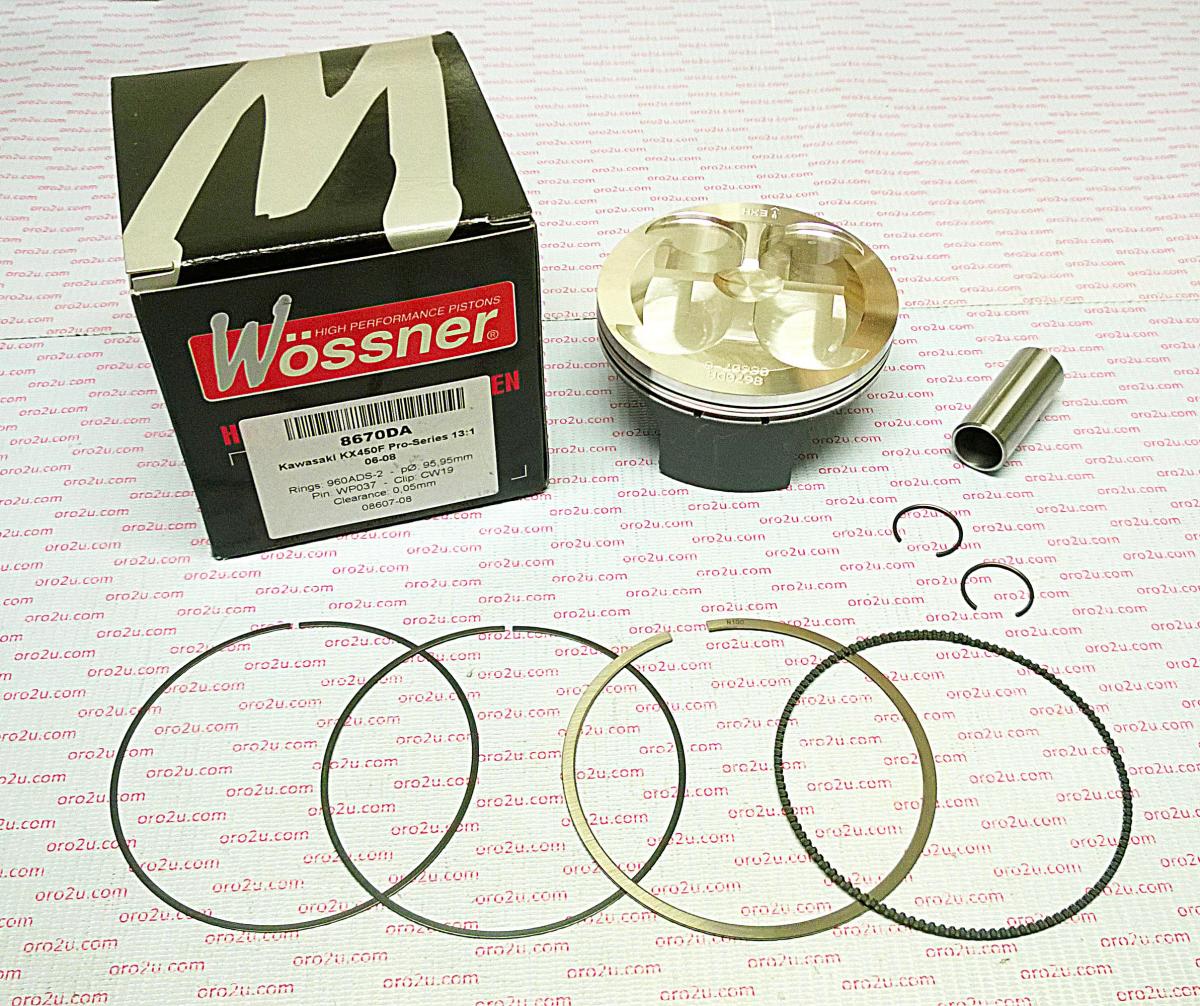

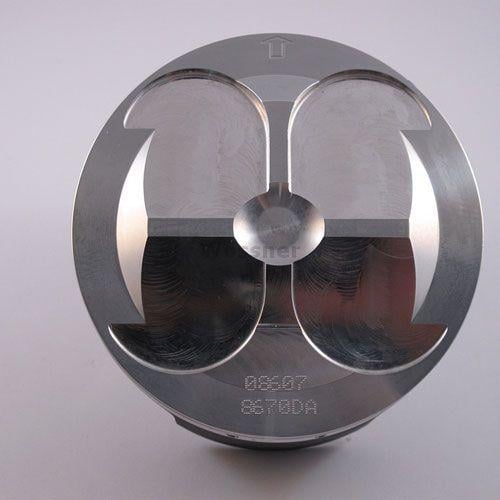

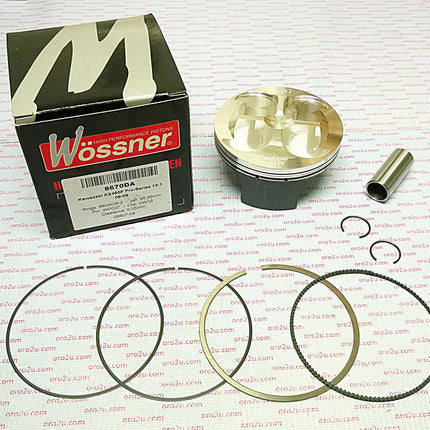

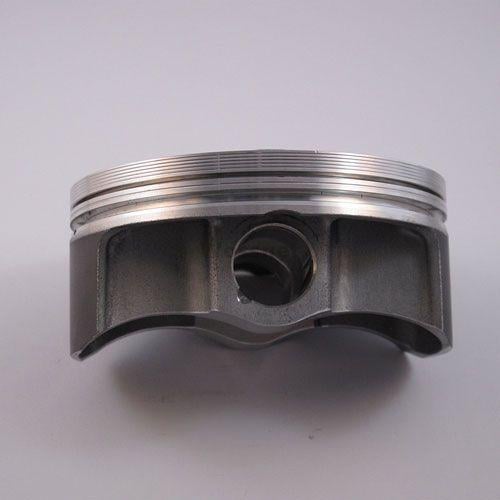

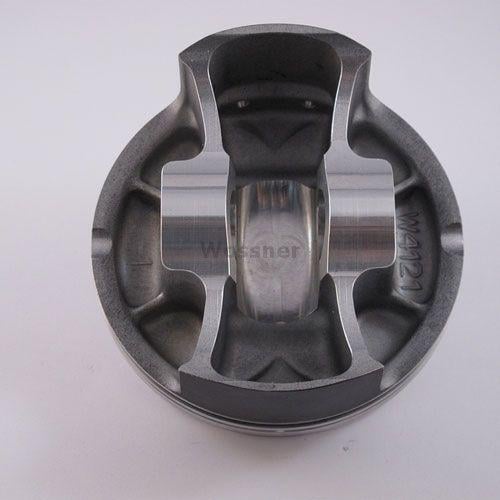

Wossner forged high-compression piston kit with a 96mm bore (95.95mm) for Kawasaki KX450F (2005-2008) and KLX450R (2008-2020). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 96mm (95.95mm)
Compression Ratio: 13.0:1
Part Number: 8670DA
Lock Part Number: CW19
Pin Part Number: WP028
Ring Set Part Number: 960ADS-2
Rod Part Number: P4010
Displacement: 250 cm³
Stroke: 62.10mm
Clearance: 0.05mm
OEM Compression Ratio: 12.0:1
Dome Volume: +5.60 cm³
Compression Height: 23.60mm

Cross-Reference OEM Part Numbers

13001-0073
4901M09600

Vehicle Fitments

Kawasaki KX450F (2005-2008)
Kawasaki KLX450R (2008-2020)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 450	2006-2008
KAWASAKI	KLX R 450	2008-2020

Piston Kit 05-08 KXF450 Hc 96, Forged Wossner 8670DA 13001-0073

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged high-compression piston kit with a 96mm bore (95.95mm) for Kawasaki KX450F (2005-2008) and KLX450R (2008-2020). Designed for superior... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W303.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged high-compression piston kit with a 96mm bore (95.95mm) for Kawasaki KX450F (2005-2008) and KLX450R (2008-2020). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 96mm (95.95mm)
Compression Ratio: 13.0:1
Part Number: 8670DA
Lock Part Number: CW19
Pin Part Number: WP028
Ring Set Part Number: 960ADS-2
Rod Part Number: P4010
Displacement: 250 cm³
Stroke: 62.10mm
Clearance: 0.05mm
OEM Compression Ratio: 12.0:1
Dome Volume: +5.60 cm³
Compression Height: 23.60mm

Cross-Reference OEM Part Numbers

13001-0073
4901M09600

Vehicle Fitments

Kawasaki KX450F (2005-2008)
Kawasaki KLX450R (2008-2020)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 450	2006-2008
KAWASAKI	KLX R 450	2008-2020
