Name: Piston Kit 05-09 KX250 66.40 A, Wossner 8168DA Kawasaki MX 13001-0058
Brand: Wossner
SKU: 56-W844.A.WO
Price: 160.18 GBP
Availability: InStock

Piston Kit 05-09 KX250 66.40 A, Wossner 8168DA Kawasaki MX 13001-0058

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

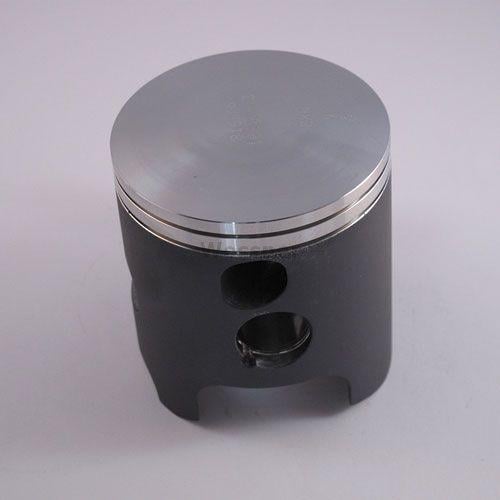

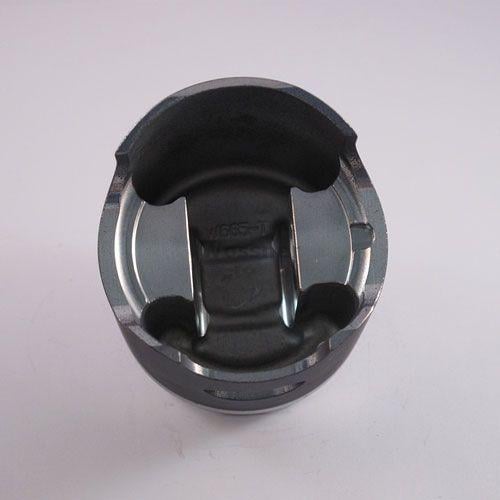

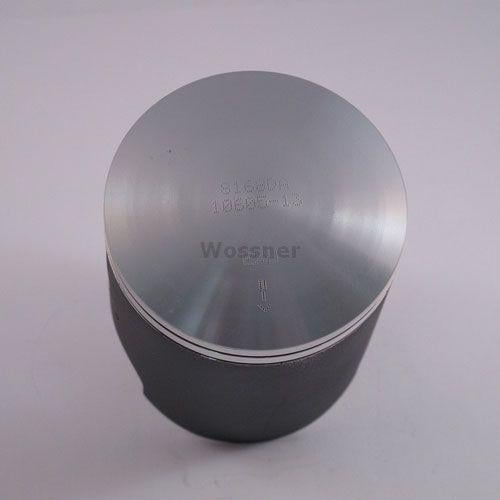

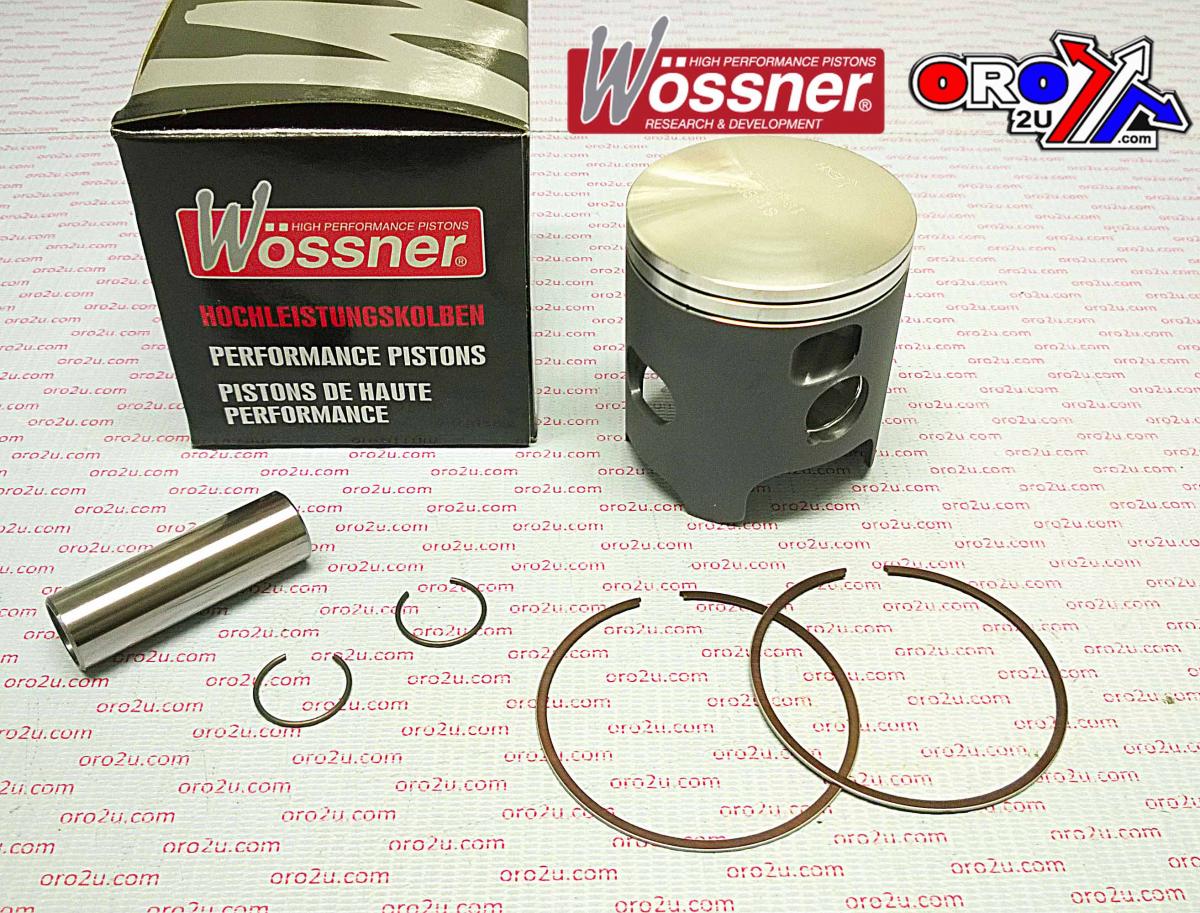

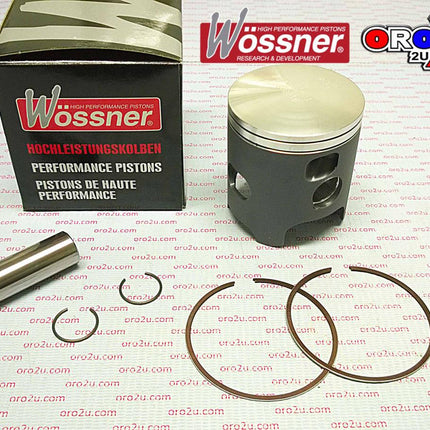

The Wossner 8168DA piston kit is a standard-size forged piston specifically engineered for the Kawasaki KX250 from 2005 to 2008. With a 66.40mm bore and 66.34mm piston diameter, this piston is designed for maximum strength and optimal heat transfer in two-stroke engines. Its elliptical design provides a uniform bearing surface under thermal expansion, reducing localised stress and preventing piston collapse. Manufactured in Germany, this piston ensures long-lasting, reliable performance.

Features

Forged construction delivers superior strength and durability
Designed for efficient heat transfer from combustion chamber to cylinder wall
Elliptical piston shape ensures uniform expansion and balanced load distribution
Precision-manufactured in Germany

Specifications

Bore: 66.40 mm
Piston Diameter: 66.34 mm
Display Displacement: 249 cm³
Stroke: 72.00 mm
Piston Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio (Wossner and OEM): 2-stroke
Lock Part Number: CW18
Pin Part Number: WP033
Ring Set Part Number: RSB6640 x 2

Cross-Reference OEM Part Numbers

13001-0058
09104860
843M06640

Vehicle Fitments

2005 Kawasaki KX250
2006 Kawasaki KX250
2007 Kawasaki KX250
2008 Kawasaki KX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	2005-2008
KTM	SX 250	2003-2016
YAMAHA	YZ 250	2002-2019
SUZUKI	RM 250	2003-2010
KAWASAKI	KX 250	2005-2009
